Tikka T3x TAC A1 spare parts
Tikka T3x TAC A1 Parts Guide
Use the exploded diagrams and exact position tables to find the correct Tikka spare part.

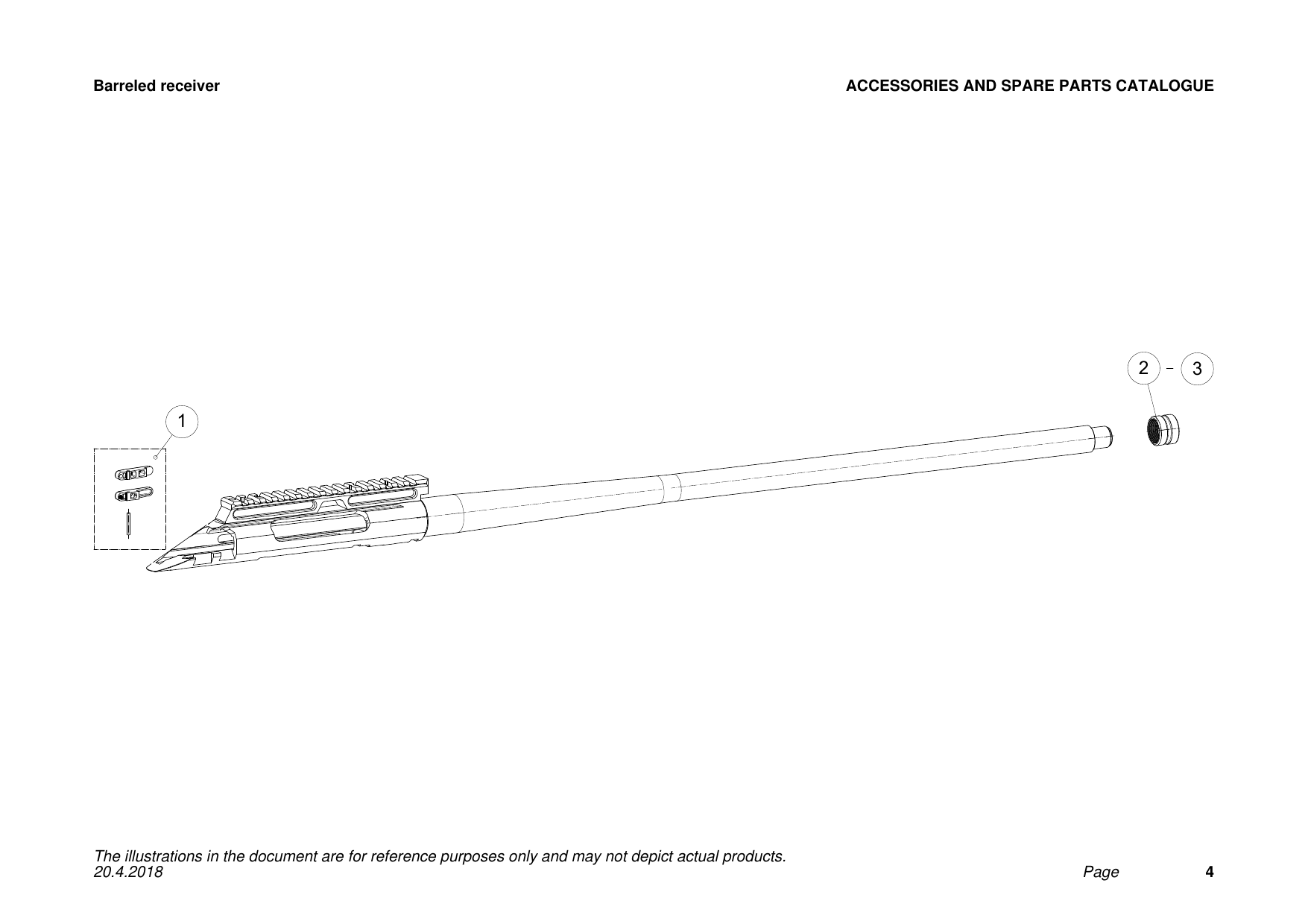

Barreled receiver
Use this exploded view with the matching position and part-code table below.
Barreled receiver parts
| Position | Tikka Code | Stock | Description & Product Link |
|---|---|---|---|
| 1 | S54065176 | ||
| 2 | S574T405 | ||
| 3 | S54065087 |

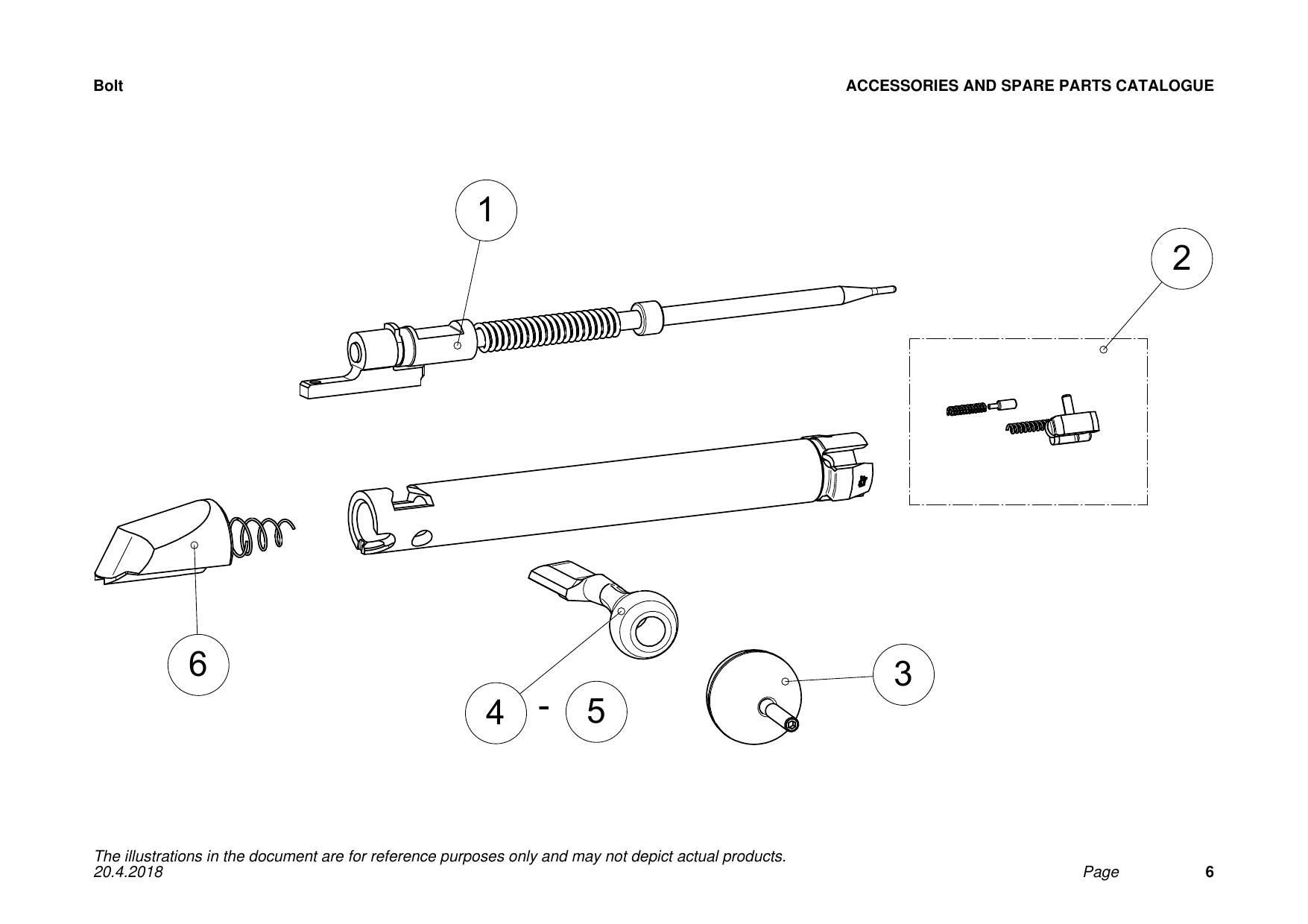

Bolt
Use this exploded view with the matching position and part-code table below.
Bolt parts
| Position | Tikka Code | Stock | Description & Product Link |
|---|---|---|---|
| 1 | S5850155 | ||
| 2 | S5850240 | ||
| 3 | S585T249 | ||
| 4 | S5850246 | Not Available | Bolt handle, black/teflon |
| 5 | S54269743 | ||
| 6 | S54065177 |

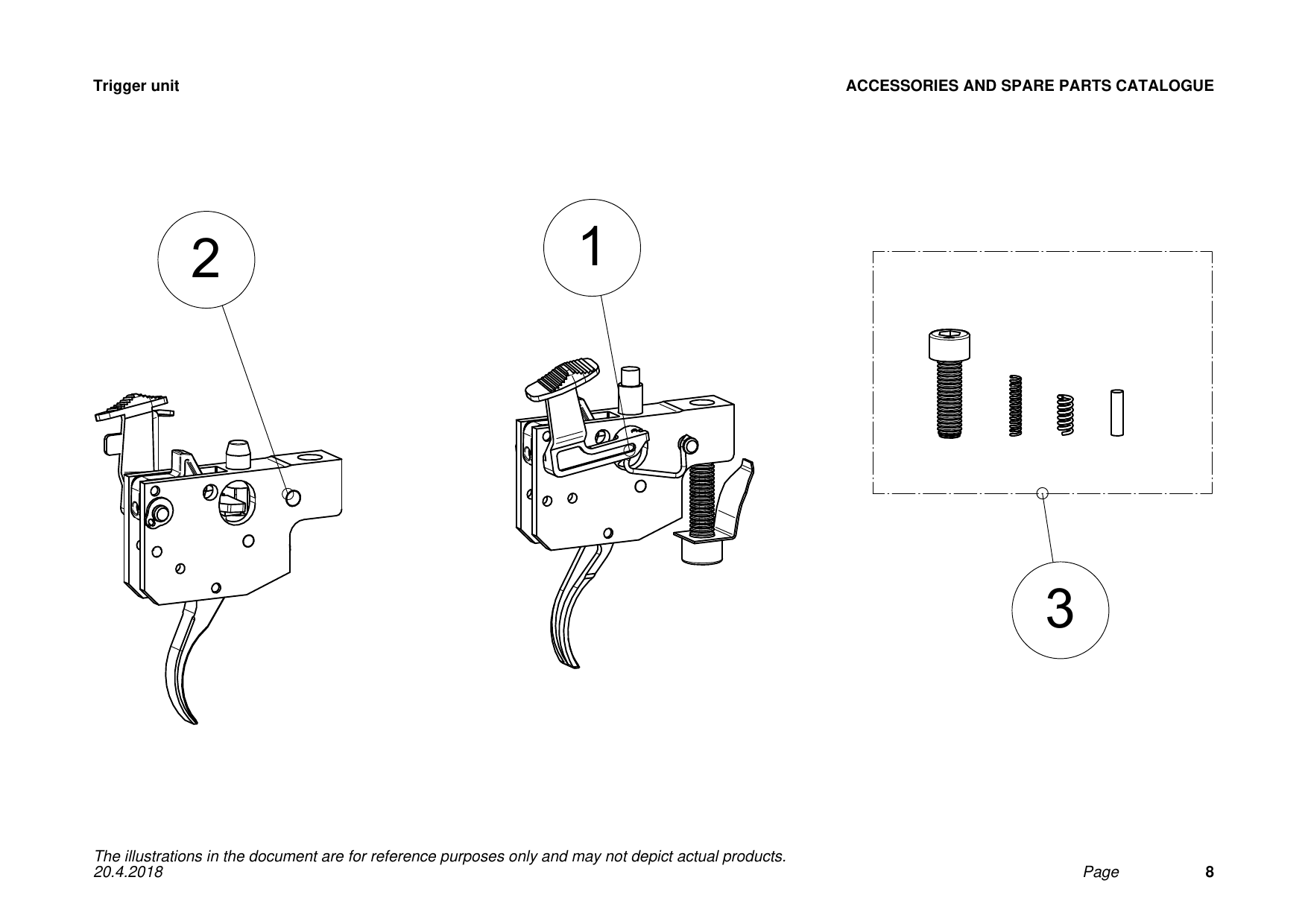

Trigger unit
Use this exploded view with the matching position and part-code table below.
Trigger unit parts
| Position | Tikka Code | Stock | Description & Product Link |
|---|---|---|---|
| 1 | S54069742 | ||
| 2 | S540203672 | ||
| 3 | S584T210 | Not Available | Trigger spring set |

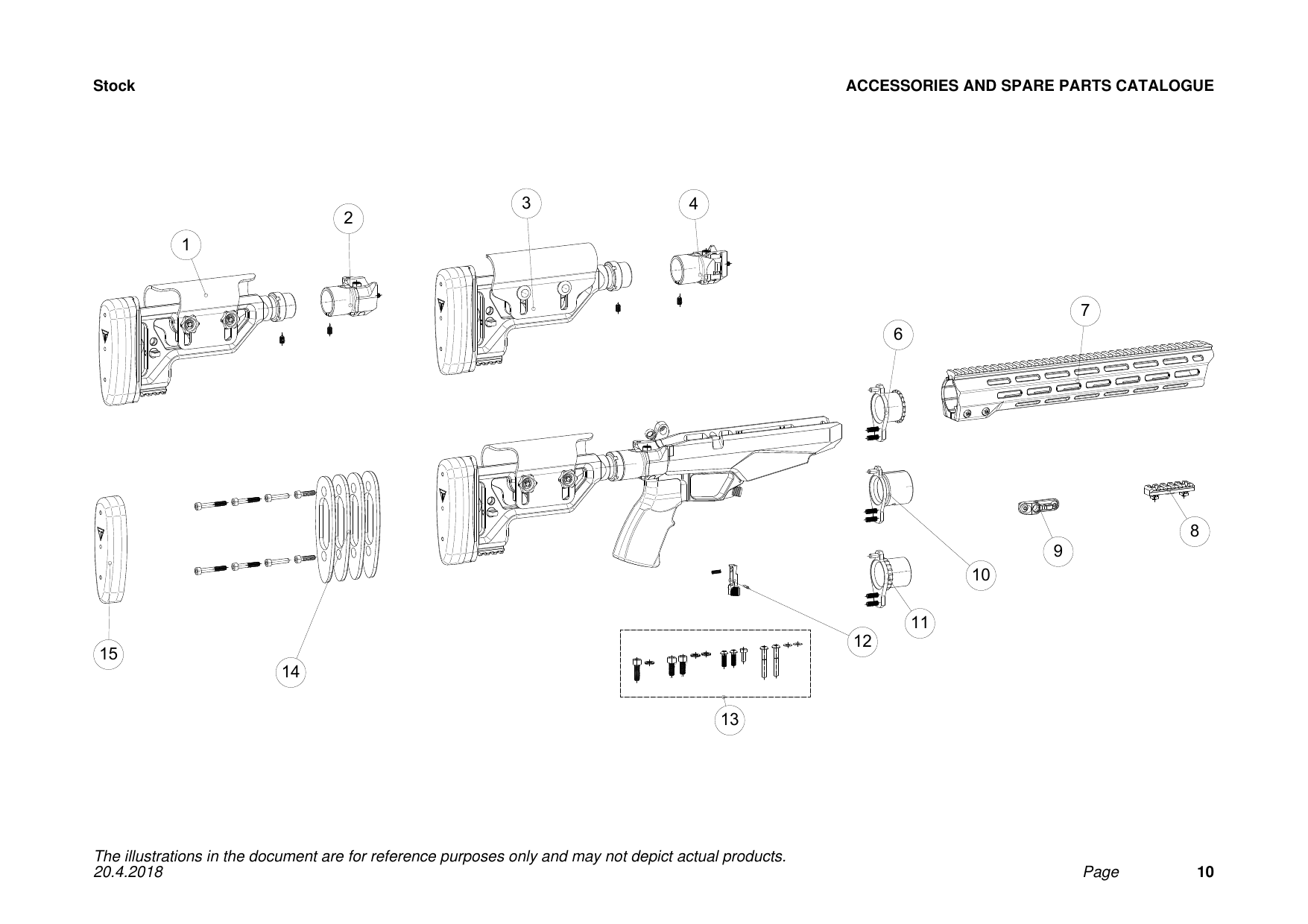

Stock
Use this exploded view with the matching position and part-code table below.
Stock parts
| Position | Tikka Code | Stock | Description & Product Link |
|---|---|---|---|
| 1 | S541203609 | Not Available | Buttstock assembly |
| 2 | S541203613 | Not Available | Folding hinge assembly |
| 3 | S542203614 | Not Available | Buttstock assembly |
| 4 | S542203615 | Not Available | Folding hinge assembly |
| 5 | S541203140 | ||
| 6 | S540200485 | ||
| 7 | S540203513 | ||
| 8 | S540200309 | Not Available | M-LOK accessory rail |
| 9 | S540201130 | Not Available | Sling swivel socket |
| 10 | S540203499 | Not Available | Handguard fastener assembly |
| 11 | S540200493 | Not Available | Handguard fastener assembly |
| 12 | S540203610 | ||
| 13 | S540203183 | ||
| 14 | S5740908 | ||
| 15 | S540203675 |

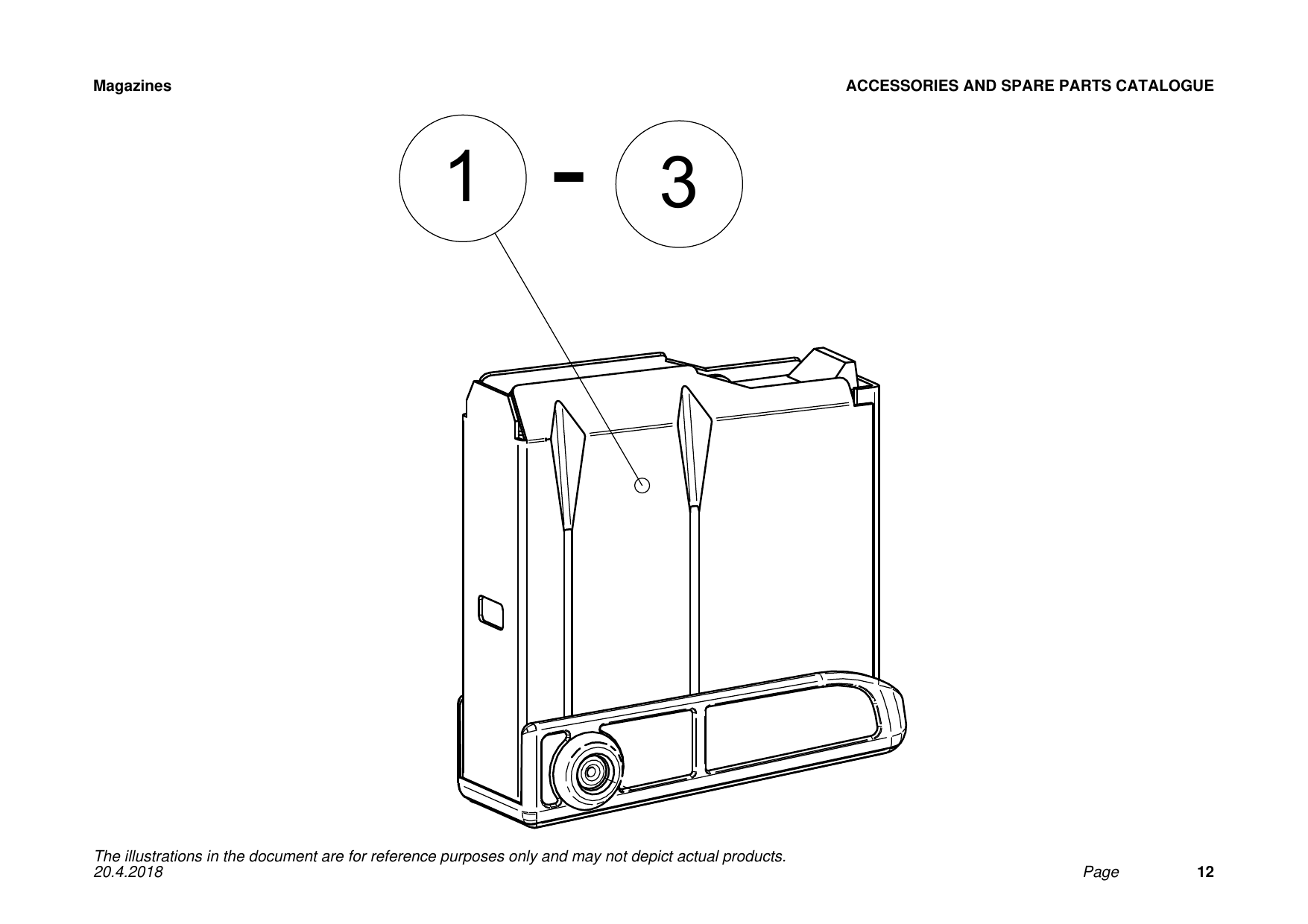

Magazines
Use this exploded view with the matching position and part-code table below.
Magazines parts
| Position | Tikka Code | Stock | Description & Product Link |
|---|---|---|---|
| 1 | S54065122 | ||
| 2 | S540203677 | ||
| 3 | S57465173 |

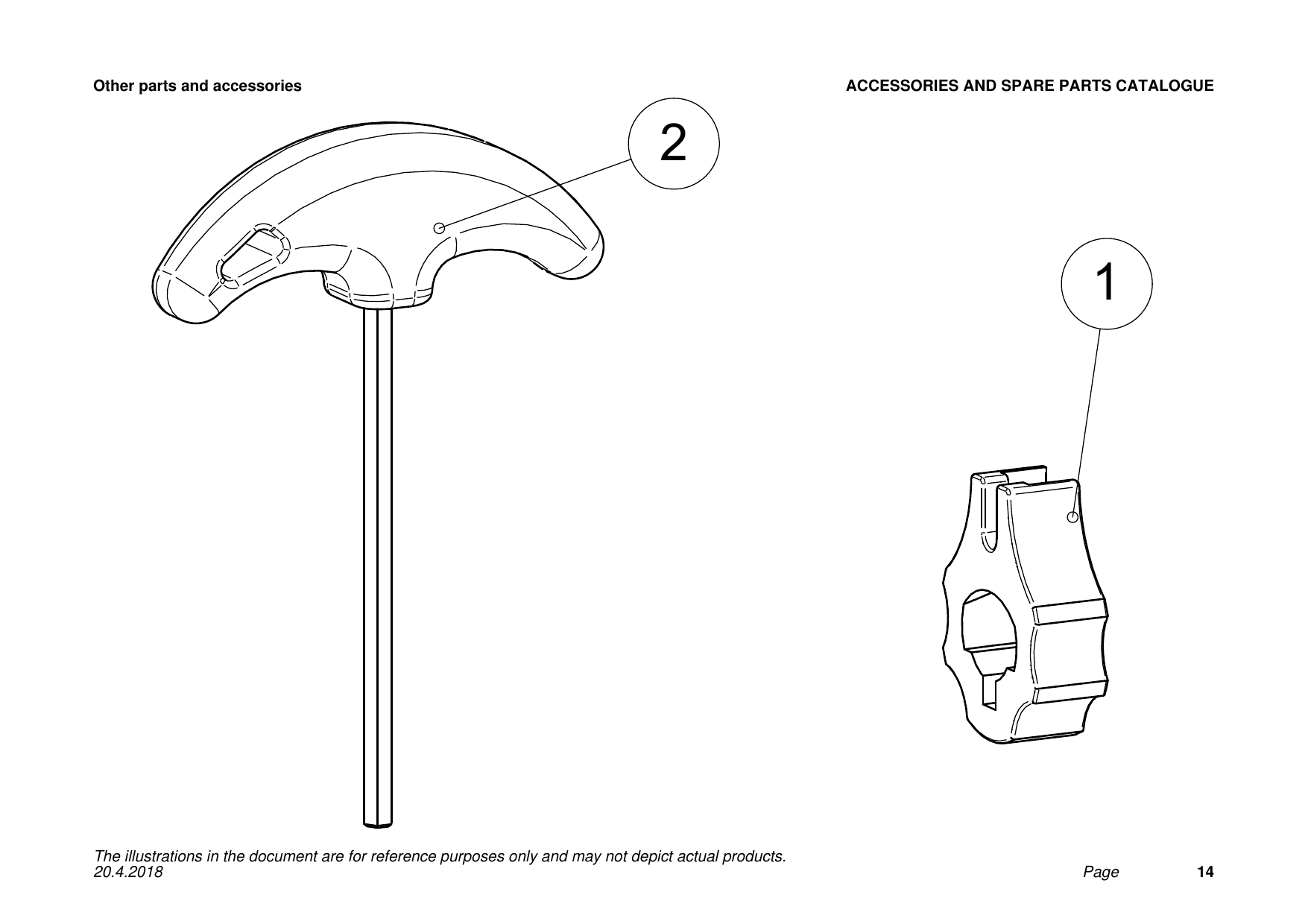

Other parts and accessories
Use this exploded view with the matching position and part-code table below.
Other parts and accessories parts
| Position | Tikka Code | Stock | Description & Product Link |
|---|---|---|---|
| 1 | S5850900 | ||
| 2 | S540204346 | Not Available | Allen key, 5mm |

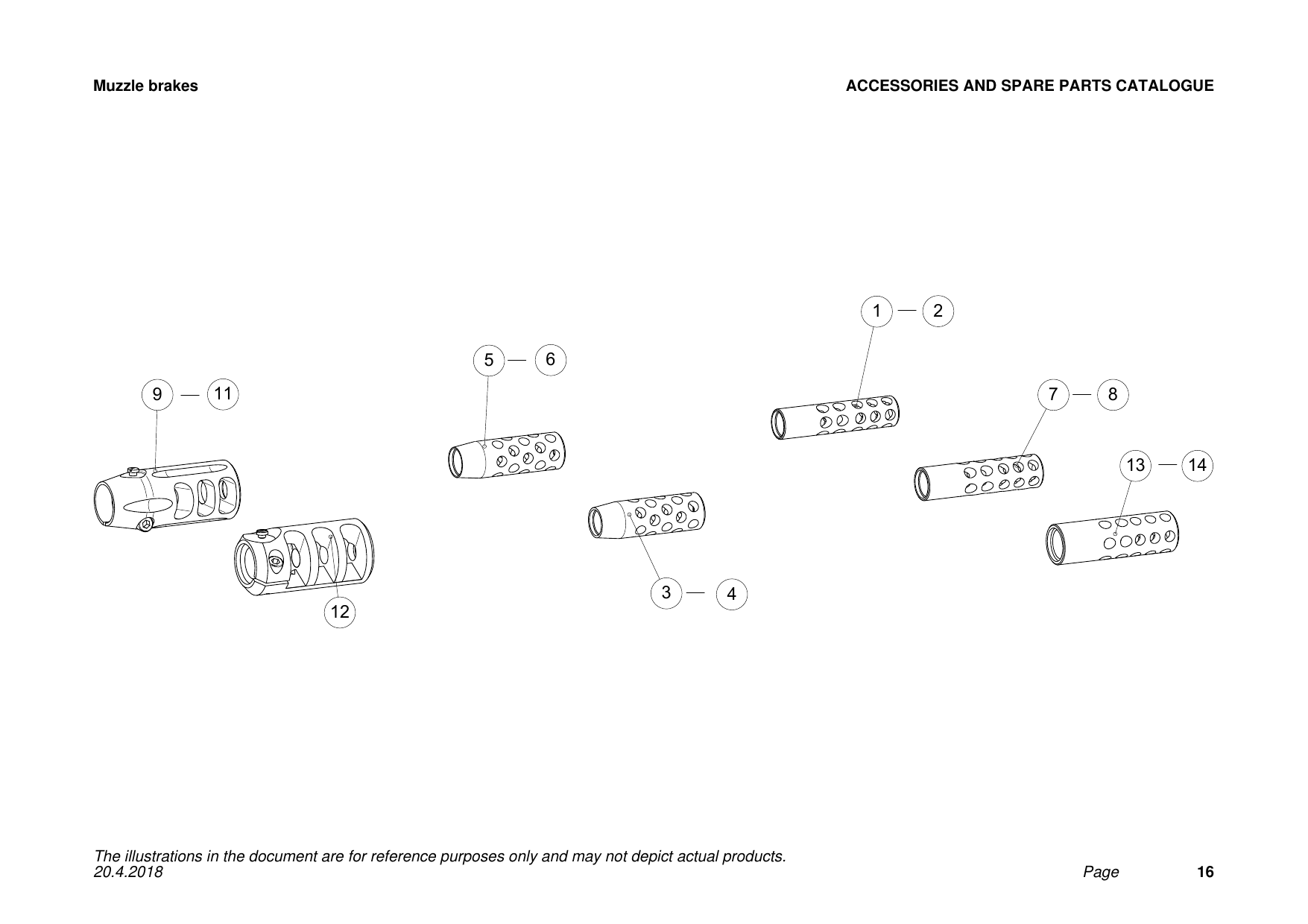

Muzzle brakes
Use this exploded view with the matching position and part-code table below.
Muzzle brakes parts
| Position | Tikka Code | Stock | Description & Product Link |
|---|---|---|---|
| 1 | S530203976 | Not Available | Muzzle brake, slim |
| 2 | S530203974 | Not Available | Muzzle brake, slim |
| 3 | S54063159 | Not Available | Muzzle brake, conical |
| 4 | S54063160 | ||
| 5 | S54063157 | Not Available | Muzzle brake, conical |
| 6 | S54063161 | Not Available | Muzzle brake, conical |
| 7 | S54067687 | Not Available | Muzzle brake, slim |
| 8 | S54067685 | Not Available | Muzzle brake, slim |
| 9 | S54065100 | ||
| 10 | S54065103 | Not Available | Muzzle brake, TAC conical |
| 11 | S57469748 | ||
| 12 | S5740412 | ||
| 13 | S530203637 | Not Available | Muzzle brake, slim |
| 14 | S530204345 | Not Available | Muzzle brake, slim |
Need help finding a part?
Send us the guide name, diagram section and position number.
