Beretta A400 Xtreme Plus LH 12G Parts Guide
4 exploded diagrams, exact Beretta codes and linked spare parts for Beretta A400 Xtreme Plus LH 12G.

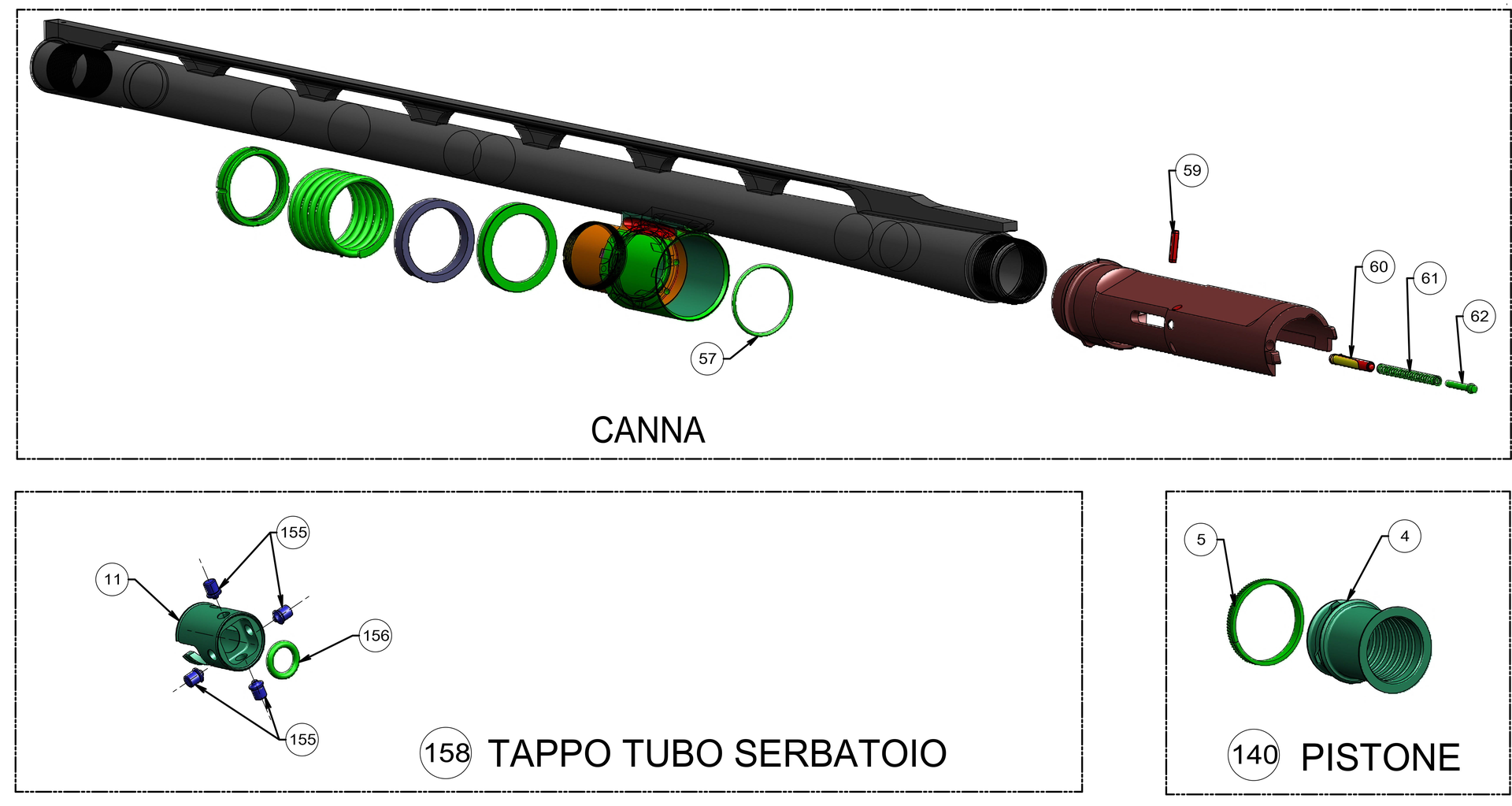

Barrel
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 11 | C5E591 | Not Available | FRONT PLUG QUICK DETACHMENT A400 XTREME GA 12 |
| 140 | |||
| 155 | C5E592 | Not Available | PIN PLUG QUICK ATTACHMENT A400 XTREME GA 12 |
| 156 | |||
| 158 | C8A487 | Not Available | MAGAZINE PLUG ASSEMBLY 12 GA A400 XTREME UNICO |
| 4 | |||
| 5 | |||
| 57 | |||
| 59 | C92287 | Not Available | EJECTOR SPRING A400 |
| 60 | |||
| 61 | |||
| 62 | |||
| 621 | C9A004 | Not Available | VALVE SPRING |

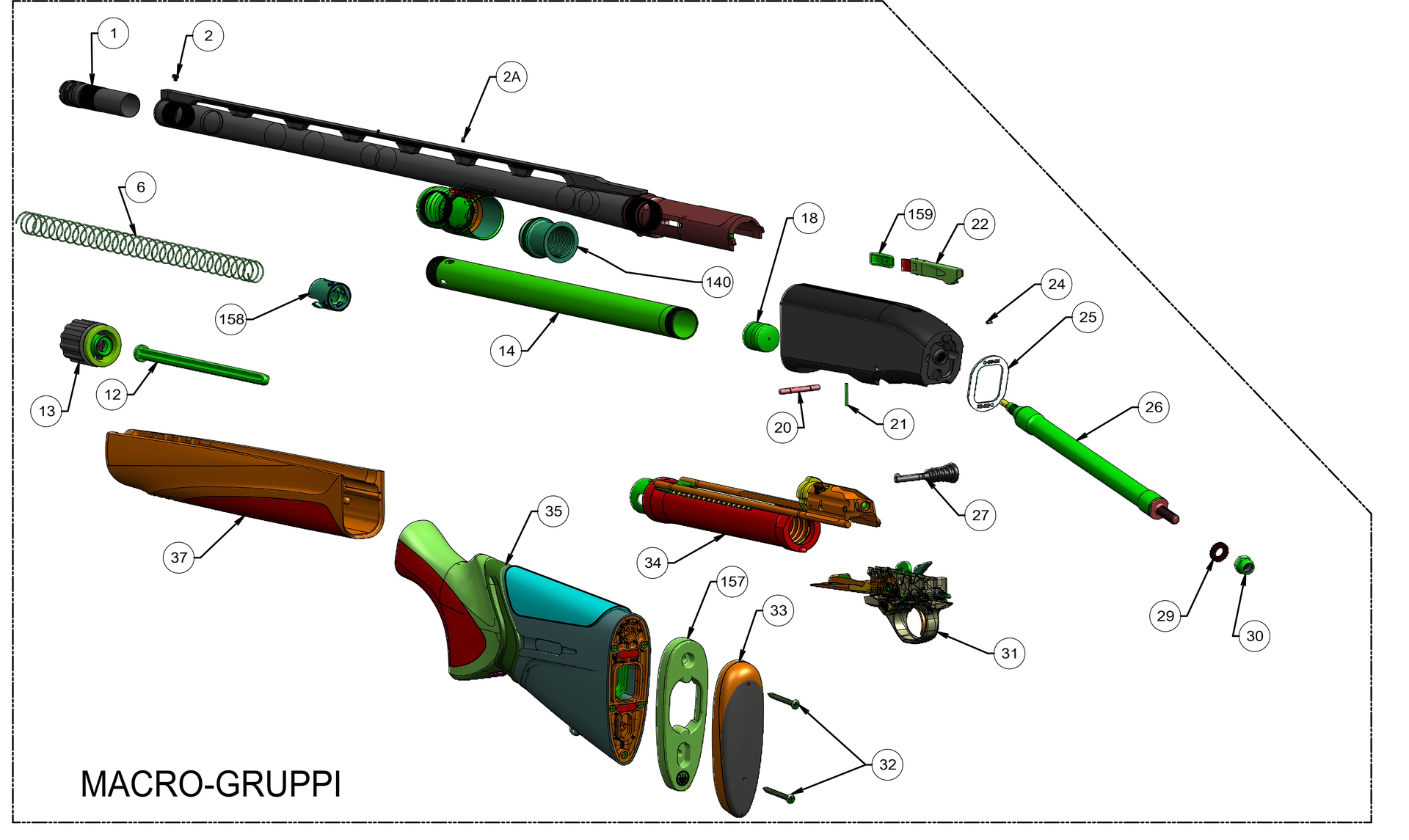

Main parts
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 1 | |||
| 2 | |||
| 12 | C5E597C5E598 | Not Available Not Available | REDUCER 1 SHOT A400 XTREME GA 12 REDUCER 2 ROUNDS QUICK DETATCH FOR A400 XTREME GA 12 |
| 13 | C8C491 | Not Available | FRONT PLUG WITH QUICK DETATCH CAMO MOSSY OAK BOTTOM LAND FINISH - A400 XTREME PLUS GA 12 3,5 |
| 14 | |||
| 140 | |||
| 157 | C5E610C5E615 | Not Available Not Available | SPACER 25mm THICK - FIELD STOCKS SPACER 12,5mm THICK - FIELD STOCKS |
| 158 | C8A487 | Not Available | MAGAZINE PLUG ASSEMBLY 12 GA A400 XTREME UNICO |
| 20 | |||
| 21 | |||
| 24 | |||
| 25 | |||
| 26 | |||
| 27 | C7A702 | Not Available | OVERSIZED COCKING HANDLE WITH CARBON HANDLE COVER FOR SERIE 1301 AND SERIE A400 GA 12 GA 20 |
| 29 | |||
| 30 | |||
| 31 | C8E098C8E099C8E100 | Not Available Not Available Not Available | TRIGGER GROUP A400 XTREME PLUS MY 2018 LEFT HAND LH SX GA 12 3.5" BLACK SYNTHETIC LONG ELEVATOR TRIGGER GROUP A400 XTREME PLUS MY 2018 LEFT HAND LH SX GA 12 3.5" CAMO MAX5 LONG ELEVATOR TRIGGER GROUP A400 XTREME PLUS MY 2018 LEFT HAND LH SX GA 12 3.5" MOSSY OAK BOTTOM LAND LONG ELEVATOR |
| 32 | |||
| 33 | C7C097C7C098C7C099 | Not Available Not Available Not Available | EXTRALIGHT HUNTING PAD - H. 10mm EXTRALIGHT HUNTING PAD - H. 15mm EXTRALIGHT HUNTING RECOIL PAD - H. 20mm |
| 34 | C8D874 | Not Available | BOLT BREECH ASSY BLK |
| 35 | C8E039C8E040C8E041C8L277C8L278 | Not Available Not Available Not Available Not Available Not Available | STOCK WITH KICK OFF CAMOUFLAGE CAMO MOSSY OAK FOR A400 XTREME PLUS LEFT HANDED SX GA 12 STOCK PISTOL GRIP WITH KICK OFF KO CAMO CAMOUFLAGE MAX 5 - A400 XTREME PLUS LEFT HANDED LH GA 12 STOCK PISTOL GRIP 38/60 SYNTHETIC BLACK FINISH - A400 XTREME PLUS GA 12 STOCK PISTOL GRIP WITH KICK-OFF CAMO CACHE - A400 XTREME PLUS LEFT HAND LH SX GA 12 STOCK PISTOL GRIP WITH KICK-OFF CAMO TYPHA - A400 XTREME LEFT HAND LH SX GA 12 |
| 37 | C5E920C5F487C5F660C5G252C5S533C5S534 | Not Available Not Available Not Available Not Available Not Available Not Available | FORE-END SYNTHETIC CAMO OPTIFADE FINISH12 GA A400 XTREME FORE-END CAMO MAX 5 FINISH 12 GA A400 XTREME FOREND MOSSY OAK SHADOW GRAS BLADE A400 XTREME GA 12 FOREND SYNTHETIC CAMO MOSSY OAK BOTTOMLAND A400 XTREME GA 12 3.5" FOREND CAMO CACHE - A400 XTREME PLUS GA 12 FOREND CAMO TYPHA - A400 XTREME PLUS GA 12 |
| 371 | |||
| 3711 | |||
| 37111 |

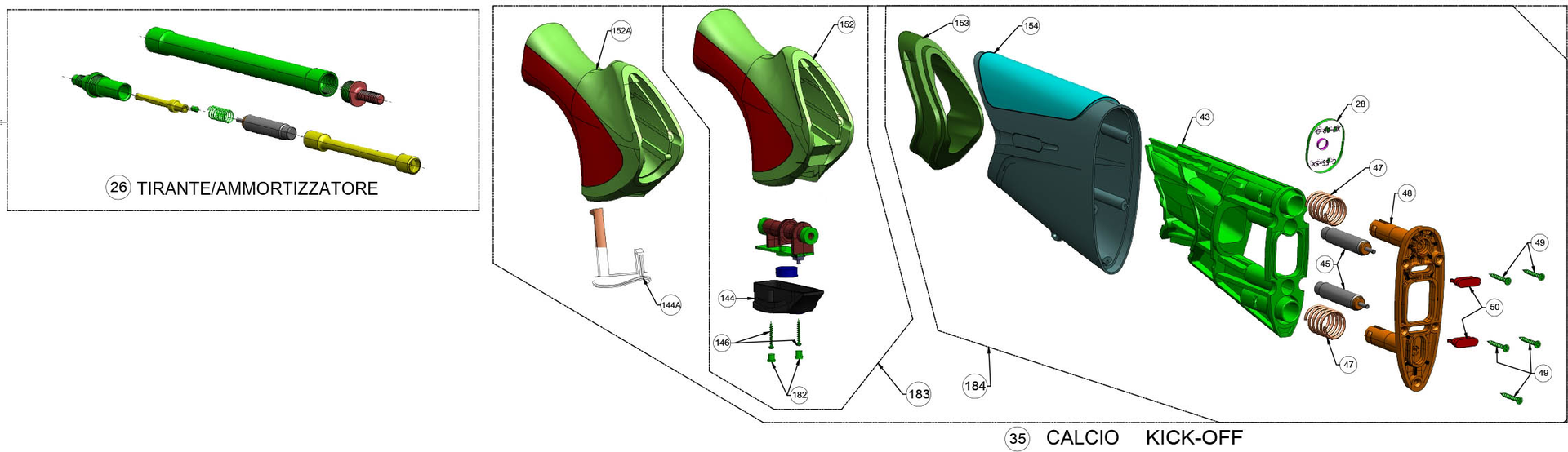

Stock
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 146 | C97253 | Not Available | SCREW 2,9X25 |
| 152A | C5E554C5F481 | Not Available Not Available | PISTOL GRIP NO GUN POD BLACK SYNTHETIC A400 XTREME PLUS GA 12 STOCK PISTOL GRIP NO GUN POD CAMO MAX5 A400 XTREME PLUS GA 12 |
| 153 | |||
| 154 | C7A541 | Not Available | STOCK SYNTHETIC CAMO MOSSY OAK BOTTOMLAND A400XTREME MODEL YEAR 18 |
| 182 | C5F009 | Not Available | SCREW COVER, GUN POD - A400 LITE GA 12 |
| 183 | C8C450C8C458C8C459C8C526C8E032 | Not Available Not Available Not Available Not Available Not Available | PISTOL GRIP ASSY SYNTHETIC BLACK WITH GUN POD 2 FOR A400 XTREME PLUS GA 12 PISTOL GRIP ASSY CAMO MAX 5 WITH GUN POD 2 FOR A400 XTREME PLUS GA 12 PISTOL GRIP ASSY CAMO OPTIFADE WITH GUN POD 2 FOR A400 XTREME PLUS GA 12 PISTOL GRIP ASSY CAMO MOSSY OAK WITH GUN POD 2 FOR A400 XTREME PLUS GA 12 PISTOL GRIP ASSY CAMO OPIFADE TIMBER WITH GUN POD 2 FOR A400 XTREME PLUS GA 12 |
| 184 | C8E028C8E029C8E030 | Not Available Not Available Not Available | PALA CLC CMP LH/SX+GNC NERA A400XTREME PLUS LH/SX NERO STOCK REAR HALF LEFT HANDED LH SX CAMO MAX5 - A400XTREME PLUS GA 12 STOCK REAR HALF LEFT HANDED LH SX CAMO MOSSY OAK - A400XTREME PLUS GA 12 |
| 26 | |||
| 28 | |||
| 35 | C8E039C8E040C8E041C8L277C8L278 | Not Available Not Available Not Available Not Available Not Available | STOCK WITH KICK OFF CAMOUFLAGE CAMO MOSSY OAK FOR A400 XTREME PLUS LEFT HANDED SX GA 12 STOCK PISTOL GRIP WITH KICK OFF KO CAMO CAMOUFLAGE MAX 5 - A400 XTREME PLUS LEFT HANDED LH GA 12 STOCK PISTOL GRIP 38/60 SYNTHETIC BLACK FINISH - A400 XTREME PLUS GA 12 STOCK PISTOL GRIP WITH KICK-OFF CAMO CACHE - A400 XTREME PLUS LEFT HAND LH SX GA 12 STOCK PISTOL GRIP WITH KICK-OFF CAMO TYPHA - A400 XTREME LEFT HAND LH SX GA 12 |
| 43 | C5E557 | Not Available | INSERT STOCK WITH KICK-OFF A400 LITE - A400 XTREME GA 12 |
| 45 | C5C691 | Not Available | SHOCK ABSORBER FOR KICK-OFF |
| 47 | C95404 | Not Available | SPRING FOR KICK-OFF FOR POLYMER STOCK - A391 XTREMA 2 GA 12 |
| 48 | C5E558 | Not Available | PLATE FOR KICK-OFF SYSNTHETIC STOCK - A391 XTREMA - A391 XTREMA2 - A400 XTREME GA 12 |
| 49 | C97262 | Not Available | SCREW FOR PLASTIC 3X25 |

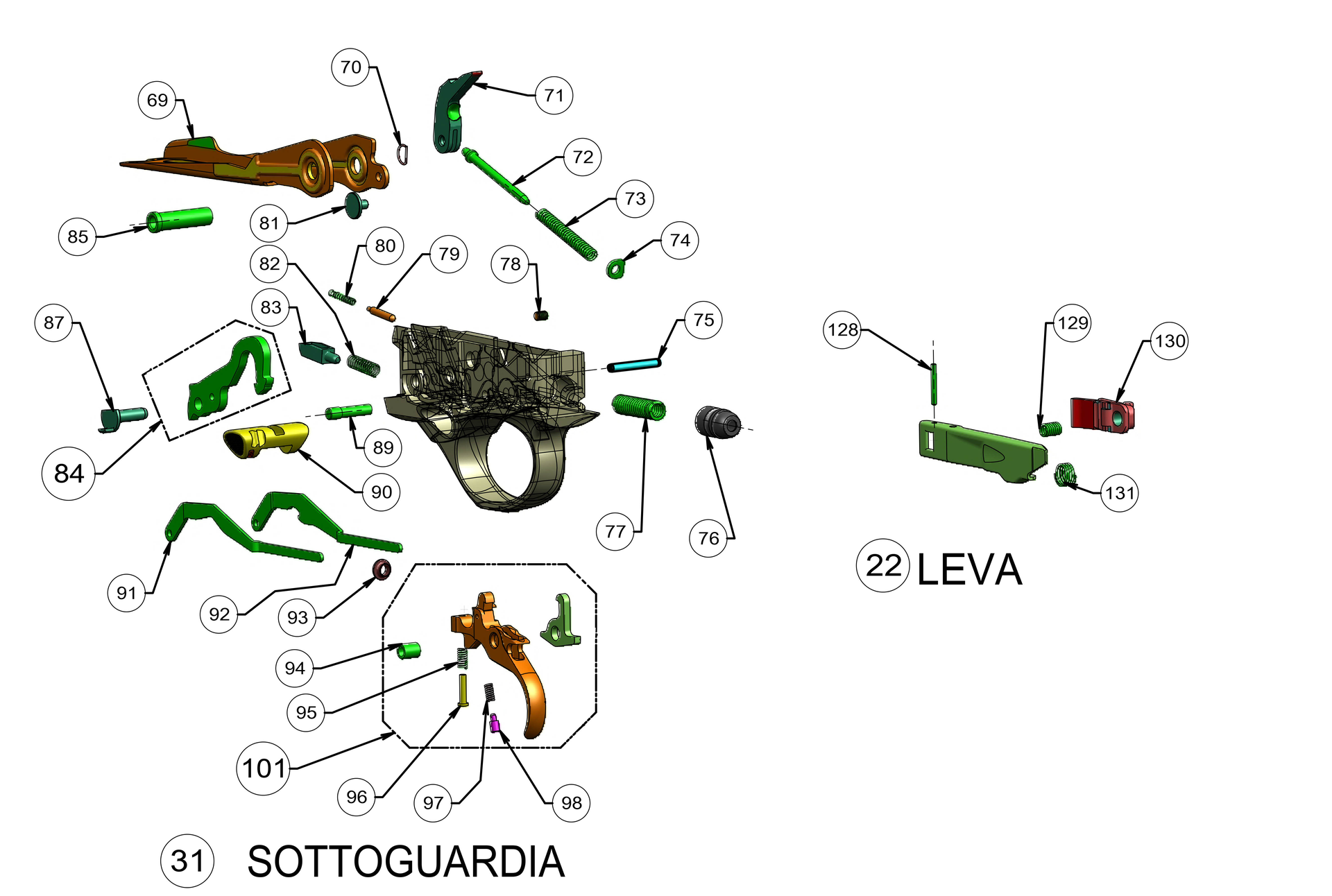

Trigger group
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 101 | |||
| 128 | C92212 | Not Available | CARTRIDGE LATCH LEVER PIN - AL391 URIKA GA 12 AND GA 20 |
| 129 | |||
| 130 | C5G371 | Not Available | CARTRIDGE LATCH WITH HOLD OPEN GA 12 3" AND 3.5" SERIE A400 |
| 131 | |||
| 22 | |||
| 31 | C8E098C8E099C8E100 | Not Available Not Available Not Available | TRIGGER GROUP A400 XTREME PLUS MY 2018 LEFT HAND LH SX GA 12 3.5" BLACK SYNTHETIC LONG ELEVATOR TRIGGER GROUP A400 XTREME PLUS MY 2018 LEFT HAND LH SX GA 12 3.5" CAMO MAX5 LONG ELEVATOR TRIGGER GROUP A400 XTREME PLUS MY 2018 LEFT HAND LH SX GA 12 3.5" MOSSY OAK BOTTOM LAND LONG ELEVATOR |
| 69 | C5H125 | Not Available | ELEVATOR A400 XTREME PLUS 3.5 INCH 12 GA (2017) |
| 70 | |||
| 71 | |||
| 72 | C5D533 | Not Available | ELEVATOR LEVER SPRING GUIDE A400 |
| 73 | |||
| 74 | |||
| 75 | |||
| 76 | C5B992 | Not Available | HAMMER SPRING GUIDE 12 GA A400 |
| 77 | C90380 | Not Available | HAMMER SPRING A400 |
| 78 | C59072 | Not Available | FORE END COVER DOWEL SEMIAUTO GA 12 |
| 79 | |||
| 80 | |||
| 81 | |||
| 82 | C95323 | Not Available | ELEVATOR STOP PIN SPRING A400 |
| 83 | |||
| 84 | C7E421 | Not Available | HAMMER ASSY - AX800 GA 12 / A400L GA 12 |
| 85 | |||
| 87 | C92213 | Not Available | HAMMER PIN |
| 89 | C5F383 | Not Available | TRIGGER PIN A400 ACTION |
| 90 | C5D323 | Not Available | SAFETY AMBIDEXTROUS A400 ACTION, NOVATOR, A400 LITE, A400 XTREME, A400 ACTION LEFT HAND LH SINISTRO SX |
| 91 | |||
| 92 | |||
| 93 | C5D426 | Not Available | HAMMER SPRING BUSH - SERIE A400 GA 12 - 20 / SERIE A300 GA 12 / 20 |
| 94 | C50757 | Not Available | TRIGGER BUSH SEMIAUTO SERIE A300 AL391 A400 VARIOUS VERSIONS |
| 95 | |||
| 96 | C5D697 | Not Available | TRIGGER SPRING GUIDE A400 |
| 97 | |||
| 98 |
