Beretta A400 Xtreme Plus 12G Parts Guide
Use the exploded diagrams and part numbers below to find Beretta A400 Xtreme Plus 12G spares and accessories available from Blue Fieldsports.
Beretta A400 Xtreme Plus 12G exploded diagrams and parts

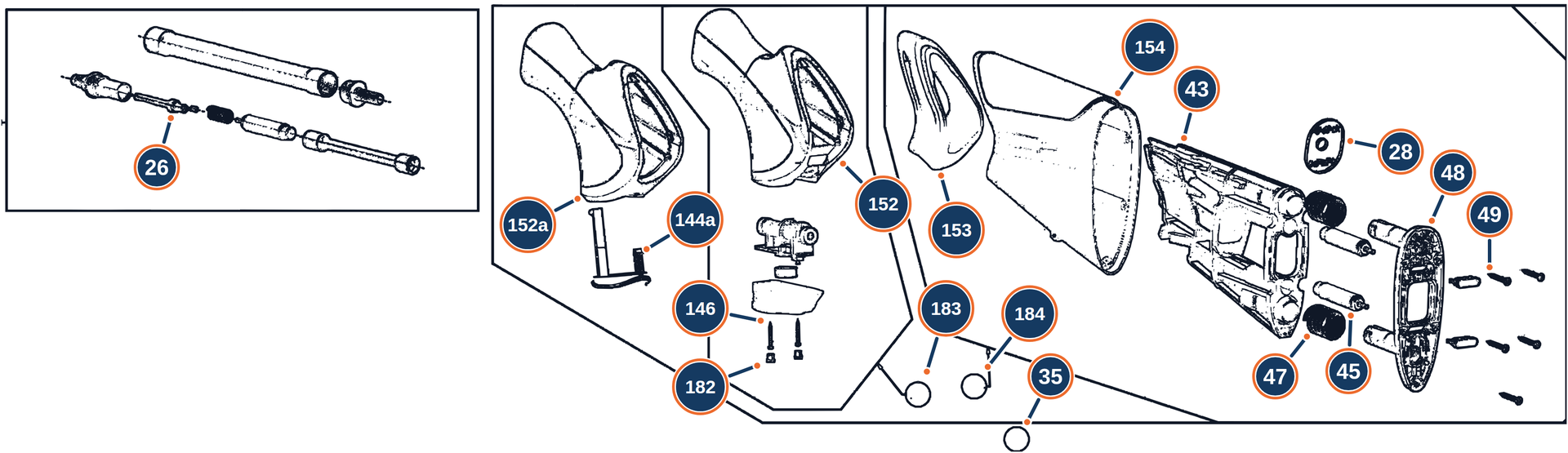

Stock
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 144A | C5E604 | Not Available | STOCK CAP BLACK A400 XTREME GA 12 |
| 146 | C97253 | Not Available | SCREW 2,9X25 |
| 152 | C5F004 | Not Available | PISTOL GRIP GUN POD READY CAMO OPTIFADE A400 XTREME PLUS GA 12 |
| 152A | C5E554C5E921C5F481C5F659C5J560 | Not Available Not Available Not Available Not Available Not Available | PISTOL GRIP NO GUN POD BLACK SYNTHETIC A400 XTREME PLUS GA 12 PISTOL GRIP NO GUN POD CAMO OPTIFADE A400 XTREME PLUS GA 12 STOCK PISTOL GRIP NO GUN POD CAMO MAX5 A400 XTREME PLUS GA 12 STOCK PISTOL GRIP NO GUN POD CAMO MOSSY OAK A400 XTREME PLUS GA 12 STOCK PISTOL GRIP NO GUN POD CAMO OPTIFADE TIMBER A400 XTREME PLUS GA 12 |
| 153 | |||
| 154 | C7A539C7A540C7A541C7A542 | Not Available Not Available Not Available Not Available | STOCK REAR SIDE CAMO OPTIFADE FOR A400 XTREME MY18 GA 12 STOCK SINTHETIC CAMO MOSSY OAK SHADOW REAR PART - A400 XTREME GA 12 MY18 STOCK SYNTHETIC CAMO MOSSY OAK BOTTOMLAND A400XTREME MODEL YEAR 18 STOCK SYNTHETIC CAMO TRUE TIMBER DRT REAR PART - A400 XTREME GA 12 MY18 |
| 182 | C5F009 | Not Available | SCREW COVER, GUN POD - A400 LITE GA 12 |
| 183 | C8C450C8C458C8C459C8C526C8D269C8E032 | Not Available Not Available Not Available Not Available Not Available Not Available | PISTOL GRIP ASSY SYNTHETIC BLACK WITH GUN POD 2 FOR A400 XTREME PLUS GA 12 PISTOL GRIP ASSY CAMO MAX 5 WITH GUN POD 2 FOR A400 XTREME PLUS GA 12 PISTOL GRIP ASSY CAMO OPTIFADE WITH GUN POD 2 FOR A400 XTREME PLUS GA 12 PISTOL GRIP ASSY CAMO MOSSY OAK WITH GUN POD 2 FOR A400 XTREME PLUS GA 12 PISTOL GRIP ASSY CAMO TIMBER WITH GUN POD 2 FOR A400 XTREME PLUS GA 12 PISTOL GRIP ASSY CAMO OPIFADE TIMBER WITH GUN POD 2 FOR A400 XTREME PLUS GA 12 |
| 184 | C8D608C8D617C8D618C8D619C8D620C8D621C8E031 | Not Available Not Available Not Available Not Available Not Available Not Available Not Available | STOCK REAR SECTION SYNTHETIC WITH KICK OFF MEGA FOR A400 XTREME MY2018 STOCK REAR ASSY WITH KICK OFF MEGA CAMO MAX5 FOR A400 XTREME PLUS MY18 GA 12 STOCK REAR ASSY WITH KICK OFF MEGA CAMO OPTIFADE FOR A400 XTREME PLUS MY18 GA 12 STOCK REAR ASSY WITH KICK OFF MEGA CAMO MOSSY OAK SHADOW GRASS BLADE FOR A400 XTREME PLUS MY18 GA 12 STOCK REAR PART ASSY WITH KICK OFF MEGA CAMO MOSSY OAK BOTTOMLAND FOR A400 XTREME PLUS MY18 GA 12 STOCK REAR ASSY WITH KICK OFF MEGA CAMO TRUE TIMBER DRT FOR A400 XTREME PLUS MY18 GA 12 STOCK REAR SECTION ASSY WITH KICK OFF MEGA MEGA CAMO OPTIFADE TIMBER FOR A400 XTREME PLS GA 12 |
| 26 | |||
| 28 | |||
| 35 | C8D610C8D623C8D624C8D625C8D626C8E034C8L275C8L276 | Not Available Not Available Not Available Not Available Not Available Not Available Not Available Not Available | STOCK ASSY WITH KICK OFF MEGA NO GUN POD SYNTHETIC BLACK FOR A400 XTREME PLUS MY18 GA 12 STOCK ASSY WITH KICK OFF MEGA NO GUN POD CAMO OPTIDFADE FOR A400 XTREME PLUS MY18 GA 12 STOCK ASSY WITH KICK OFF MEGA NO GUN POD CAMO MOSSY OAK GRASS BLADES FOR A400 XTREME PLUS MY18 GA 12 STOCK ASSY WITH KICK OFF MEGA NO GUN POD CAMO MOSSY OAK BOTTOMLAND FOR A400 XTREME PLUS MY18 GA 12 STOCK ASSY WITH KICK OFF MEGA NO GUN POD CAMO TRUE TIMBER DRT FOR A400 XTREME PLUS MY18 GA 12 STOCK ASSY WITH KICK OFF MEGA NO GUN POD CAMO OPTIFADE TIMBER FOR A400 XTREME PLUS MY18 GA 12 STOCK PISTOL GRIP WITH KICK-OFF CAMO CACHE - A400 XTREME PLUS RIGHT RH DX GA 12 STOCK PISTOL GRIP WITH KICK-OFF CAMO TYPHA - A400 XTREME RIGHT HAND RH DX GA 12 |
| 43 | C5E557 | Not Available | INSERT STOCK WITH KICK-OFF A400 LITE - A400 XTREME GA 12 |
| 45 | C5C691 | Not Available | SHOCK ABSORBER FOR KICK-OFF |
| 47 | C95404 | Not Available | SPRING FOR KICK-OFF FOR POLYMER STOCK - A391 XTREMA 2 GA 12 |
| 48 | C5E558 | Not Available | PLATE FOR KICK-OFF SYSNTHETIC STOCK - A391 XTREMA - A391 XTREMA2 - A400 XTREME GA 12 |
| 49 | C97262 | Not Available | SCREW FOR PLASTIC 3X25 |

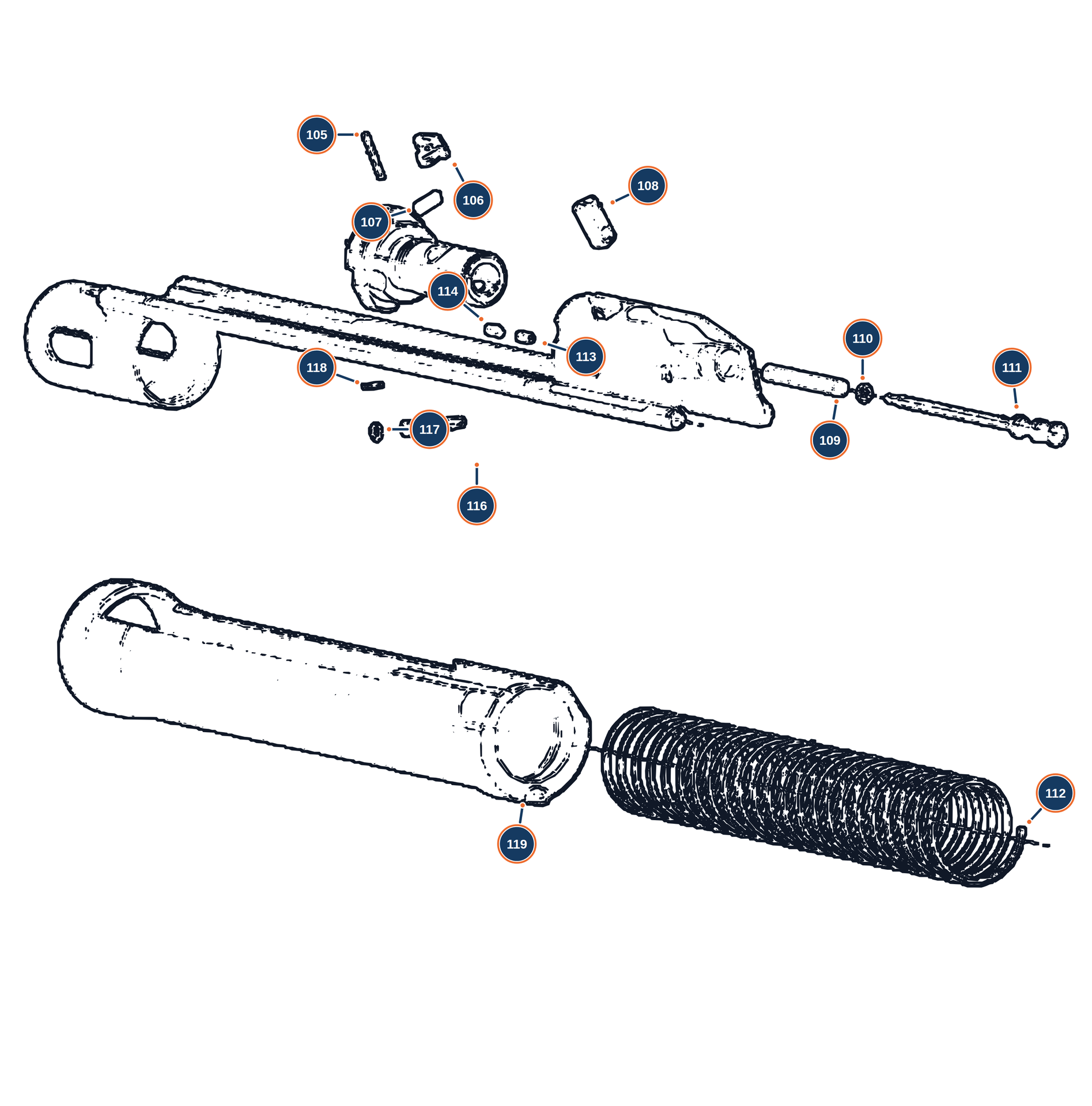

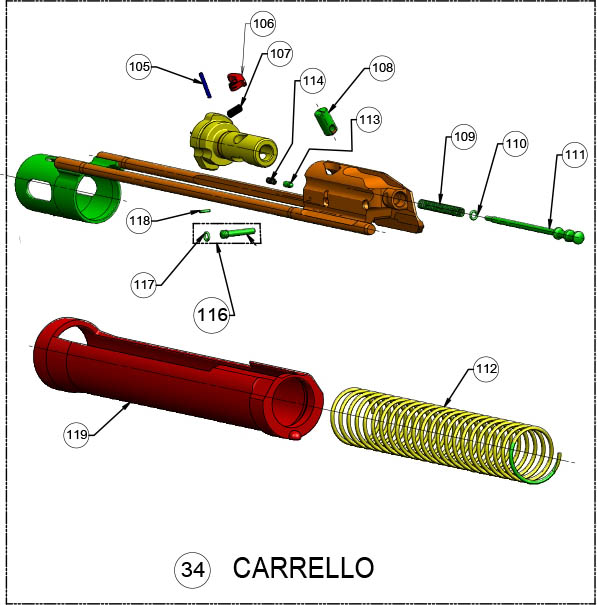

Bolt
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 105 | |||
| 106 | |||
| 107 | |||
| 108 | |||
| 109 | |||
| 111 | |||
| 112 | |||
| 113 | |||
| 114 | |||
| 116 | |||
| 117 | |||
| 118 | |||
| 119 | |||
| 34 | AKF66118111111 | Not Available | BOLT FOR SEMIAUTO 1301 COMPETITION, TX4 STORM A400 XTREME GA 12 BLUED STD |

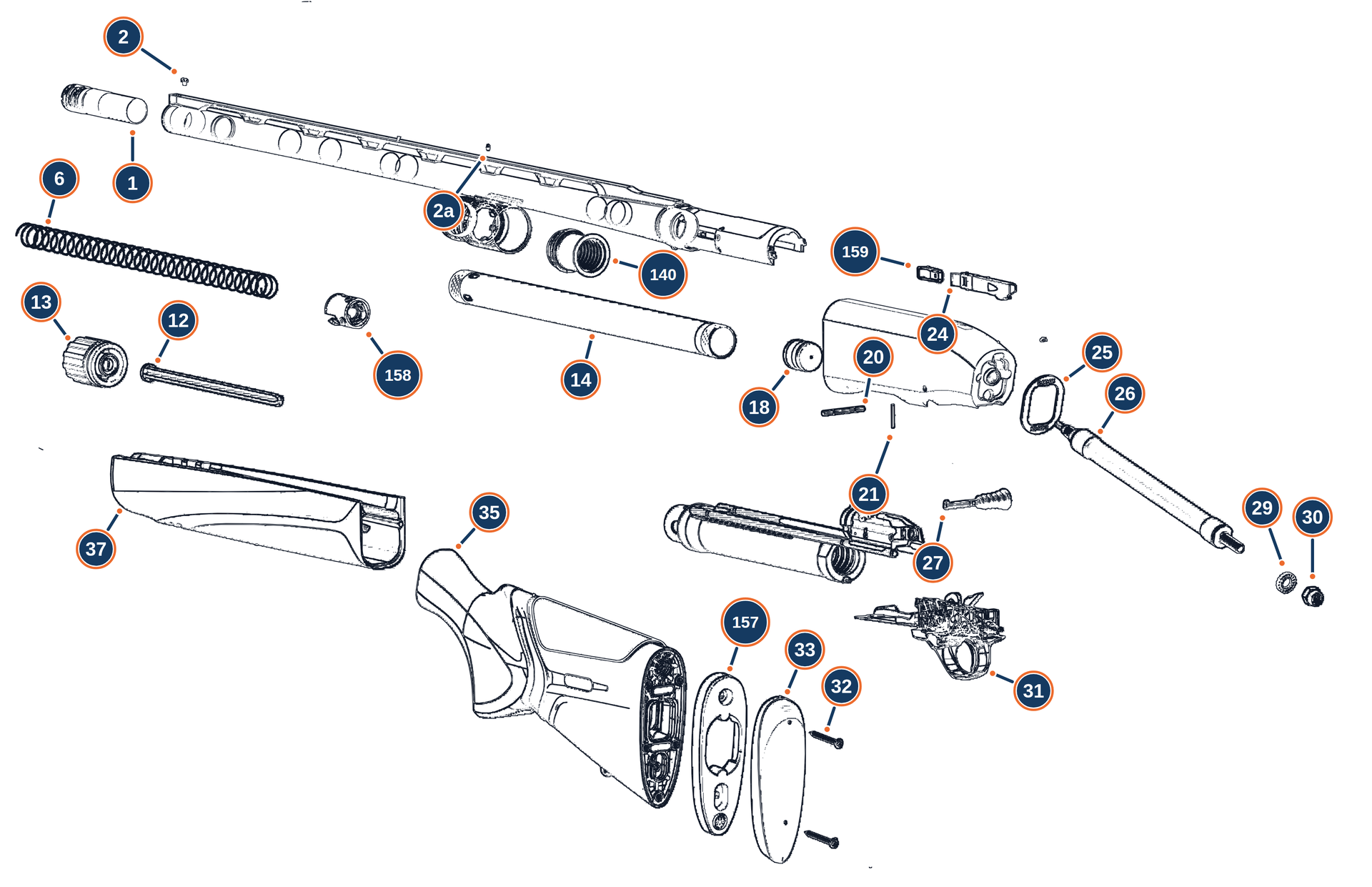

Main parts
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 001 | |||
| 002 | |||
| 006 | |||
| 012 | C5E597C5E598 | Not Available Not Available | REDUCER 1 SHOT A400 XTREME GA 12 REDUCER 2 ROUNDS QUICK DETATCH FOR A400 XTREME GA 12 |
| 013 | C8A679C8C172C8C491C8D267 | Not Available Not Available Not Available Not Available | FRONT PLUG WITH QUICK DETATCH FOR A400 XTREME PLUS GA 12 3,5" CAMO OPTIFADE MARSH FRONT PLUG WITH QUICK DETATCH FOR A400 XTREME CAMO MOSSY OAK GA 12 FRONT PLUG WITH QUICK DETATCH CAMO MOSSY OAK BOTTOM LAND FINISH - A400 XTREME PLUS GA 12 3,5 FRONT PLUG A400 XTREME PLUS GA 3.5" CAMO TIMBER DRT |
| 014 | |||
| 020 | |||
| 021 | |||
| 022 | |||
| 024 | |||
| 025 | |||
| 026 | |||
| 027 | C7A702 | Not Available | OVERSIZED COCKING HANDLE WITH CARBON HANDLE COVER FOR SERIE 1301 AND SERIE A400 GA 12 GA 20 |
| 029 | |||
| 030 | |||
| 031 | C8D042C8D418C8D419C8D421C8D422C8D457C8E069 | Not Available Not Available Not Available Not Available Not Available Not Available Not Available | TRIGGER GROUP CAMO MAX 7 - A400 XTREME PLUS GA 12 TRIGGER GROUP A400 XTREME PLUS MY 2018 GA 12 3.5" CAMO TTDRT LONG ELEVATOR TRIGGER GROUP A400 XTREME PLUS MY 2018 GA 12 3.5" CAMO MAX5 LONG ELEVATOR TRIGGER GROUP A400 XTREME PLUS MY 2018 GA 12 3.5" CAMO MOSSY OAK SHADOW GRASS BLADES LONG ELEVATOR TRIGGER GROUP A400 XTREME PLUS MY 2018 GA 12 3.5" CAMO GORE OPTIFADE MARSH LONG ELEVATOR TRIGGER GUARD ASSY BLACK WITH ENLARGED ELEVATOR ASSIEME A400 XTREME A400 XTREME PLUS GA 12 TRIGGER GROUP CAMO OPTIFADE TIMBER GA 12 A400 XTREME PLUS |
| 032 | |||
| 033 | C7C097C7C098C7C099 | Not Available Not Available Not Available | EXTRALIGHT HUNTING PAD - H. 10mm EXTRALIGHT HUNTING PAD - H. 15mm EXTRALIGHT HUNTING RECOIL PAD - H. 20mm |
| 034 | C8D874 | Not Available | BOLT BREECH ASSY BLK |
| 035 | C8D047C8D610C8D622C8D623C8D624C8D625C8D626C8E034C8J164C8L275C8L276C8L277C8L278 | Not Available Not Available Not Available Not Available Not Available Not Available Not Available Not Available Not Available Not Available Not Available Not Available Not Available | STOCK WITH KICK-OFF MEGA CAMO MAX 7 - A400 XTREME PLUS GA 12 STOCK ASSY WITH KICK OFF MEGA NO GUN POD SYNTHETIC BLACK FOR A400 XTREME PLUS MY18 GA 12 STOCK PISTOL GRIP KICK OFF CAMO MAX 5 - A400 XTREME MY 18 GA 12 STOCK ASSY WITH KICK OFF MEGA NO GUN POD CAMO OPTIDFADE FOR A400 XTREME PLUS MY18 GA 12 STOCK ASSY WITH KICK OFF MEGA NO GUN POD CAMO MOSSY OAK GRASS BLADES FOR A400 XTREME PLUS MY18 GA 12 STOCK ASSY WITH KICK OFF MEGA NO GUN POD CAMO MOSSY OAK BOTTOMLAND FOR A400 XTREME PLUS MY18 GA 12 STOCK ASSY WITH KICK OFF MEGA NO GUN POD CAMO TRUE TIMBER DRT FOR A400 XTREME PLUS MY18 GA 12 STOCK ASSY WITH KICK OFF MEGA NO GUN POD CAMO OPTIFADE TIMBER FOR A400 XTREME PLUS MY18 GA 12 STOCK WITH KICK-OFF O.D.GREEN - A400 XTREME PLUS GA 12 STOCK PISTOL GRIP WITH KICK-OFF CAMO CACHE - A400 XTREME PLUS RIGHT RH DX GA 12 STOCK PISTOL GRIP WITH KICK-OFF CAMO TYPHA - A400 XTREME RIGHT HAND RH DX GA 12 STOCK PISTOL GRIP WITH KICK-OFF CAMO CACHE - A400 XTREME PLUS LEFT HAND LH SX GA 12 STOCK PISTOL GRIP WITH KICK-OFF CAMO TYPHA - A400 XTREME LEFT HAND LH SX GA 12 |
| 037 | C5E920C5F487C5F660C5G252C5N964C5Q593C5S533C5S534 | Not Available Not Available Not Available Not Available Not Available Not Available Not Available Not Available | FORE-END SYNTHETIC CAMO OPTIFADE FINISH12 GA A400 XTREME FORE-END CAMO MAX 5 FINISH 12 GA A400 XTREME FOREND MOSSY OAK SHADOW GRAS BLADE A400 XTREME GA 12 FOREND SYNTHETIC CAMO MOSSY OAK BOTTOMLAND A400 XTREME GA 12 3.5" 12GA ASTA XTREME O.D.GREEN - FOREND CAMO MAX 7 - A400 XTREME PLUS GA 12 FOREND CAMO CACHE - A400 XTREME PLUS GA 12 FOREND CAMO TYPHA - A400 XTREME PLUS GA 12 |
| 140 | |||
| 157 | C5E610C5E615 | Not Available Not Available | SPACER 25mm THICK - FIELD STOCKS SPACER 12,5mm THICK - FIELD STOCKS |
| 158 | C8A487 | Not Available | MAGAZINE PLUG ASSEMBLY 12 GA A400 XTREME UNICO |
| 159 |

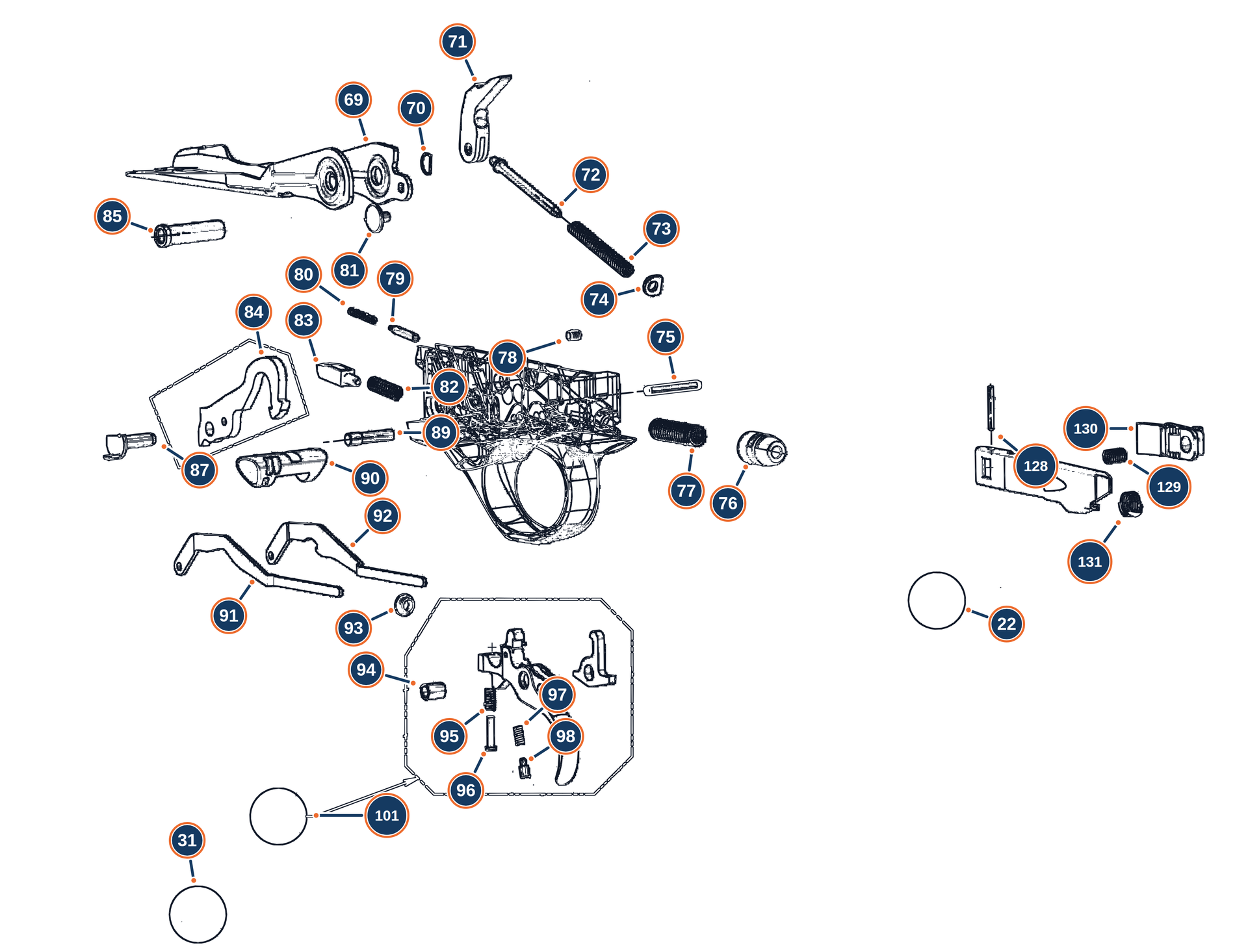

Trigger group
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 101 | |||
| 128 | C92212 | Not Available | CARTRIDGE LATCH LEVER PIN - AL391 URIKA GA 12 AND GA 20 |
| 129 | |||
| 130 | C5G371 | Not Available | CARTRIDGE LATCH WITH HOLD OPEN GA 12 3" AND 3.5" SERIE A400 |
| 131 | |||
| 22 | |||
| 31 | C8D418C8D419C8D457C8E069 | Not Available Not Available Not Available Not Available | TRIGGER GROUP A400 XTREME PLUS MY 2018 GA 12 3.5" CAMO TTDRT LONG ELEVATOR TRIGGER GROUP A400 XTREME PLUS MY 2018 GA 12 3.5" CAMO MAX5 LONG ELEVATOR TRIGGER GUARD ASSY BLACK WITH ENLARGED ELEVATOR ASSIEME A400 XTREME A400 XTREME PLUS GA 12 TRIGGER GROUP CAMO OPTIFADE TIMBER GA 12 A400 XTREME PLUS |
| 69 | C5H125 | Not Available | ELEVATOR A400 XTREME PLUS 3.5 INCH 12 GA (2017) |
| 70 | |||
| 71 | |||
| 72 | C5D533 | Not Available | ELEVATOR LEVER SPRING GUIDE A400 |
| 73 | |||
| 74 | |||
| 75 | |||
| 76 | C5B992 | Not Available | HAMMER SPRING GUIDE 12 GA A400 |
| 77 | C90380 | Not Available | HAMMER SPRING A400 |
| 78 | C59072 | Not Available | FORE END COVER DOWEL SEMIAUTO GA 12 |
| 79 | |||
| 80 | |||
| 81 | |||
| 82 | C95323 | Not Available | ELEVATOR STOP PIN SPRING A400 |
| 83 | |||
| 84 | C7E421 | Not Available | HAMMER ASSY - AX800 GA 12 / A400L GA 12 |
| 85 | |||
| 87 | C92213 | Not Available | HAMMER PIN |
| 89 | C5F383 | Not Available | TRIGGER PIN A400 ACTION |
| 90 | C5D323 | Not Available | SAFETY AMBIDEXTROUS A400 ACTION, NOVATOR, A400 LITE, A400 XTREME, A400 ACTION LEFT HAND LH SINISTRO SX |
| 91 | |||
| 92 | |||
| 93 | C5D426 | Not Available | HAMMER SPRING BUSH - SERIE A400 GA 12 - 20 / SERIE A300 GA 12 / 20 |
| 94 | C50757 | Not Available | TRIGGER BUSH SEMIAUTO SERIE A300 AL391 A400 VARIOUS VERSIONS |
| 95 | |||
| 96 | C5D697 | Not Available | TRIGGER SPRING GUIDE A400 |
| 97 | |||
| 98 |
