Beretta 1301 Comp Pro Parts Guide
6 exploded diagrams, exact Beretta codes and linked spare parts for Beretta 1301 Comp Pro.

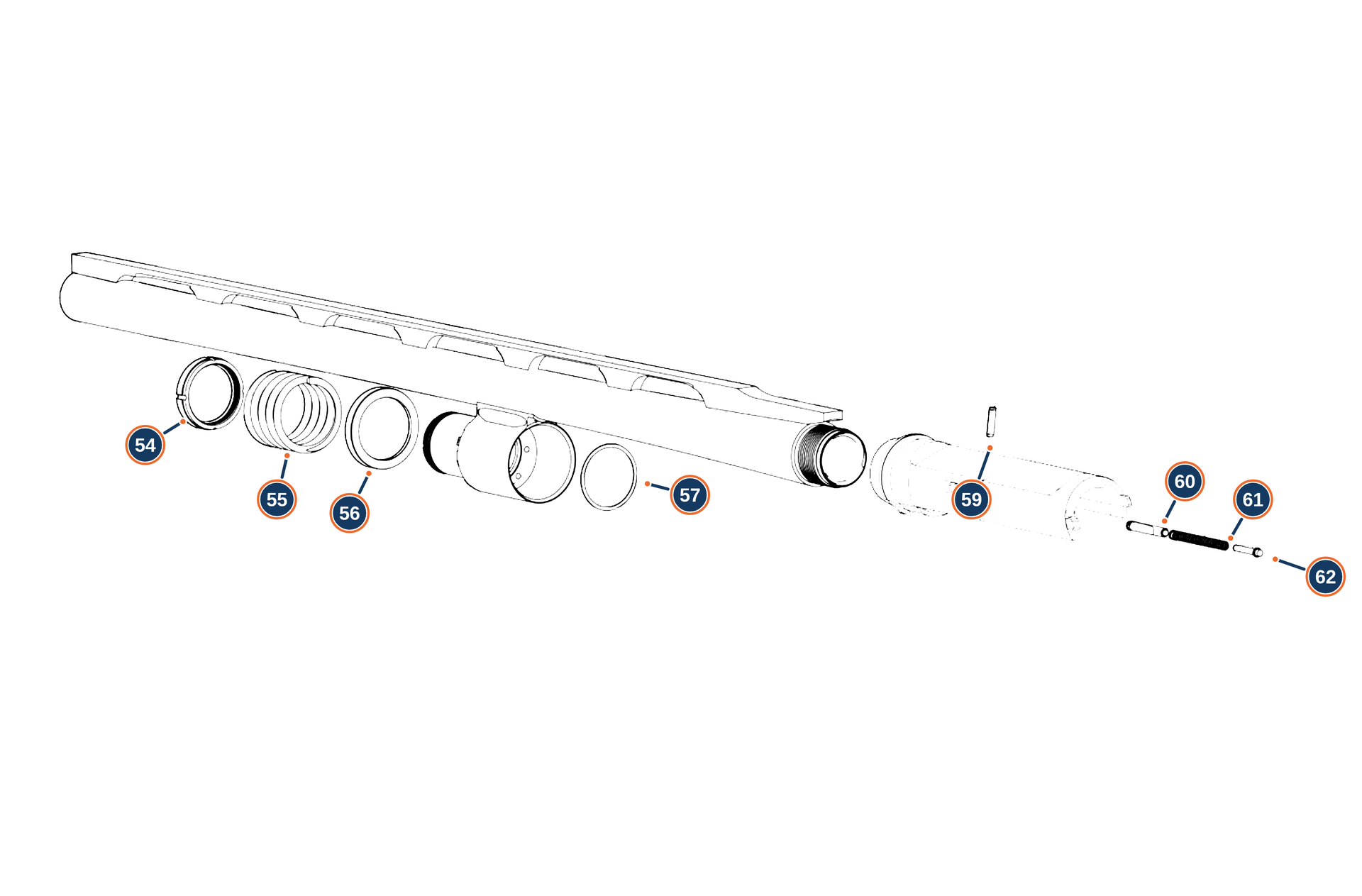

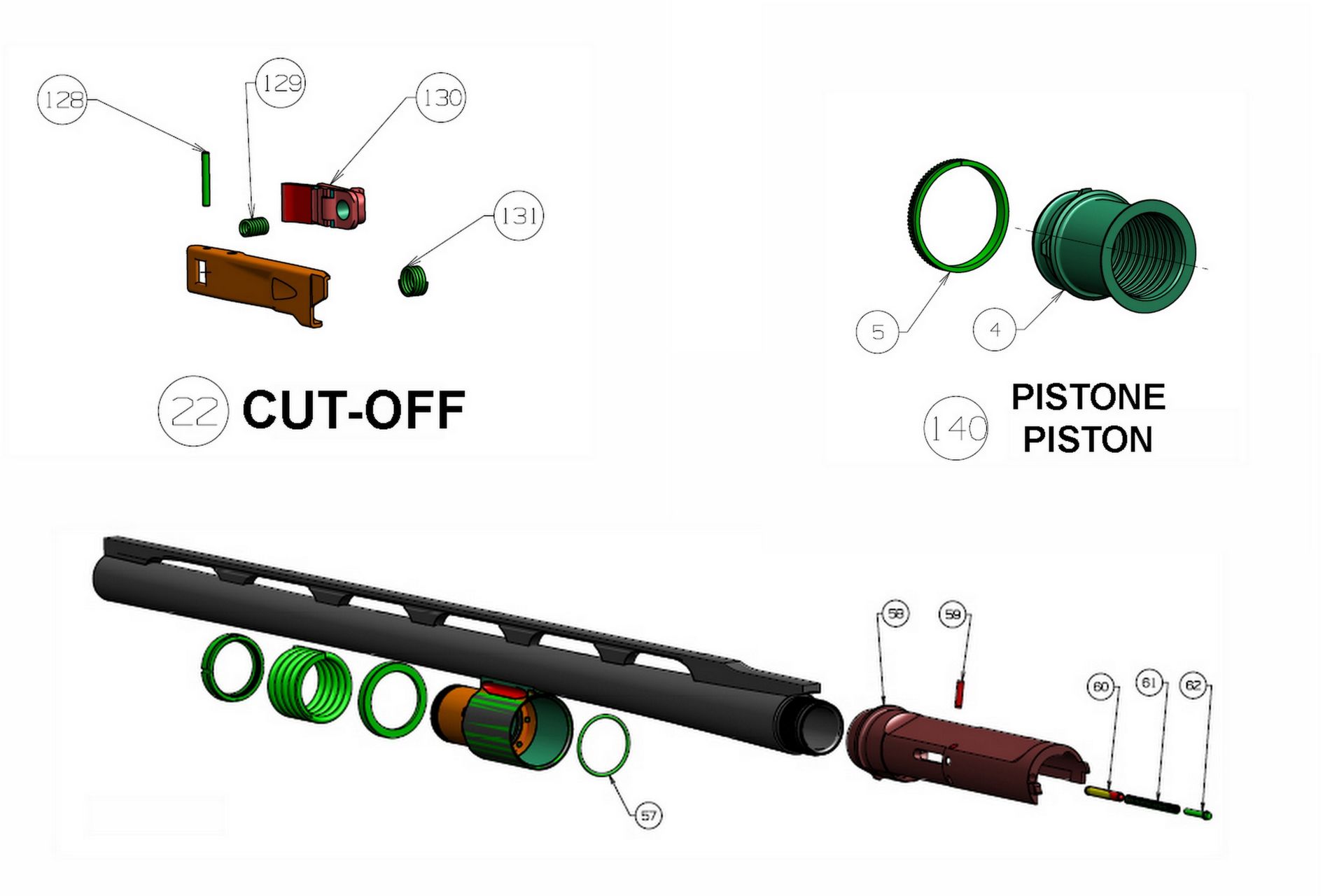

Barrel
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 004 | |||
| 005 | |||
| 057 | |||
| 059 | C92287 | Not Available | EJECTOR SPRING A400 |
| 060 | |||
| 061 | |||
| 062 | |||
| 128 | C92212 | Not Available | CARTRIDGE LATCH LEVER PIN - AL391 URIKA GA 12 AND GA 20 |
| 129 | |||
| 130 | C5G371 | Not Available | CARTRIDGE LATCH WITH HOLD OPEN GA 12 3" AND 3.5" SERIE A400 |
| 131 | |||
| 140 |

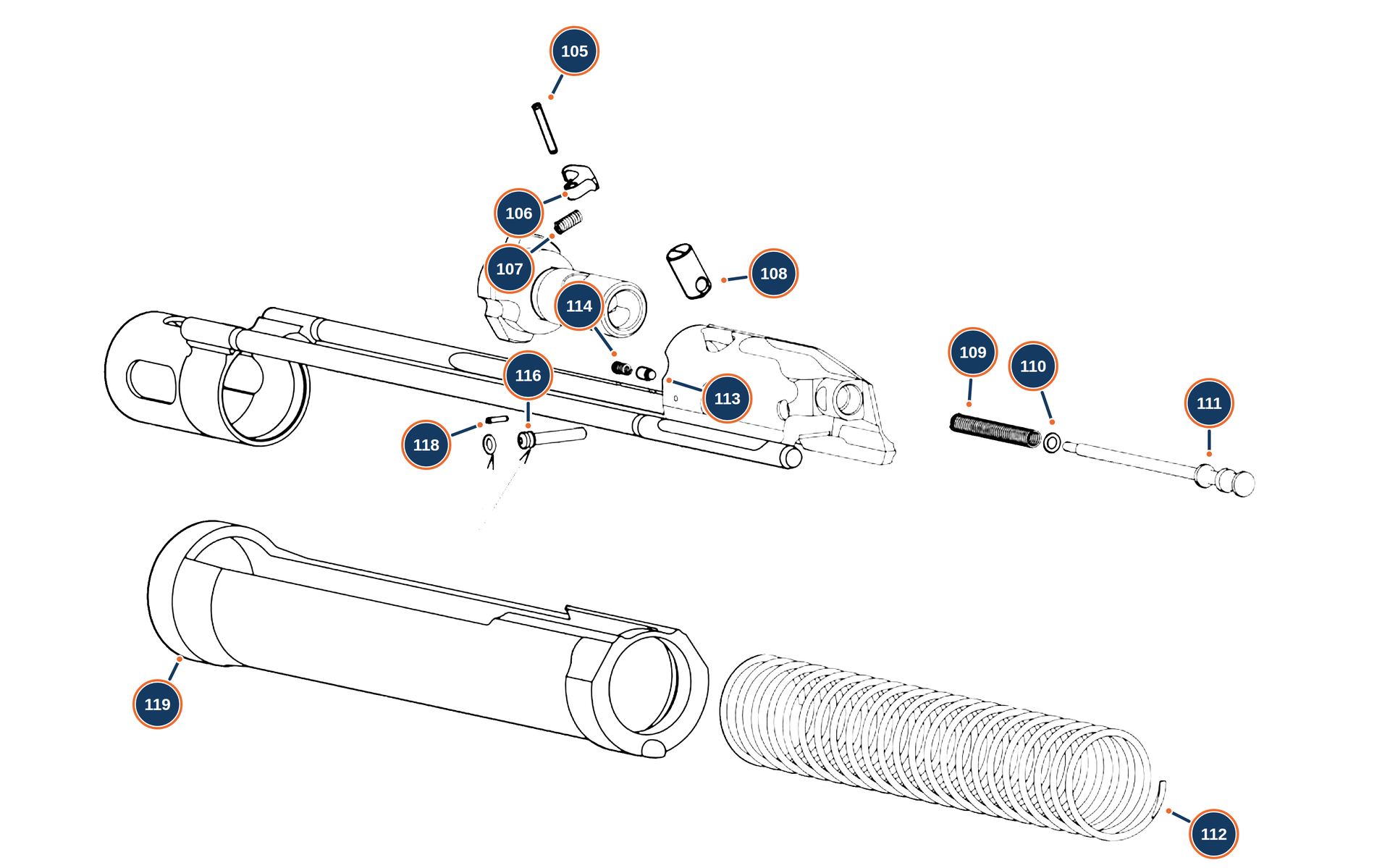

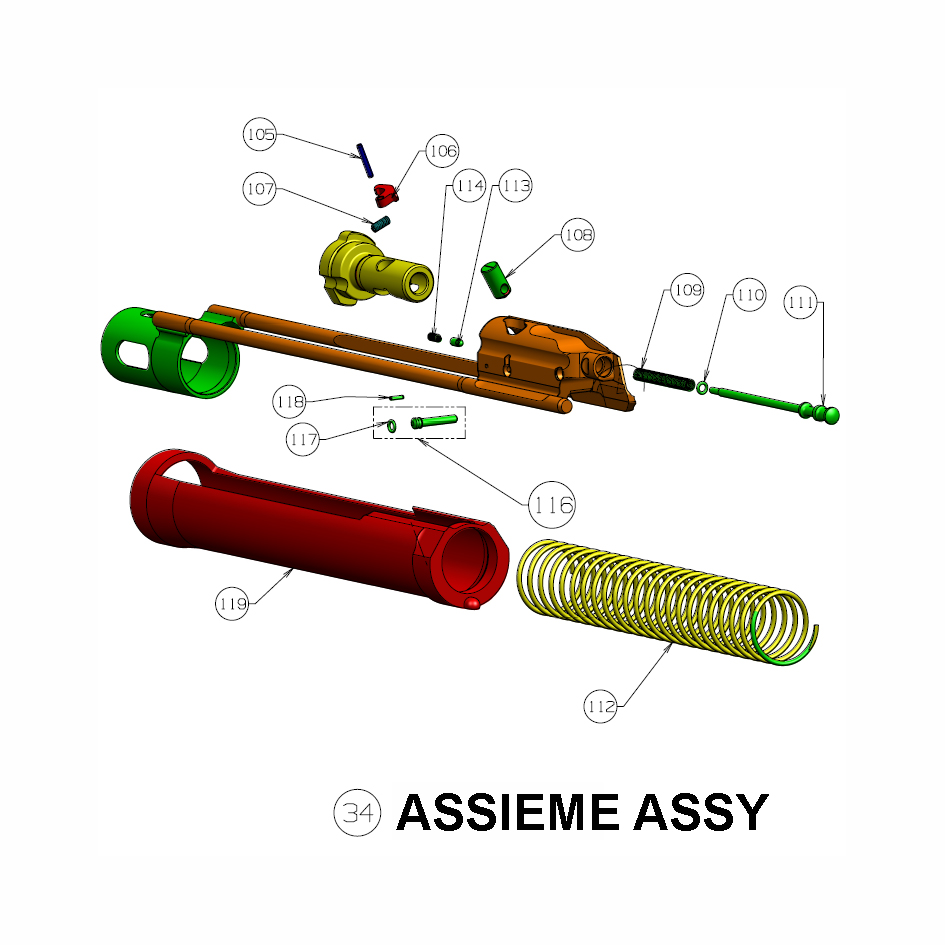

Bolt / slide
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 034 | AKF66118111111 | Not Available | BOLT FOR SEMIAUTO 1301 COMPETITION, TX4 STORM A400 XTREME GA 12 BLUED STD |
| 105 | |||
| 106 | |||
| 107 | |||
| 108 | |||
| 109 | |||
| 110 | |||
| 111 | |||
| 112 | |||
| 113 | |||
| 114 | |||
| 116 | |||
| 118 | |||
| 119 |

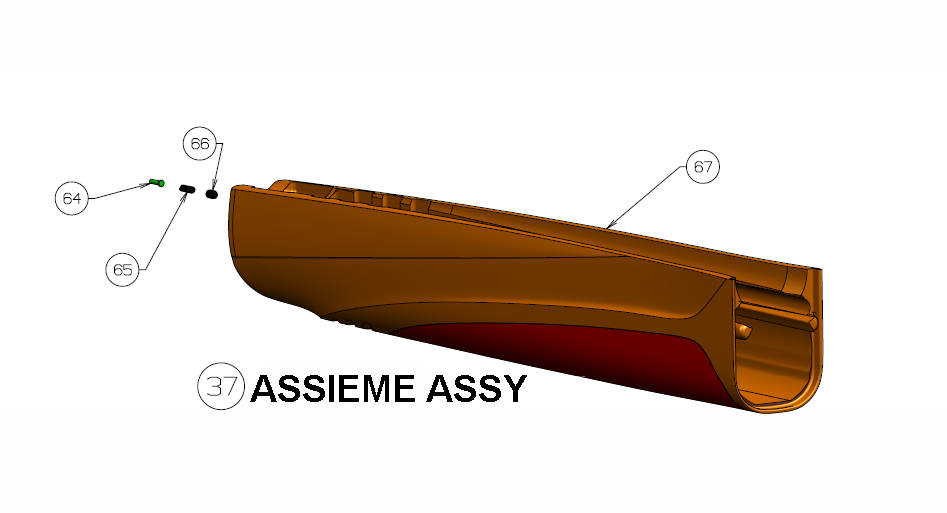

Forend
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 037 | C8E755 | Not Available | FOREND SYNTHETIC BLACK - 1301 COMP PRO GA 12 |
| 064 | C59070 | Not Available | FOREND COVER PIN GA 12 GA 20 |
| 065 | C59071 | Not Available | FOREND COVER SPRING - A400 GA 12 AND GA 20 |
| 066 | C59072 | Not Available | FORE END COVER DOWEL SEMIAUTO GA 12 |

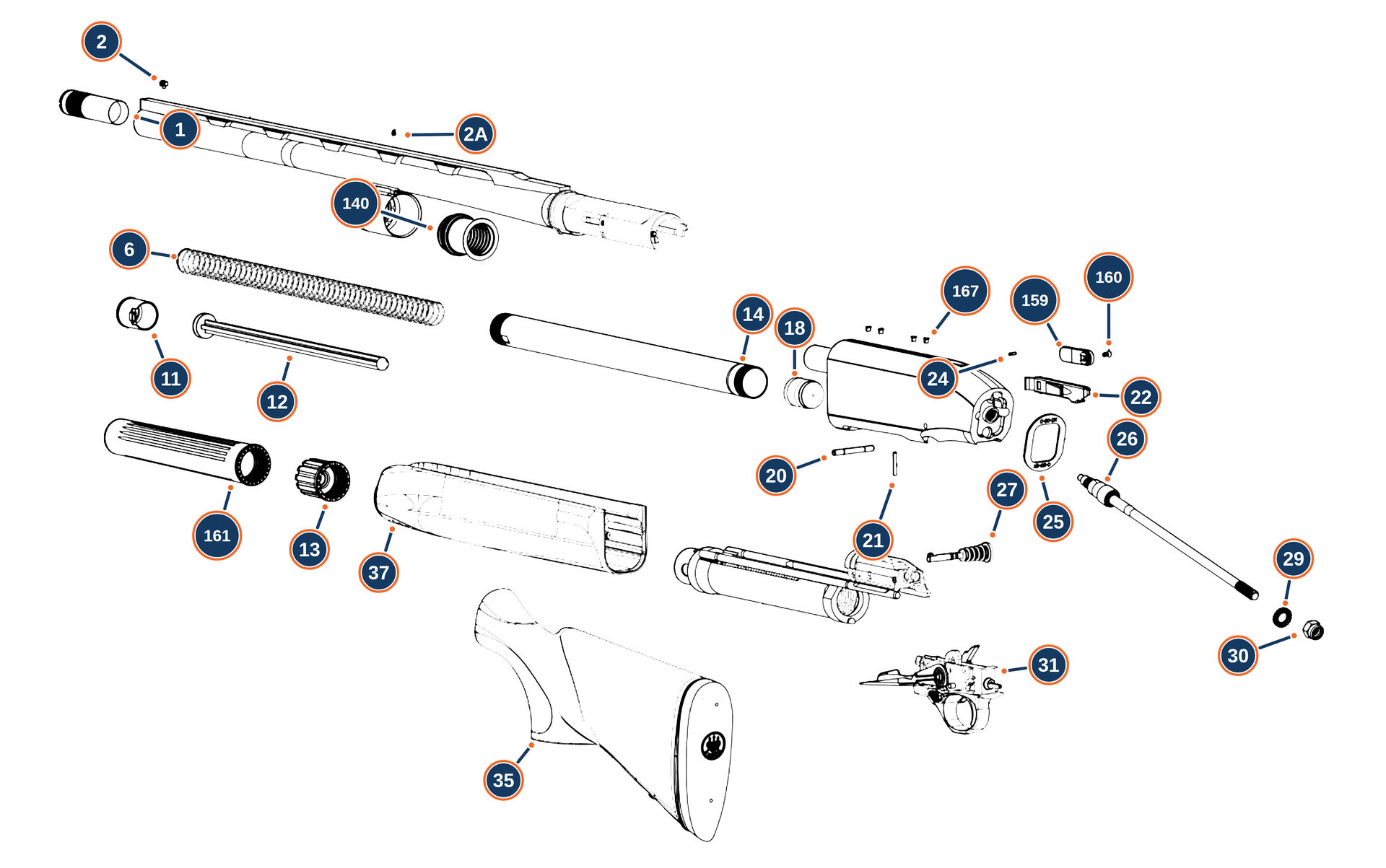

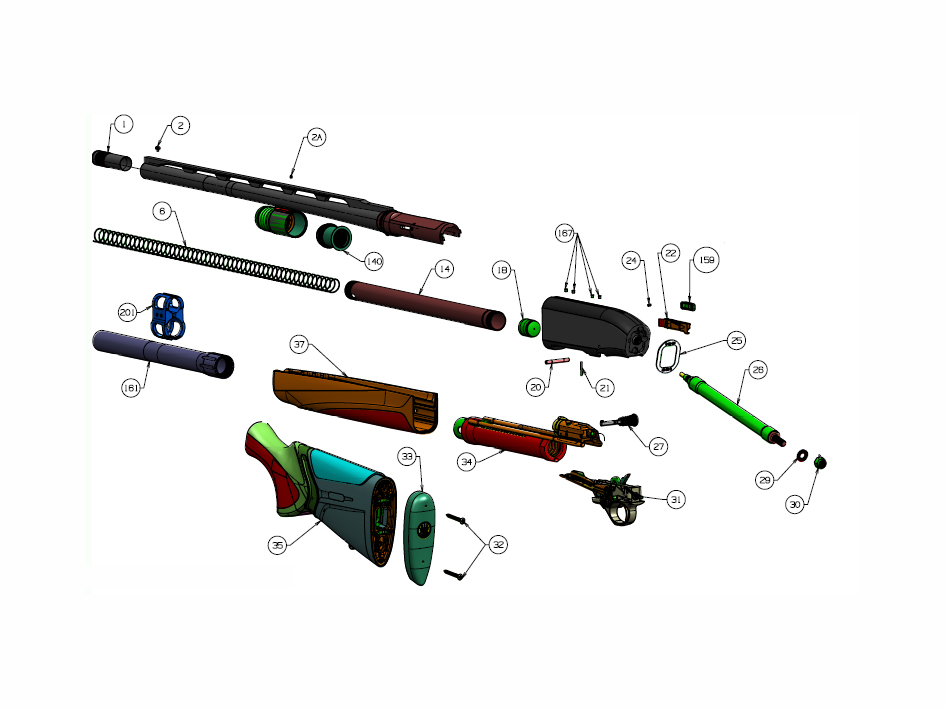

Overview
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 1 | |||
| 002 | C5G155 | Not Available | FRONT SIGHT GREEN - DIAM. 8mm |
| 002A | |||
| 014 | |||
| 020 | |||
| 021 | |||
| 022 | |||
| 024 | |||
| 025 | |||
| 026 | |||
| 029 | |||
| 030 | |||
| 031 | C8E735 | Not Available | PRO TRIGGER GROUP FOR 12GA. SEMIAUTO - 3.5" |
| 032 | |||
| 033 | C53661 | Not Available | RECOIL PAD FIELD RUBBER BLACK FULL THIN 12MM GA 12 AND GA 20 |
| 034 | AKF66118111111 | Not Available | BOLT FOR SEMIAUTO 1301 COMPETITION, TX4 STORM A400 XTREME GA 12 BLUED STD |
| 035 | C8E737 | Not Available | STOCK PISTOL GRIP SINTHETIC BLACK WITH KICK OFF PLUS - 1301 COMP PRO GA 12 |
| 037 | C8E755 | Not Available | FOREND SYNTHETIC BLACK - 1301 COMP PRO GA 12 |
| 140 | |||
| 1401 | C5F300 | Not Available | PLUG WEAVER HOELS FOR PER SEMIAUTOMATO 1301 COMPETITION |
| 159 | |||
| 201 |

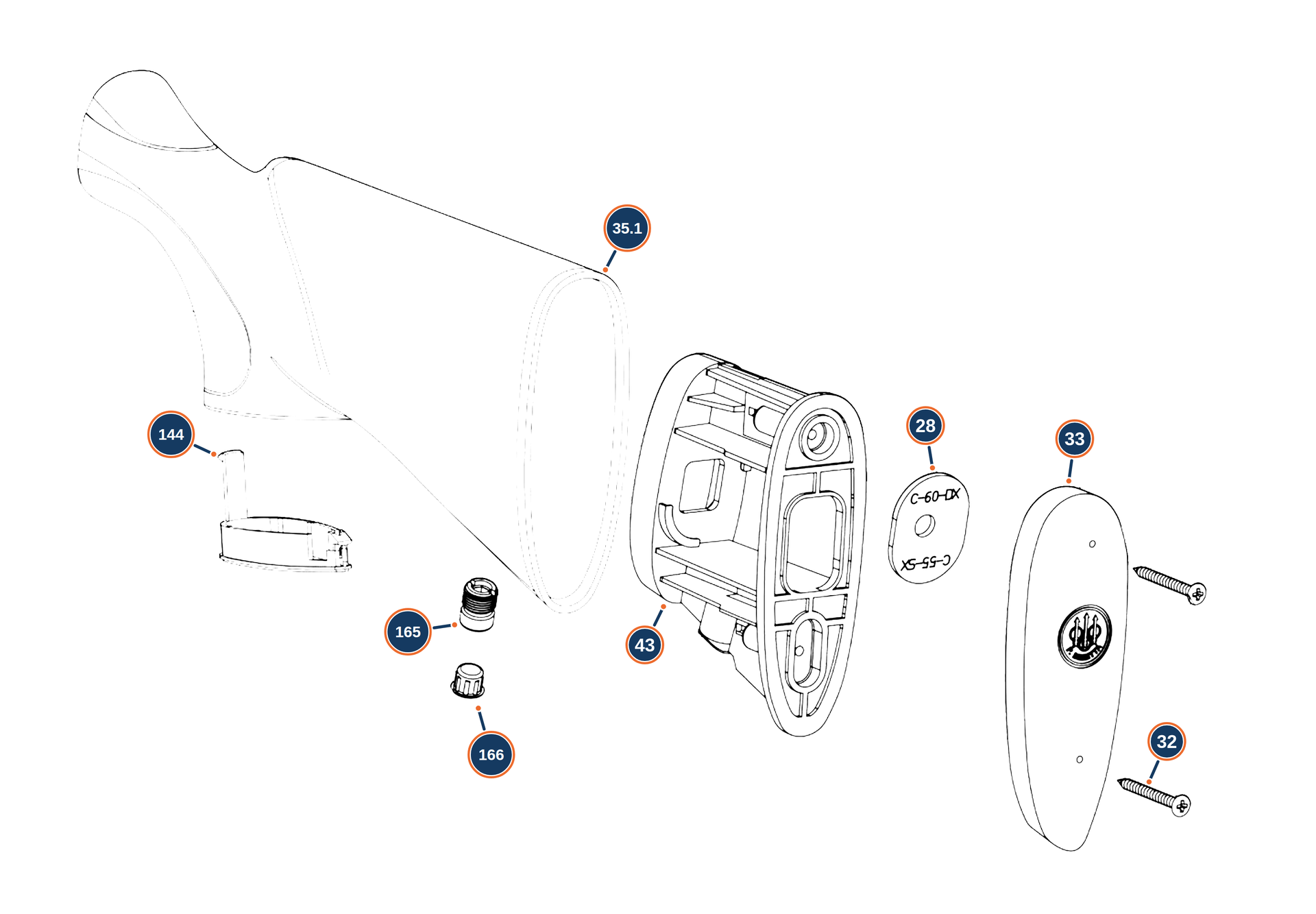

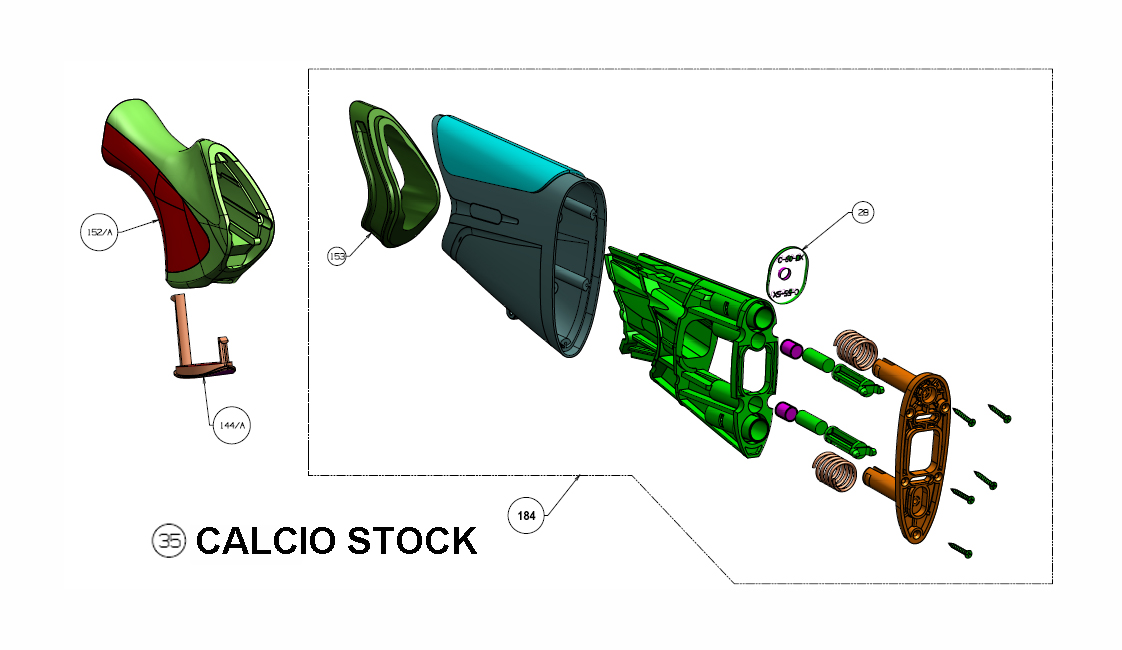

Stock
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 028 | |||
| 035 | C8E737 | Not Available | STOCK PISTOL GRIP SINTHETIC BLACK WITH KICK OFF PLUS - 1301 COMP PRO GA 12 |
| 144A | C5E604 | Not Available | STOCK CAP BLACK A400 XTREME GA 12 |
| 152A | C5E554 | Not Available | PISTOL GRIP NO GUN POD BLACK SYNTHETIC A400 XTREME PLUS GA 12 |
| 153 | |||
| 184 | C8E736 | Not Available | STOCK REAR SECTION SYNTHETIC WITH KICK OFF - 1301 COMP PRO GA 12 |

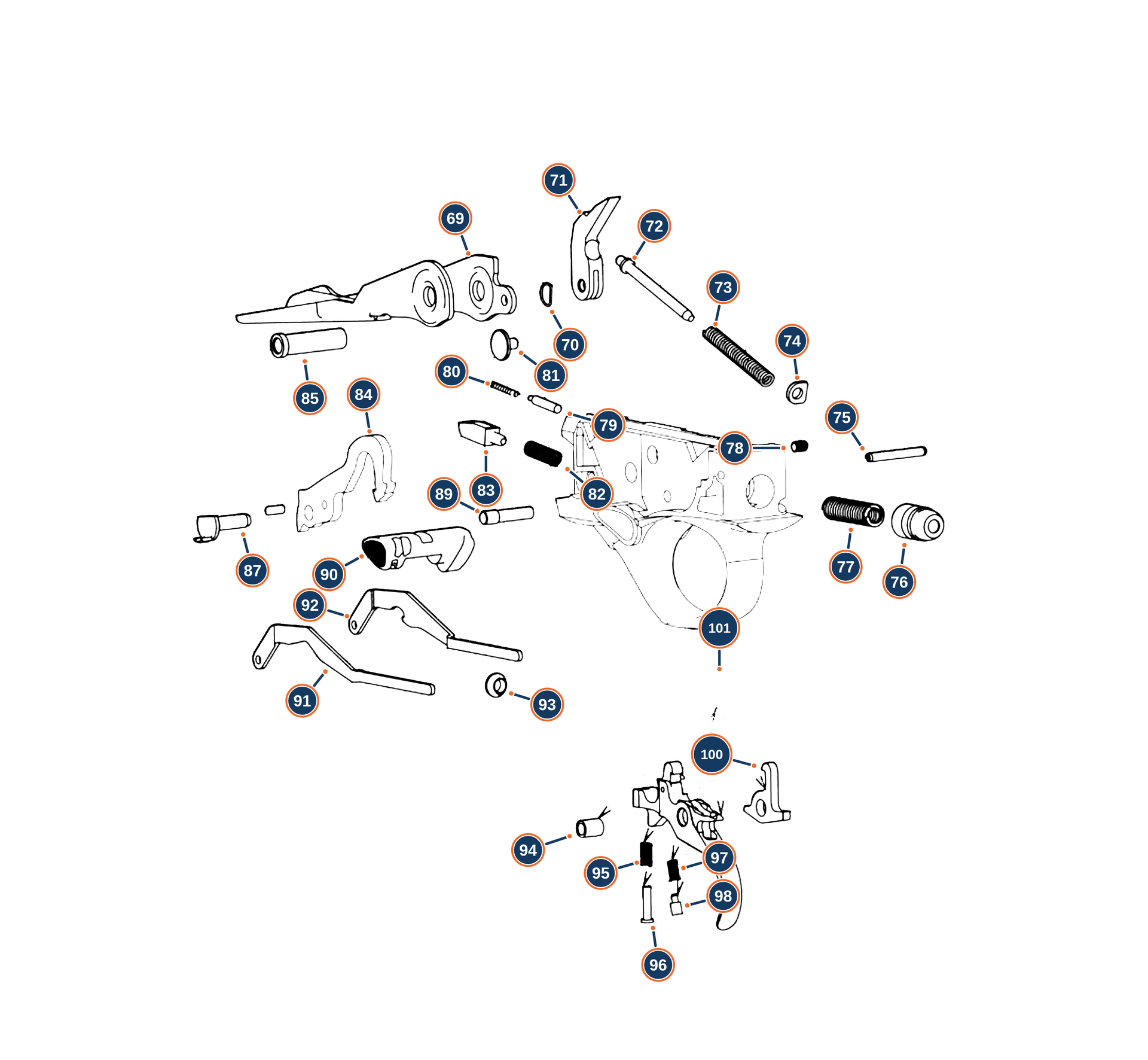

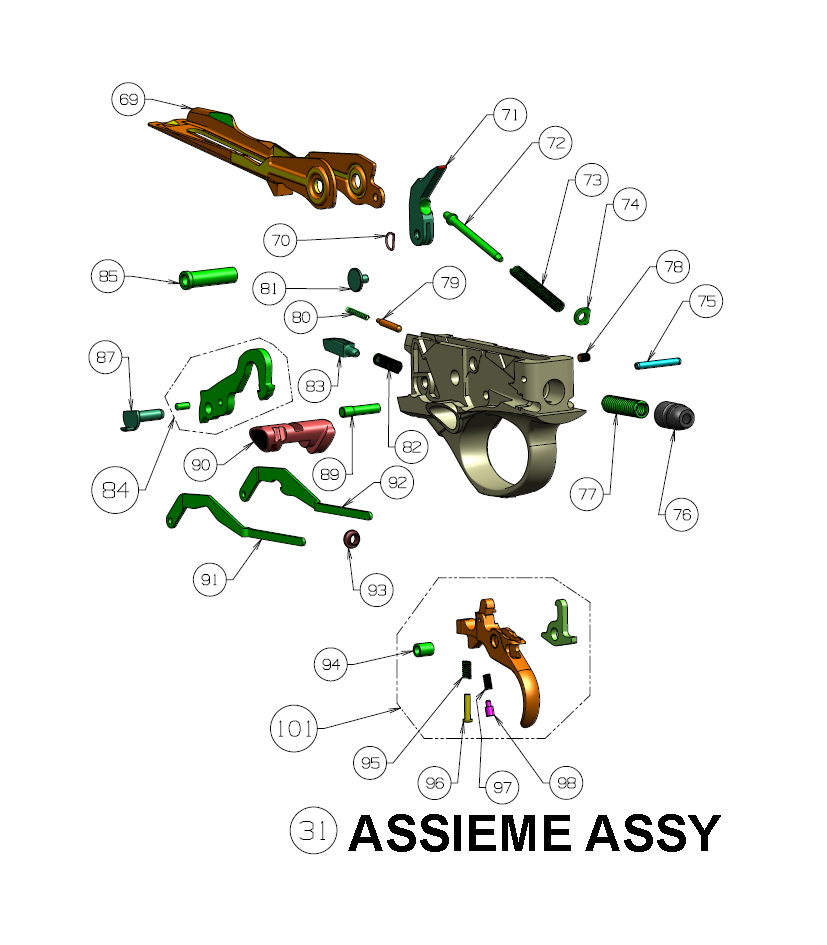

Trigger group
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 031 | C8E735 | Not Available | PRO TRIGGER GROUP FOR 12GA. SEMIAUTO - 3.5" |
| 069 | |||
| 070 | |||
| 071 | |||
| 072 | C5D533 | Not Available | ELEVATOR LEVER SPRING GUIDE A400 |
| 073 | |||
| 074 | |||
| 075 | |||
| 076 | C5B992 | Not Available | HAMMER SPRING GUIDE 12 GA A400 |
| 077 | C90380 | Not Available | HAMMER SPRING A400 |
| 078 | C59072 | Not Available | FORE END COVER DOWEL SEMIAUTO GA 12 |
| 079 | |||
| 080 | |||
| 081 | |||
| 082 | C95323 | Not Available | ELEVATOR STOP PIN SPRING A400 |
| 083 | |||
| 084 | |||
| 085 | |||
| 087 | C92213 | Not Available | HAMMER PIN |
| 089 | C5F383 | Not Available | TRIGGER PIN A400 ACTION |
| 090 | C5F152 | Not Available | SAFETY OVERSIZED RIGHT HAND FOR 1301 TACTICAL AND 1301 COMPETITION GA12 |
| 091 | |||
| 092 | |||
| 093 | C5D426 | Not Available | HAMMER SPRING BUSH - SERIE A400 GA 12 - 20 / SERIE A300 GA 12 / 20 |
| 094 | C50757 | Not Available | TRIGGER BUSH SEMIAUTO SERIE A300 AL391 A400 VARIOUS VERSIONS |
| 095 | |||
| 096 | C5D697 | Not Available | TRIGGER SPRING GUIDE A400 |
| 097 | |||
| 098 | |||
| 101 |
