Beretta A400 Xtreme Plus 12G spare parts

Beretta A400 Xtreme Plus 12G Parts Guide

Use the exploded diagrams and part numbers below to find Beretta A400 Xtreme Plus 12G spares and accessories available from Blue Fieldsports.

Shop A400 Xtreme Plus 12G parts

Browse A400 Xtreme Plus 12G parts available from Blue Fieldsports.

PartPart codeStatusPrice
Beretta 1301 Comp Pro LatchBER-C8D464In stock£50.00View product
Beretta 1301 Comp Trigger Bush D-Clip (70)BER-C5A326In stock£3.00View product
Beretta 1301 Trigger Group PinBER-C92407In stock£8.00View product
Beretta 391 Cut Off Spring Pin BER-C97038In stock£7.50View product
Beretta 391/ 400 carrier Latch Retaining Pin BER-C92168In stock£7.00View product
Beretta A400 Striker Retaining O Ring BER-C5A354In stock£7.00View product
Extra Long Pad Screw - 70mmBER-C95386In stock£5.00View product
Pad Screw - 40mmBER-C95192In stock£5.00View product

Beretta A400 Xtreme Plus 12G exploded diagrams and parts

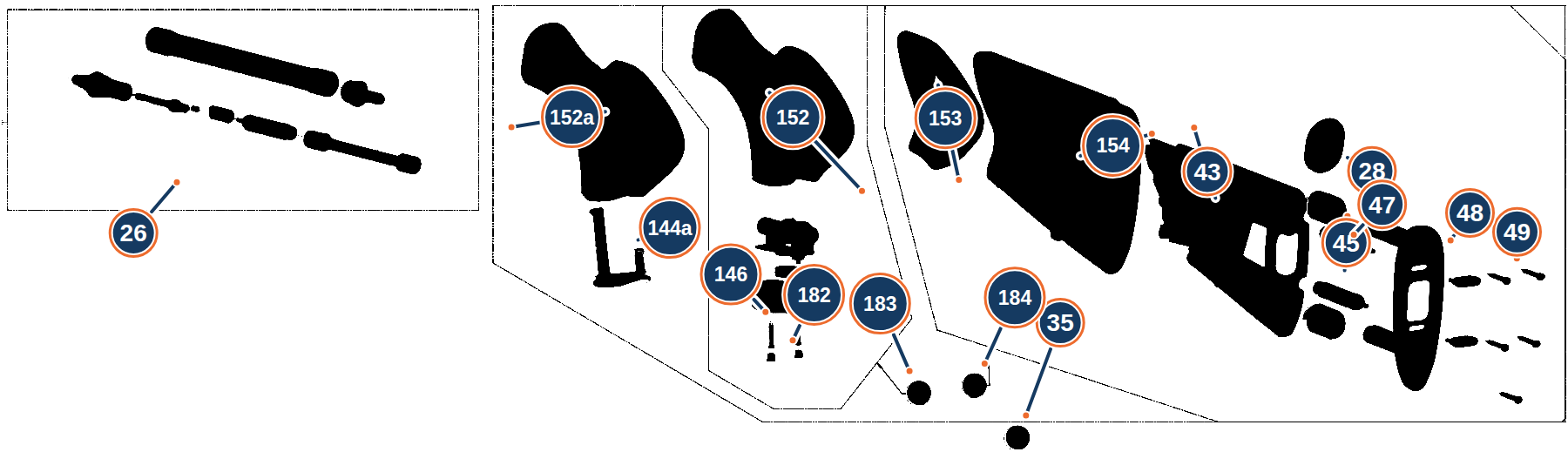

Gruppo_calcio

A400 Xtreme Plus 12G Gruppo_calcio exploded diagram.

Official A400 Xtreme Plus 12G Gruppo_calcio exploded diagram
PositionBeretta CodeDescriptionProduct Link
49BER-C97262Plastic Screw 3x25BER-C97262 Not Available
26BER-C88507Stock Brace Rod AssemblyNot currently in stock Beretta A400 Stock Bolt Tube Assembly
28BER-C55403Rear PlateWarehouse Stock Beretta 1301 Stock Drop Plate 50/65
35BER-C8D610, BER-C8D623, BER-C8D624, BER-C8D626, BER-C8E034Kick-Off StockBER-C8D610 Not Available
BER-C8D623 Not Available
BER-C8D624 Not Available
BER-C8D626 Not Available
BER-C8E034 Not Available
43BER-C5E557Kick-Off Stock InsertBER-C5E557 Not Available
45BER-C5C691Kick-Off AbsorberBER-C5C691 Not Available
47BER-C95404Kick-Off SpringBER-C95404 Not Available
48BER-C5E558Kick-Off Mobile InsertBER-C5E558 Not Available
146BER-C97253Screw 2.9x25BER-C97253 Not Available
152BER-C8A853Gun Pod Ready GripBER-C8A853 Not Available
153BER-C5E556Soft Rubber Stock InsertWarehouse Stock Beretta A400 Xtreme Stock Middle Rubber Insert
154BER-C7A537, BER-C7A539, BER-C7A540, BER-C7A541, BER-C7A542Stock ButtplateBER-C7A537 Not Available
BER-C7A539 Not Available
BER-C7A540 Not Available
BER-C7A541 Not Available
BER-C7A542 Not Available
182BER-C5F009Gunpod Screw CoverBER-C5F009 Not Available
183BER-E01110, BER-E01109, BER-E01108, BER-E01106, BER-C8D269, BER-C8E032Complete GripBER-E01110 Not Available
Not currently in stock Beretta Gp2 Unit Inc Grip: A400 Xtreme (Camo Max 5)
BER-E01108 Not Available
BER-E01106 Not Available
BER-C8D269 Not Available
BER-C8E032 Not Available
184BER-C8D608, BER-C8D617, BER-C8D618, BER-C8D619, BER-C8D620, BER-C8D621, BER-C8E031Kick-Off Complete ButtplateBER-C8D608 Not Available
BER-C8D617 Not Available
BER-C8D618 Not Available
BER-C8D619 Not Available
BER-C8D620 Not Available
BER-C8D621 Not Available
BER-C8E031 Not Available
144aBER-C5E604Gun Pod Plug CapBER-C5E604 Not Available
152aBER-C5E554Gun Pod Ready GripBER-C5E554 Not Available

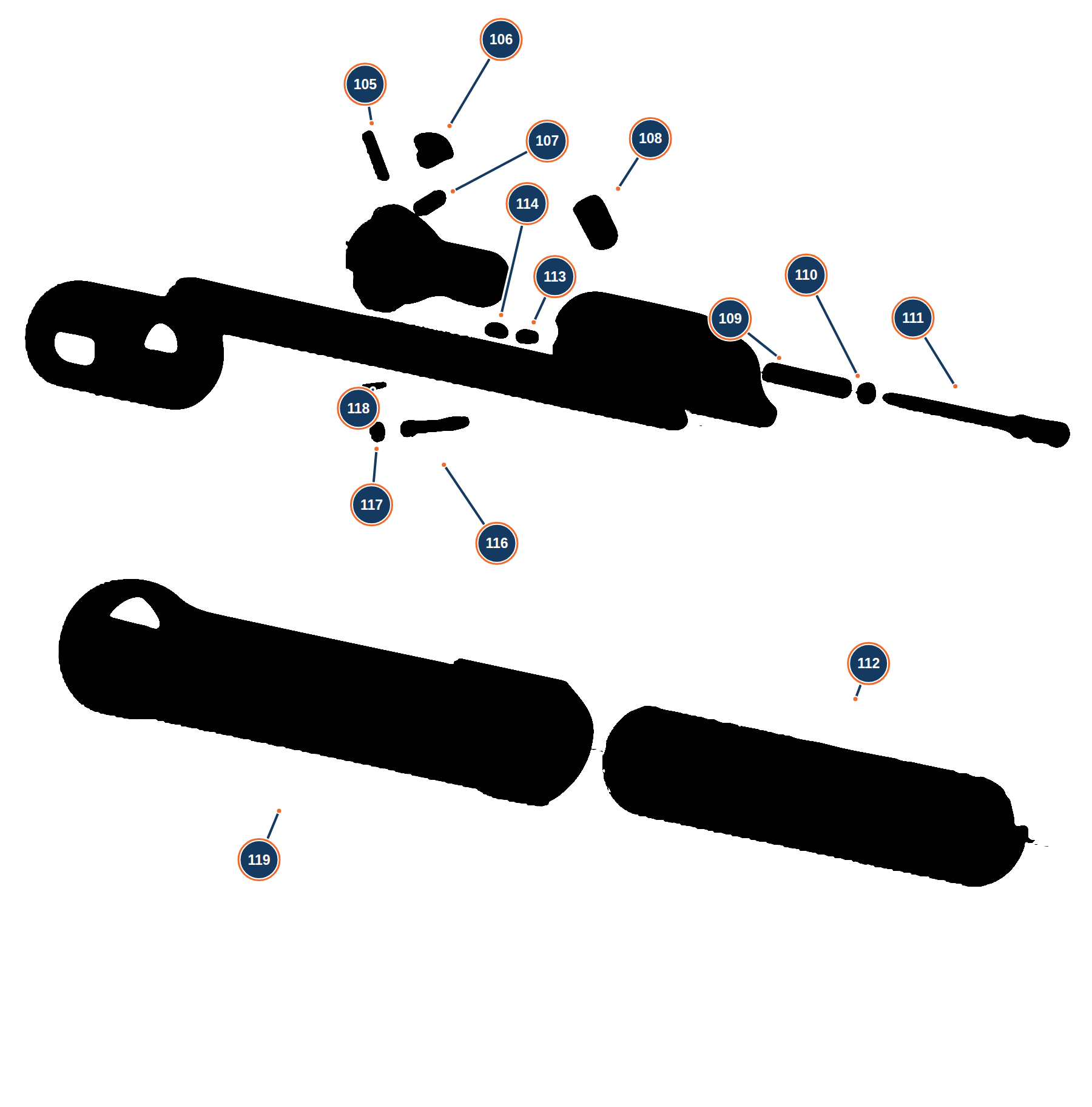

Gruppo_carrello

A400 Xtreme Plus 12G Gruppo_carrello exploded diagram.

Official A400 Xtreme Plus 12G Gruppo_carrello exploded diagram
PositionBeretta CodeDescriptionProduct Link
105BER-C97087Elastic Pin 2.14Warehouse Stock Beretta 1301 Elastic Roll Pin 2x14
106BER-C5G282Right ExtractorWarehouse Stock Beretta 1301 Extractor
107BER-C95316Extractor SpringWarehouse Stock Beretta 1301 Extractor Spring
108BER-C92278BoltWarehouse Stock Beretta 1301 Breech Bolt Pin
109BER-C95322Firing Pin SpringWarehouse Stock Beretta 1301 Firing Pin Spring
110BER-C5A354Ring 3x1In stock Beretta A400 Striker Retaining O Ring
111BER-C5D326Firing PinWarehouse Stock Beretta 1301 Firing Pin
112BER-C95313Recoil SpringWarehouse Stock Beretta 1301 Recoil Spring
113BER-C59930Latch HandleWarehouse Stock Beretta 1301 Cocking Handle Plunger
114BER-C95324Latch Handle SpringWarehouse Stock Beretta 1301 Cocking Handle Plunger Spring
116BER-C72332Firing Pin and Latch Block AssemblyWarehouse Stock Beretta 1301 Firing Pin Retaining Pin Assembly
117BER-C5A354Ring 3x1In stock Beretta A400 Striker Retaining O Ring
118BER-C97122Safety Lever PinWarehouse Stock Beretta 1301 Cocking Handle Roll Pin
119BER-C59937Piston StopWarehouse Stock Beretta 1301 Piston Tube Stop

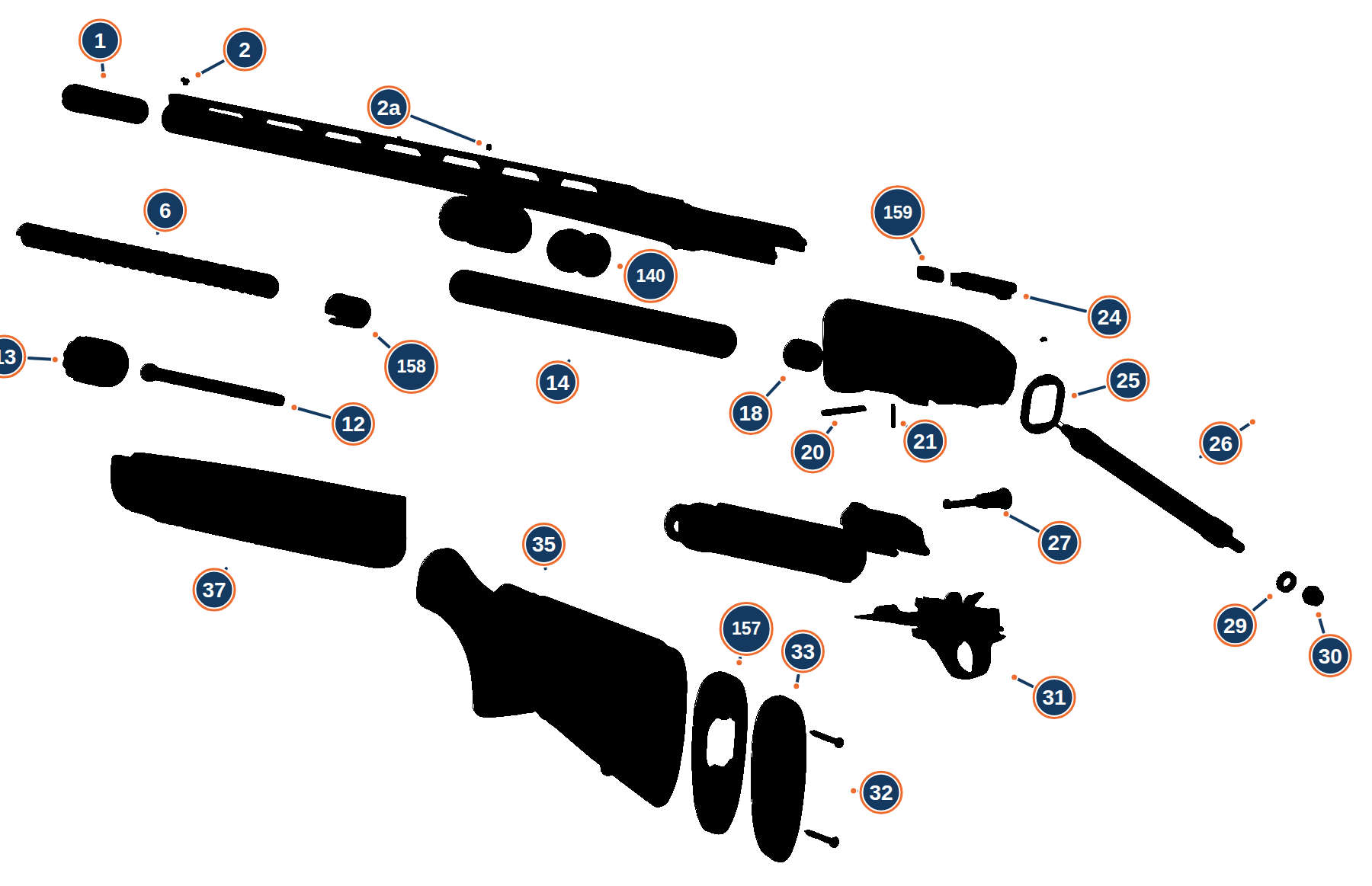

Macrogruppi

A400 Xtreme Plus 12G Macrogruppi exploded diagram.

Official A400 Xtreme Plus 12G Macrogruppi exploded diagram
PositionBeretta CodeDescriptionProduct Link
1BER-PR0047, BER-PR0050, BER-PR0045, BER-PR0053, BER-PR0044, BER-PR0046, BER-C6D933, BER-C6D931, BER-PR0131, BER-PR0048, BER-PR0049, BER-PR0051, BER-PR0052ChokesBER-PR0047 Not Available
BER-PR0050 Not Available
BER-PR0045 Not Available
BER-PR0053 Not Available
BER-PR0044 Not Available
BER-PR0046 Not Available
BER-C6D933 Not Available
BER-C6D931 Not Available
BER-PR0131 Not Available
BER-PR0048 Not Available
BER-PR0049 Not Available
BER-PR0051 Not Available
BER-PR0052 Not Available
2BER-C5H149Front SightWarehouse Stock Beretta A400 Xtreme Plus 20G Red Sight
2aBER-C5E690Intermediate SightWarehouse Stock Beretta 1301 Mid Bead Sight
6BER-C95399Magazine SpringWarehouse Stock Beretta 1301 Magazine Spring
12BER-C5E597, BER-C5E598ReducerBER-C5E597 Not Available
BER-C5E598 Not Available
13BER-C8A679, BER-C8C078, BER-C8C172, BER-C8C491, BER-C8D267Front CapBER-C8A679 Not Available
Warehouse Stock Beretta Forend Cap Camo Max5 For A400 Xtreme
BER-C8C172 Not Available
BER-C8C491 Not Available
BER-C8D267 Not Available
14BER-C85D877, BER-C5E596Magazine TubeBER-C85D877 Not Available
Warehouse Stock Beretta A400 Xtreme Magazine Tube Uncrimped
18BER-C5B602Magazine Tube CapWarehouse Stock Beretta 1301 12G Magazine Follower
20BER-C92407Underguard Fixing PlugIn stock Beretta 1301 Trigger Group Pin
21BER-C92168Cut-off PinIn stock Beretta 391/ 400 carrier Latch Retaining Pin
24BER-C97038Elastic Cut-off PinIn stock Beretta 391 Cut Off Spring Pin
25BER-C58978, BER-C58979Front Fold PlateWarehouse Stock Beretta 1301 Front Stock Shim 55/60
Warehouse Stock Beretta 1301 Front Stock Shim 50/65
26BER-C88507Stock Brace Rod AssemblyNot currently in stock Beretta A400 Stock Bolt Tube Assembly
27BER-C7A702, BER-C7A817Enlarged LatchBER-C7A702 Not Available
Warehouse Stock Beretta 1301 Competition Bolt Handle
29BER-C97200Stock Elastic WasherWarehouse Stock Beretta 1301 Stock Retaining Nut Washer
30BER-C97174Stock Fastening NutWarehouse Stock Beretta 1301 Stock Retaining Nut
31BER-C8D418, BER-C8D419, BER-C8D421, BER-C8D422, BER-C8D457, BER-C8E069Trigger GroupBER-C8D418 Not Available
BER-C8D419 Not Available
BER-C8D421 Not Available
BER-C8D422 Not Available
BER-C8D457 Not Available
BER-C8E069 Not Available
32BER-C95192, BER-C95386Recoil pad ScrewIn stock Pad Screw - 40mm
In stock Extra Long Pad Screw - 70mm
33BER-PR0094, BER-PR0098Recoil padBER-PR0094 Not Available
BER-PR0098 Not Available
35BER-C8D610, BER-C8D622, BER-C8D623, BER-C8D624, BER-C8D625, BER-C8D626, BER-C8E034Kick-Off StockBER-C8D610 Not Available
BER-C8D622 Not Available
BER-C8D623 Not Available
BER-C8D624 Not Available
BER-C8D625 Not Available
BER-C8D626 Not Available
BER-C8E034 Not Available
37BER-E5E553, BER-E00594, BER-C5F487, BER-C5F660, BER-C5G252ForendWarehouse Stock Beretta A400 Xtreme Plus Forend Black
BER-E00594 Not Available
BER-C5F487 Not Available
BER-C5F660 Not Available
BER-C5G252 Not Available
140BER-C8A324Piston AssemblyWarehouse Stock Beretta A400 Xtreme Piston Assembly
157BER-C5E610, BER-C5E615SpacersWarehouse Stock Beretta 12/20G Polymer Spacer Field 25mm
Not currently in stock Beretta 12/20G Polymer Spacer Field 12.5mm
158BER-C8A487Pass-through B-Lock Magazine CapBER-C8A487 Not Available
159BER-C5H273Enlarged Bolt Release Lever CoverNot currently in stock Beretta 1301 Comp Pro Button/Cover

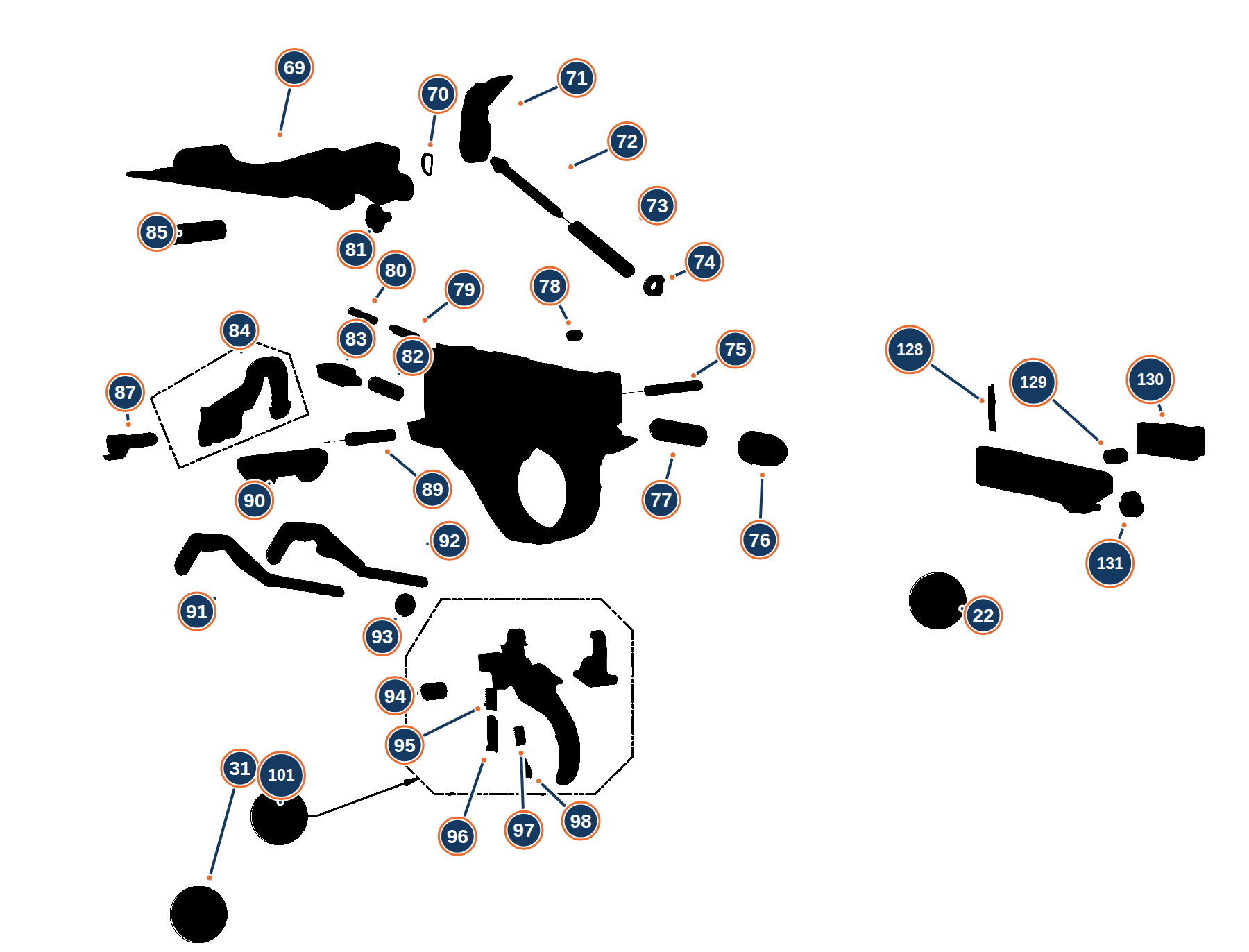

Sottoguardia

A400 Xtreme Plus 12G Sottoguardia exploded diagram.

Official A400 Xtreme Plus 12G Sottoguardia exploded diagram
PositionBeretta CodeDescriptionProduct Link
22BER-C8D46489mm Chamber Bolt Release LeverIn stock Beretta 1301 Comp Pro Latch
31BER-C8D418, BER-C8D419, BER-C8D420, BER-C8D457, BER-C8E069Trigger GroupBER-C8D418 Not Available
BER-C8D419 Not Available
Warehouse Stock Beretta A400 Xtreme Plus Trigger Assembly Mossy Oak 12G
BER-C8D457 Not Available
BER-C8E069 Not Available
69BER-C5H125Long Model LifterBER-C5H125 Not Available
70BER-C5A326Underguard Pin Retaining RingIn stock Beretta 1301 Comp Trigger Bush D-Clip (70)
71BER-C5D892Lifter LeverWarehouse Stock Beretta 1301 Carrier Lever
72BER-C5D533Lifter Lever Guide SpringBER-C5D533 Not Available
73BER-C95315Lifter Lever SpringWarehouse Stock Beretta 1301 / A400 Carrier Lever Spring
74BER-C5D774Lifter Lever Guide PlateWarehouse Stock Beretta 1301 Carrier Lever Spring Guide Plate
75BER-C97093Elastic Pin 2.50x20Warehouse Stock Beretta 1301 Elastic Pin
76BER-C5B992Cocking Handle HolderBER-C5B992 Not Available
77BER-C90380Cocking Handle SpringBER-C90380 Not Available
78BER-C59072Forend Cap ScrewBER-C59072 Not Available
79BER-C58985Safety Spring PinWarehouse Stock Beretta 1301 Safety Spring Plunger
80BER-C90382Safety SpringWarehouse Stock Beretta 1301 Safety Spring
81BER-C92286Trigger Lever PinWarehouse Stock Beretta 1301 Carrier Lever Pin
82BER-C95323Lifter Stop Pin SpringBER-C95323 Not Available
83BER-C59929Lifter Stop PinWarehouse Stock Beretta 1301 Carrier Stop Pin
84BER-C76616Complete Cocking HandleWarehouse Stock Beretta 1301 Hammer
85BER-C5D775Lifter BushingWarehouse Stock Beretta 1301 Elevator Bush
87BER-C92213Cocking Handle PinBER-C92213 Not Available
89BER-C5F383Trigger PinBER-C5F383 Not Available
90BER-C5D323Ambidextrous SafetyBER-C5D323 Not Available
91BER-C5D328Left Sling SwivelWarehouse Stock Beretta 1301 Left Hammer Brace
92BER-C5D329Right Sling SwivelWarehouse Stock Beretta 1301 Right Hammer Brace
93BER-C5D426Cocking Handle Spring BushingBER-C5D426 Not Available
94BER-C50757Trigger Spring BushingBER-C50757 Not Available
95BER-C90093Trigger SpringWarehouse Stock Beretta 1301 Trigger Spring
96BER-C5D697Trigger Spring GuideBER-C5D697 Not Available
97BER-C90094Trigger Spring PinWarehouse Stock Beretta 1301 Locking Bolt Trip Spring
98BER-C92098Trigger Stop Pin SpringWarehouse Stock Beretta 1301 Locking Bolt Trip Spring Plunger
101BER-C88449Complete TriggerWarehouse Stock Beretta 1301 Chrome Trigger Assembly
128BER-C92212Cartridge Command Lever PinBER-C92212 Not Available
129BER-C90231Cartridge Command Lever SpringWarehouse Stock Beretta 391 Cartridge Latch Spring
130BER-C5G371Cartridge Command LeverBER-C5G371 Not Available
131BER-C90350Cartridge Command Lever Body SpringWarehouse Stock Beretta 391 Cartidge Latch Body Spring
