Tikka T1x spare parts
Tikka T1x Parts Guide
Use the exploded diagrams and exact position tables to find the correct Tikka spare part.

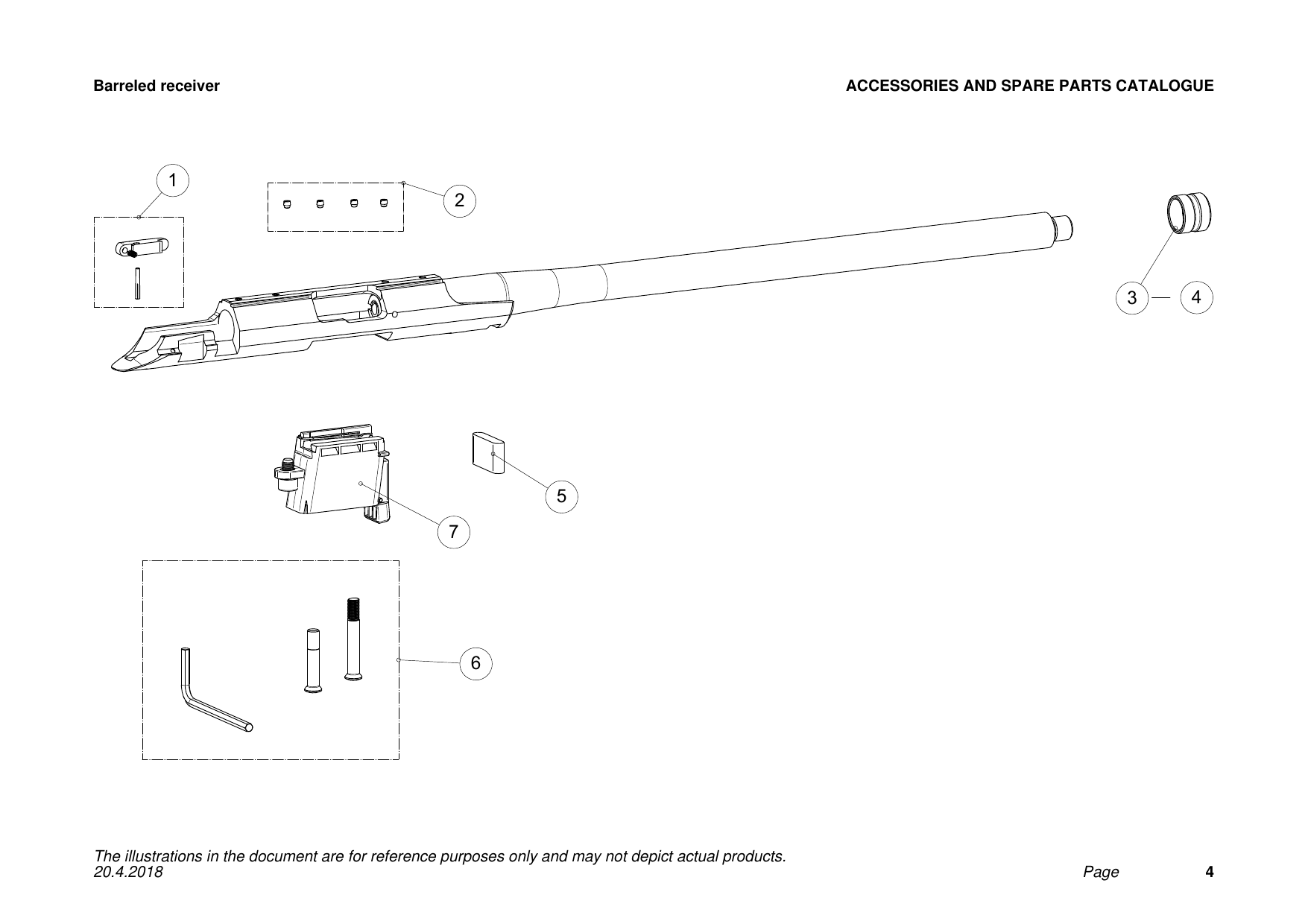

Barreled receiver
Use this exploded view with the matching position and part-code table below.
Barreled receiver parts
| Position | Tikka Code | Stock | Description & Product Link |
|---|---|---|---|
| 1 | S545204052 | ||
| 2 | S574T210 | ||
| 3 | S545204050 | ||
| 4 | S545204320 | ||
| 5 | S585T299 | ||
| 6 | S545204051 | ||
| 7 | S545204054 |

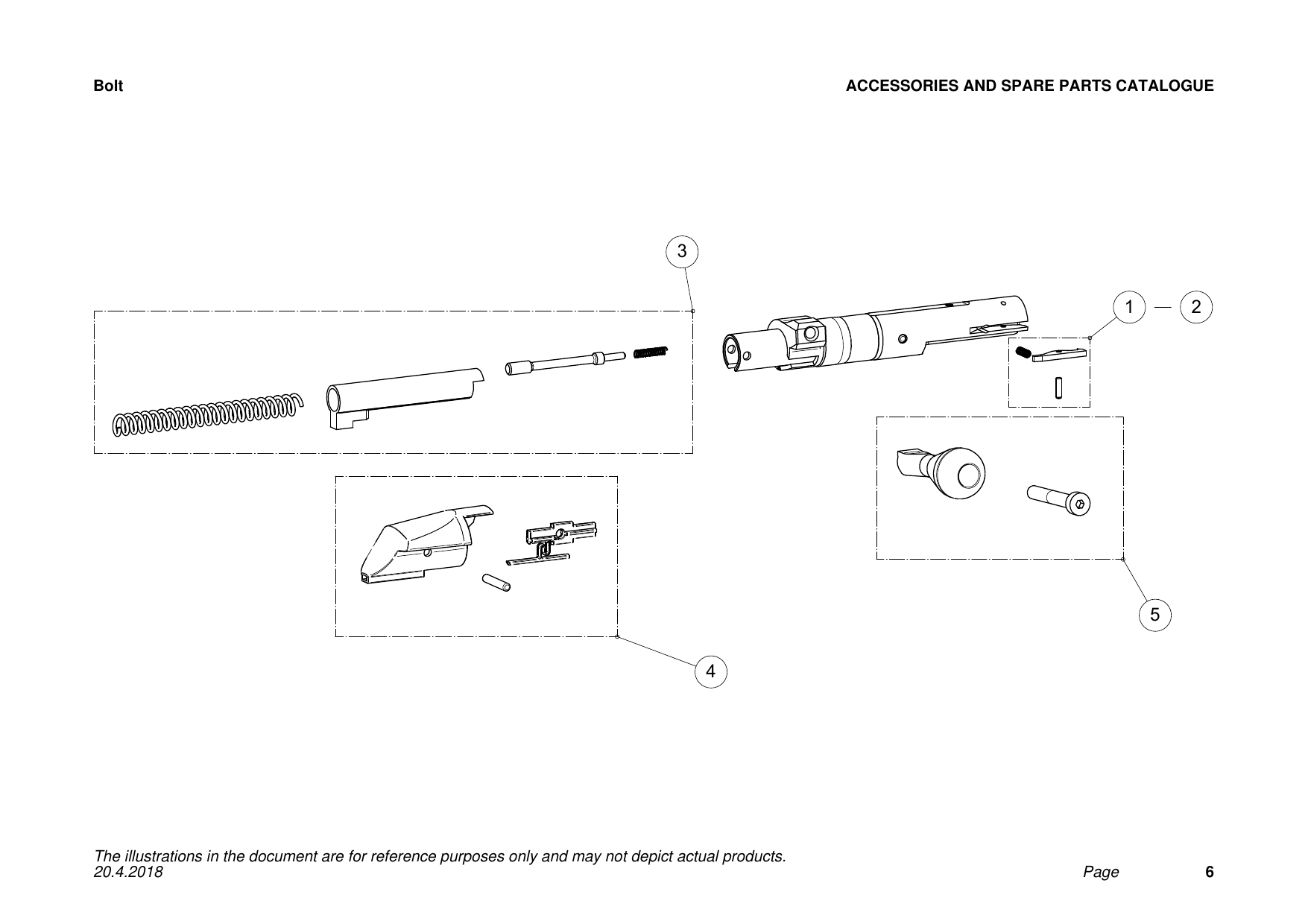

Bolt
Use this exploded view with the matching position and part-code table below.
Bolt parts
| Position | Tikka Code | Stock | Description & Product Link |
|---|---|---|---|
| 1 | S545204060 | ||
| 2 | S545204062 | ||
| 3 | S545204057 | ||
| 4 | S545204058 | ||
| 5 | S545204059 |

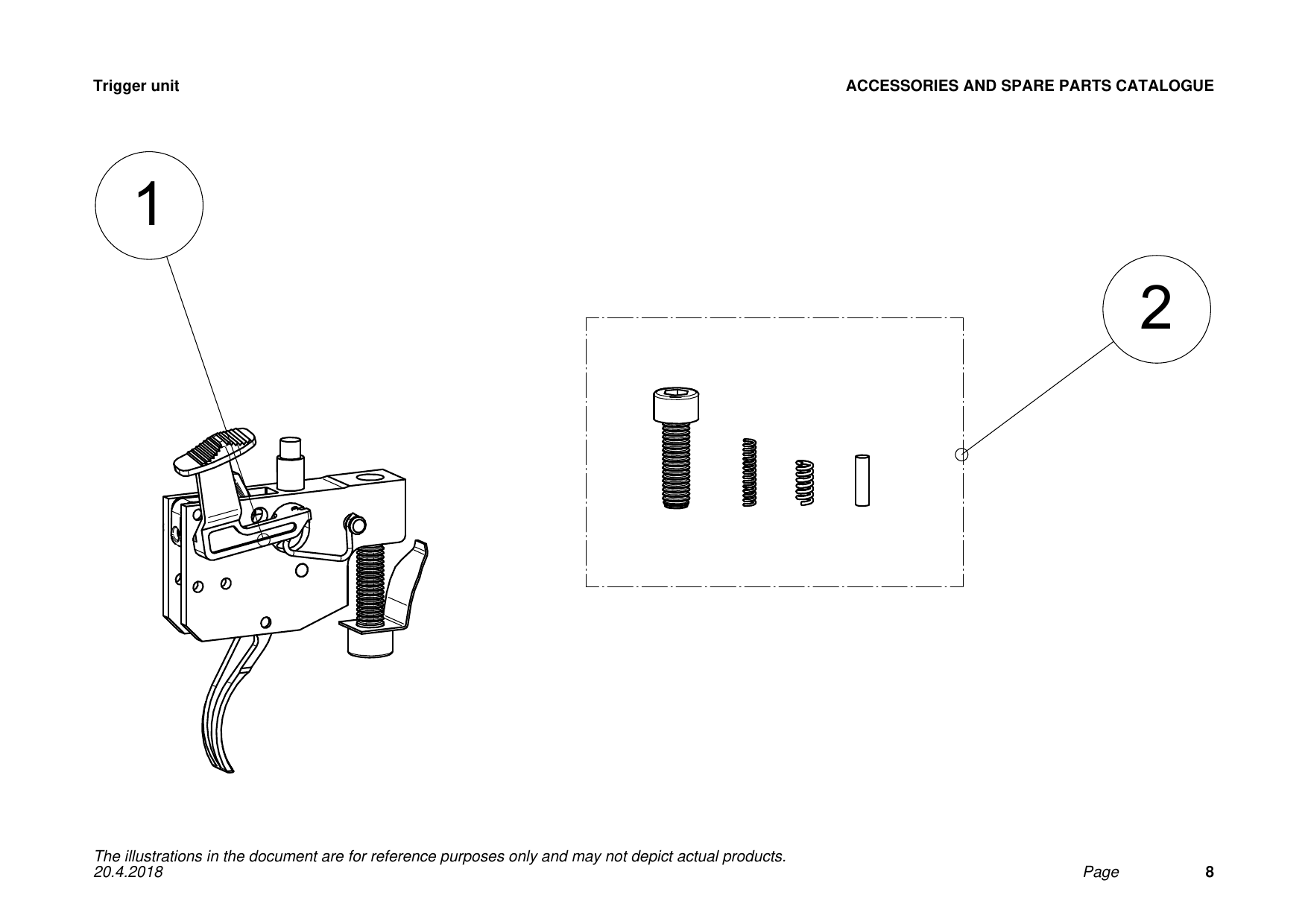

Trigger unit
Use this exploded view with the matching position and part-code table below.
Trigger unit parts
| Position | Tikka Code | Stock | Description & Product Link |
|---|---|---|---|
| 1 | S585T110 | ||
| 2 | S584T210 | Not Available | Trigger spring set |

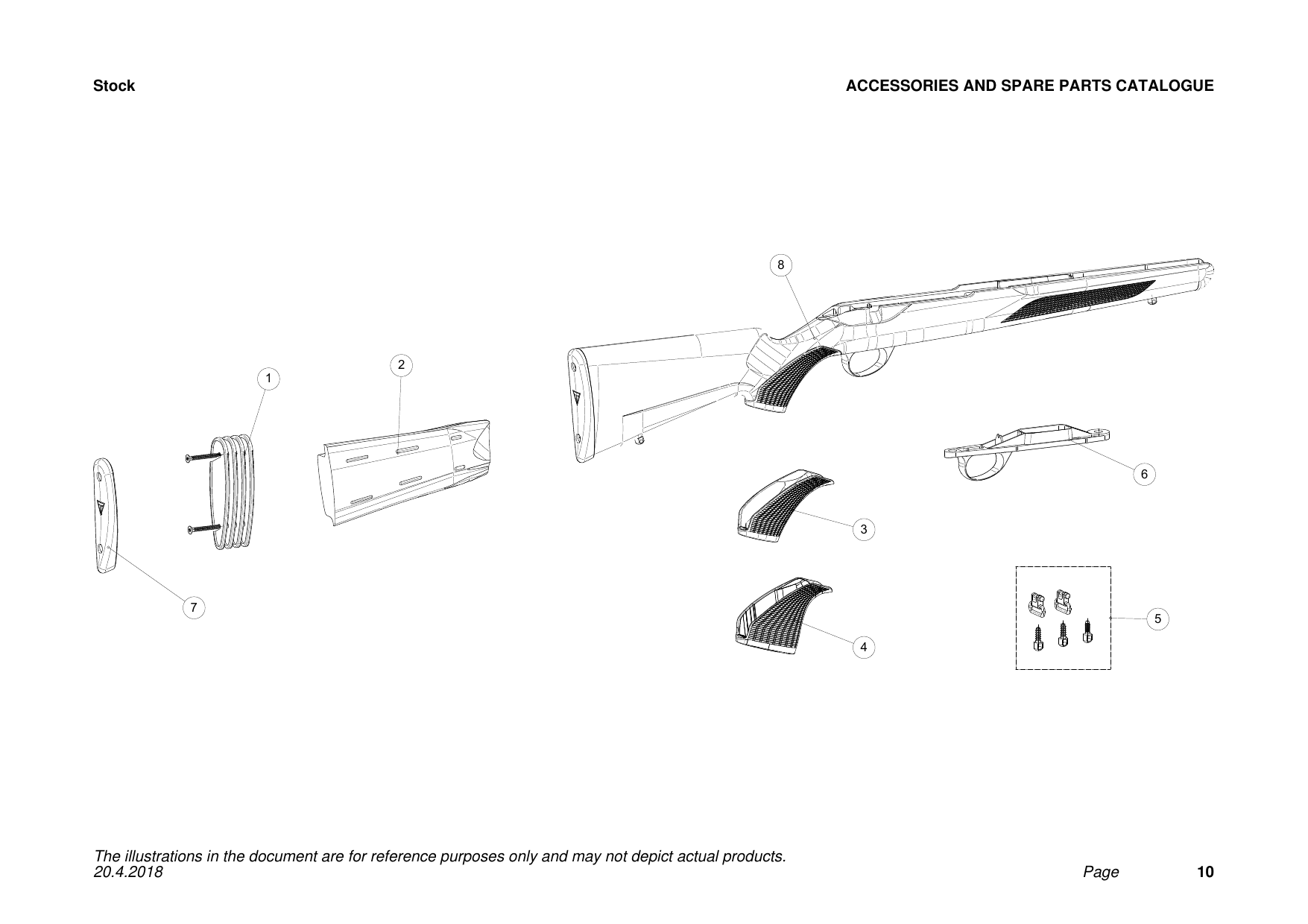

Stock
Use this exploded view with the matching position and part-code table below.
Stock parts
| Position | Tikka Code | Stock | Description & Product Link |
|---|---|---|---|
| 1 | S54068539 | ||
| 2 | S54068540 | Not Available | Silent stock foam |
| 3 | S54067115 | Not Available | Pistol grip, traditional |
| 4 | S54067116 | ||
| 5 | S594T297 | ||
| 6 | S545204056 | ||
| 7 | S545204055 | ||
| 8 | S545204097 | Not Available | Stock complete |

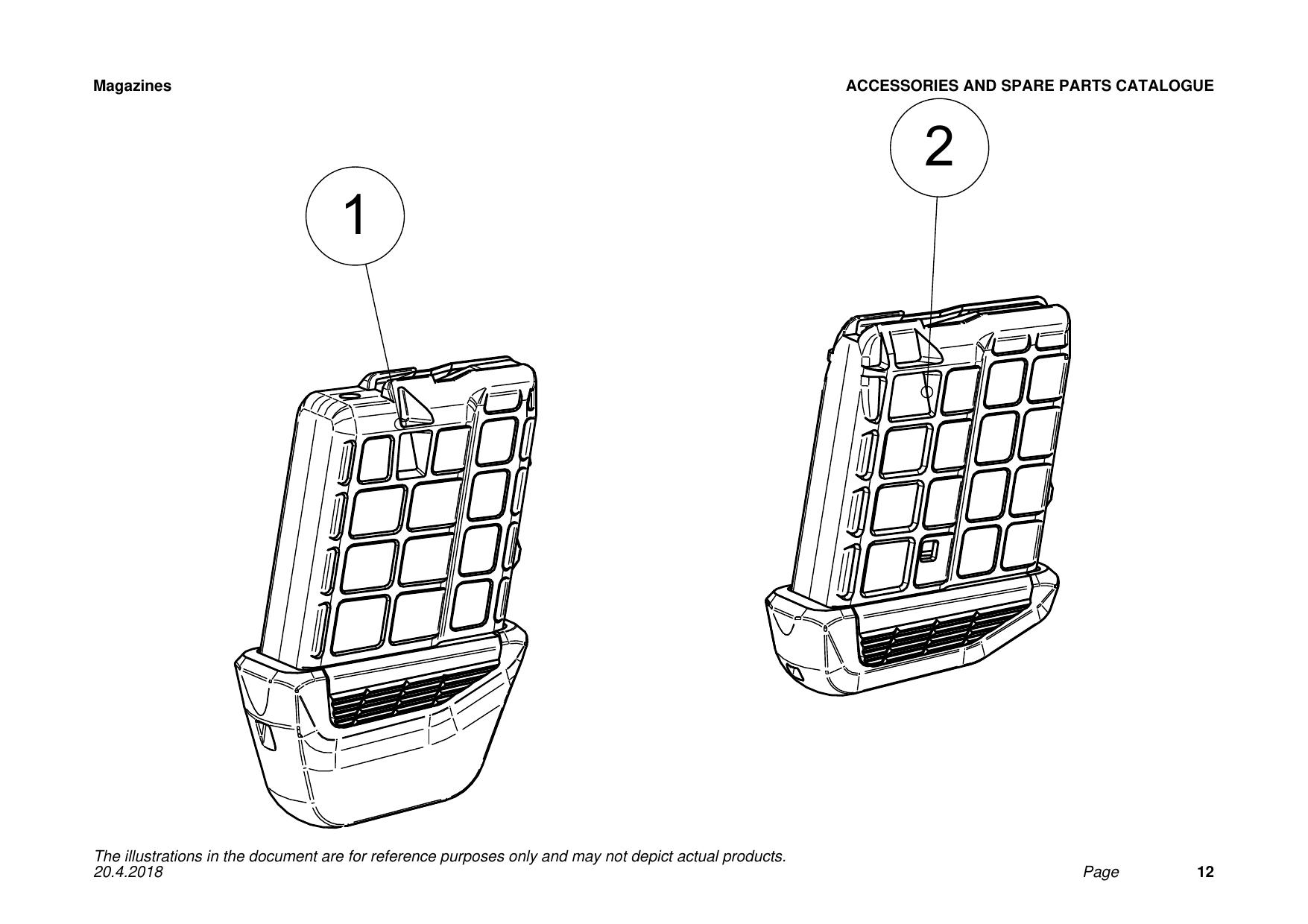

Magazines
Use this exploded view with the matching position and part-code table below.
Magazines parts
| Position | Tikka Code | Stock | Description & Product Link |
|---|---|---|---|
| 1 | S545203781 | ||
| 2 | S545203782 |
