Vortex Tactical 30mm Ring
The stock information shown above is very accurate and updated dynamically. In stock items are shipped the same day when ordered before 2pm, or can be collected after ordering. Warehouse items will arrive with us in the timescale shown. Collection is by appointment only and must be booked in advance. Our phone lines can get extremely busy and email is the most efficient way to communicate with us!
Vortex Optics
Vortex Tactical 30mm Ring

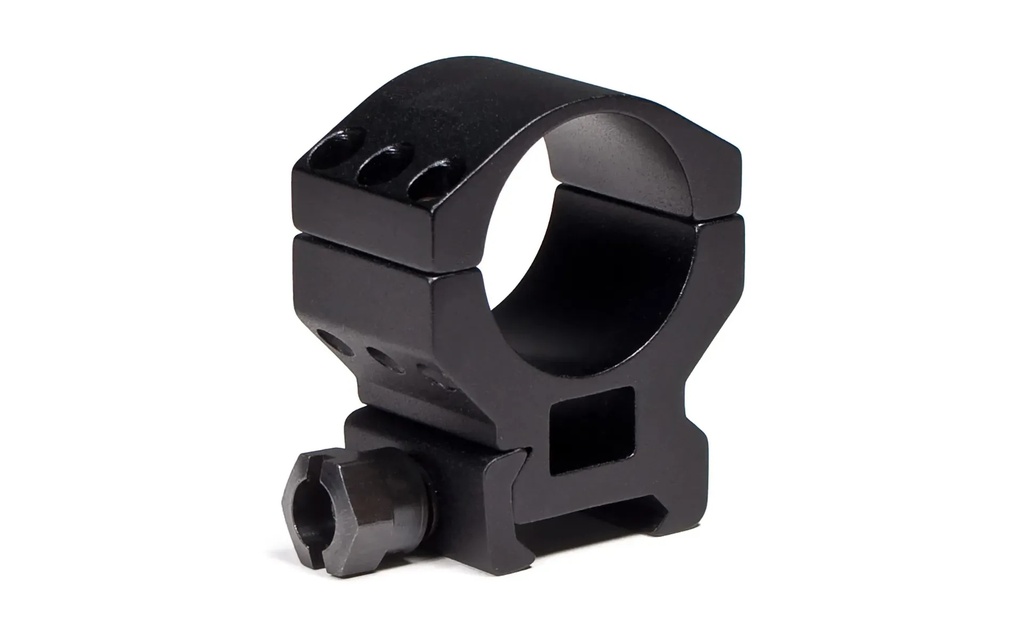

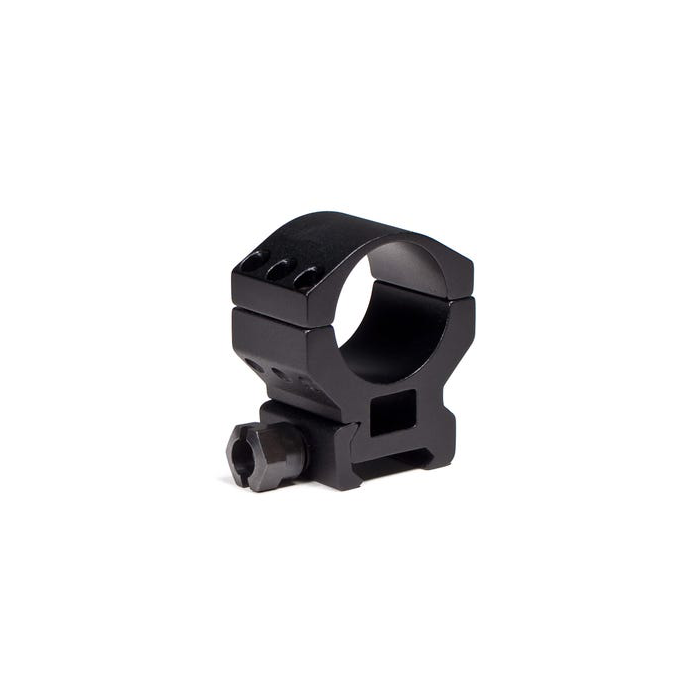

This robust 6-screw Tactical 30mm Ring is perfect for mounting red dot optics, magnifiers and other accessories with 30mm tube diameters to your Picatinny rail. When using this ring to mount a conventional riflescope, we strongly recommend lapping the rings for a proper and secure fit for your optic.
Height Chart
| Option | Height | |
|---|---|---|
| Low | 0.83" | 21.0mm |
| Medium | 0.97" | 24.6mm |
| High | 1.18" | 30.0mm |
| Extra-High Lower 1/3 | 1.57" | 40.0mm |
| Extra-High Absolute | 1.46" | 37.0mm |
Specifications and model details
Tactical 30 mm Ring Low
Manufacturer SKU: TRL
| Center Scope Height | 0.83" (21.0mm) |
|---|---|
| Mount Option | Low |
| Mount Type | Picatinny/Weaver® |
| Weight | 2.39 oz. (per ring) |
| Category | Red Dots |
| GTIN | 875874002203 |
| Tube Size | 30mm |
| Ring Height | Low |
| Adjustable Objective | Yes |
| Product Family | Rings and Mounts |
| Cap Screw Bit Size | Torx® T-15 |
| Base Screw Bit Size | 1/2" Hex Nut |
| Cap Screw Torque | 15-18 in-lbs |
| Base Screw Torque | 35-45 in-lbs |
Tactical 30 mm Ring Medium
Manufacturer SKU: TRM
| Center Scope Height | 0.97" (24.6mm) |
|---|---|
| Mount Option | Medium |
| Mount Type | Picatinny/Weaver® |
| Weight | 2.67 oz. (per ring) |
| Category | Red Dots |
| GTIN | 875874003866 |
| Tube Size | 30mm |
| Ring Height | Medium |
| Adjustable Objective | Yes |
| Product Family | Rings and Mounts |
| Cap Screw Bit Size | Torx® T-15 |
| Base Screw Bit Size | 1/2" Hex Nut |
| Cap Screw Torque | 15-18 in-lbs |
| Base Screw Torque | 35-45 in-lbs |
Tactical 30 mm Ring High
Manufacturer SKU: TRH
| Center Scope Height | 1.18" (30.0mm) |
|---|---|
| Mount Option | High |
| Mount Type | Picatinny/Weaver® |
| Weight | 2.78 oz. (per ring) |
| Category | Red Dots |
| GTIN | 875874002210 |
| Tube Size | 30mm |
| Ring Height | High |
| Adjustable Objective | Yes |
| Product Family | Rings and Mounts |
| Cap Screw Bit Size | Torx® T-15 |
| Base Screw Bit Size | 1/2" Hex Nut |
| Cap Screw Torque | 15-18 in-lbs |
| Base Screw Torque | 35-45 in-lbs |
Tactical 30 mm Ring Extra-High Absolute
Manufacturer SKU: TRXHAC
| Center Scope Height | 1.46" (37.0mm) |
|---|---|
| Mount Option | Extra-High Absolute |
| Mount Type | Picatinny/Weaver® |
| Weight | 3.25 oz. (per ring) |
| Category | Red Dots |
| GTIN | 875874002227 |
| Tube Size | 30mm |
| Ring Height | Extra-High Absolute |
| Adjustable Objective | Yes |
| Product Family | Rings and Mounts |
| Cap Screw Bit Size | Torx® T-15 |
| Base Screw Bit Size | 1/2" Hex Nut |
| Cap Screw Torque | 15-18 in-lbs |
| Base Screw Torque | 35-45 in-lbs |
Tactical 30 mm Ring Extra-High Lower 1/3
Manufacturer SKU: TRXH
| Center Scope Height | 1.57" (40.0mm) |
|---|---|
| Mount Option | Extra-High Lower 1/3 |
| Mount Type | Picatinny/Weaver® |
| Weight | 3.41 oz. (per ring) |
| Category | Red Dots |
| GTIN | 875874002197 |
| Tube Size | 30mm |
| Ring Height | Extra-High Lower 1/3 |
| Adjustable Objective | Yes |
| Product Family | Rings and Mounts |
| Cap Screw Bit Size | Torx® T-15 |
| Base Screw Bit Size | 1/2" Hex Nut |
| Cap Screw Torque | 15-18 in-lbs |
| Base Screw Torque | 35-45 in-lbs |
Manuals and documentation
- TRL Parts Diagram (PDF)
- TRH Parts Diagram (PDF)
- TRXH Parts Diagram (PDF)
- TRXHAC Parts Diagram (PDF)
- Parts Diagram (PDF)
Official manufacturer information: Vortex Optics.
