Vortex Diamondback HD Binocular

https://www.bluefieldsports.co.uk/web/image/product.template/6117/image_1920?unique=51a218e

£ 210.00 210.0 GBP £ 210.00

£ 160.00

Not Available For Sale

  • Magnification

This combination does not exist.

Out of stock. Use the stock notification below.
We'll notify you once the product is back in stock.

The stock information shown above is very accurate and updated dynamically. In stock items are shipped the same day when ordered before 2pm, or can be collected after ordering. Warehouse items will arrive with us in the timescale shown. Collection is by appointment only and must be booked in advance. Our phone lines can get extremely busy and email is the most efficient way to communicate with us!

Contact Us

Some items may be subject to licensing and can only be sold to those with the appropriate authority to possess. Please see our Terms & Conditions or contact us if you have any queries.
Please see our post & collection info at the bottom of this page.

Share

Vortex Optics

Vortex Diamondback HD Binocular

Made for hunters who demand hard-working, reliable optics, the Diamondback® HD delivers sharp resolution, enhanced contrast, and rugged durability. Lightweight yet tough enough to go the distance, it’s a strong lineup designed to handle any kind of hunt. A true workhorse, Diamondback® HD gives you the clarity, utility, and trust you need to consistently punch more tags.

Note – Recommended for use with a tripod. Tripod adapter included.

Recommended uses: Hunting, Wildlife Observation

Features

HD Optical System
Optimized with select glass elements to deliver exceptional resolution, cut chromatic aberration and provide outstanding color fidelity, edge-to-edge sharpness, and light transmission.
Fully Multi-Coated Lenses
Anti-reflective coatings on all air-to-glass surfaces provide increased light transmission for greater clarity and low-light performance.
Dielectric Prism Coatings
Multi-layer prism coatings provide bright, clear, color-accurate images.
True Open Hinge
Offers superior ergonomics while decreasing total weight and bulk.
Adjustable Eyecups
Twist up and down for comfortable viewing with or without eyeglasses.
Center Focus Wheel
Adjusts the focus of both binocular barrels at the same time.
Phase Correction
Coating on roof prism models enhances resolution and contrast.
ArmorTek®
Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.
Rubber Armor
Provides a secure, non-slip grip, and durable external protection.
Argon-Gas Purged
Gas purged and O-ring sealed for fogproof and waterproof performance in all conditions.
Waterproof
Designed to withstand harsh weather conditions.
Fogproof
Designed to withstand a wide range of temperatures.
Shockproof
Designed to withstand the highest levels of impact.
Tripod Adaptable
Allowing use on a tripod or car window mount. Tripod adapter included.

Specifications and model details

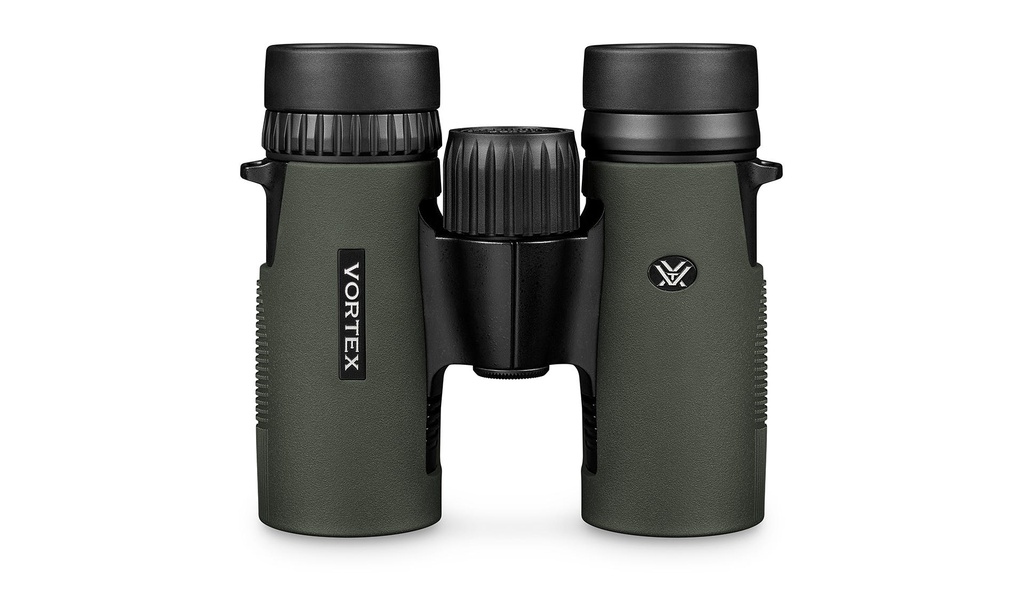

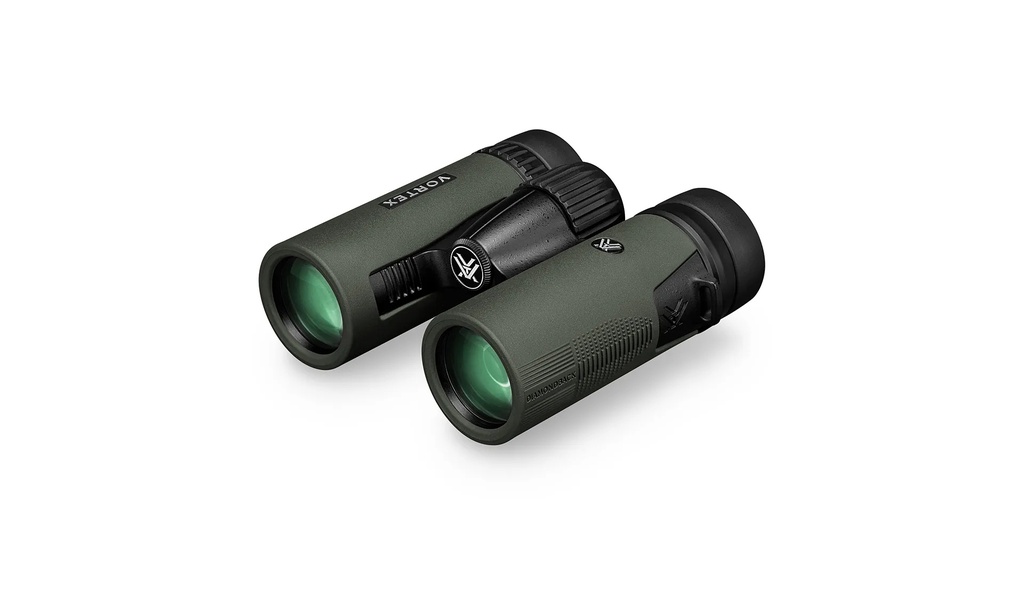

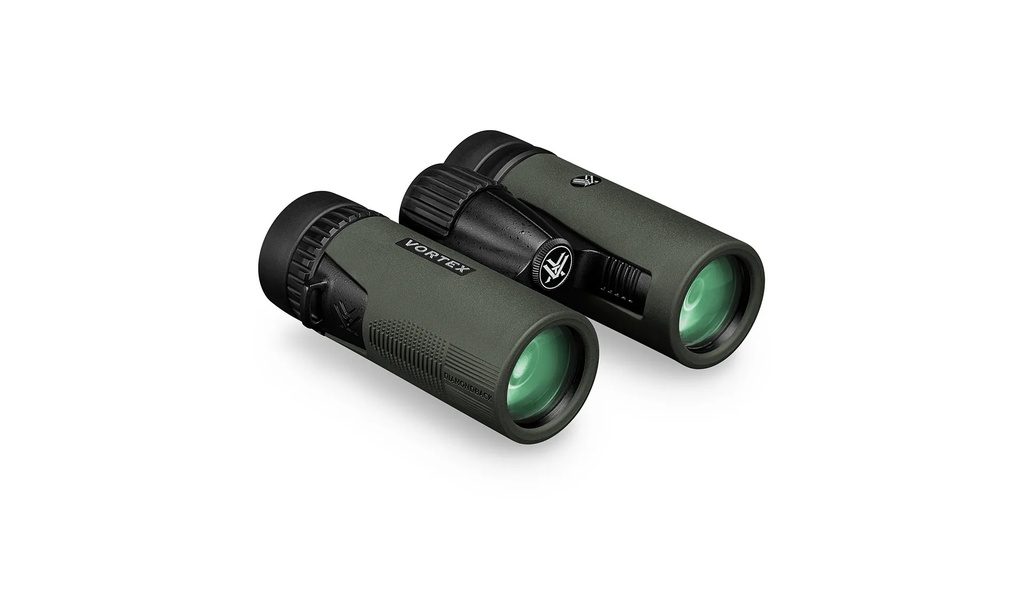

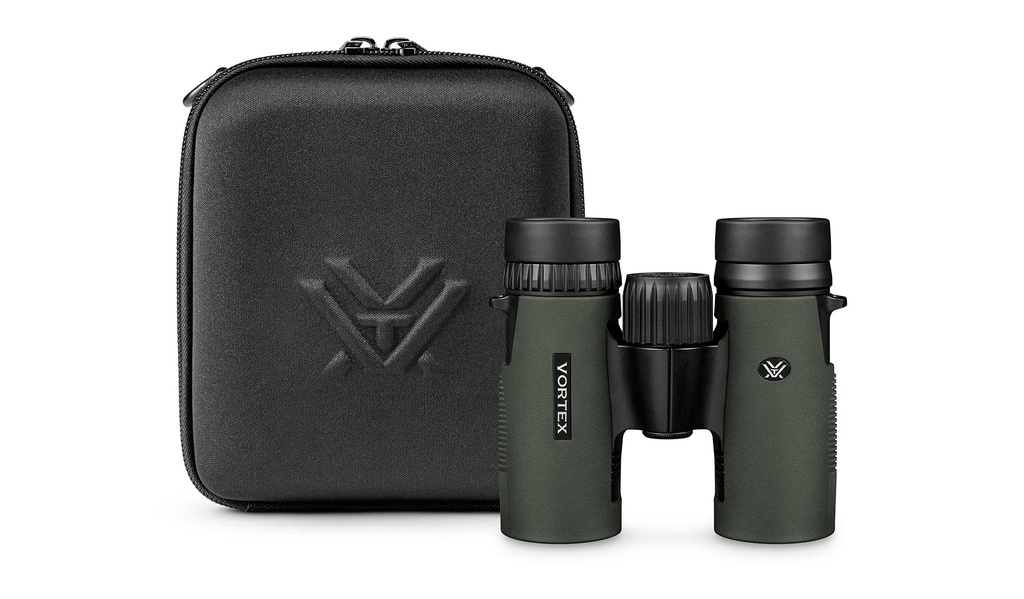

Diamondback HD 8x32

Manufacturer SKU: DB-212

Angular Field of View8.1º
Close Focus5.0'
Eye Relief16.0mm
Height4.4"
Interpupillary Distance55mm - 72mm
Linear Field of View426' @ 1000 yds
Objective Lens Diameter32 mm
Magnification8x
Weight15.9 oz.
Width5.0"
CategoryBinoculars
GTIN875874009912
Product FamilyDiamondback
Product SeriesHD
Optics UseMid-Size
Recommended UsesHunting, Wildlife Observation

Diamondback HD 10x32

Manufacturer SKU: DB-213

Angular Field of View6.5º
Close Focus6 .0'
Eye Relief14.0mm
Height4.4"
Interpupillary Distance57mm - 73mm
Linear Field of View340' @ 1000 yds
Objective Lens Diameter32 mm
Magnification10x
Weight16.0 oz.
Width5.0"
CategoryBinoculars
GTIN875874009929
Product FamilyDiamondback
Product SeriesHD
Optics UseMid-Size
Recommended UsesHunting, Wildlife Observation

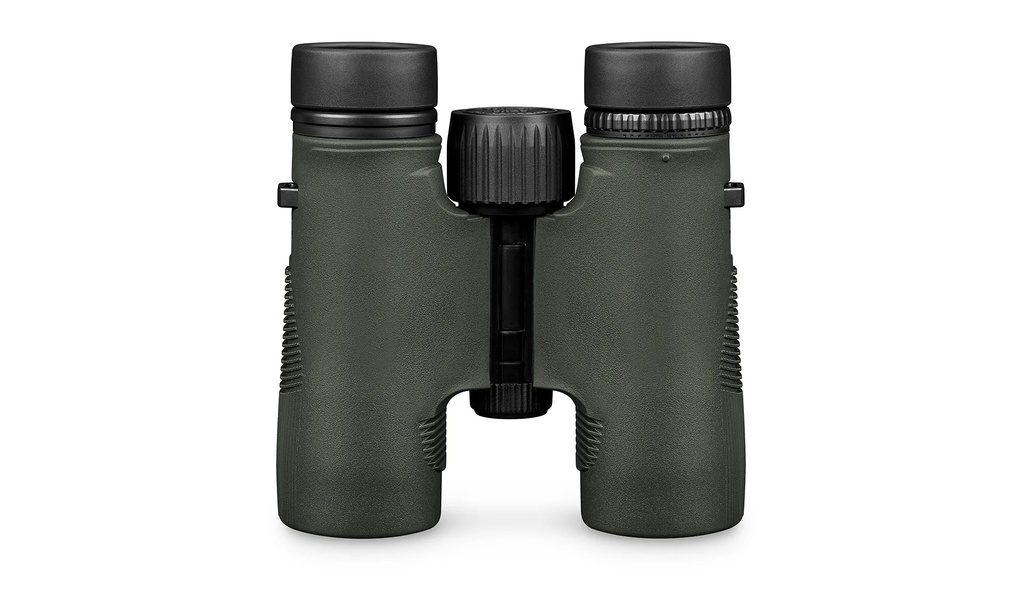

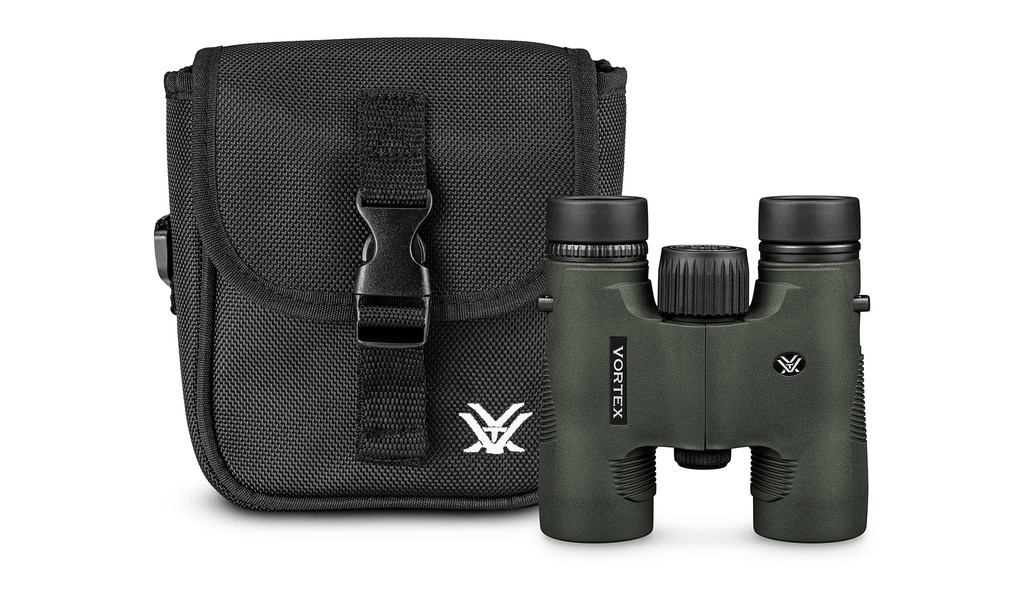

Diamondback HD 8x28

Manufacturer SKU: DB-210

Angular Field of View6.2º
Close Focus6.0'
Eye Relief18.0mm
Height4.6"
Interpupillary Distance55mm - 72mm
Linear Field of View332' @ 1000 yds
Objective Lens Diameter28 mm
Magnification8x
Weight13.7 oz.
Width4.5"
CategoryBinoculars
GTIN875874009899
Product FamilyDiamondback
Product SeriesHD
Optics UseMid-Size
Recommended UsesHunting, Wildlife Observation

Diamondback HD 10x28

Manufacturer SKU: DB-211

Angular Field of View5.1º
Close Focus6.0'
Eye Relief16.0mm
Height4.6"
Interpupillary Distance57mm - 73mm
Linear Field of View273' @ 1000 yds
Objective Lens Diameter28 mm
Magnification10x
Weight13.3 oz.
Width4.5"
CategoryBinoculars
GTIN875874009905
Product FamilyDiamondback
Product SeriesHD
Optics UseMid-Size
Recommended UsesHunting, Wildlife Observation

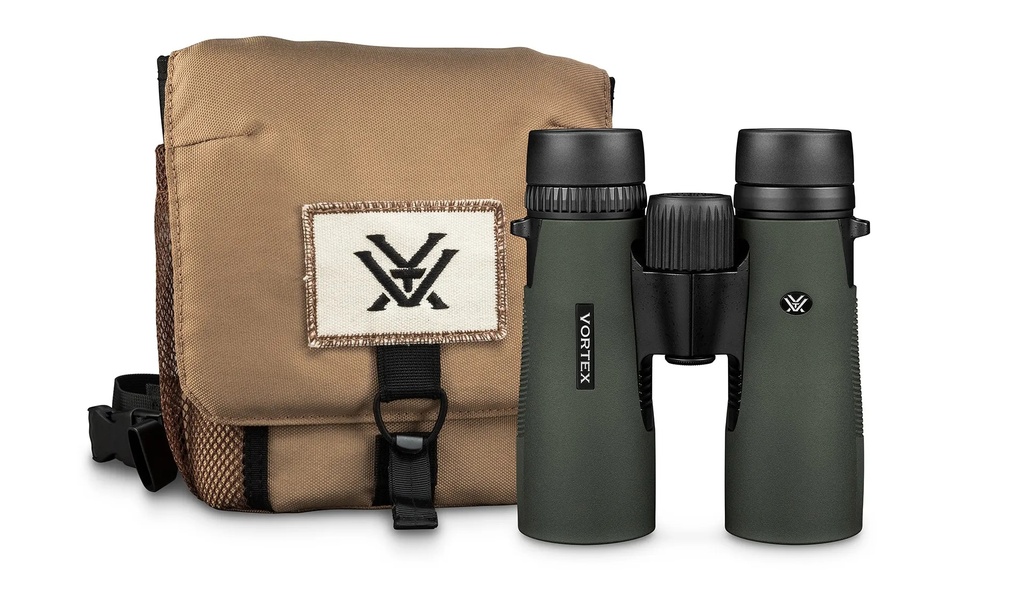

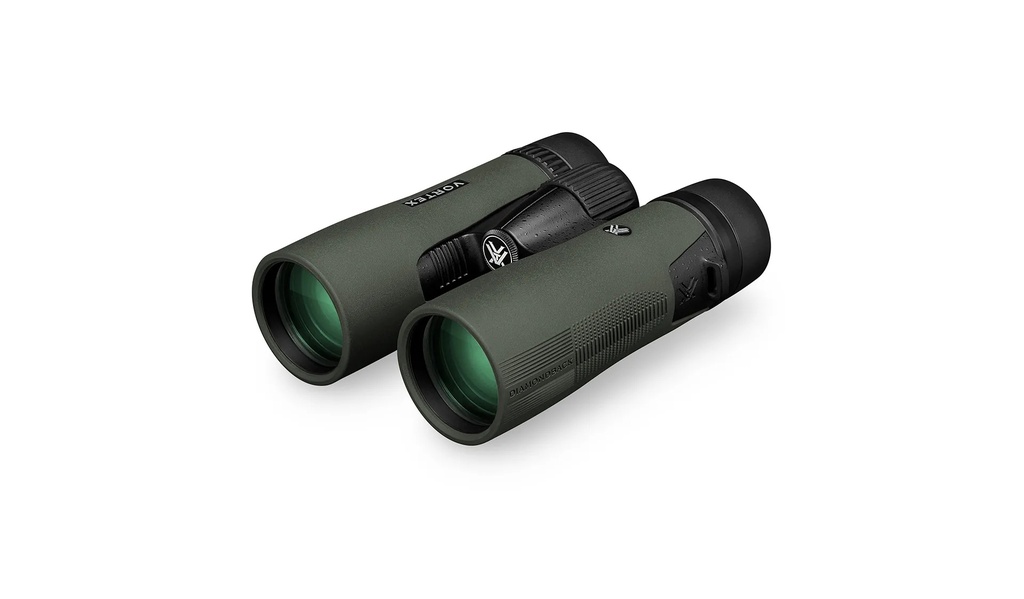

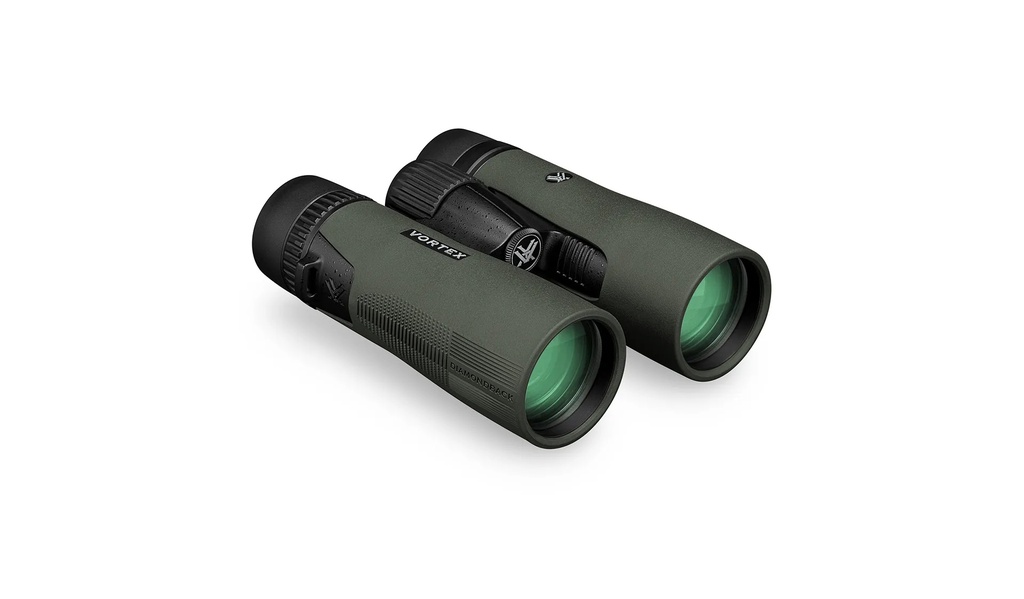

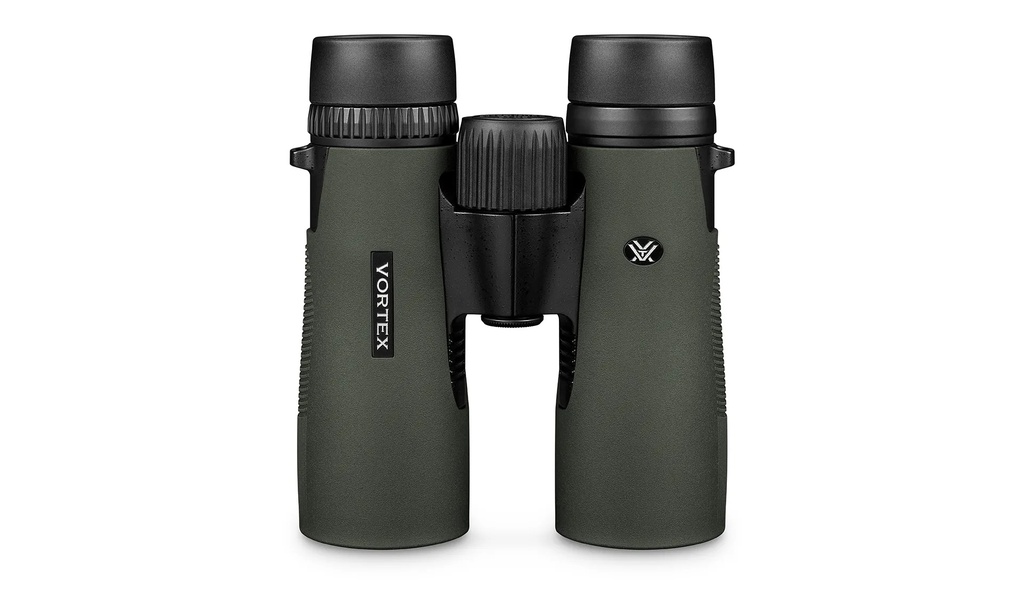

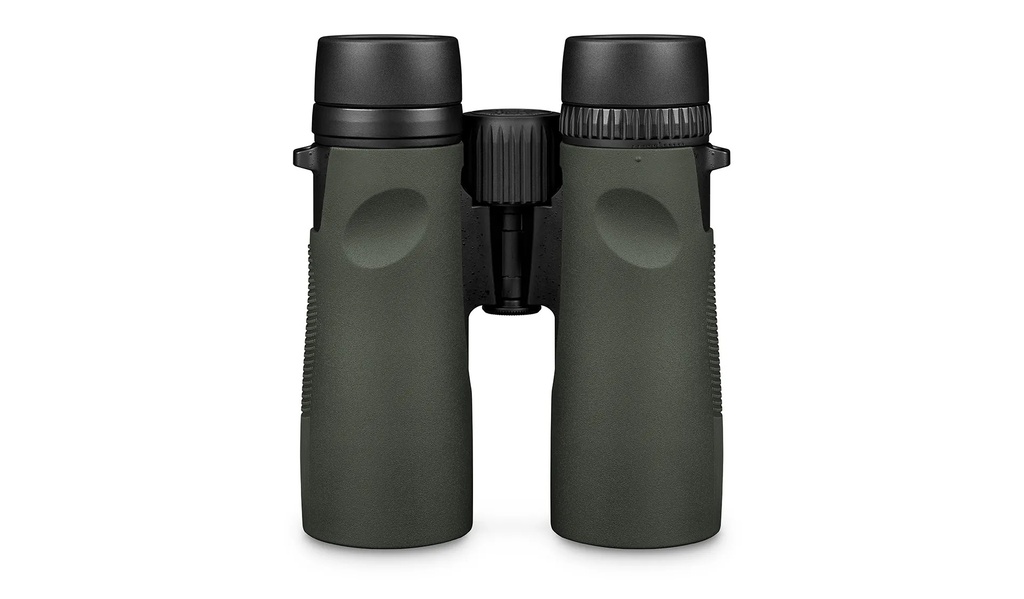

Diamondback HD 8x42

Manufacturer SKU: DB-214

Angular Field of View7.5º
Close Focus5.0'
Eye Relief17.0mm
Height5.7"
Interpupillary Distance55mm - 73mm
Linear Field of View393' @ 1000 yds
Objective Lens Diameter42 mm
Magnification8x
Weight21.8 oz.
Width5.1"
CategoryBinoculars
GTIN875874009936
Product FamilyDiamondback
Product SeriesHD
Optics UseMid-Size
Recommended UsesHunting, Wildlife Observation

Diamondback HD 10x42

Manufacturer SKU: DB-215

Angular Field of View6.3º
Close Focus5.0'
Eye Relief15.0mm
Height5.7"
Interpupillary Distance55mm - 73mm
Linear Field of View330' @ 1000 yds
Objective Lens Diameter42 mm
Magnification10x
Weight21.3 oz.
Width5.1"
CategoryBinoculars
GTIN875874009943
Product FamilyDiamondback
Product SeriesHD
Optics UseMid-Size
Recommended UsesHunting, Wildlife Observation

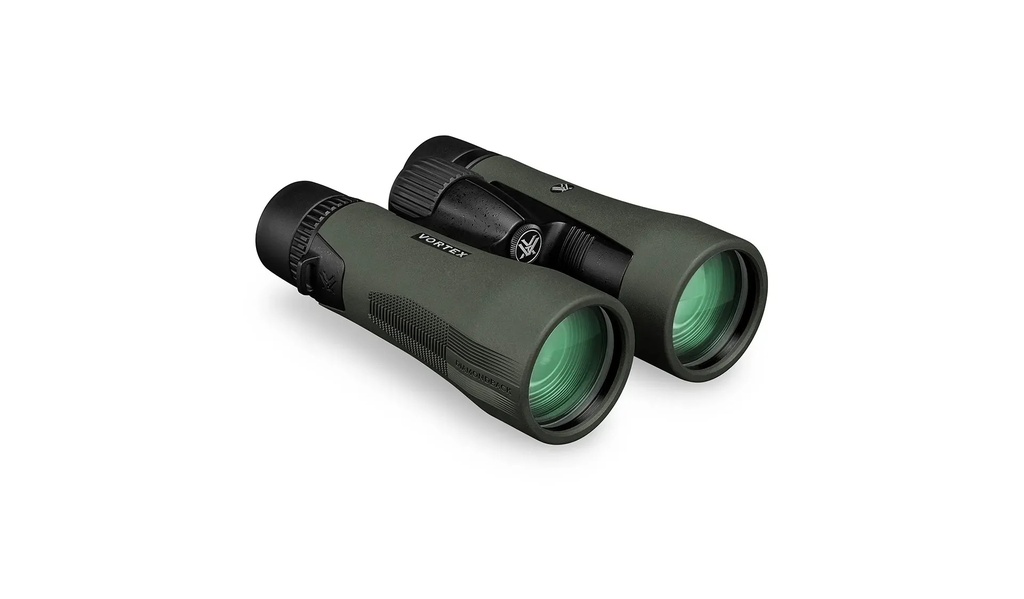

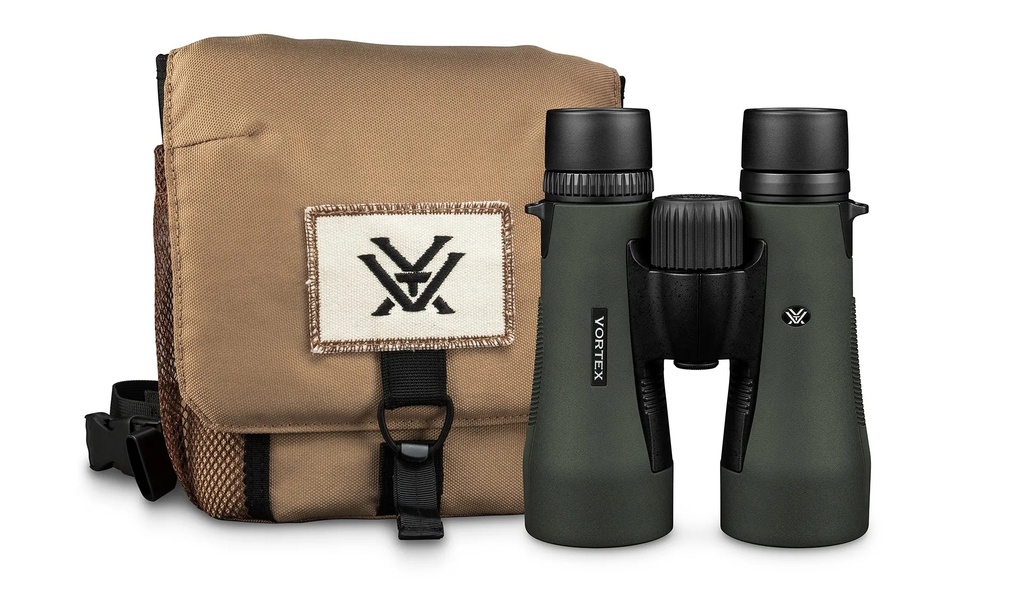

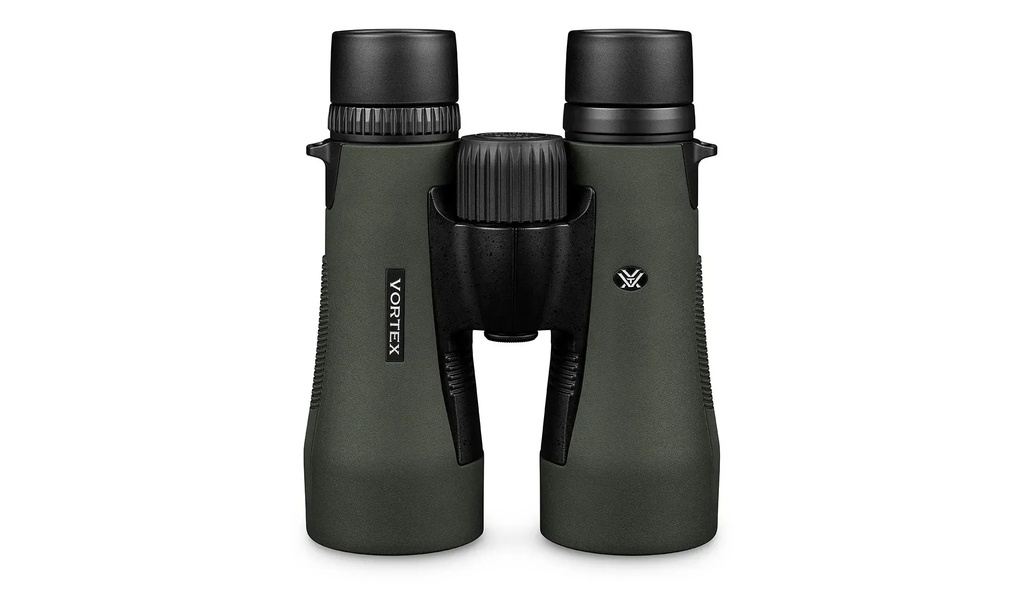

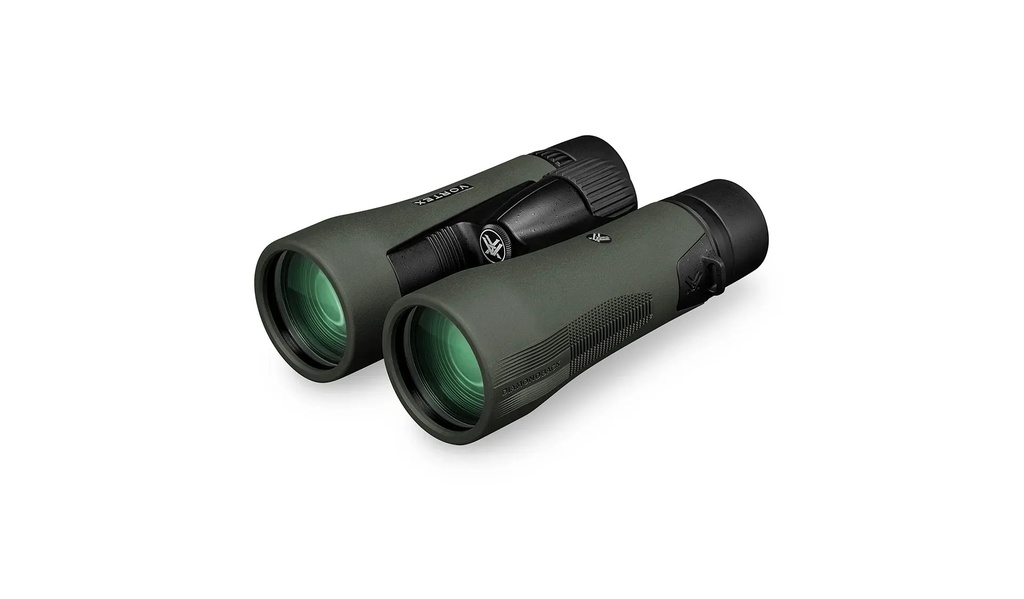

Diamondback HD 10x50

Manufacturer SKU: DB-216

Angular Field of View6.0º
Close Focus6.0'
Eye Relief17.0mm
Height6.6"
Interpupillary Distance60mm - 75mm
Linear Field of View315' @ 1000 yds
Objective Lens Diameter50 mm
Magnification10x
Weight30.0 oz.
Width5.3"
CategoryBinoculars
GTIN875874009950
Product FamilyDiamondback
Product SeriesHD
Optics UseFull-Size
Recommended UsesHunting, Wildlife Observation

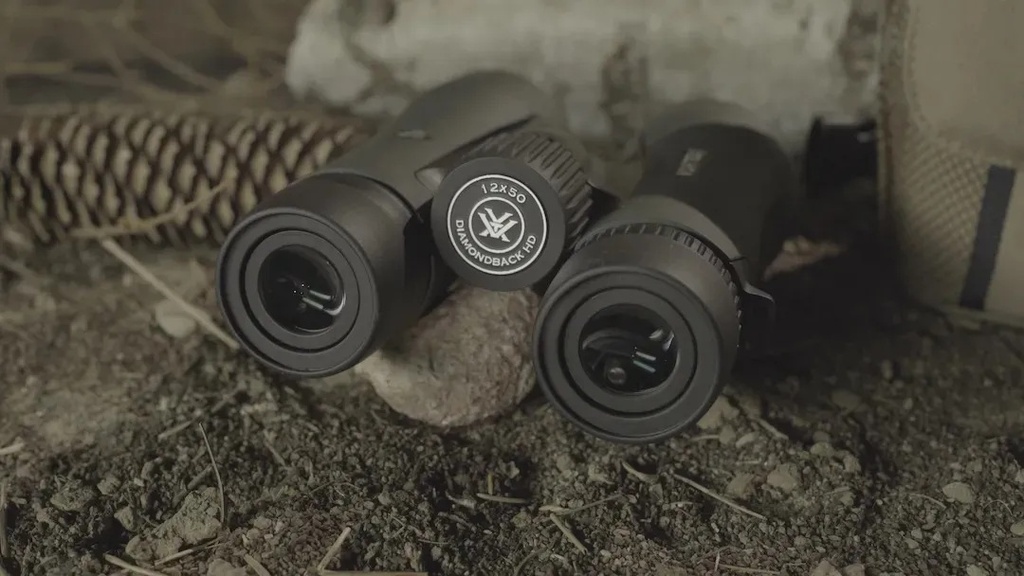

Diamondback HD 12x50

Manufacturer SKU: DB-217

Angular Field of View5.2º
Close Focus6.0'
Eye Relief14.0mm
Height6.4"
Interpupillary Distance60mm - 75mm
Linear Field of View271' @ 1000 yds
Objective Lens Diameter50 mm
Magnification12x
Weight28.9 oz.
Width5.3"
CategoryBinoculars
GTIN875874009967
Product FamilyDiamondback
Product SeriesHD
Optics UseFull-Size
Recommended UsesHunting, Wildlife Observation

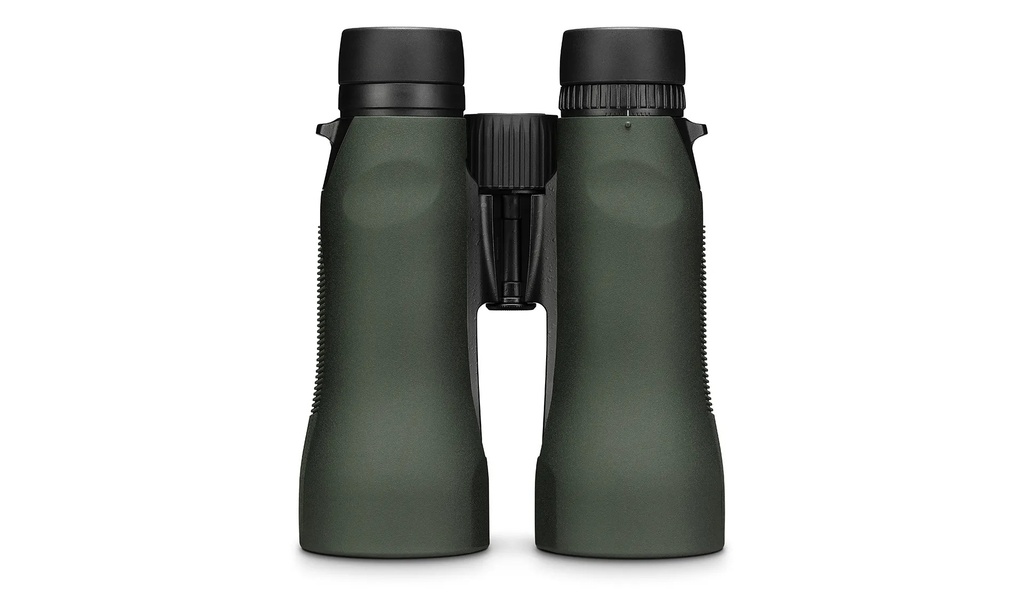

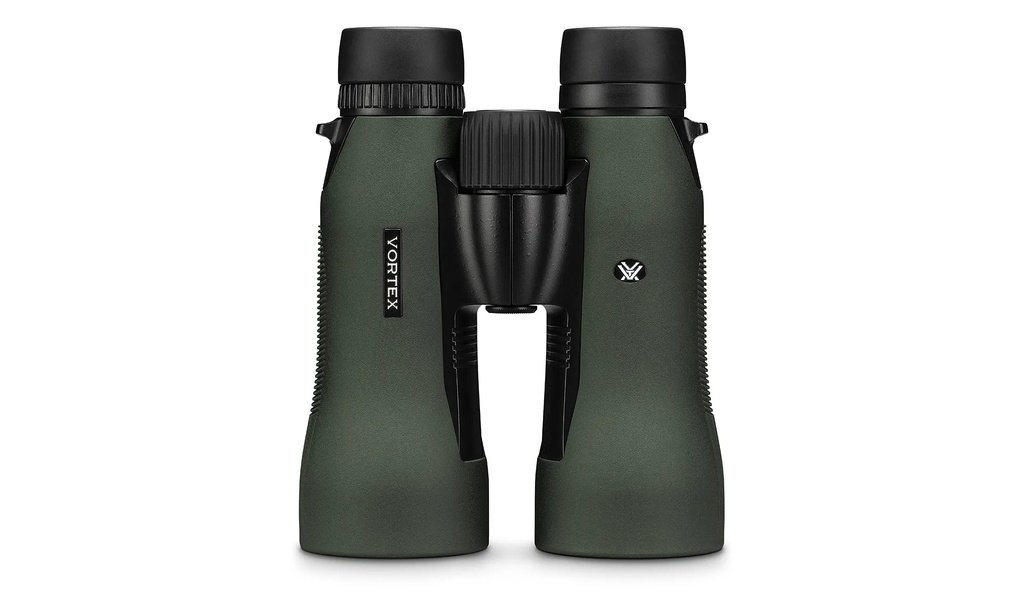

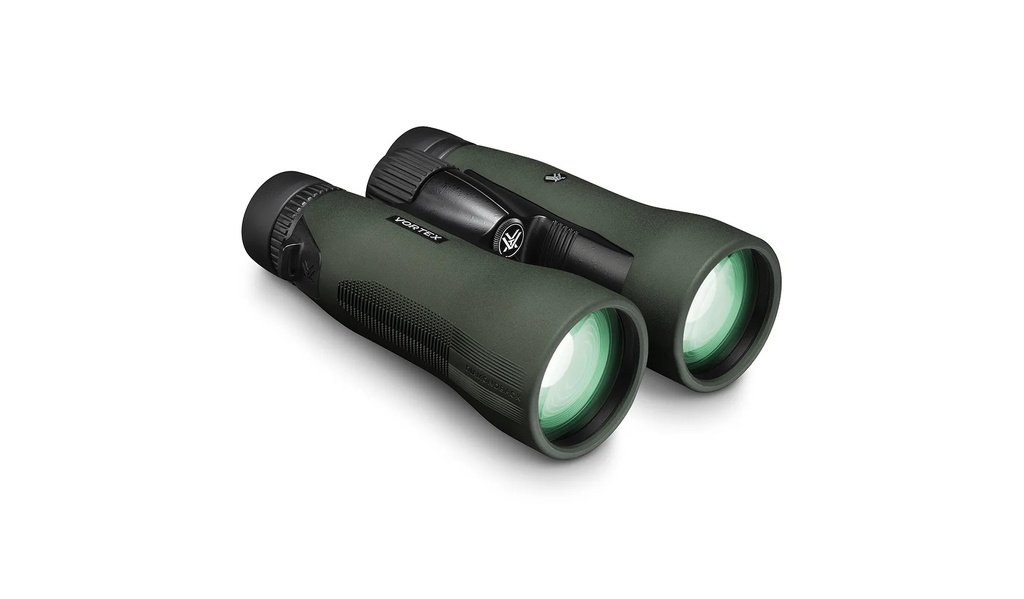

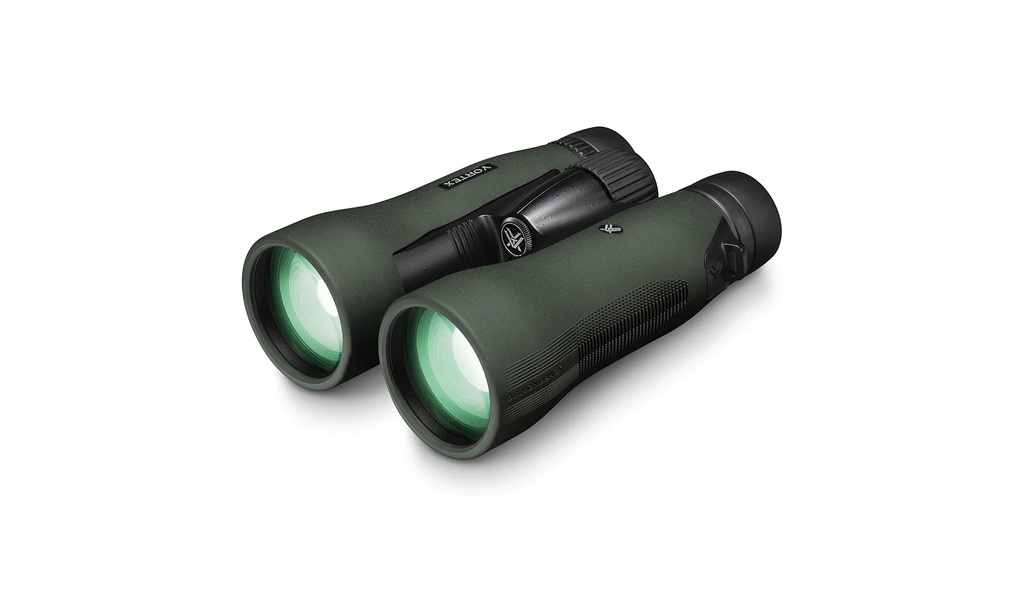

Diamondback HD 15x56

Manufacturer SKU: DB-218

Angular Field of View4.4º
Close Focus14.0'
Eye Relief15.6mm
Height7.1"
Interpupillary Distance59mm - 76mm
Linear Field of View230' @ 1000 yds
Objective Lens Diameter56 mm
Magnification15x
Weight34.8 oz.
Width5.8"
CategoryBinoculars
GTIN875874007420
UPC875874007420
Product FamilyDiamondback
Product SeriesHD
Optics UseFull-Size
Recommended UsesHunting, Wildlife Observation

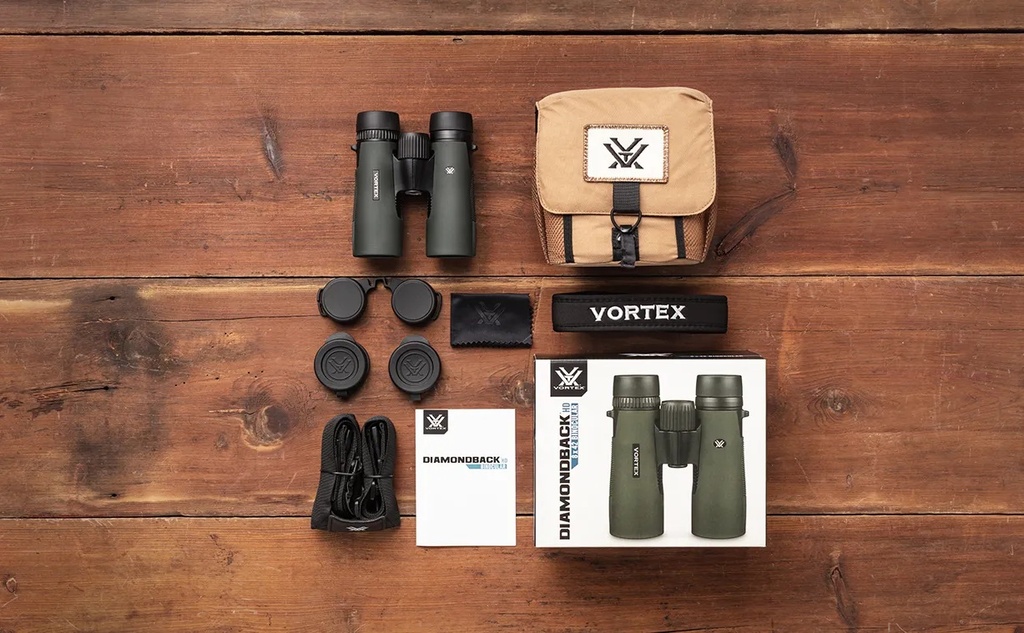

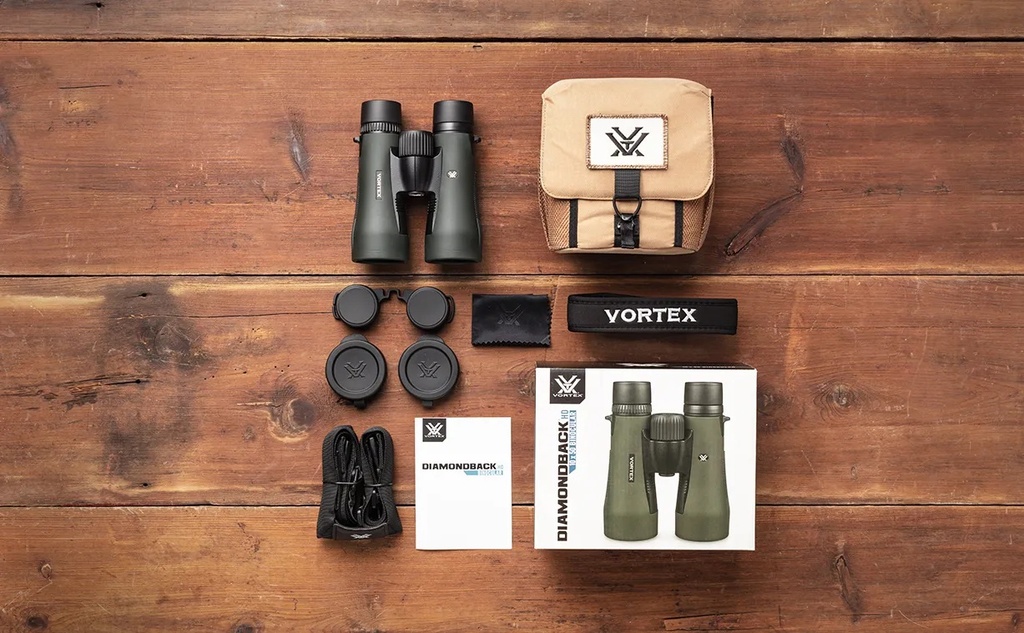

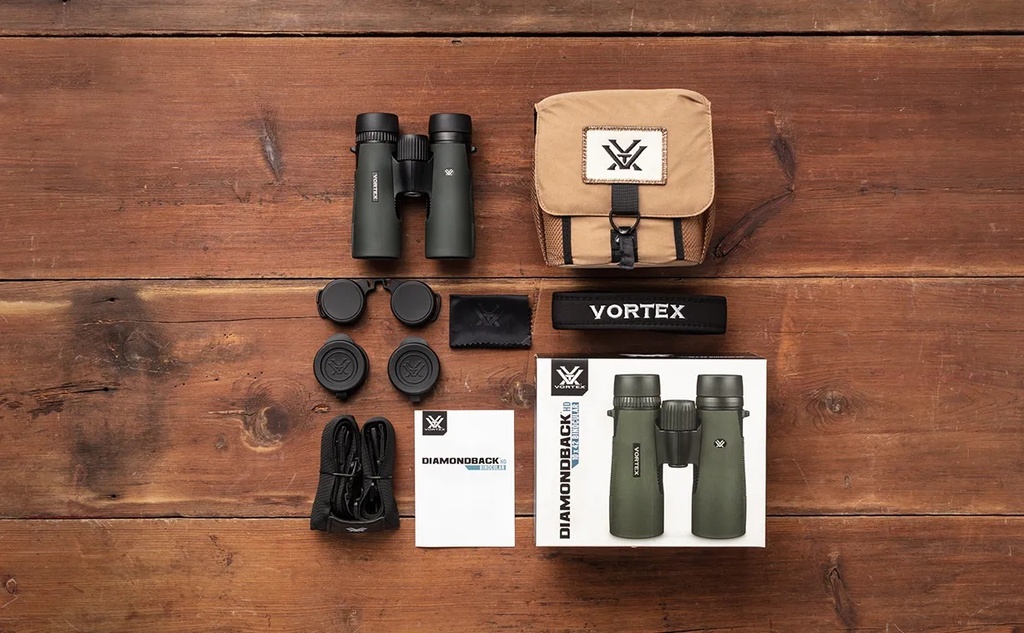

Included with the product

Included in the Box
  • GlassPak™ Binocular Harness
  • Comfort Neck Strap
  • Tethered Objective Lens Covers
  • Rainguard Eyepiece Cover
  • Lens Cloth

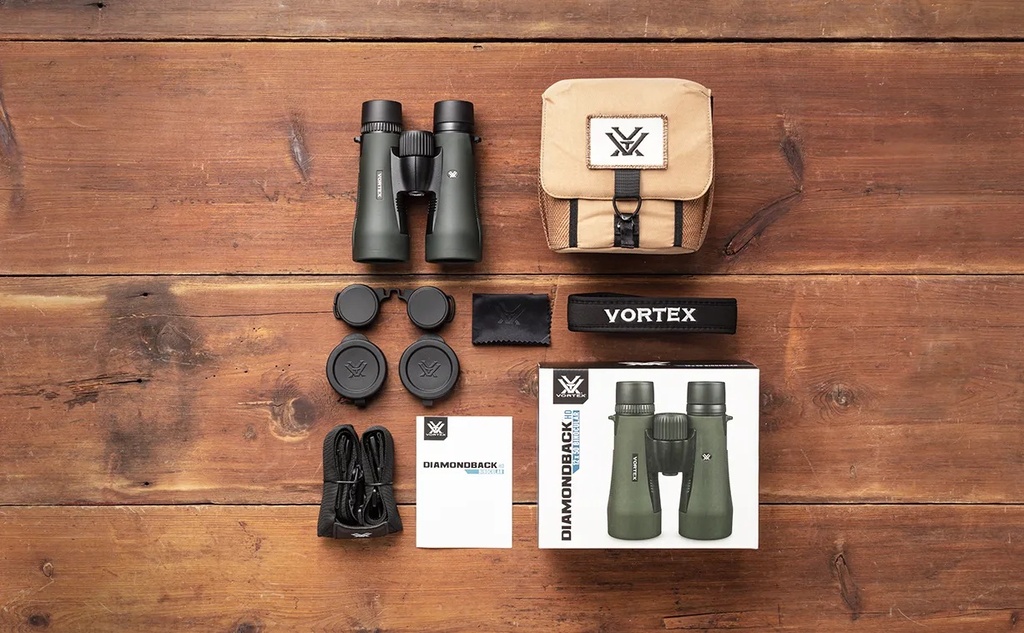

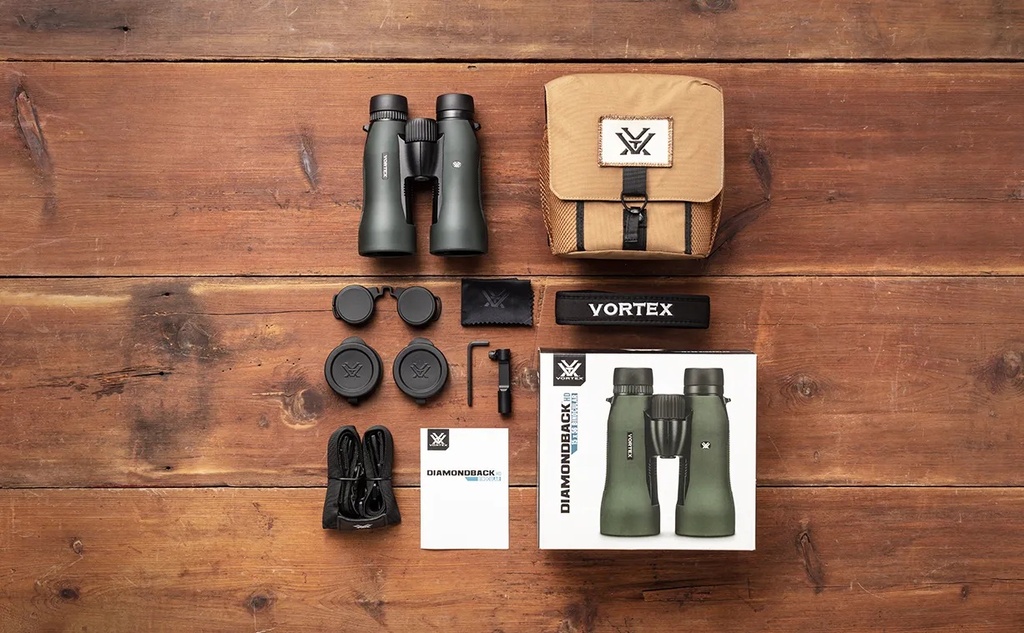

What’s in the box

WHAT’S IN THE BOX

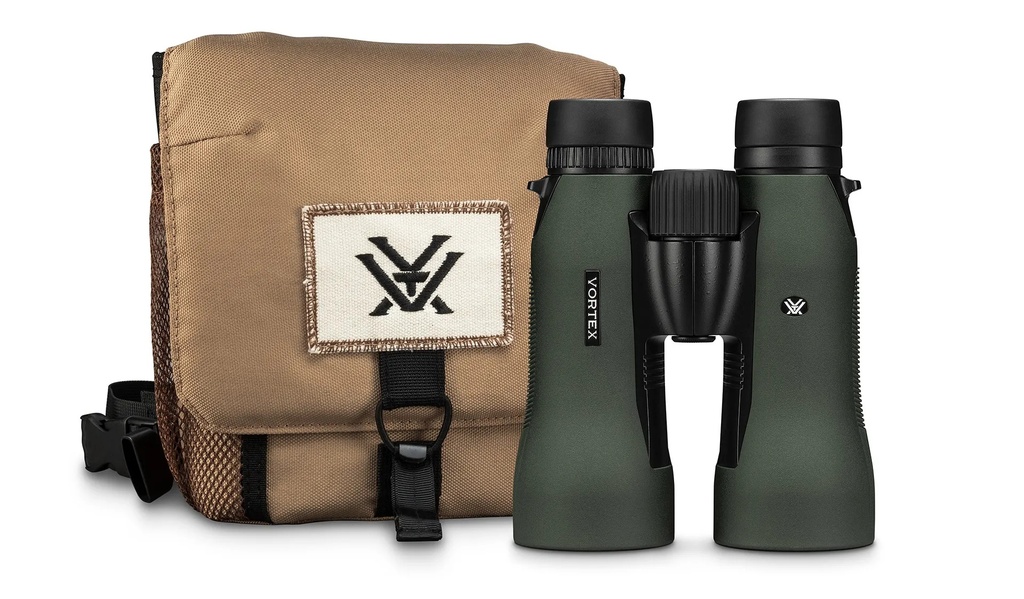

Diamondback® HD 15x56

  • GlassPak™ Binocular Harness
  • Comfort Neck Strap
  • Tethered Objective Lens Covers
  • Rainguard Eyepiece Cover
  • Sport Tripod Adapter
  • Lens Cloth
