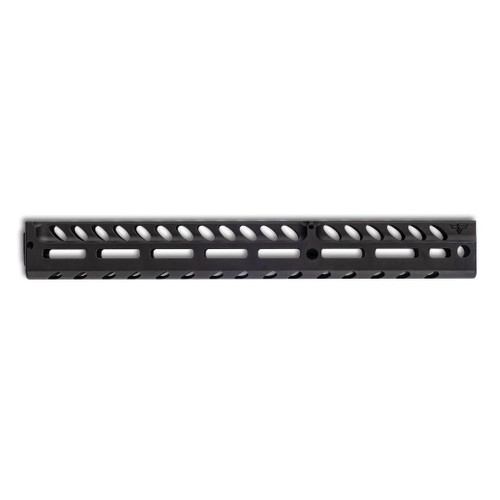

RPP Marlin 336 1894 Ranger M-LOK 13.25" Handguard — Barrel Band (Black)

RPP Marlin 336 1894 Ranger M-LOK 13.25" Handguard — Barrel Band (Black)

Current Ranger Point Precision product RPP-8010, matched by exact manufacturer SKU.

Compatibility

• Glenfields, Marlin 336W, 336 30-30, 30-30AW, 336CS, 35 Rem Carbine, 35 Rem, 444, 41 mag; 1894C and CS 357 (Mounting point is 8 3/8" from the receiver)

Does not fit

• Marlin Dark 30-30
• Octagon Barrels; Marlin P or CL models, 444 barrel band models (Needs a new dovetail cut to same place as handguard/barrel band attachment points)

Product details

Choose Other Options On Website

Marlin End Cap Models (1895 45-70, 450M, 1894 44 Mag, 357 Mag, 45 Colt:

Hardware

Barrel band (provided) and four mounting set screws afford rock solid bedding and eliminate lateral shift.

Size

13.25" length x 1.5" width x 1.6" height x 7.5 oz weight (slender like wooden one and similar weight)

Material

6061-T6 aluminium (Black Type III anodized )

Features

3 Flush Cup holes for sling swivels, 1 Trad threaded sling stud hole, 24 M-LOK slots, 18 finger grooves per side

M-Lok Rail 6-8 Cartridge Quivers

Available on our website for 45-70 govt, 30-30 Win, 410, 444, 44 Mag, 45 Colt, 357 Mag.

Overview

In the Package: one 13.25" long M-LOK handguard, one new barrel band with hardware, four mounting set screws.

Take a look at the full list of features

Machined from one piece of solid billet aluminium for increased rigidity and reduced weight.

Full length 13.25" total length x 1.5" width x 1.6" height x 7.5 oz length

Mounting point is 8 3/8" from the receiver

Heavy duty barrel band and screws hardware are provided increasing durability and load bearing capacity while ensuring easy installation

Four set screws afford rock solid bedding and eliminate lateral shift.

Extra M-LOKs slots on sides–now 24 slots total

Four Flush Cups holes for push button sling swivels (eg. Grovtec, Sinclair and others)

Smooth, clean lines on each side with dedicated parts for different rifle models.

Flat bottom provides increased stability when shooting from a rest, while the slender width, deep finger grooves and rounded lower corners offer comfortable, confident ergos

Increased grip on bottom, with leaf voids cut into corner radii.

Improved compatibility with shortened barrels and suppressors.

All parts chamfered, deburred, and tumbled to provide a smooth comfortable finish with no cheese grater effect

Always made in the USA.

DOES NOT fit: Marlin End Cap Models 1895 45-70, 444, 450M, 1894 44 Mag, 357 Mag, 45 Colt.

DOES NOT fit: Marlin 1895 in 444 with barrel bands. The 444 in particular requires gunsmith conversion to a tenon attachment
