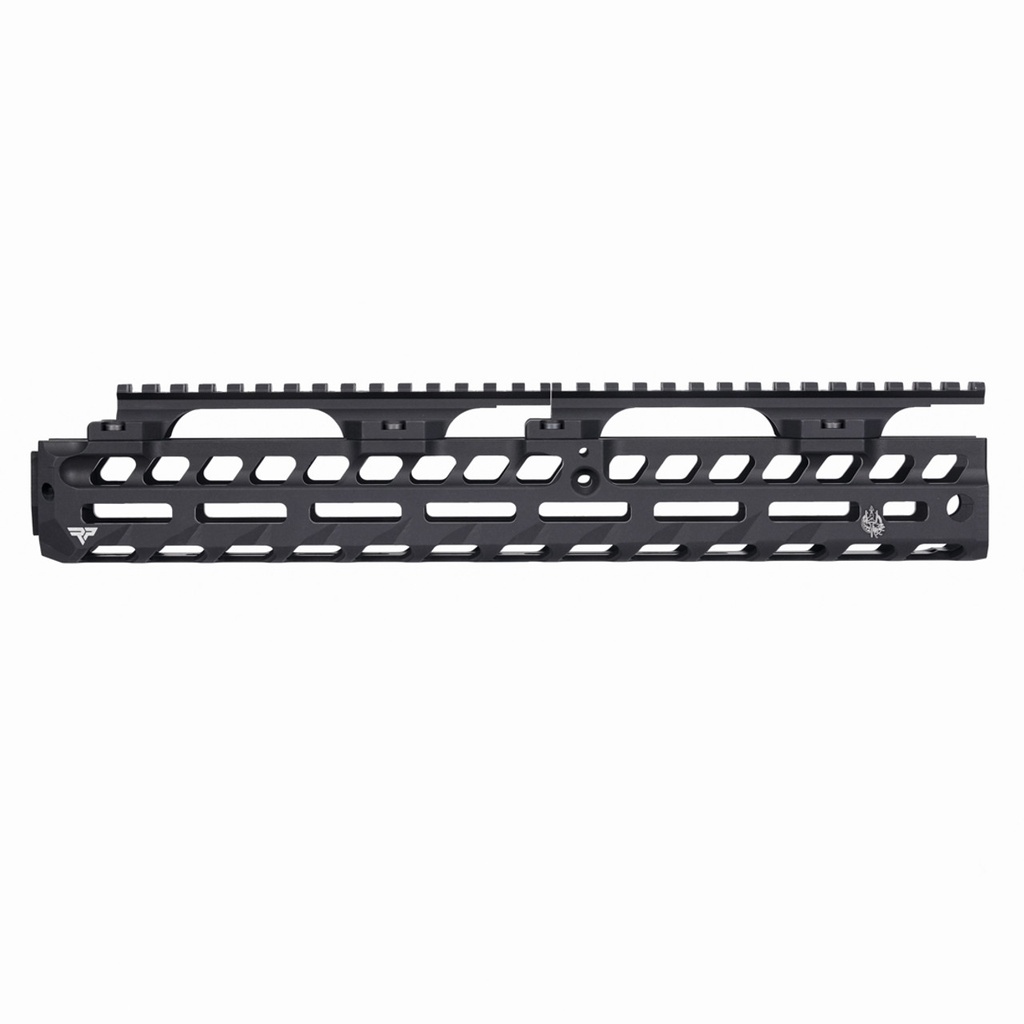

RPP MAS Henry X M-LOK Handguard 1913 Rail System — Modular

RPP MAS Henry X M-LOK Handguard 1913 Rail System — Modular

Current Ranger Point Precision product RPP-8000, matched by exact manufacturer SKU.

Current RPP name: MAS (Modular Accessory System), previously known as Costa.

Compatibility

• Henry Hush/SPD, Henry X Models, Henry Side Gates, Henry Color Case Hardened, Henry Big Boy Steels, Henry All Weather, .410 Axe rifles

Does not fit

• Color Case Hardened 45-70 (H010GCC). Barrel Band models: Golden Boys (H006 or personal engraved), Henry Classic Brass Receivers. Long Rangers, Single Shots, 22 and 17 Rimfires, Henry Bear's Leg.

Product details

No Load Gate Cutout

You CAN NOT load via the mag tube loading port (use the side gate or end of tube)

Features

13.25" L handguard: Grippy cutouts, M-LOK accessory slots sides/bottom, QD swivel sling holes, traditional sling stud threaded hole.

Material

6061-T6 aluminium Type III Anodized

Included

One MAS M-LOK Handguard + two Gator Rails that sit on top of the handguard + new hardware.

Not Included

MAS Henry 6" receiver rail (sku 1401 Big Boys and sku 1402 Big Bores available on the website)

Installation

Watch the install video. Taking Henry's apart can be tricky. We're not liable for any damage to your rifle. If needed, contact Louthan Gunworks or local gunsmith for help.

Formerly Called The Costa

Now MAS (Modular Accessory System)

Overview

MAS Handguard (Modular Accessory System) - previously known as Costa

The MAS Handguard Modular Rail System was designed to provide lever gun shooters with exceptional flexibility in setup and cost while safeguarding the qualities of lightweight handling and accuracy that we love about these fine firearms.

Why a Three Rail Arrangement?

In order to meet all these goals, we split the top picatinny rail into 3 separate sections (one receiver rail and two Gator Rails that attach to the top of the handguard). The handguard can be used with all 3 picatinny top rails, one, none, or any combination of two. It’s worth noting that installing one or more Gator rails can make your henry 45-70 M-LOK handguard even stronger. Watch this video to see all of the various ways that you can set it up.

In order to accommodate a range of manufacturing tolerances in the host rifles, we have imbued the entire handguard/ M-LOK rail system with adjustable fitments. We also made a deliberate decision not to use a continuous top M-LOK rail in order to mitigate the effect of manufacturing tolerances on accuracy. Our past experience as custom lever gun builder has taught us that accuracy generally falls off when one ties the receiver to the barrel with a continuous rail. For the same reason, we strongly advise against “bridging” the receiver rail to a Gator Rail with a single optic.

The MAS Handguard + Rail system has adjustment in 3 ways: 1. Laterally at the receiver junction–via the angled set screws. 2. Laterally at the mounting tenon–via the perpendicular set screws and the tenon itself. 3. Vertically at each leg of the “Gator Rails.”

M-LOK Rail System Features

Extremely robust for hard use. The installed system can suspend well over a hundred pounds and resist crushing under the weight of an adult male.

Modular flexibility allows mounting of any style of optic or combination of sighting options. 3 rails can be used in a series or as a combo or individually. The handguard “Gator Rails” can be rotated 180 degrees to achieve the perfect eye relief with red dot or LER scopes. Unused rails can be removed to reduce weight or achieve lower mounting heights.

Includes M-LOK rail accessories slots, QD mounts, and a threaded hole for a traditional sling stud for max utility.

Unique, aggressive look and excellent grip with or without a hand stop.

Split three-piece rail system decouples the two forward rails from the receiver, preserving optimal accuracy.
