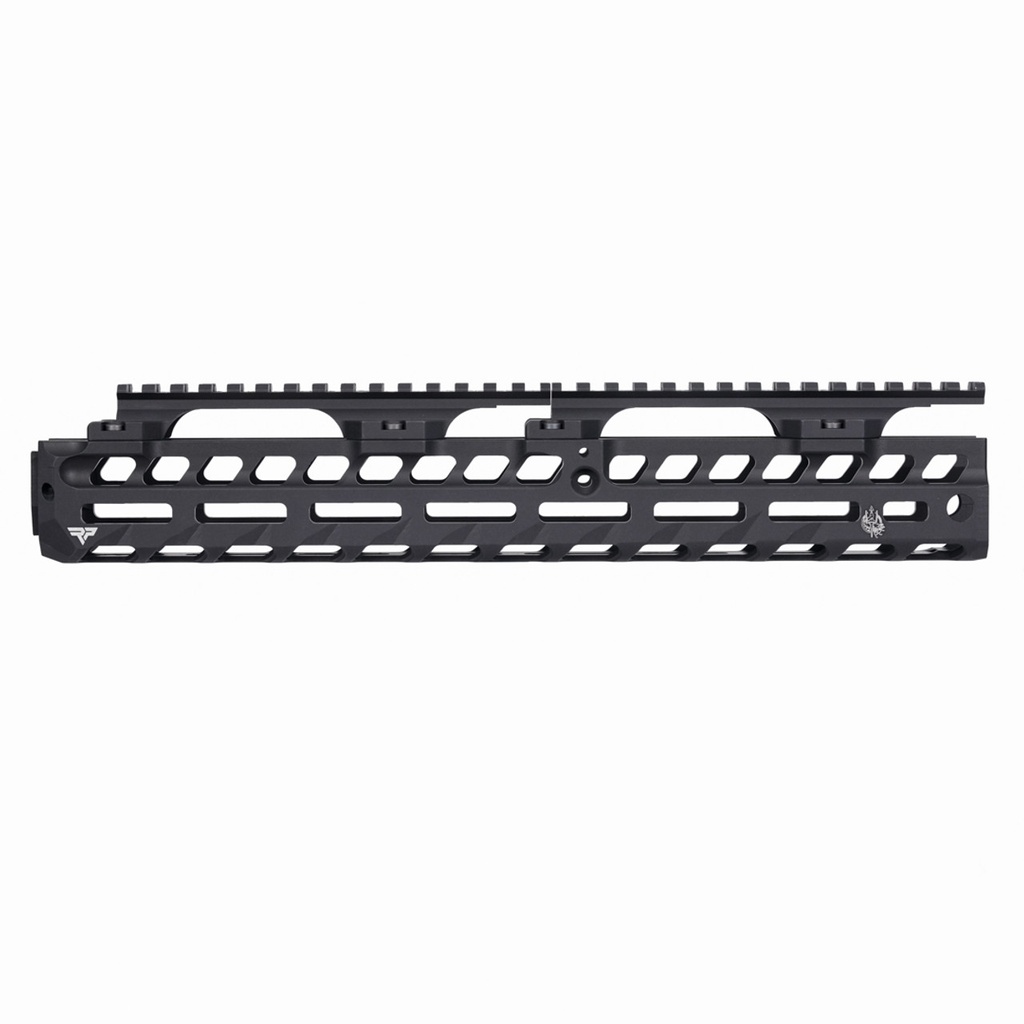

RPP Costa Henry Rail System

Designed with direct input and oversight by Chris Costa, Costa Ludusfor Ranger Point Precision.

• FITS:Henry X Models, Henry Side Gates, Henry Color Case Hardened, Henry Big Boy Steels, Henry All Weather, .410 Axe rifles
• DOES NOT FIT: Colour Case Hardened 45-70 unless gunsmith cuts a new dovetail tenon in the right place to install it (H010GCC). Barrel Band models: Golden Boys (H006 or personal engraved),Henry Classic Brass Receivers. Long Rangers, Single Shots, 22 and 17 Rimfires
• NO LOAD GATE CUTOUT:You CAN NOT load via the mag tube loading port (use the side gate or end of tube)
• FEATURES:13.25" L handguard: Grippy cutouts, M-LOK accessory slots sides/bottom, QD swivel sling holes, traditional sling stud threaded hole.
• MATERIAL:6061-T6 aluminum Type III Anodized
• INCLUDED:One COSTA M-LOK Handguard + two Gator Rails that sit on top of the handguard + new tenon and hardware.
• NOT INCLUDED:Costa Henry 6" receiver rail (sku 1401 Big Boys and sku 1402 Big Bores available on the website)

Blue Fieldsports are official dealers of RPP and can help you with your Henry rifle or other lever gun build, ​contact us​ for more information or to get a quote for your custom work!

RPP Costa Henry Rail System Details

The Costa Ludus/Ranger Point Handguard Modular Rail System was designed to provide lever gun shooters with exceptional flexibility in setup and cost while safeguarding the qualities of lightweight handling and accuracy that we love about these fine firearms.

In order to meet all these goals, we split the top picatinny rail into 3 separate sections (one receiver rail and two Gator Rails that attach to the top of the handguard). The handguard can be used with all 3 picatinny top rails, one, none, or any combination of two. It’s worth noting that installing one or more Gator rails can make your henry 45-70 m-lok handguard even stronger.

In order to accommodate a range of manufacturing tolerances in the host rifles, we have imbued the entire handguard/m lok rail system with adjustable fitments. We also made a deliberate decision not to use a continuous top mlok rail in order to mitigate the effect of manufacturing tolerances on accuracy. Our past experience as custom lever gun builder has taught us that accuracy generally falls off when one ties the receiver to the barrel with a continuous rail. For the same reason, we strongly advise against “bridging” the receiver rail to a Gator Rail with a single optic.

The Costa/RPP Handguard + Rail system has adjustment in 3 ways:

1. Laterally at the receiver junction–via the angled set screws.

2. Laterally at the mounting tenon–via the perpendicular set screws and the tenon itself.

3. Vertically at each leg of the “Gator Rails.”

Features:

• Extremely robust for hard use. The installed system can suspend well over a hundred pounds and resist crushing under the weight of an adult male.
• Modular flexibility allows mounting of any style of optic or combination of sighting options. 3 rails can be used in a series or as a combo or individually. The handguard “Gator Rails” can be rotated 180 degrees to achieve the perfect eye relief with red dot or LER scopes. Unused rails can be removed to reduce weight or achieve lower mounting heights.
• Includes m lok rail accessories slots, QD mounts, and a threaded hole for a traditional sling stud for max utility.
• Unique, aggressive look and excellent grip with or without a hand stop.
• Split three-piece rail system decouples the two forward rails from the receiver, preserving optimal accuracy.
