RPP MAS Gator 1913 Picatinny Rail (attaches atop the handguard)

RPP MAS Gator 1913 Picatinny Rail (attaches atop the handguard)

Current Ranger Point Precision product RPP-1400, matched by exact manufacturer SKU.

Current RPP name: MAS (Modular Accessory System), previously known as Costa.

Compatibility

• All MAS M-LOK Handguards. Replacement part since ALL MAS handguards come with two of these. Attach to the top of the handguard.

Does not fit

• Any non-MAS handguard (Black, Moss, FDE or otherwise). Only the MAS handguards have attachment points on top (left and right) for these picatinny rails to screw on.

Product details

"Military Spec"

Does not work with "weaver spec rings/red dot mounts (e.g. Leupold)

Includes

Comes with install hardware

Formerly Called The Costa

Now MAS (Modular Accessory System)

Overview

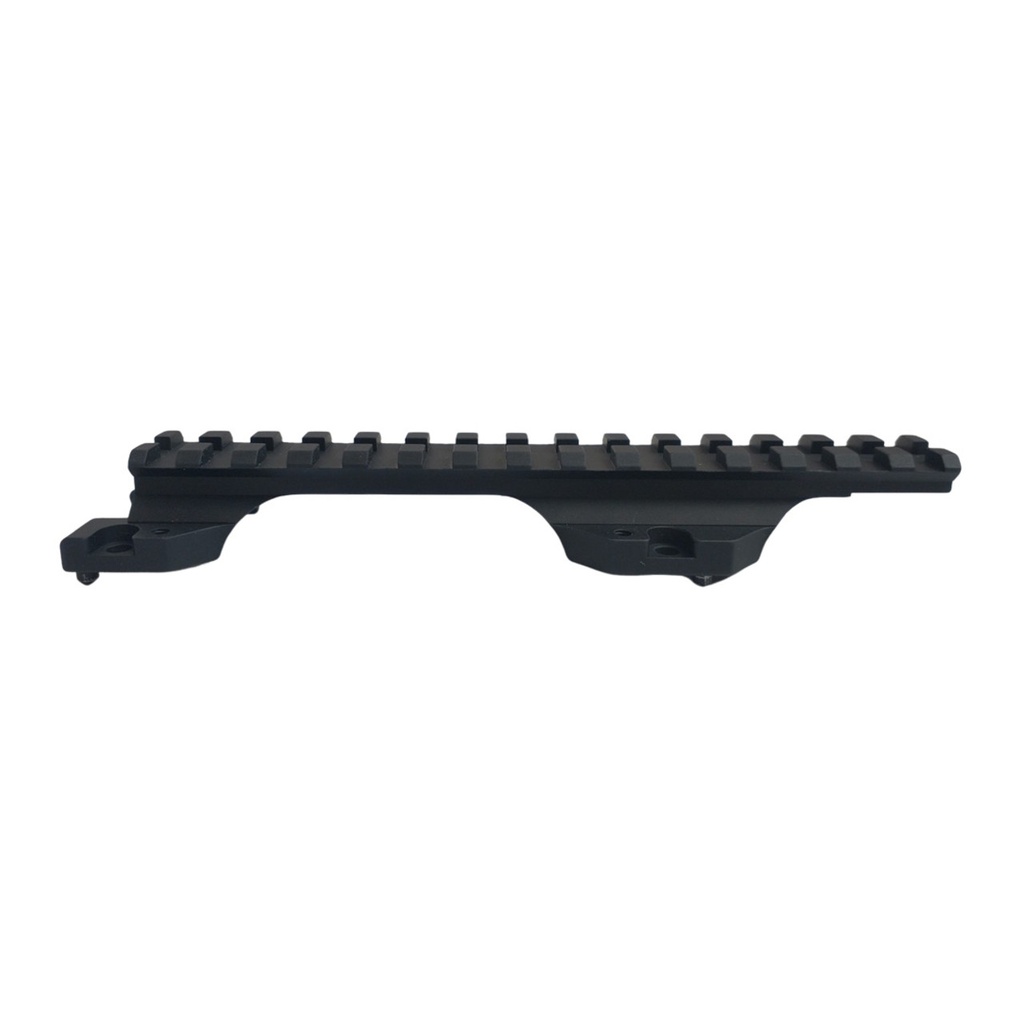

This 5" long Gator Rail optics mount connects to the top of all of our MAS Handguard Rails.

Why a Three Rail Arrangement? The MAS Handguard + Rail System was designed to provide lever gun shooters with exceptional flexibility in setup and cost while safeguarding the qualities of handling and accuracy that we love about these fine firearms. In order to meet all these goals we split the top picatinny rail into 3 separate sections. The handguard can be used with all 3 picatinny top rails, none, or any combination of two. It’s worth noting that installing one or more Gator rails makes the handguard even stronger.

In order to accommodate a range of manufacturing tolerances in the host rifles, we have imbued the entire handguard/rail system with adjustable fitments. It’s important to understand that when we talk about manufacturing tolerances we are talking about a universal phenomenon. As an example, there is really no such thing as a straight barrel. Each OEM must decide for themselves how much curvature is acceptable, and it is pretty well understood that a noticeably curved barrel can still shoot well.

Our job in the aftermarket is to work with or around this range of tolerances and still achieve the desired result. In the case of tube fed lever guns whose handguards attach to the barrel, this can be a challenge, because we want everything to align with the receiver, but the barrel is not running true.

We made a deliberate decision not to use a continuous top rail in order to mitigate the effect of manufacturing tolerances on accuracy. Our past experience as custom lever gun builders taught us that accuracy generally falls off when one ties the receiver to the barrel with a continuous rail. For the same reason, we strongly advise against “bridging” the receiver rail to a Gator Rail with a single optic.
