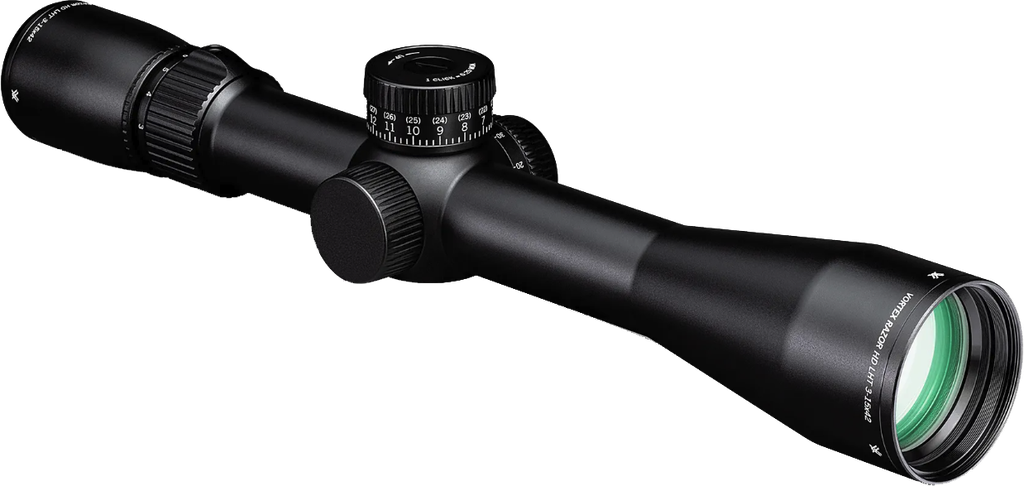

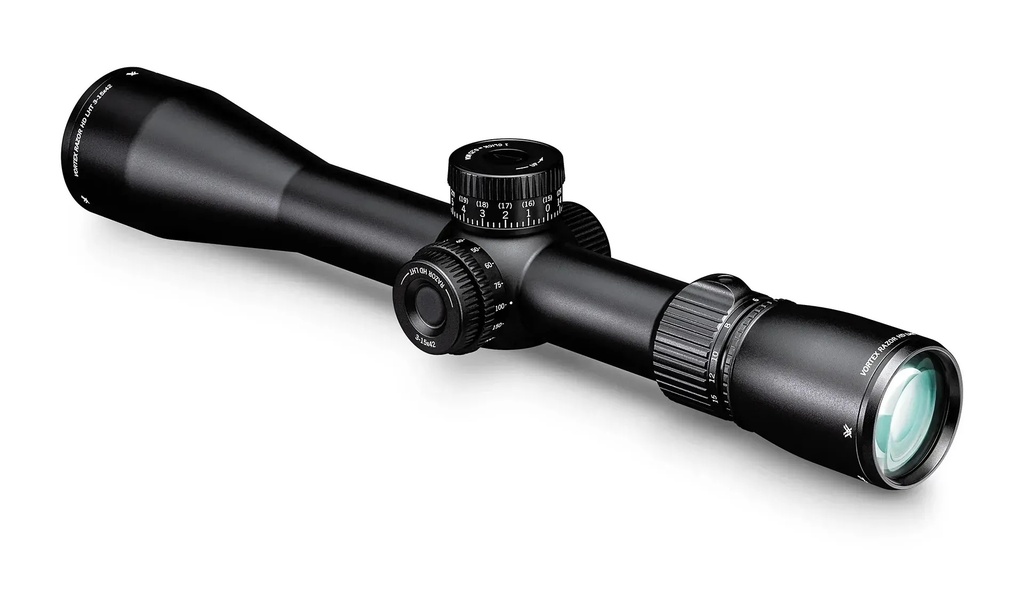

Razor HD LHT 3-15x42 HSR-5i
The stock information shown above is very accurate and updated dynamically. In stock items are shipped the same day when ordered before 2pm, or can be collected after ordering. Warehouse items will arrive with us in the timescale shown. Collection is by appointment only and must be booked in advance. Our phone lines can get extremely busy and email is the most efficient way to communicate with us!
Vortex Optics

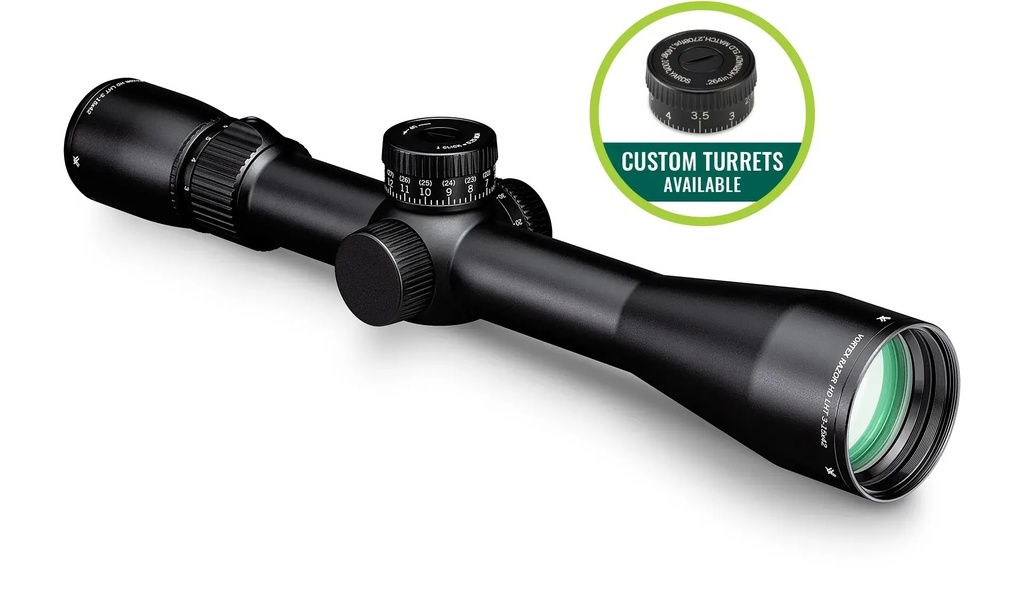

Razor HD LHT 3-15x42 HSR-5i
From the mountains to open country, the Razor® HD LHT™ is the precision riflescope you need to make distant shots feel easy. Stunning HD clarity and enhanced contrast reveal every detail, from counting kickers on a buck in dark timber or locking onto a tuft of shoulder hair over the vitals of an elk. Lightweight yet rugged, with push-button illumination and a rock-solid zero system, this top-of-the-line optic gives you the edge in the moments that matter most.
| Lengths | |||||
|---|---|---|---|---|---|
| L1 | L2 | L3 | L4 | L5 | L6 |
| 13.3 | 2.6 | 2.0 | 6.2 | 3.7 | 3.4 |
| Heights | |
|---|---|
| H1 | H2 |
| 2.0 | 1.7 |
Included with your purchase of a Razor® HD LHT™ is a coupon for a free ballistic strip from Kenton Industries.
Recommended uses: Western Hunting
Features
| HD Optical System | Optimized with select glass elements to deliver exceptional resolution, cut chromatic aberration and provide outstanding color fidelity, edge-to-edge sharpness, and light transmission. |
|---|---|
| RevStop® Zero System | Patented streamlined design offers an easy to set, reliable return to zero after turret adjustments. |
| Locking Elevation Turret | Integrated locking mechanism prevents accidental adjustments. Elevation turret provides fast, accurate, easily read elevation adjustments. |
| XR™ Plus Lens Coatings | Ultimate anti-reflective coatings on all air-to-glass surfaces provide maximum light transmission for peak clarity and the pinnacle of low-light performance. |
| Apochromatic | Index-matched lenses correct color across the entire visual spectrum. |
| Argon Gas Purged | Gas purged and O-ring sealed for superior fogproof and waterproof performance in the most extreme conditions. |
| Optically Indexed Lenses | Optimize image sharpness and brightness from edge to edge. |
| Armortek® | Ultra-hard exterior lens coatings defend against scratches, oil, and dirt. |
| Aircraft Grade Aluminum | Constructed from a solid block of aircraft-grade aluminum for strength and rigidity. |
| Low-Glare Matte Black Anodize | Corrosion and wear resistant anodization provides low-glare matte surface and helps camouflage the shooter's position. |
| Waterproof | Designed to withstand harsh weather conditions. |
| Fogproof | Argon gas purging prevents internal fogging over a wide range of temperatures. |
| Shockproof | Designed to withstand the highest levels of recoil and impact. |
Specifications and model details

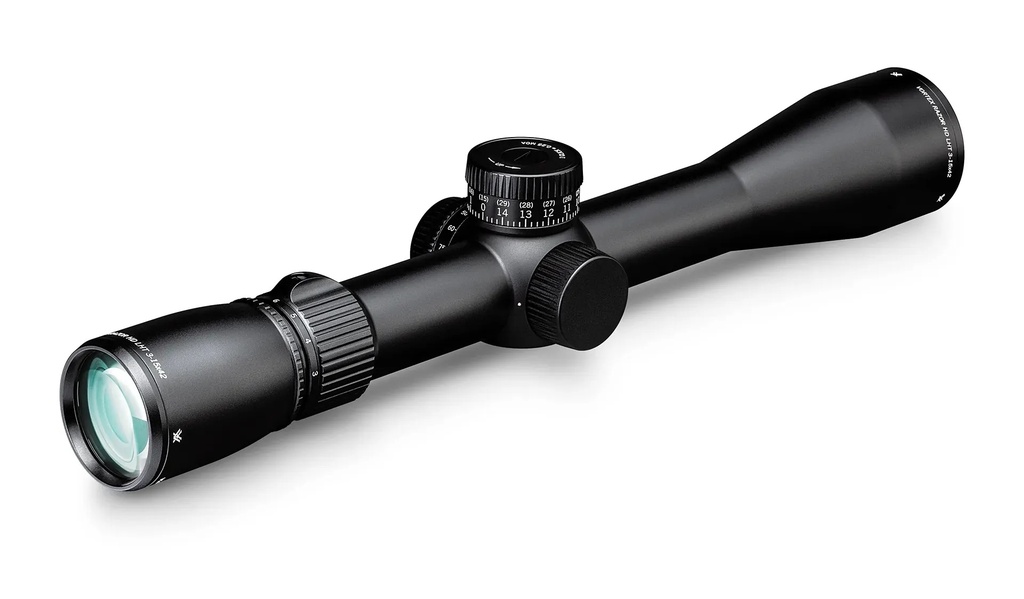

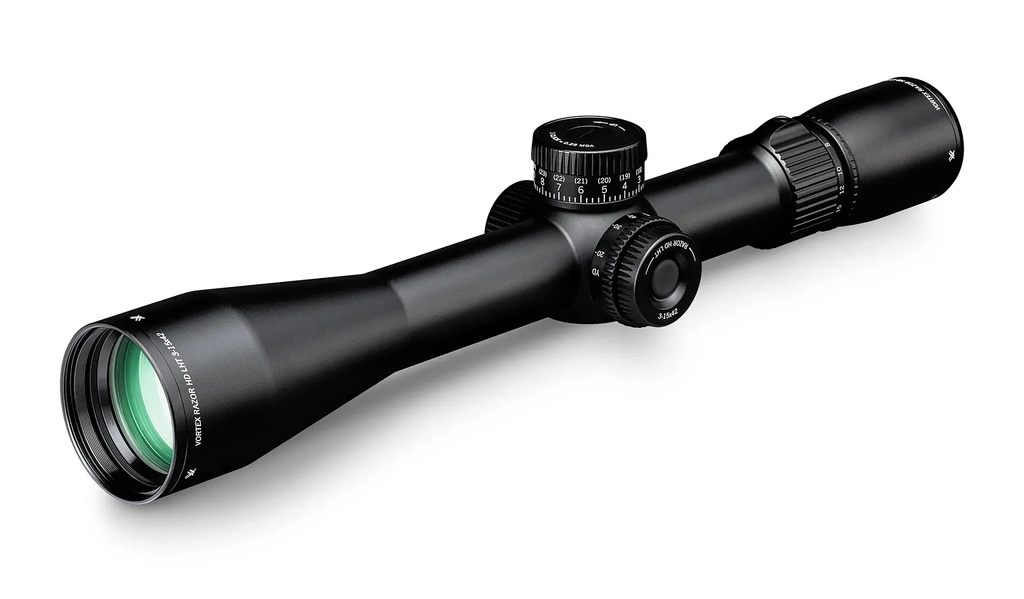

Razor HD LHT 3-15x42 HSR-5i (MOA)
Manufacturer SKU: RZR-31501
| Adjustment Graduation | 1/4 MOA |
|---|---|
| Eye Relief | 3.8" |
| Field of View | 35.3' - 7.0' @ 100 yds |
| Length | 13.4" |
| Maximum Elevation Adjustment | 80 MOA |
| Maximum Windage Adjustment | 80 MOA |
| Objective Lens Diameter | 42 mm |
| Parallax Setting | 20 yds. - ∞ |
| Magnification | 3-15x |
| Travel Per Rotation | 15 MOA |
| Turret Style | Exposed Elevation Capped Windage |
| Weight | 19.1 oz |
| Category | Riflescopes |

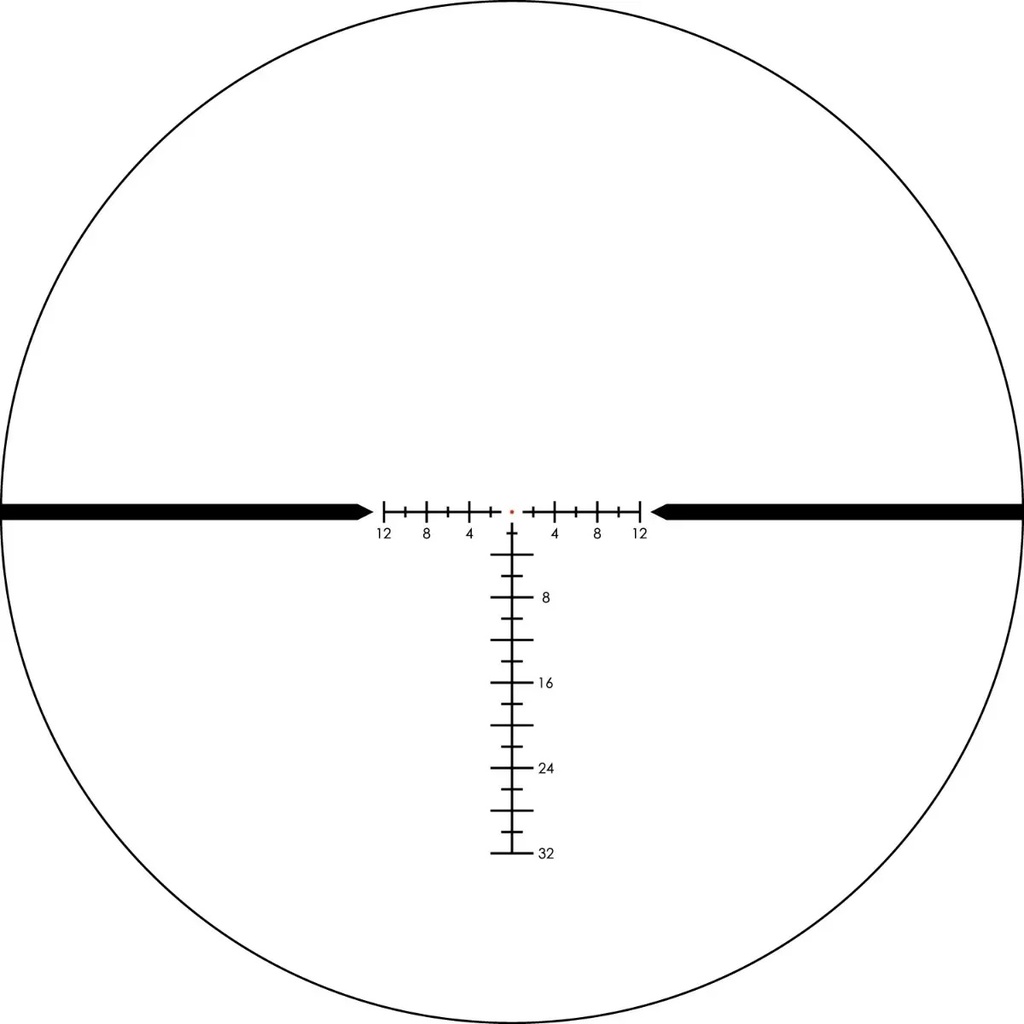

| Reticle | HSR-5i (MOA) |
| GTIN | 843829108935 |
| UPC | 843829108935 |
| Tube Size | 30mm |
| Product Family | Razor |
| Product Series | HD LHT |
| Optics Use | Hunting |
| Focal Plane | Second Focal Plane |
| Total Elevation with RevStop Installed | 27 MOA |
Reticle information
Razor HD LHT 3-15x42 HSR-5i (MRAD)
Manufacturer SKU: RZR-31502
| Adjustment Graduation | .1 MRAD |
|---|---|
| Eye Relief | 3.8" |
| Field of View | 35.3' - 7.0' @ 100 yds |
| Length | 13.4" |
| Maximum Elevation Adjustment | 23 MRAD |
| Maximum Windage Adjustment | 23 MRAD |
| Objective Lens Diameter | 42 mm |
| Parallax Setting | 20 m - ∞ |
| Magnification | 3-15x |
| Travel Per Rotation | 6 MRAD |
| Turret Style | Exposed Elevation Capped Windage |
| Weight | 19.1 oz |
| Category | Riflescopes |

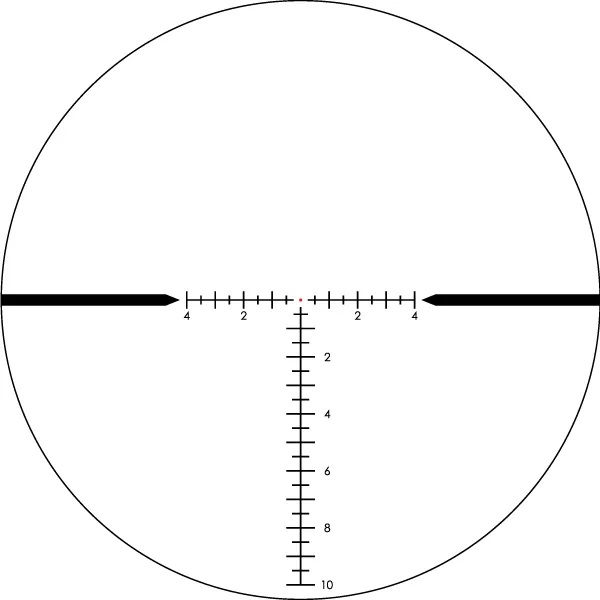

| Reticle | HSR-5i (MRAD) |
| GTIN | 843829108942 |
| UPC | 843829108942 |
| Tube Size | 30mm |
| Product Family | Razor |
| Product Series | HD LHT |
| Optics Use | Hunting |
| Focal Plane | Second Focal Plane |
| Total Elevation with RevStop Installed | 11 MRAD |
Reticle information
Included with the product
Included in the Box
- Sunshade
- Lens Covers
- Lens Cloth
- CR2032 battery
- Free Custom Ballistic Strip Coupon

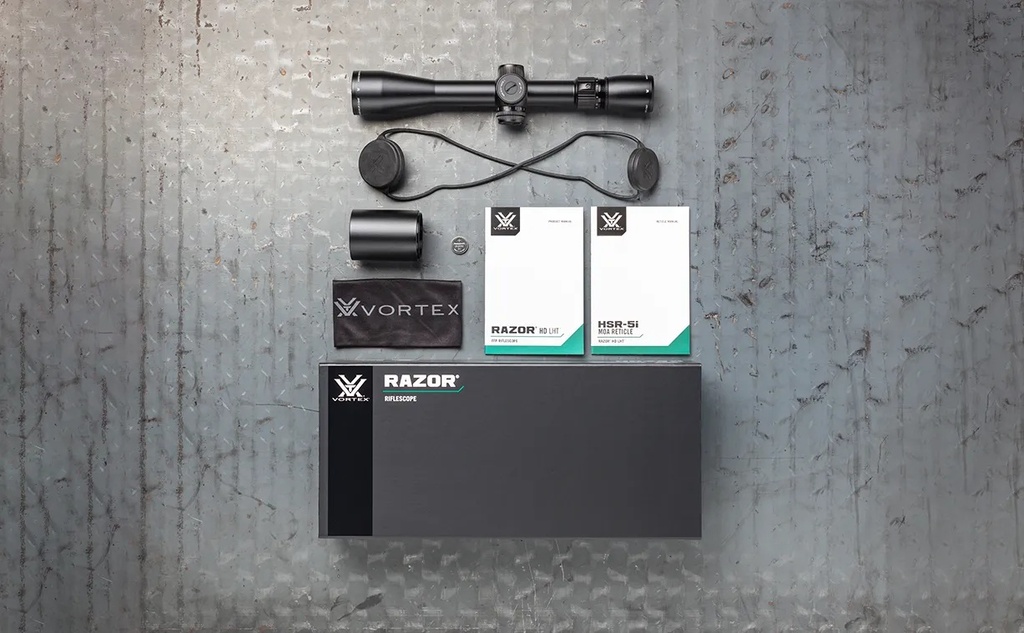

What’s in the box
WHAT’S IN THE BOX
Razor® HD LHT™ 3-15x42
- Sunshade
- Lens Covers
- Lens Cloth
- CR2032 Battery
- Free Custom Ballistic Strip Coupon
Manuals and documentation
- HSR_5i_MOA Reticle Manual (PDF)
- Parts Diagram (PDF)
- Product Manual (PDF)
- HSR_5i_MRAD Reticle Manual (PDF)
Official manufacturer information: Vortex Optics.
