Replacement Rubber Nose Cones for the Bolt Action Centerfire Patch Guides and Bolt Action Centerfire Bore Guides are availible in 3 packs.

Replacement Rubber Nose Cones for the Bolt Action Centerfire Patch Guides and Bolt Action Centerfire Bore Guides are availible in 3 packs. These molded rubber nosecones provide a superior seal and prevent cleaners from leaking into the chamber and action.

Each Nose Cones is designed to fit its corresponding Patch Guide or Bore Guide. The color of your Guide indicates the size Nose Cone needed.

Guide ColorCaliber Range
Gold.17 - .25 Cal
Red.25 - .308 Cal
Green8mm - .416 Cal

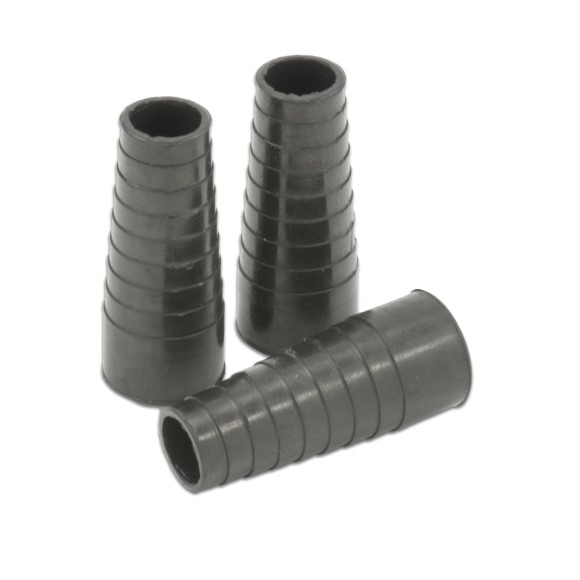

MOLDED RUBBER NOSE CONES

Sizes:

Guide ColorCaliber Range
Gold.17 - .25 Cal
Red.25 - .308 Cal
Green8mm - .416 Cal


Molded Rubber Nose Cone Replacement Instructions

1) Gently Twist and Pull the old nose cone from the end of the Guide with a pair of pliers. Do not grab the aluminum tube with pliers.

2) Clean the old adhesive off the knurled portion of the tube with a wire brush and acetone.

3) Apply Super Glue to the knurled portion of the tube and push/twist the nose onto the end of the Guide. Be sure to rotate the nose cone as it is pushed onto the Guide as this will evenly distribute the Super Glue. Push the nose cone onto the Guide until it completely covers the knurled section.

4) Let the nose cone glue set/cure for one day before use.
