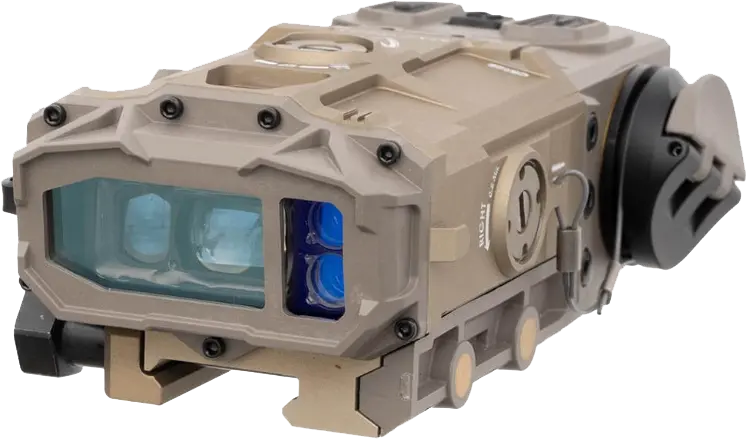

The Maztech X4-LRF 2K family of laser rangefinders utilise co-aligned visible and infrared aiming lasers as well as an integrated Applied Ballistics solver with on-board environmental and motion sensors, giving you a complete ranging and ballistics solution in one compact, rugged package.
The X4-LRF-15K uses a 1534 nm, military-grade laser that’s not detectable by night-vision devices, and by using a low-noise, high-gain Avalanche Photodiode (APD) photoreceiver – which receives automatic bias temperature compensation from Maztech’s factory – the X4-LRF-15K offers best-in-class sensitivity to promote long-range performance while minimising laser pulse energy and optimising battery life. All of this translates into the ability to range a target out to three kilometers (1.86 miles) and larger targets out to 15 kilometers (9.32 miles) while allowing for real-time target adjustments thanks to its ballistic solver.
Built around an onboard ballistic solver that uses Applied Ballistics software to create firing solutions that also account for humidity, pressure, temperature, heading, pitch and roll. When optionally paired with the Maztech Companion app, the X4-LRF can be configured from a smartphone, which also allows access to the Applied Ballistics online database. As many as 30 different ballistic profiles can be saved by the X4-LRF. A large format OLED display gives the shooter clear, easy-to-read information. A 3-button keypad is built into the unit for manual inputs. A 12-in, X4 Low-Profile Remote (MZT007) is included.
The X4-LRF can be used in either a single-measurement mode or can continuously range targets with a click of a button. Weighing a mere 12.9 oz (including battery), the X4-LRF is light enough to be handheld and used as a standalone unit, but it is designed to mount on a standard Picatinny rail and be utilized in conjunction with a sighting scope. A built-in hotshoe port allows for attachment of the Maztech X4 Illuminator (available in the near future). The X4-LRF will operate under the harshest conditions between -40˚ F and 140˚ F (subject to appropriate temperature-rated batteries).
Features
MULTIPLE CONFIGURATION OPTIONS
Seamless compatibility with the Maztech X4-FCS via the X4 FCS-to-LRF Cable (MZT001 and MZT006 sold separately)
Use Picatinny rail interface to mount on weapon rail or above your preferred scope using the X4 Diving Board Mount (MZT010 sold separately)
Built-in iron sights also allow for use as a standalone LRF
DURABLE CONSTRUCTION
Made from 7075-T6 billet aluminum with Type III hard anodized finish and durable polymers
Built to function in extreme temperatures (-40˚ F - 140˚ F, with appropriate temperature-rated batteries)
Survives immersion in three (3) feet of water for 30 minutes
ONBOARD BALLISTICS SOLVER
Applied Ballistics software compensates for humidity, pressure, temperature, heading, pitch and roll
App connectivity (via Bluetooth®) utilizes Applied Ballistics online database; setup also possible without use of Maztech Companion App
Wireless connection methods can be turned off if desired
USER-FRIENDLY INTERFACES
Daylight readable large format OLED display; also readable while wearing polarized glasses
Integral IR and visible (red) aiming lasers – both co-aligned with the ranging laser
A 12 inch X4 Low Profile Remote (MZT007) is included for direct communication with the X4-LRF
