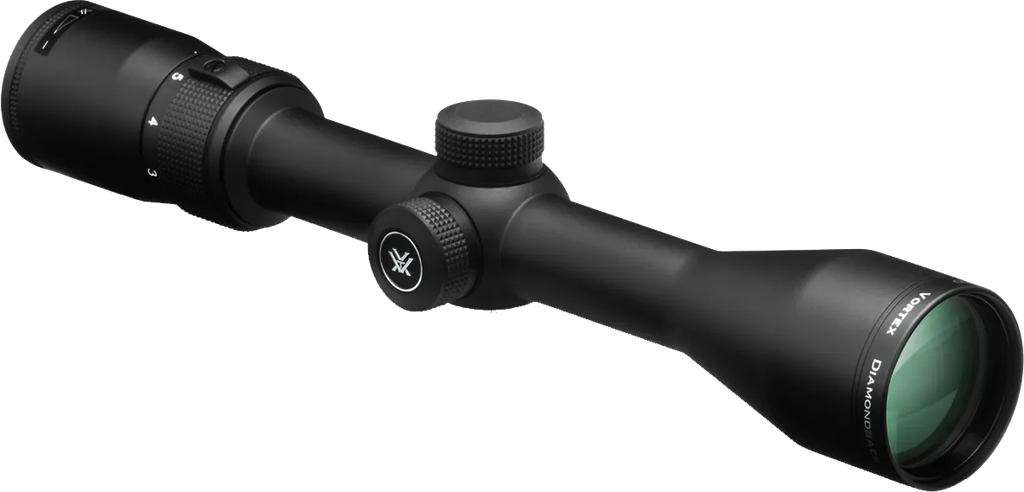

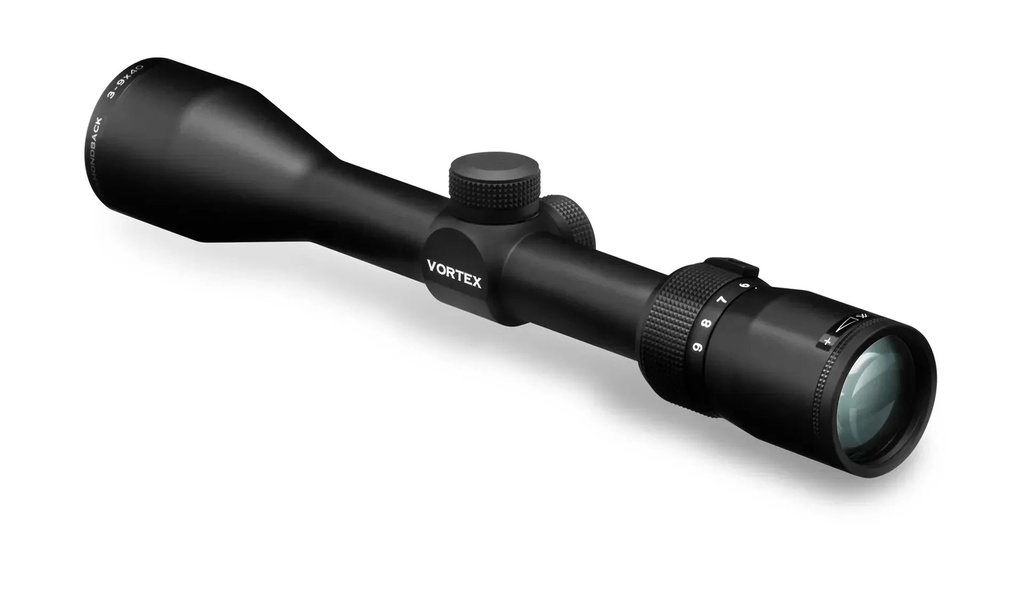

Diamondback 3-9x40 SFP MOA
The stock information shown above is very accurate and updated dynamically. In stock items are shipped the same day when ordered before 2pm, or can be collected after ordering. Warehouse items will arrive with us in the timescale shown. Collection is by appointment only and must be booked in advance. Our phone lines can get extremely busy and email is the most efficient way to communicate with us!
Vortex Optics

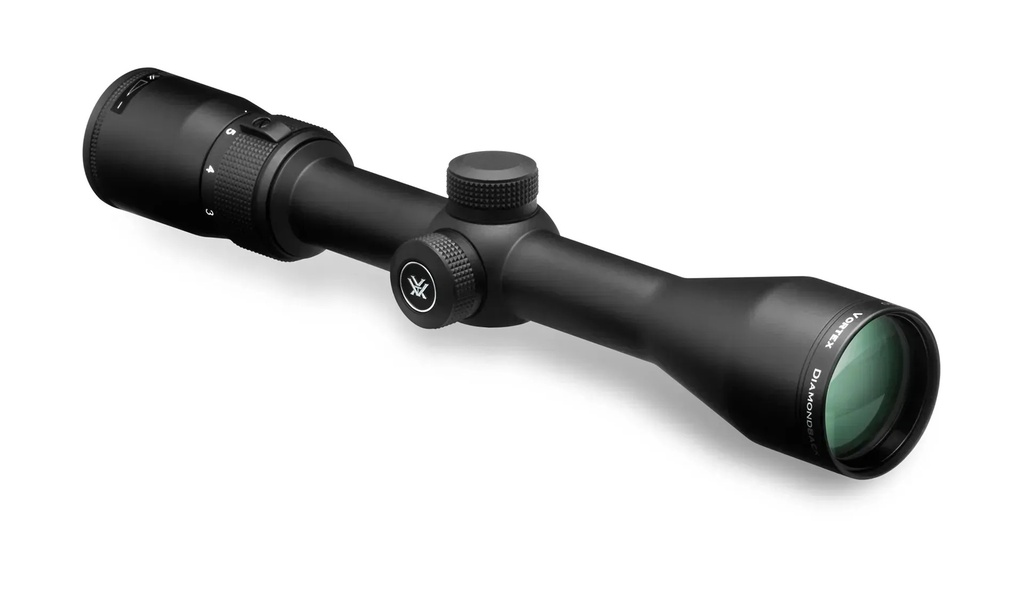

Diamondback 3-9x40 SFP MOA
With a long legacy of proven grit, Diamondback® is a true workhorse, delivering hard-working reliability in trusted lineup of models. Excellent low-light capability. Brilliant contrast and sharpness that serves up impressive images. Renowned for toughness and accuracy, it’s built with durable construction and a lightweight design, giving hunters the confidence to push further and succeed in any terrain. Simple to use and rugged enough for any hunt, Diamondback® is made to go the distance, from the East to the Rockies and beyond.
Included in the Box
- Removable Lens Covers
- Lens Cloth
| Lengths | |||||
|---|---|---|---|---|---|
| L1 | L2 | L3 | L4 | L5 | L6 |
| 11.61 | 2.0 | 2.1 | 5.4 | 3.07 | 3.1 |
| Heights | |
|---|---|
| H1 | H2 |
| 1.89 | 1.69 |
Recommended uses: Hunting

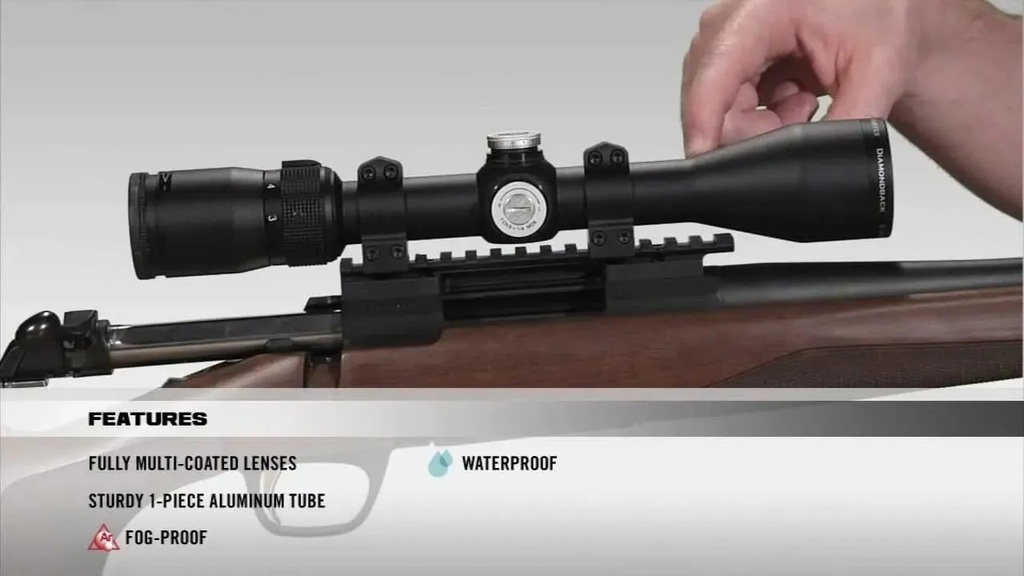

Features
| XD™ Optical System | Premium optical system delivers impressive resolution, edge-to-edge sharpness, greatly reduces chromatic aberration, and guarantees bright, high-contrast images. |
|---|---|
| Fully Multi-Coated Lenses | Anti-reflective coatings on all air-to-glass surfaces provide increased light transmission for greater clarity and low-light performance. |
| Argon Gas Purged | Gas purged and O-ring sealed for superior fogproof and waterproof performance in the most extreme conditions. |
| Fast-Focus Eyepiece | Allows for quick and easy reticle focusing. |
| Aircraft Grade Aluminum | Constructed from a solid block of aircraft-grade aluminum for strength and rigidity. |
| Low-Glare Matte Black Anodize | Corrosion and wear resistant anodization provides low-glare matte surface and helps camouflage the shooter's position. |
| Waterproof | Designed to withstand harsh weather conditions. |
| Fogproof | Designed to withstand a wide range of temperatures. |
| Shockproof | Designed to withstand the highest levels of recoil and impact. |
Specifications and model details

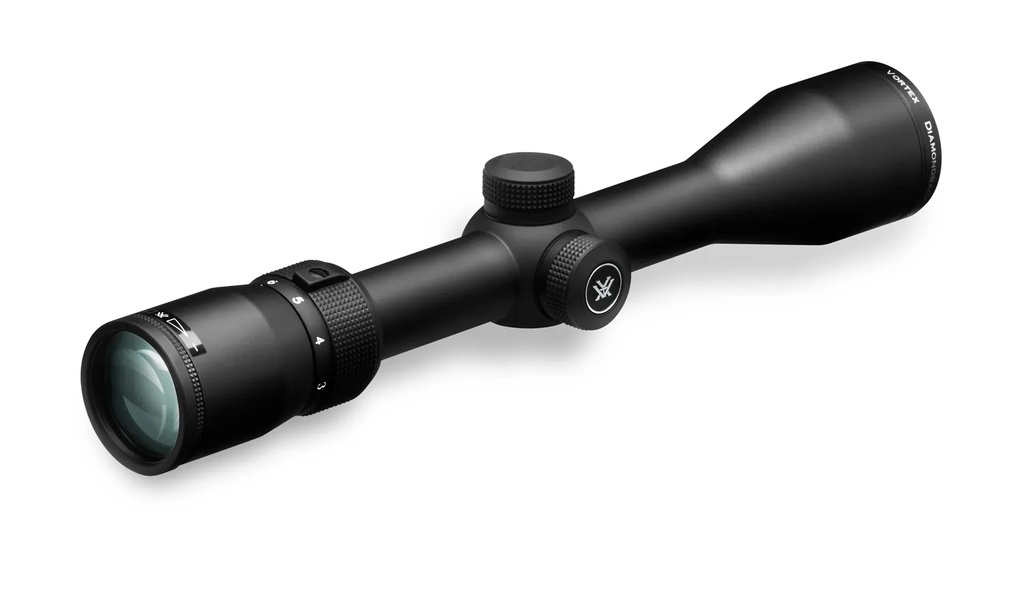

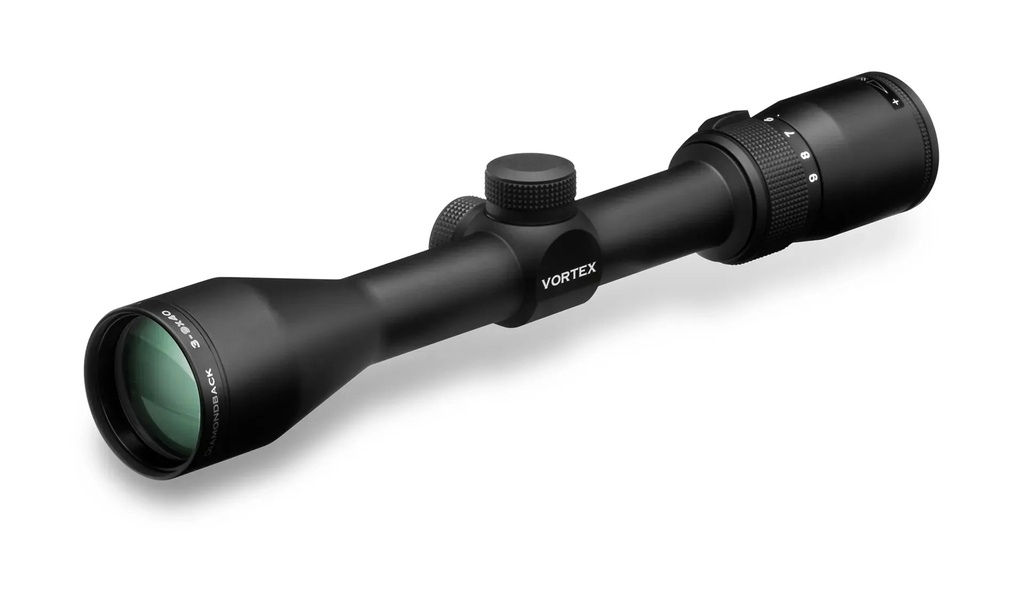

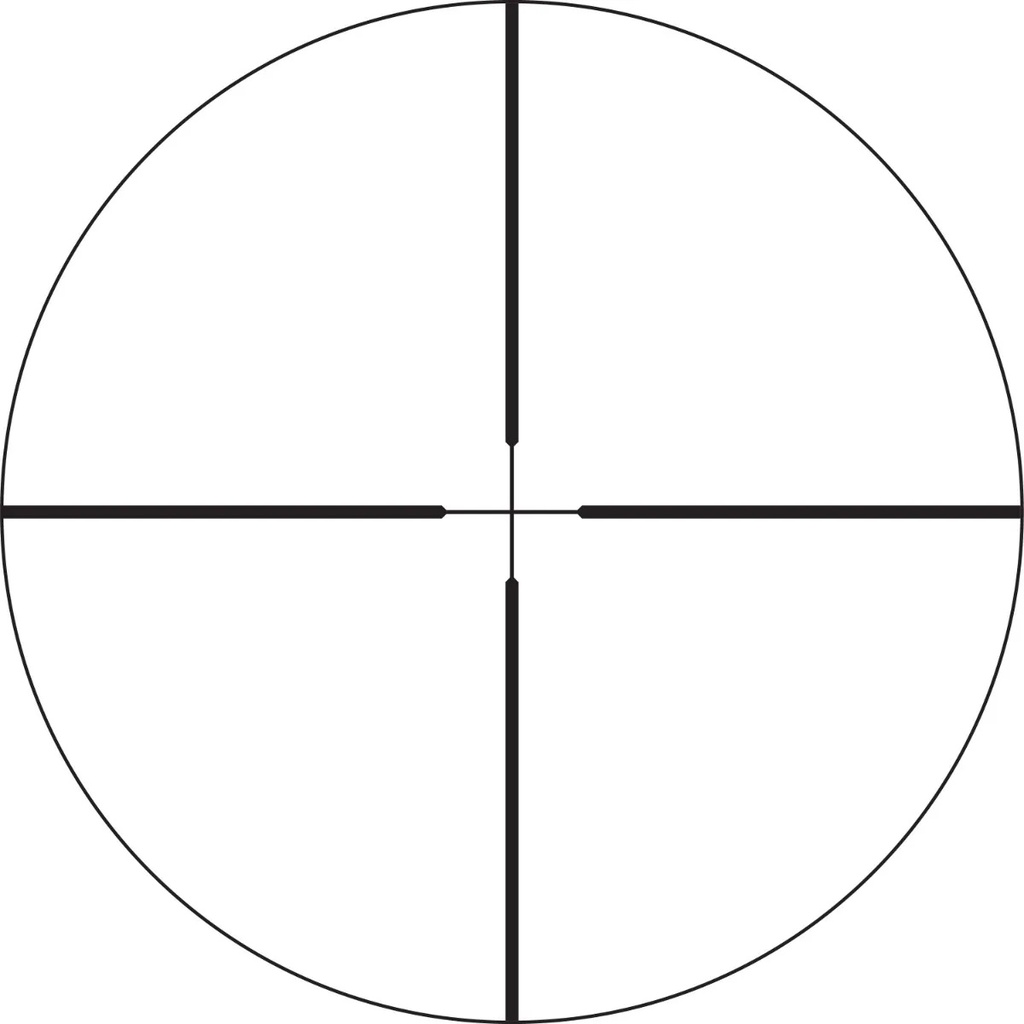

Diamondback 3-9x40 V-Plex (MOA)
Manufacturer SKU: DBK-M-01P
| Adjustment Graduation | 1/4 MOA |
|---|---|
| Eye Relief | 3.3" |
| Field of View | 44.6' - 14.8' @ 100 yds |
| Length | 11.6" |
| Maximum Elevation Adjustment | 70 MOA |
| Maximum Windage Adjustment | 70 MOA |
| Objective Lens Diameter | 40 mm |
| Parallax Setting | 100 yds. |
| Magnification | 3-9x |
| Travel Per Rotation | 15 MOA |
| Turret Style | Capped |
| Weight | 14.5 oz |
| Category | Riflescopes |
| Reticle | V-Plex (MOA) |
| GTIN | 875874000865 |
| Tube Size | 1 inch |
| Product Family | Diamondback |
| Optics Use | Hunting |
| Focal Plane | Second Focal Plane |
Reticle information

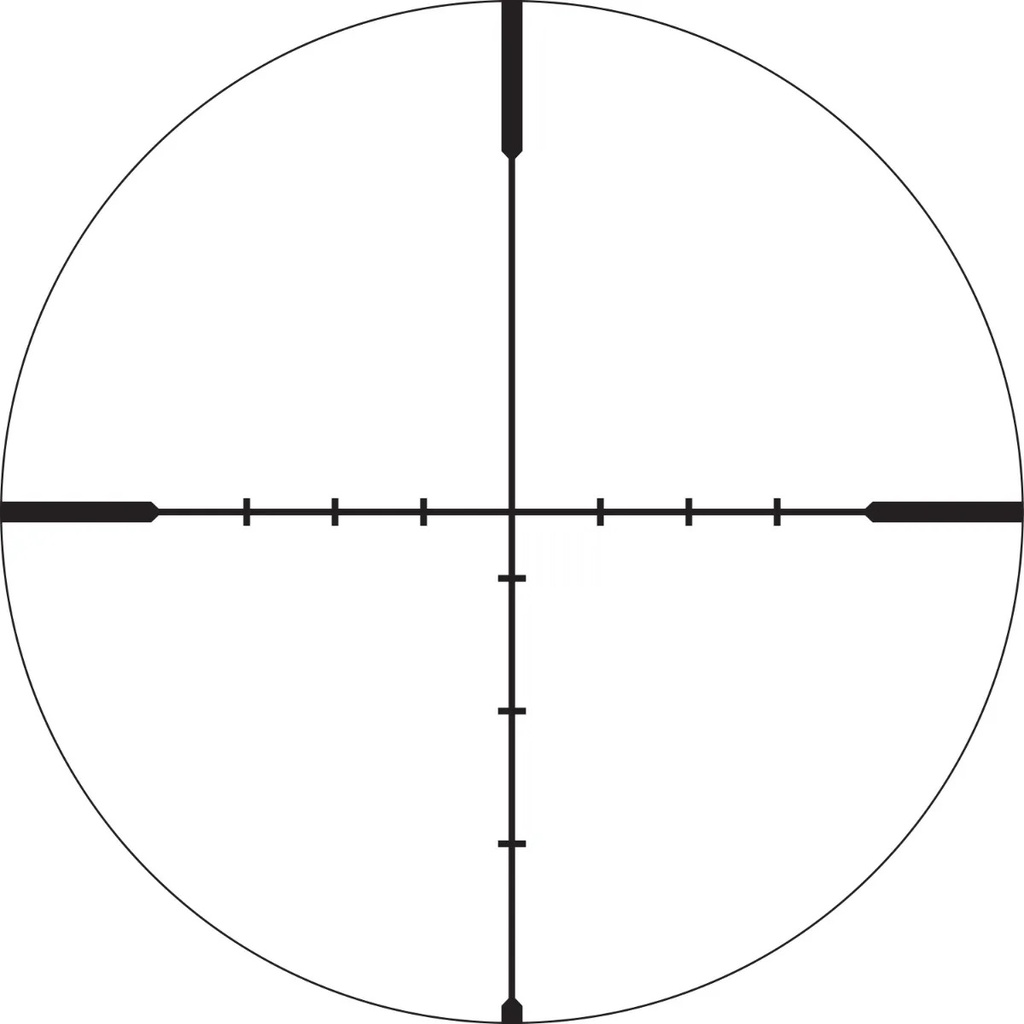

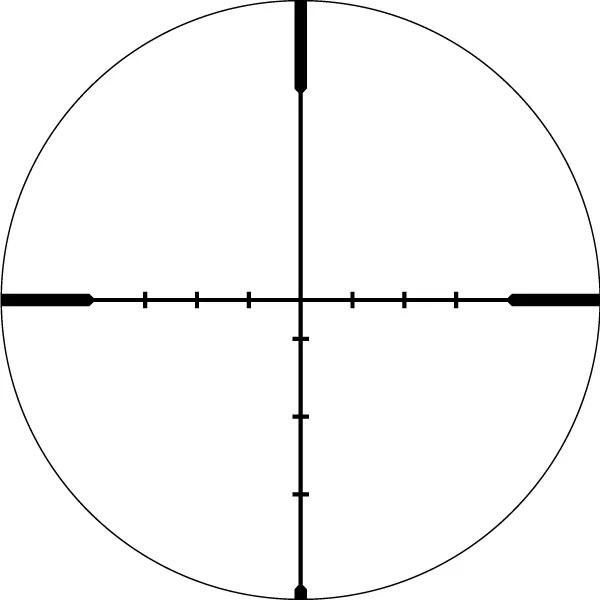

Diamondback 3-9x40 Dead-Hold BDC (MOA)
Manufacturer SKU: DBK-01-BDC
| Adjustment Graduation | 1/4 MOA |
|---|---|
| Eye Relief | 3.3" |
| Field of View | 44.6' - 14.8' @ 100 yds |
| Length | 11.6" |
| Maximum Elevation Adjustment | 70 MOA |
| Maximum Windage Adjustment | 70 MOA |
| Objective Lens Diameter | 40 mm |
| Parallax Setting | 100 yds. |
| Magnification | 3-9x |
| Travel Per Rotation | 15 MOA |
| Turret Style | Capped |
| Weight | 14.5 oz |
| Category | Riflescopes |
| Reticle | Dead-Hold® BDC (MOA) |
| GTIN | 875874001138 |
| Tube Size | 1 inch |
| Product Family | Diamondback |
| Reticle | Dead-Hold BDC (MOA) |
| Optics Use | Hunting |
| Focal Plane | Second Focal Plane |
Reticle information
Included with the product
Included in the Box
- Removable lens covers
- Lens cloth
Manuals and documentation
Official manufacturer information: Vortex Optics.
