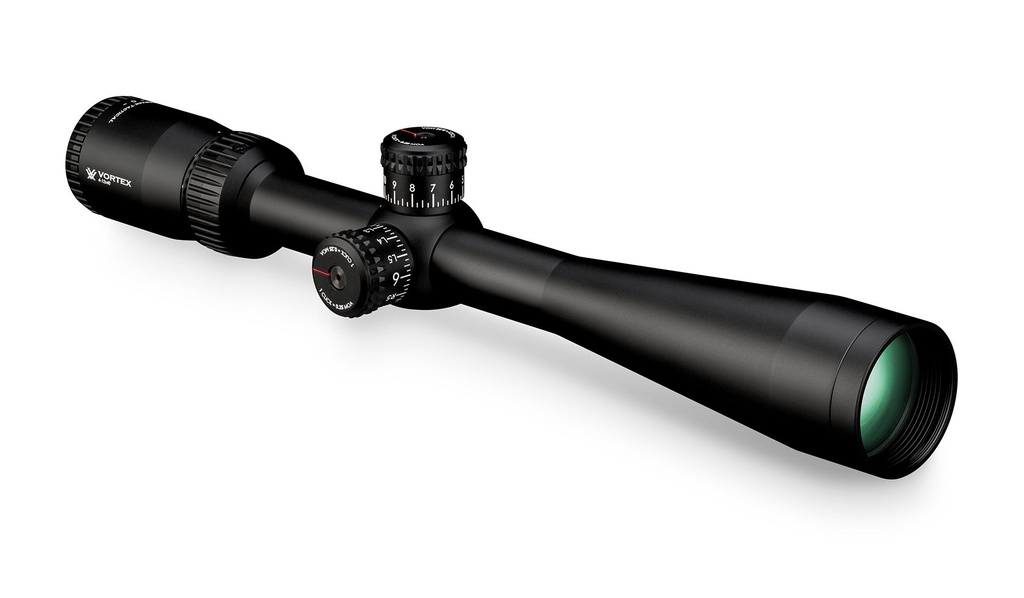

Diamondback Tactical 4-12x40
DBK-10025
Exposed tactical turrets built for dialling elevation and windage allow quick and precise bullet drop and wind drift compensation at extended ranges. When we say precise - we mean it. These turrets track better than any Bloodhound and reliably return to zero every time. A zero-reset feature lets you re-index the zero reference marks on both turrets after sight in, while fibre optic rotation indicators integrated into the turrets provide a visual cue of your turret’s position.
Diamondback Tactical 4-12x40 Dimensions (in inches)

Lengths | |||||
---|---|---|---|---|---|
L1 | L2 | L3 | L4 | L5 | L6 |
14.08 | 1.9 | 2.15 | 5.3 | 5.3 | 3.43 |
Heights | |
---|---|
H1 | H2 |
1.86 | 1.71 |
Magnification 4-12x
Objective Lens Diameter 40 mm
Eye Relief 3.9 inches
Field of View 23.6-7.9 ft/100 yds
Tube Size 1 inch
Turret Style Tactical
Adjustment Graduation 1/4 MOA
Travel Per Rotation 12 MOA
Max Elevation Adjustment 70 MOA
Max Windage Adjustment 70 MOA
Parallax Setting 100 yards
Length 14.08 inches
Weight 16.2 oz
Reticle Manual (PDF) Download
Product Manual (PDF) Download
Parts Diagram (PDF) Download
