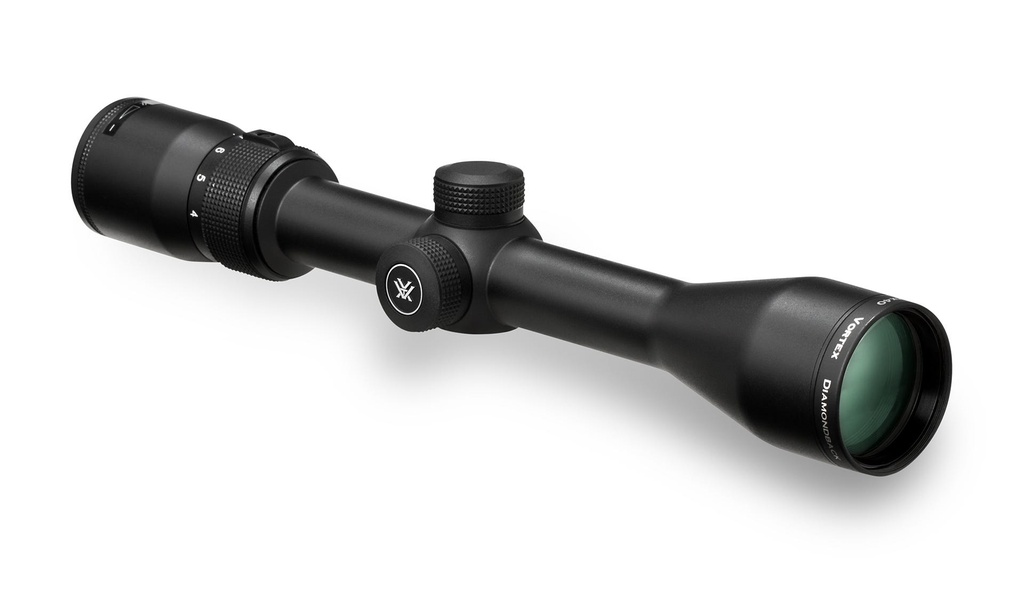

Diamondback 4-12x40
DBK-04-BDC
The Diamondback - loaded with features! First, the solid one-piece aircraft-grade aluminium alloy construction makes the Diamondback riflescope virtually indestructible and highly resistant to magnum recoil. Argon purging puts waterproof and fog-proof performance on the agenda, and advanced fully multi-coated optics raise an eyebrow when crystal clear, tack-sharp images appear in the crosshairs. Look for all this and more in a riflescope you'd expect to cost quite a bit more-but doesn't. We can live with that.
Diamondback 4-12x40 Dimensions (in inches)
Lengths | |||||
---|---|---|---|---|---|
L1 | L2 | L3 | L4 | L5 | L6 |
12.0 | 2.46 | 2.15 | 5.85 | 3.0 | 3.1 |
Heights | |
---|---|
H1 | H2 |
1.89 | 1.69 |
Magnification 4-12x
Objective Lens Diameter 40 mm
Eye Relief 3.1 inches
Field of View 32.4-11.3 ft/100 yds
Tube Size 1 inch
Turret Style Capped
Adjustment Graduation 1/4 MOA
Travel Per Rotation 15 MOA
Max Elevation Adjustment 60 MOA
Max Windage Adjustment 60 MOA
Parallax Setting 100 yards
Length 12 inches
Weight 14.6 oz
Product Manual (PDF) Download
Reticle Manual (PDF) Download
Parts Diagram (PDF) Download
