First light, last light, and all day long, this crossbow topper will have you stacking bolts and filling tags in no time. Vortex's purpose-built reticle not only gives you holdover points out to 100 yards, it features red and green illumination for low-light shooting. We also included the magnification and FPS on the magnification ring to keep the scope compatible with a variety of crossbows and setups, and a wide field of view makes it perfect for a variety of shooting situations. Plus, it includes rings, flip caps, and a neoprene cover, so it’s ready to mount right out of the box. 30mm rings included have a height of 1.1" (28mm).

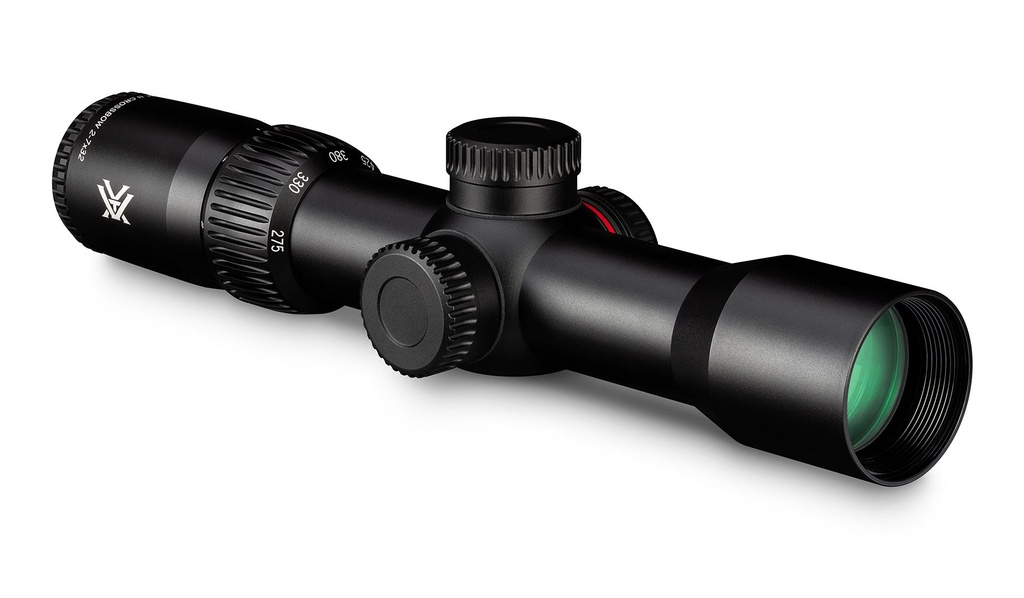

Crossfire® II 2-7x32 Crossbow Scope Dimensions (in inches)
| Lengths | |||||
|---|---|---|---|---|---|
| L1 | L2 | L3 | L4 | ||
| 9.5 | 1.7 | 1.5 | 4.5 | ||
| Heights | |
|---|---|
| H1 | H2 |
| 1.5 | 1.5 |
Magnification 2-7x
Objective Lens Diameter 32 mm
Eye Relief 2.7 inches
Field of View 57.5’ – 16.4’ @ 100 yards
Tube Size 30 mm
Turret Style Low Capped
Adjustment Graduation 1/2 MOA
Travel Per Rotation 30 MOA
Max Elevation Adjustment 160 MOA
Max Windage Adjustment 160 MOA
Parallax Setting Fixed @75 yds
Length 9.5 inches
Weight 14 oz
Parts Diagram (PDF) Download
Product Manual (PDF) Download
