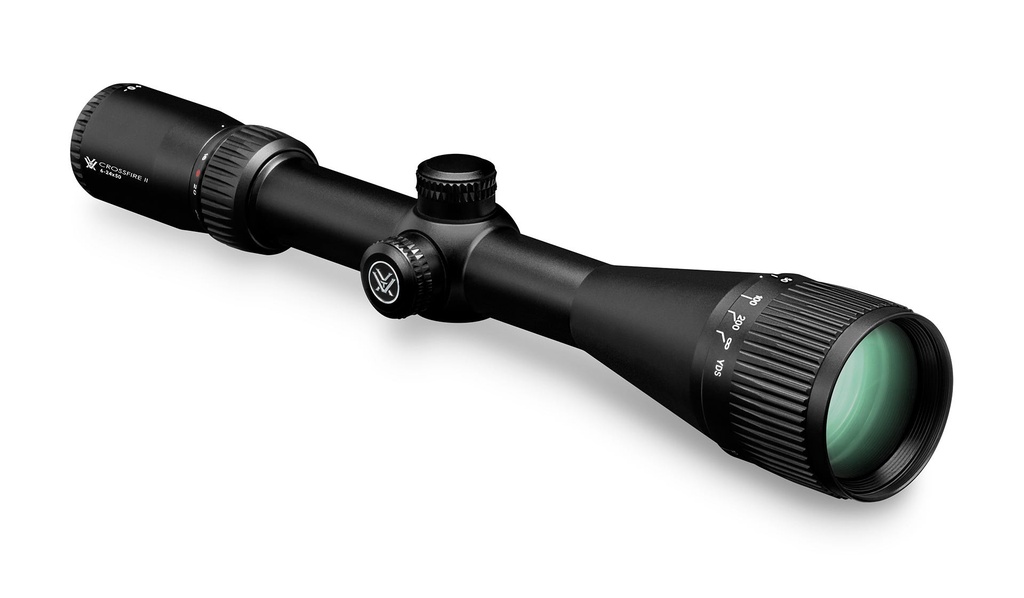

Crossfire II 6-24x50 AO
CF2-31045
With long eye relief, a fast-focus eyepiece, fully multi-coated lenses and resettable MOA turrets, there's no compromising on the Crossfire II. Clear, tough and bright, this riflescope hands other value-priced riflescopes their hat. The hard anodized single-piece aircraft-grade aluminium tube is nitrogen purged and o-ring sealed for waterproof/fog-proof performance.
Dead-Hold BDC (MOA) Reticle | 30mm Tube
Crossfire II 6-24x50 AO Dimensions (in inches)
Lengths | |||||
---|---|---|---|---|---|
L1 | L2 | L3 | L4 | L5 | L6 |
14.5 | 1.97 | 2.6 | 5.9 | 5.0 | 3.6 |
Heights | |
---|---|
H1 | H2 |
2.52 | 1.73 |
Magnification 6-24x
Objective Lens Diameter 50 mm
Eye Relief 4.0 inches
Field of View 17.3-4.4 ft/100 yds
Tube Size 30 mm
Turret Style Capped
Adjustment Graduation 1/4 MOA
Travel Per Rotation 15 MOA
Max Elevation Adjustment 40 MOA
Max Windage Adjustment 40 MOA
Parallax Setting 10 yards to infinity
Length 14.5 inches
Weight 23.6 oz
Reticle Manual (PDF) Download
Parts Diagram (PDF) Download
Product Manual (PDF) Download
