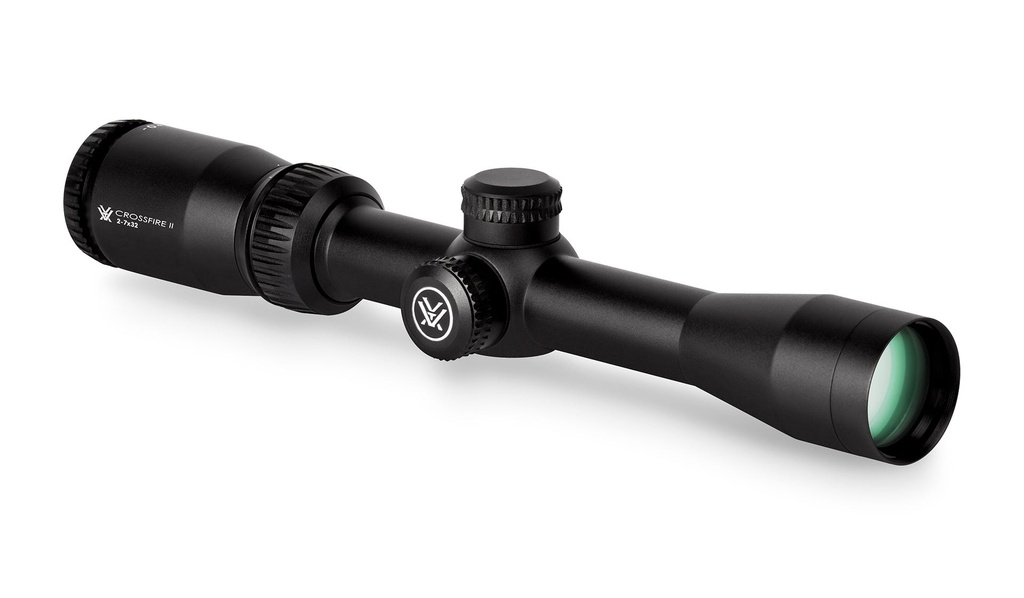

Crossfire II 2-7x32 Rimfire
CF2-31001R
Clearer. Tougher. Brighter. Our popular Crossfire riflescopes are completely redesigned and built to exceed the performance standards of similarly-priced riflescopes. Longer eye relief, a fast-focus eyepiece, fully multi-coated lenses and improved, resettable MOA turrets ensure optimal performance in the field. The hard anodized one-piece aircraft-grade aluminium tube is nitrogen purged and o-ring sealed for a lifetime of waterproof/fogproof performance. The Crossfires deliver - and then some.
Crossfire II 2-7x32 Rimfire Dimensions (in inches)
Lengths | |||||
---|---|---|---|---|---|
L1 | L2 | L3 | L4 | L5 | L6 |
11.52 | 1.86 | 1.54 | 4.63 | 3.10 | 2.90 |
Heights | |
---|---|
H1 | H2 |
1.53 | 1.61 |
Magnification 2-7x
Objective Lens Diameter 32 mm
Eye Relief 3.9 inches
Field of View 42-12.6 ft/100 yds
Tube Size 1 inch
Turret Style Capped
Adjustment Graduation 1/4 MOA
Travel Per Rotation 15 MOA
Max Elevation Adjustment 60 MOA
Max Windage Adjustment 60 MOA
Parallax Setting 50 yards
Length 11.52 inches
Weight 14.3 oz
Product Manual (PDF) Download
Parts Diagram (PDF) Download
