Sako TRG 22 / 42 spare parts
Sako TRG 22 / 42 Parts Guide
Use the exploded diagrams and exact position tables to find the correct Sako spare part.

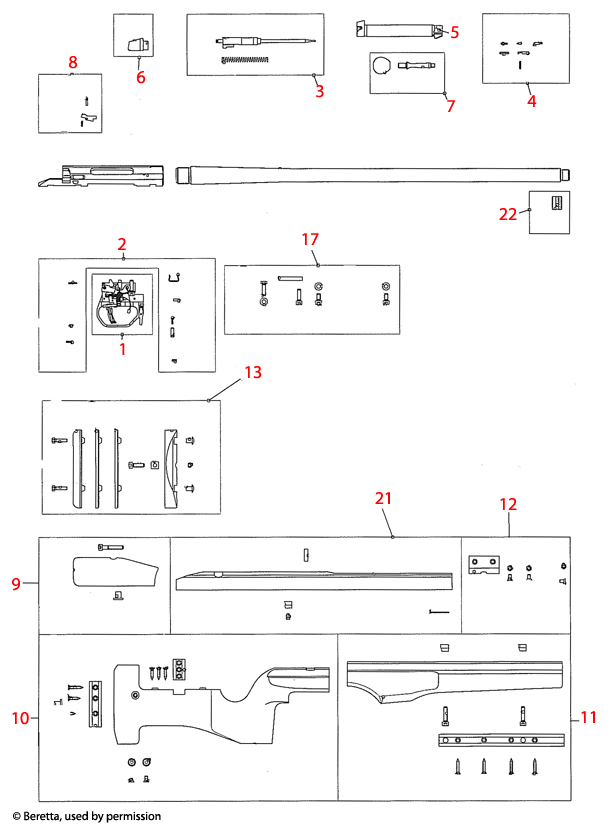

Exploded diagram
Use this exploded view with the matching position and part-code table below.
Exploded diagram parts
| Position | Sako Code | Stock | Description & Product Link |
|---|---|---|---|
| 1 | S57462423 | Not Available | Trigger compl. TRG22/42 2010 |
| 2 | S574S220S57462424 | Not Available Not Available | Trigger parts TRG Trigger parts TRG22/42 2010 |
| 3 | S5740154S5740164 | Not Available | Firing pin complete TRG-22 |
| 4 | S584S240 | Not Available | Bolt spare parts TRG/TRG-S |
| 6 | S5740242S5740241 | Not Available | Bolt shroud TRG-22/42 |
| 7 | S585T249S57462648S57462649 | Not Available Not Available | Bolt handle TRG PHO Bolt handle TRG PHO 2010 |
| 8 | S5740255 | ||
| 13 | S574S290S574Z290S584S420S584S422S584S421S5740905 | Not Available Not Available Not Available | Butt plate compl. TRG/RANGE Butt plate compl. TRG M08 Butt plate spacer set TRG |
| 17 | S5740265 | Not Available | Fastening screws TRG |
| 20 | S5740210 | Not Available | Receiver plug screws TRG |
| 21 | S5740493S5740592S5740593S5740594S5740596S5740595S5740597S5740795S5740797S5740299S5740399 | Not Available Not Available Not Available Not Available Not Available Not Available Not Available Not Available Not Available Not Available Not Available | Butt stock assy TRG B M08 Butt stock assy TRG G M08 Butt stock assy TRG DT M08 Fore-end complete TRG-22 Black Fore-end complete TRG-42 Black Fore-end complete TRG-22 Green Fore-end complete TRG-42 Green Fore-end complete TRG-22 Desert Fore-end complete TRG-42 Desert Stock base rail TRG-21/22 Stock base rail TRG-41/42 |
| 22 | S5740405 | ||
| Tool | S5740900 |
