Sako Quad Parts Guide
Use the exploded diagrams and exact position tables to find the correct Sako spare part.

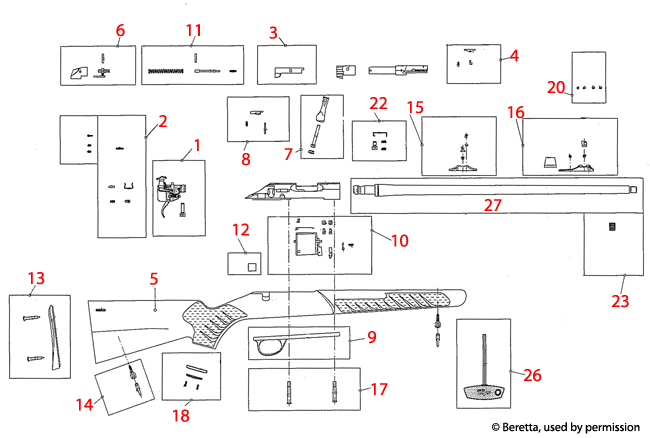

Exploded diagram
Use this exploded view with the matching position and part-code table below.
Exploded diagram parts
| Position | Sako Code | Stock | Description & Product Link |
|---|---|---|---|
| 1 | S3181206S5950110S5950113 | Not Available | Receiver P04R RH |
| 2 | S584S210S584S220 | Not Available | Spare parts for set trigger mechanism |
| 3 | S3181306S5940140S5950145 | Not Available Not Available | Bolt body P04R RH Cocking piece |
| 4 | S3181334S5950229 | Not Available | Bolt handle sleeve |
| 5 | S2183600S2183609S2183602S2180698S2180696 | Not Available Not Available Not Available Not Available Not Available | Stock complete Quad RH Hunter Stock complete Quad RH Hunter PRO Stock complete Quad RH Varmint Stock complete Quad RH Synthetic Stock complete Quad RH Synthetic Heavy Barrel |
| 6 | S5940243 | ||
| 7 | S5950245 | ||
| 8 | S5950252 | ||
| 9 | S5950166 | ||
| 10 | S5950258 | ||
| 11 | S5950366S5950367S5950368S5950369 | ||
| 12 | S5940499 | ||
| 13 | S5A60290S5940295S5950295S585S296S5950420S585T420S5960292S5950292 | Not Available Not Available Not Available Not Available | Recoil pad complete standard Butt plate complete Varmint Pistol grip cap complete Hunter Pistol grip cap complete Synthetic |
| 14 | S594S297 | ||
| 15 | S5850310 | Not Available | Rear sight |
| 16 | S5850320S5850314 | Not Available Not Available | Front sight Bead complete |
| 17 | S5950267 | ||
| 20 | S584S211 | ||
| 21 | S585T391 | ||
| 22 | S5950405S5950406S5950407 | Not Available Not Available Not Available | Thread protection for Hunter barrel Thread protection for Varmint barrel Barrel fastening parts |
| 26 | S5950902 | ||
| A | S1181102S1185102S118H102S118K102S1187102S1183102S1181103S1185103S118H103S118K103S1187103S1183103S1181104S1185104S118H104S118K104S1187104S1183104S1181105S1185105S118H105S118K105S1187105S1183105 | Not Available Not Available Not Available Not Available Not Available Not Available Not Available Not Available Not Available Not Available Not Available Not Available Not Available Not Available Not Available Not Available Not Available Not Available Not Available Not Available Not Available Not Available Not Available Not Available | Barrel set 22 LR NS Barrel set 22 LR NS MT Barrel set 22 LR WS Barrel set 22 LR WS MT Barrel set 22 LR Varmint NS Barrel set 22 LR Varmint NS MT Barrel set 17 Mach 2 NS Barrel set 17 Mach 2 NS MT Barrel set 17 Mach 2 WS Barrel set 17 Mach 2 WS MT Barrel set 17 Mach 2 Varmint NS Barrel set 17 Mach 2 Varmint NS MT Barrel set 17 HMR NS Barrel set 17 HMR NS MT Barrel set 17 HMR WS Barrel set 17 HMR WS MT Barrel set 17 HMR Varmint NS Barrel set 17 HMR Varmint NS MT Barrel set 22 WMRF NS Barrel set 22 WMRF NS MT Barrel set 22 WMRF WS Barrel set 22 WMRF WS MT Barrel set 22 WMRF Varmint NS Barrel set 22 WMRF Varmint NS MT |
