Sako A7 spare parts
Sako A7 Parts Guide
Use the exploded diagrams and exact position tables to find the correct Sako spare part.

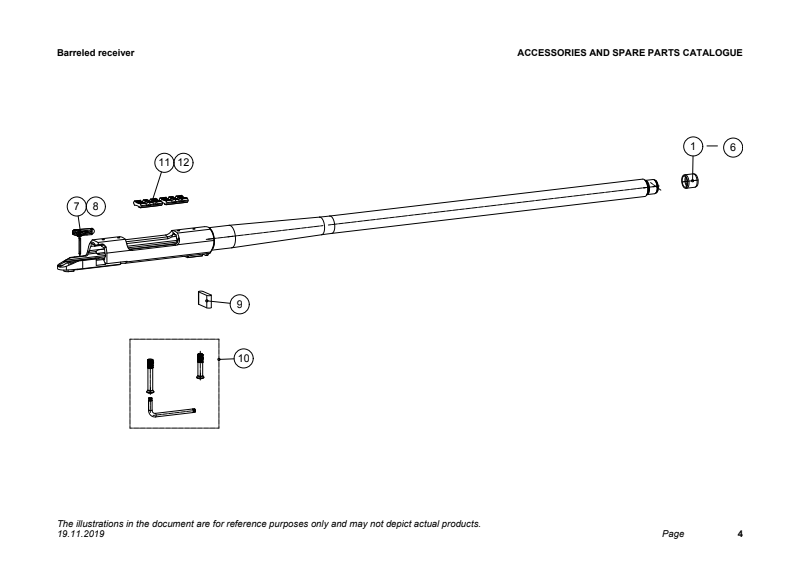

Barreled receiver
Use this exploded view with the matching position and part-code table below.
Barreled receiver parts
| Position | Sako Code | Stock | Description & Product Link |
|---|---|---|---|
| 1 | S5A60405 | ||
| 2 | S5A6R405 | ||
| 3 | S5A60406 | ||
| 4 | S5A6R406 | ||
| 5 | S5740405 | ||
| 6 | S574R405 | ||
| 7 | S5A60250 | ||
| 8 | S5AR0250 | ||
| 9 | S5850299 | Not Available | Recoil lug |
| 10 | S5AR0265 | ||
| 11 | S5C062272 | Not Available | Weaver base rail |
| 12 | S5C062265 | Not Available | Weaver base rail stainless |

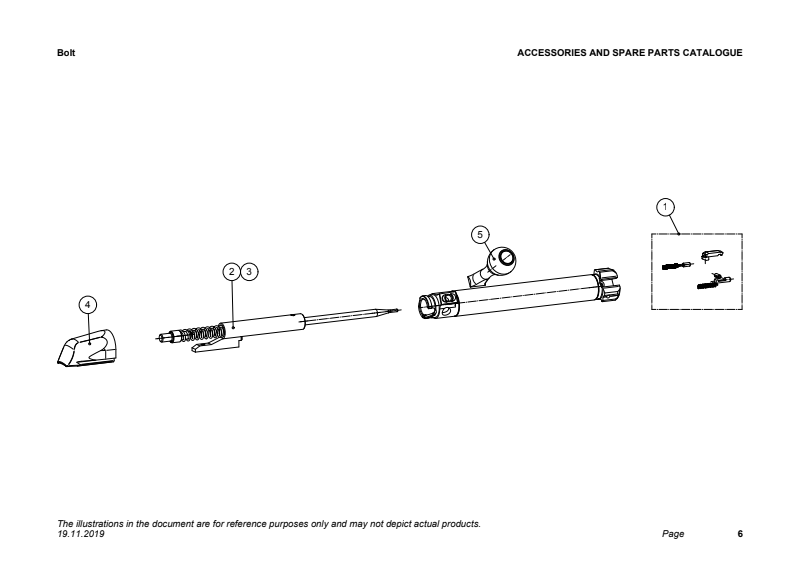

Bolt
Use this exploded view with the matching position and part-code table below.
Bolt parts
| Position | Sako Code | Stock | Description & Product Link |
|---|---|---|---|
| 1 | S5850240 | ||
| 2 | S5AR0155 | ||
| 3 | S5AR0160 | ||
| 4 | S5C60244 | ||
| 5 | S5CR0245 |

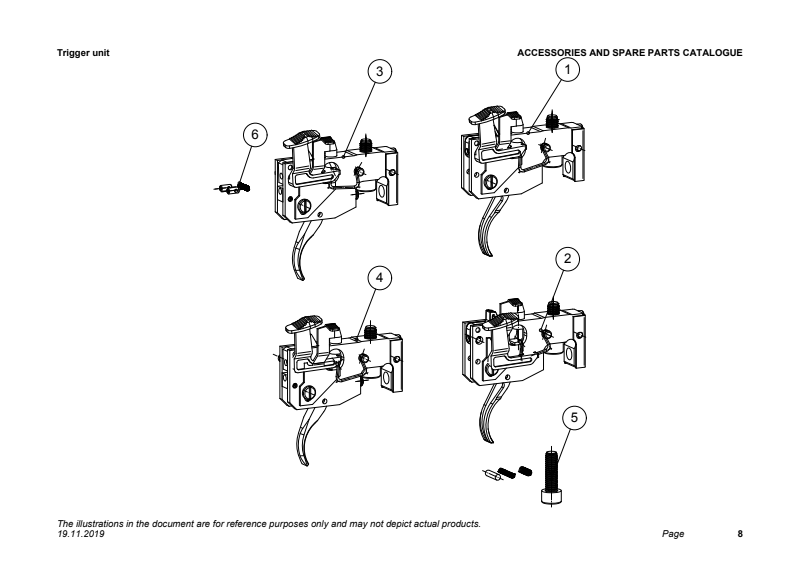

Trigger unit
Use this exploded view with the matching position and part-code table below.
Trigger unit parts
| Position | Sako Code | Stock | Description & Product Link |
|---|---|---|---|
| 1 | S5A60110 | ||
| 2 | S5AR0110 | ||
| 3 | S5A60113 | ||
| 4 | S5AR0113 | ||
| 5 | S584S210 | ||
| 6 | S584S220 | Not Available | Set trigger parts set |

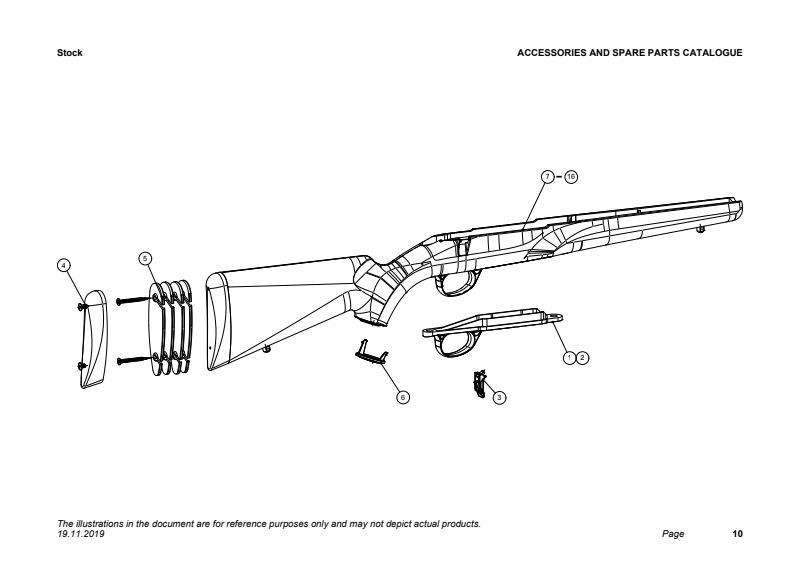

Stock
Use this exploded view with the matching position and part-code table below.
Stock parts
| Position | Sako Code | Stock | Description & Product Link |
|---|---|---|---|
| 1 | S5C60180 | ||
| 2 | S5C60185 | ||
| 3 | S5AR0260 | ||
| 4 | S596S296 | Not Available | Recoil pad, rubber |
| 5 | S54068539 | ||
| 6 | S5CR0292 | ||
| 7 | S5C168692 | Not Available | Stock complete S Roughtech Pro black |
| 8 | S5C168693 | Not Available | Stock complete S Roughtech Pro desert |
| 9 | S5C168686 | Not Available | Stock complete S Roughtech Range black |
| 10 | S5C168687 | Not Available | Stock complete S Roughtech Range green |
| 11 | S5C168685 | Not Available | Stock complete S synthetic stainless |
| 12 | S5C168691 | Not Available | Stock complete M Roughtech Pro black |
| 13 | S5C168690 | Not Available | Stock complete M Roughtech Pro desert |
| 14 | S5C168689 | Not Available | Stock complete M Roughtech Range black |
| 15 | S5C168688 | Not Available | Stock complete M Roughtech Range green |
| 16 | S5C168684 |

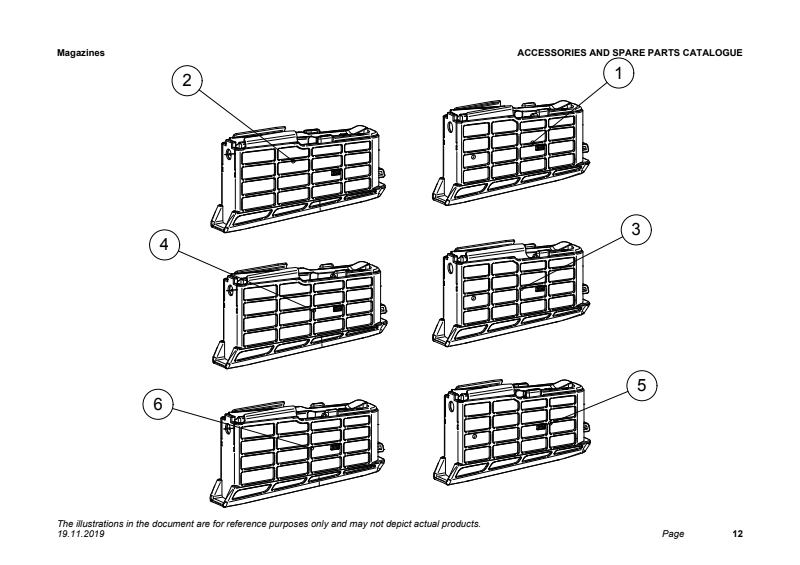

Magazines
Use this exploded view with the matching position and part-code table below.
Magazines parts
| Position | Sako Code | Stock | Description & Product Link |
|---|---|---|---|
| 1 | S5C60382 | Not Available | Magazine 3-round S 300 WSM |
| 2 | S5C60386 | ||
| 3 | S5C60385 | ||
| 4 | S5C60387 | Not Available | Magazine 3-round M 300 Win |
| 5 | S5C60384 | ||
| 6 | S5C60389 |

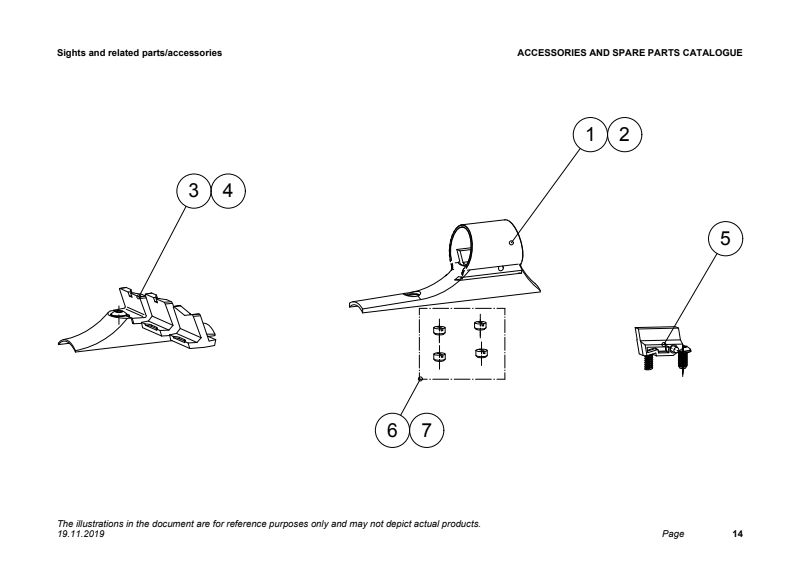

Sights and related parts
Use this exploded view with the matching position and part-code table below.
Sights and related parts parts
| Position | Sako Code | Stock | Description & Product Link |
|---|---|---|---|
| 1 | S5850320 | Not Available | Adjustable front sight M05 standard |
| 2 | S5850322 | Not Available | Adjustable front sight M05 TAC |
| 3 | S5850310 | Not Available | Adjustable rear sight M05 standard |
| 4 | S5850313 | Not Available | Adjustable rear sight M05 TAC |
| 5 | S5850314 | Not Available | Adjustable bead parts M05 |
| 6 | S584S211 | ||
| 7 | S58RS211 | Not Available | Sight mount hole plugs for barrel, stainless |

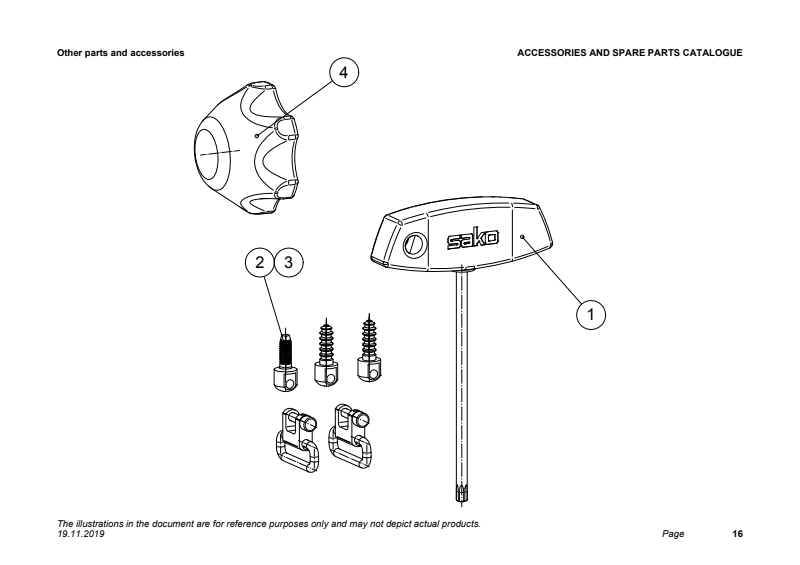

Other parts and accessories
Use this exploded view with the matching position and part-code table below.
Other parts and accessories parts
| Position | Sako Code | Stock | Description & Product Link |
|---|---|---|---|
| 1 | S59564005 | Not Available | Torx driver T25 |
| 2 | S594T297 | ||
| 3 | S59RS297 | ||
| 4 | S5C60900 |

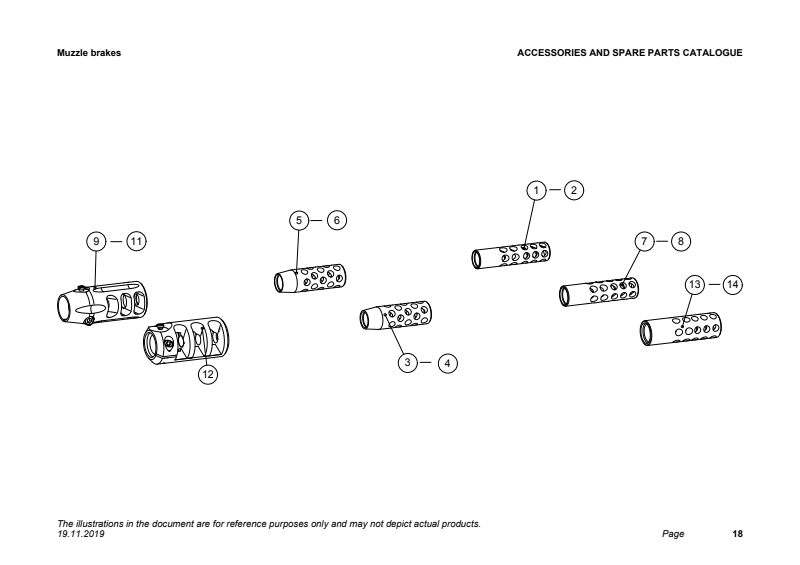

Muzzle brakes
Use this exploded view with the matching position and part-code table below.
Muzzle brakes parts
| Position | Sako Code | Stock | Description & Product Link |
|---|---|---|---|
| 1 | S530203976 | Not Available | Muzzle brake, slim, M14x1 |
| 2 | S530203974 | Not Available | Muzzle brake, slim, M14x1 stainless |
| 3 | S54063159 | Not Available | Muzzle brake, conical, M14x1 |
| 4 | S54063160 | ||
| 5 | S54063157 | Not Available | Muzzle brake, conical, M15x1 |
| 6 | S54063161 | Not Available | Muzzle brake, conical, M15x1 stainless |
| 7 | S54067687 | Not Available | Muzzle brake, slim, M15x1 |
| 8 | S54067685 | Not Available | Muzzle brake, slim, M15x1 stainless |
| 9 | S54065100 | ||
| 10 | S54065103 | Not Available | Muzzle brake, TAC conical, 5/8in-24 stainless |
| 11 | S57469748 | ||
| 12 | S5740412 | ||
| 13 | S530203637 | Not Available | Muzzle brake, slim, M18x1 |
| 14 | S530204345 | Not Available | Muzzle brake, slim, M18x1 stainless |
