Tikka T3 / T3x spare parts
Tikka T3 / T3x Parts Guide
Use the exploded diagrams and exact position tables to find the correct Tikka spare part.

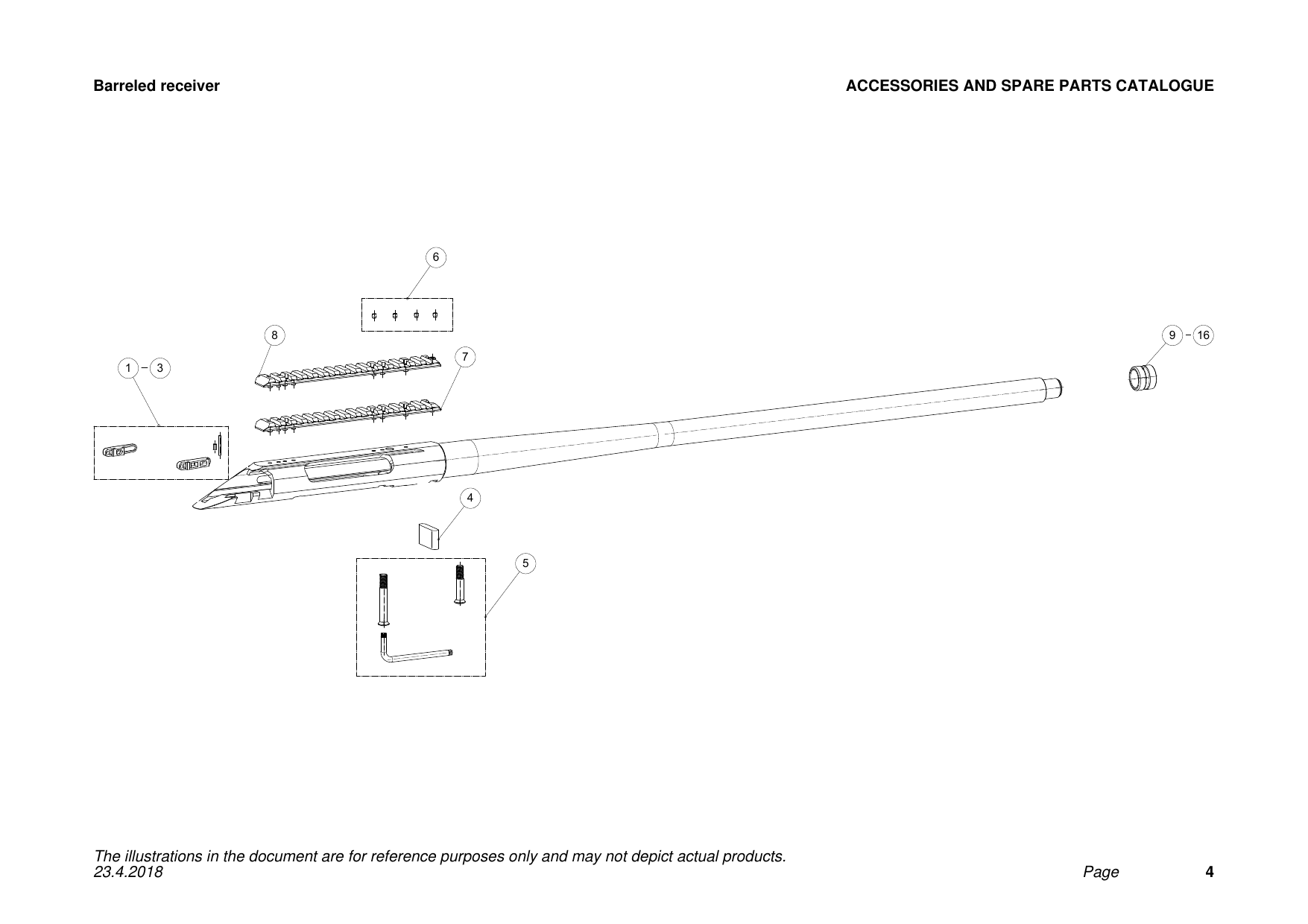

Barreled receiver
Use this exploded view with the matching position and part-code table below.
Barreled receiver parts
| Position | Tikka Code | Stock | Description & Product Link |
|---|---|---|---|
| 1 | |||
| 2 | |||
| 3 | |||
| 4 | |||
| 5 | |||
| 6 | |||
| 7 | |||
| 8 | |||
| 9 | |||
| 10 | |||
| 11 | |||
| 12 | |||
| 13 | |||
| 14 | |||
| 15 | |||
| 16 | S54065088 | Not Available | Muzzle thread protector |

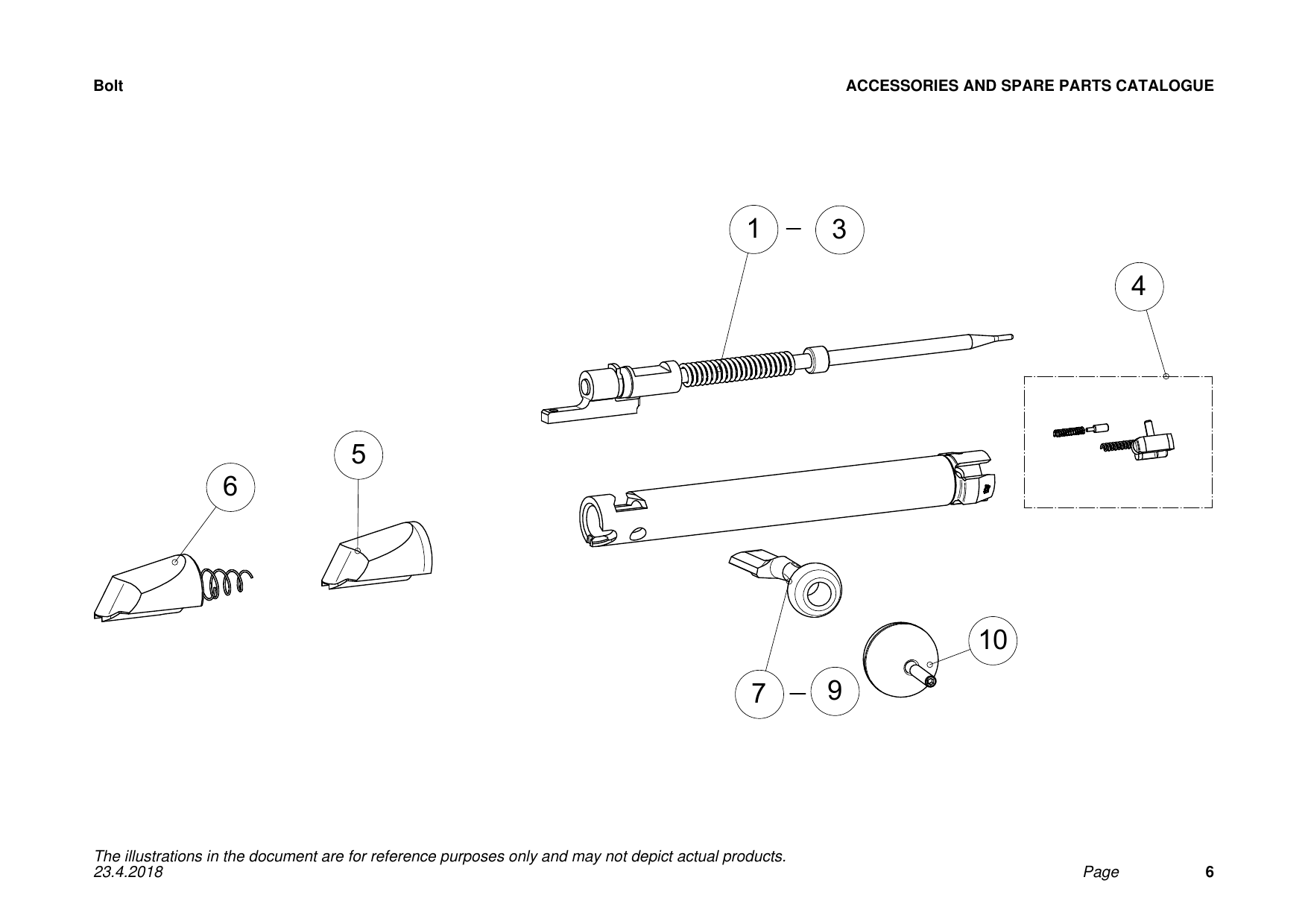

Bolt
Use this exploded view with the matching position and part-code table below.
Bolt parts
| Position | Tikka Code | Stock | Description & Product Link |
|---|---|---|---|
| 1 | |||
| 2 | |||
| 3 | |||
| 4 | |||
| 5 | |||
| 6 | |||
| 7 | |||
| 8 | |||
| 9 | S5850246 | Not Available | Bolt handle, black/teflon |
| 10 |

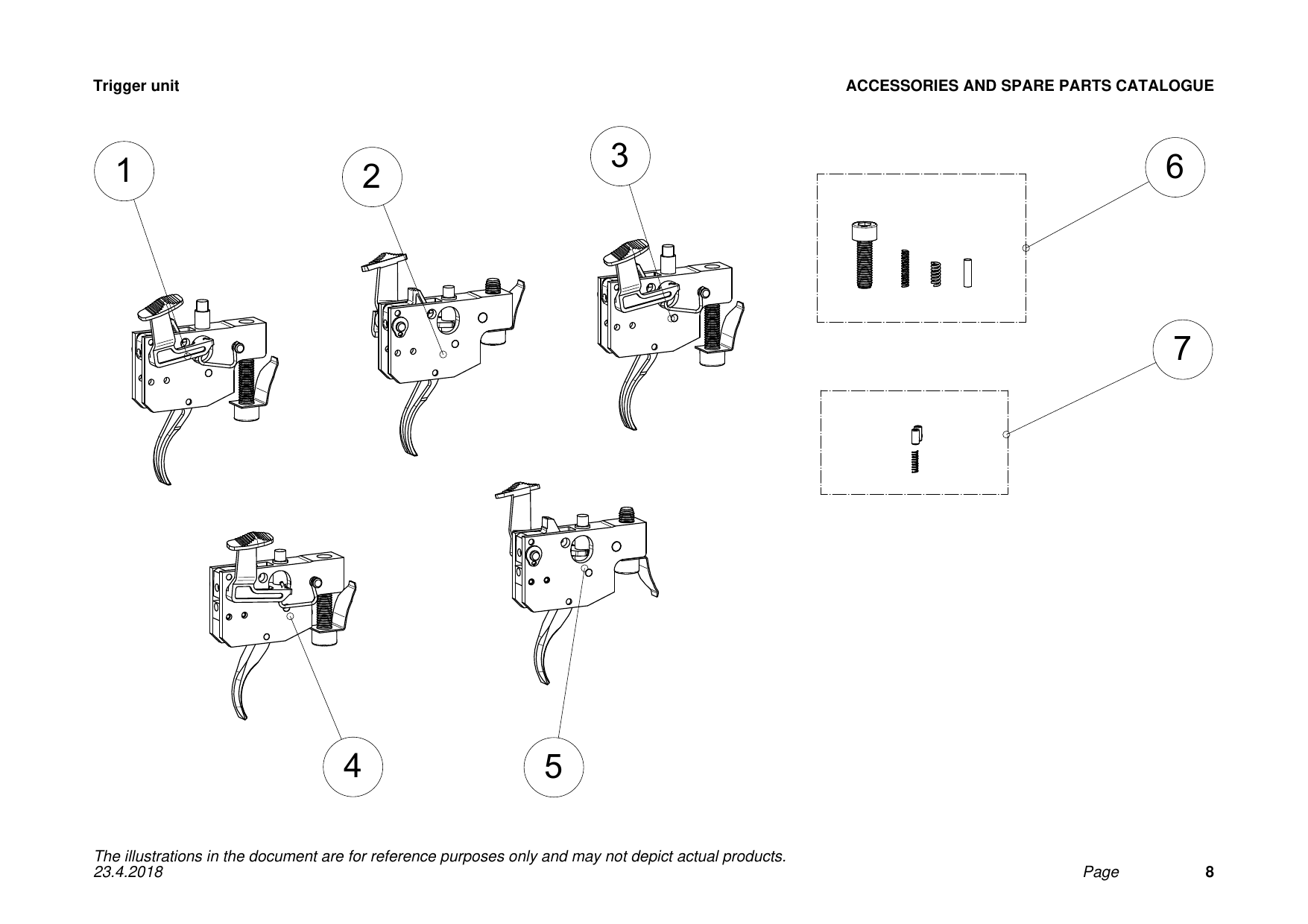

Trigger unit
Use this exploded view with the matching position and part-code table below.
Trigger unit parts
| Position | Tikka Code | Stock | Description & Product Link |
|---|---|---|---|
| 1 | |||
| 2 | |||
| 3 | |||
| 4 | |||
| 5 | S585T114 | Not Available | Set trigger unit |
| 6 | S584T210 | Not Available | Trigger spring set |
| 7 | S584T220 | Not Available | Set trigger spring set |

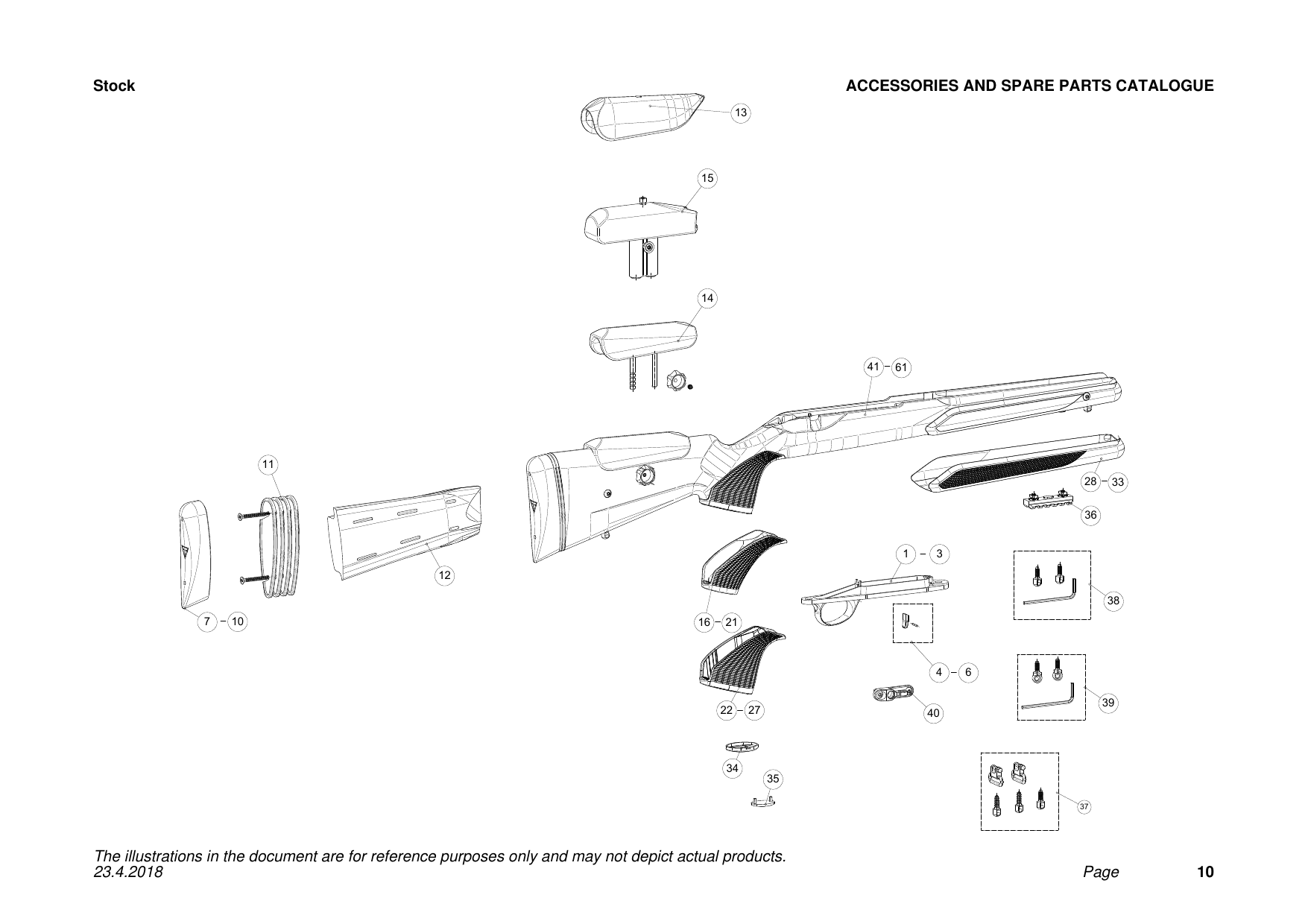

Stock
Use this exploded view with the matching position and part-code table below.
Stock parts
| Position | Tikka Code | Stock | Description & Product Link |
|---|---|---|---|
| 1 | |||
| 2 | S5850176 | Not Available | Trigger guard assembly |
| 3 | |||
| 4 | S5850260 | Not Available | Magazine release parts |
| 5 | S5850261 | Not Available | Magazine release parts |
| 6 | |||
| 7 | |||
| 8 | |||
| 9 | S57465175 | Not Available | Recoil pad complete |
| 10 | S54165186 | Not Available | Recoil pad with extended spacer Tikka T3x/T3 Compact |
| 11 | |||
| 12 | S54068540 | Not Available | Silent stock foam |
| 13 | |||
| 14 | |||
| 15 | S585T491 | Not Available | Adjustable cheek piece set |
| 16 | S54067115 | Not Available | Pistol grip, traditional |
| 17 | |||
| 18 | |||
| 19 | |||
| 20 | |||
| 21 | S54069677 | Not Available | Pistol grip, traditional |
| 22 | |||
| 23 | |||
| 24 | |||
| 25 | |||
| 26 | |||
| 27 | S54069681 | Not Available | Pistol grip, vertical |
| 28 | |||
| 29 | |||
| 30 | |||
| 31 | |||
| 32 | |||
| 33 | S54069686 | Not Available | Fore-end grip |
| 34 | S5850292 | Not Available | Pistol grip cap |
| 35 | S5850293 | Not Available | Pistol grip cap |
| 36 | S540200309 | Not Available | M-LOK accessory rail |
| 37 | |||
| 38 | |||
| 39 | |||
| 40 | S540201130 | Not Available | Sling swivel socket |
| 41 | S54169725 | Not Available | Stock complete |
| 42 | S54169726 | Not Available | Stock complete |
| 43 | |||
| 44 | S54069711 | Not Available | Stock complete |
| 45 | S54069714 | Not Available | Stock complete |
| 46 | S54069721 | Not Available | Stock complete |
| 47 | S54069717 | Not Available | Stock complete |
| 48 | |||
| 49 | |||
| 50 | S54169723 | Not Available | Stock complete |
| 51 | S54169727 | Not Available | Stock complete |
| 52 | |||
| 53 | |||
| 54 | |||
| 55 | S54068549 | Not Available | Stock complete |
| 56 | |||
| 57 | |||
| 58 | S54168662 | Not Available | Stock complete |
| 59 | S54168650 | Not Available | Stock complete |
| 60 | S54168633 | Not Available | Stock complete |
| 61 |

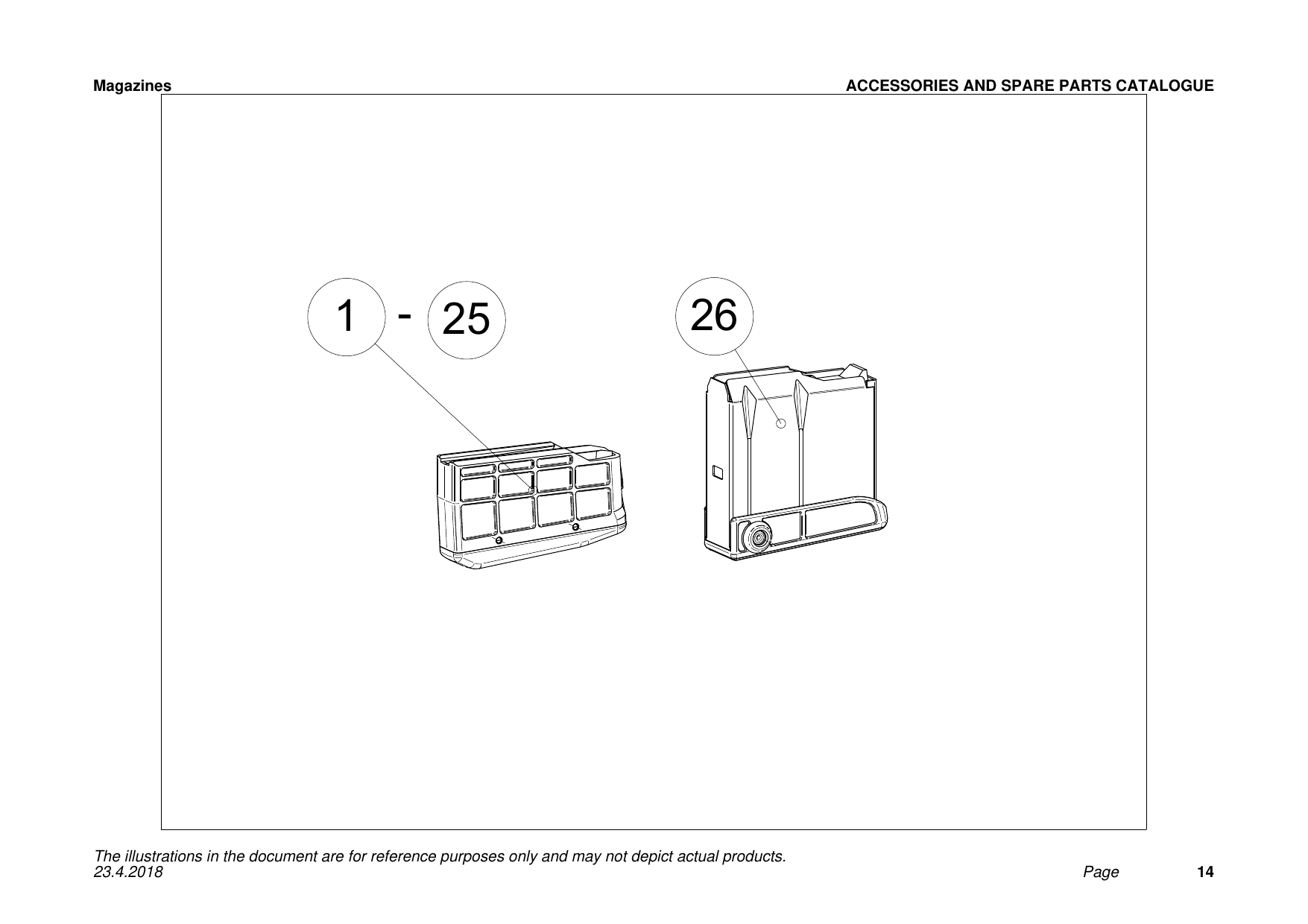

Magazines
Use this exploded view with the matching position and part-code table below.
Magazines parts
| Position | Tikka Code | Stock | Description & Product Link |
|---|---|---|---|
| 1 | |||
| 2 | |||
| 3 | |||
| 4 | |||
| 5 | |||
| 6 | |||
| 7 | |||
| 8 | |||
| 9 | |||
| 10 | |||
| 11 | |||
| 12 | |||
| 13 | |||
| 14 | |||
| 15 | |||
| 16 | |||
| 17 | |||
| 18 | |||
| 19 | |||
| 20 | |||
| 21 | |||
| 22 | S5840378 | Not Available | Magazine 3rd |
| 23 | |||
| 24 | |||
| 25 | |||
| 26 |

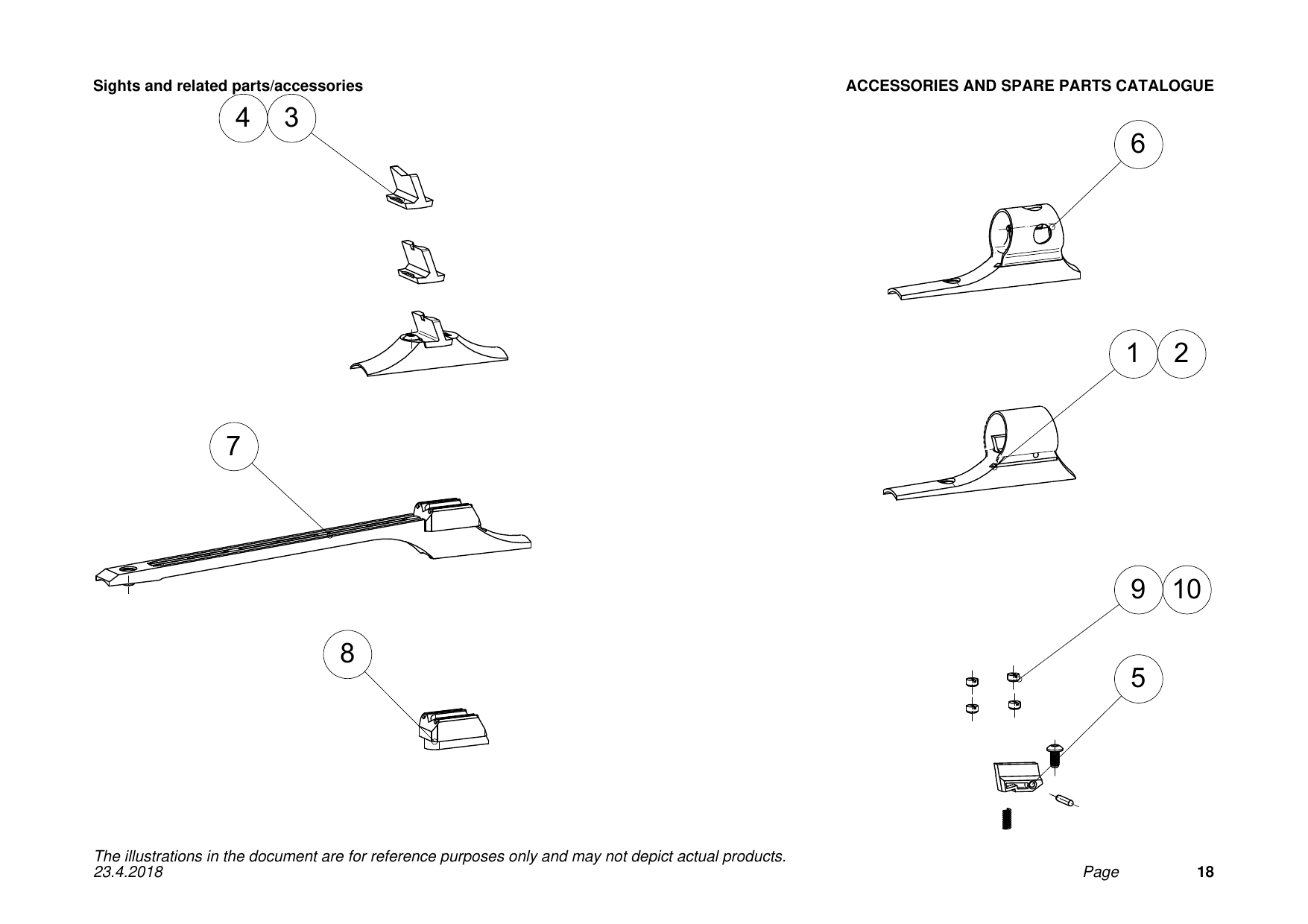

Sights and related parts/accessories
Use this exploded view with the matching position and part-code table below.
Sights and related parts/accessories parts
| Position | Tikka Code | Stock | Description & Product Link |
|---|---|---|---|
| 1 | S5850320 | Not Available | Adjustable front sight M05, STD Sako, Tikka |
| 2 | S5850322 | Not Available | Adjustable front sight M05, TAC Sako, Tikka |
| 3 | S5850310 | Not Available | Adjustable rear sight M05, STD Sako, Tikka |
| 4 | S5850313 | Not Available | Adjustable rear sight M05, TAC Sako, Tikka |
| 5 | S5850314 | Not Available | Adjustable bead parts M05 |
| 6 | S585T321 | Not Available | Front sight, battue |
| 7 | S585T311 | Not Available | Rear sight complete, Battue |
| 8 | S585T312 | Not Available | Rear sight bead, Battue |
| 9 | |||
| 10 | S58RS211 | Not Available | Sight mount hole plugs for barrel Sako, Tikka |

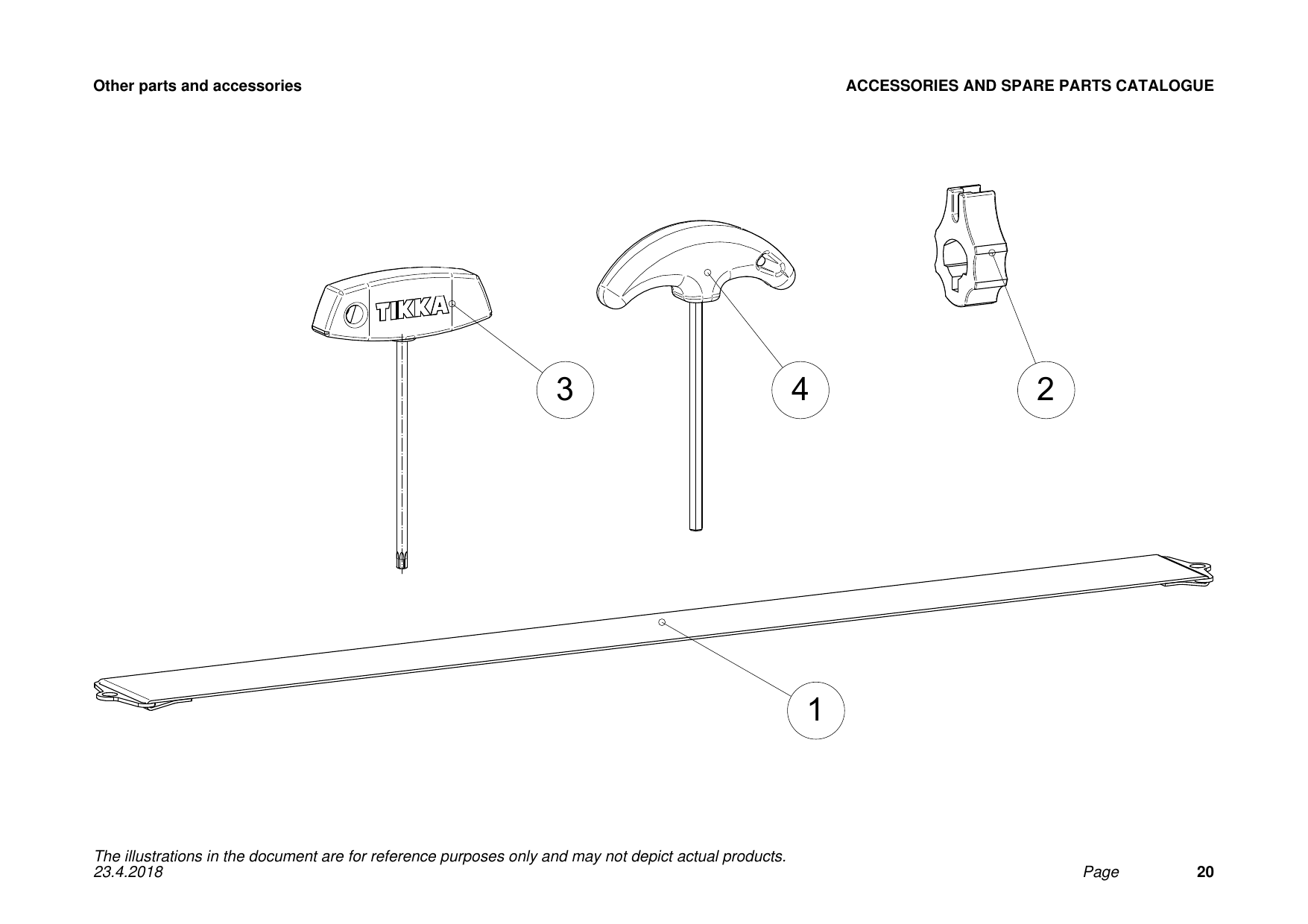

Other parts and accessories
Use this exploded view with the matching position and part-code table below.
Other parts and accessories parts
| Position | Tikka Code | Stock | Description & Product Link |
|---|---|---|---|
| 1 | S574T338 | Not Available | Mirage strap |
| 2 | |||
| 3 | S54068712 | Not Available | Torx driver, T25 |
| 4 | S540204346 | Not Available | Allen key, 5mm |

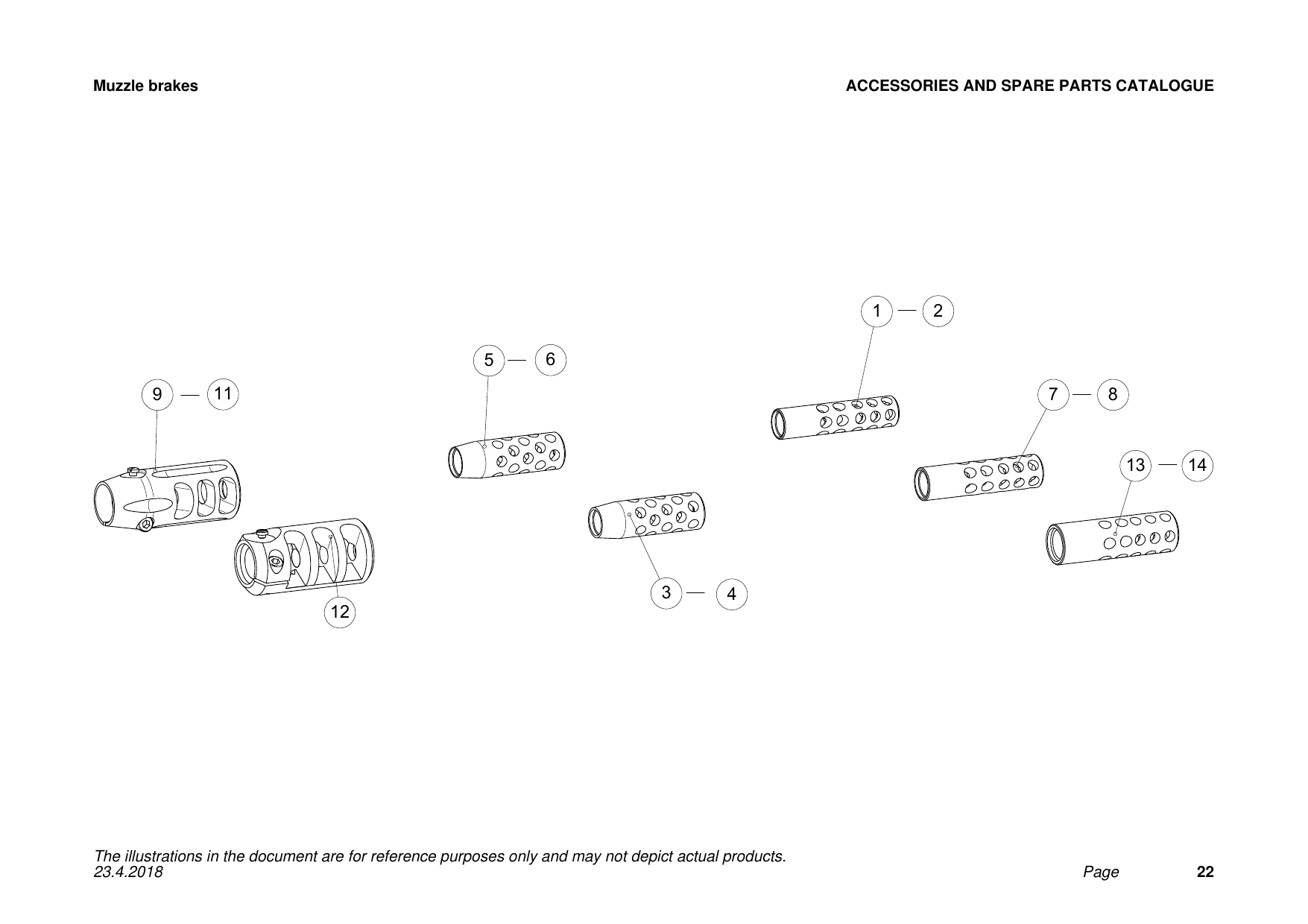

Muzzle brakes
Use this exploded view with the matching position and part-code table below.
Muzzle brakes parts
| Position | Tikka Code | Stock | Description & Product Link |
|---|---|---|---|
| 1 | S530203976 | Not Available | Muzzle brake, slim |
| 2 | S530203974 | Not Available | Muzzle brake, slim |
| 3 | S54063159 | Not Available | Muzzle brake, conical |
| 4 | |||
| 5 | S54063157 | Not Available | Muzzle brake, conical |
| 6 | S54063161 | Not Available | Muzzle brake, conical |
| 7 | S54067687 | Not Available | Muzzle brake, slim |
| 8 | S54067685 | Not Available | Muzzle brake, slim |
| 9 | |||
| 10 | S54065103 | Not Available | Muzzle brake, TAC conical |
| 11 | |||
| 12 | |||
| 13 | S530203637 | Not Available | Muzzle brake, slim |
| 14 | S530204345 | Not Available | Muzzle brake, slim |
Need help finding a part?
Send us the guide name, diagram section and position number.
Contact Blue Fieldsports
