Beretta Ultraleggero Silver 20G Parts Guide
Exploded diagram, Beretta codes and linked spare parts for Beretta Ultraleggero Silver 20G.

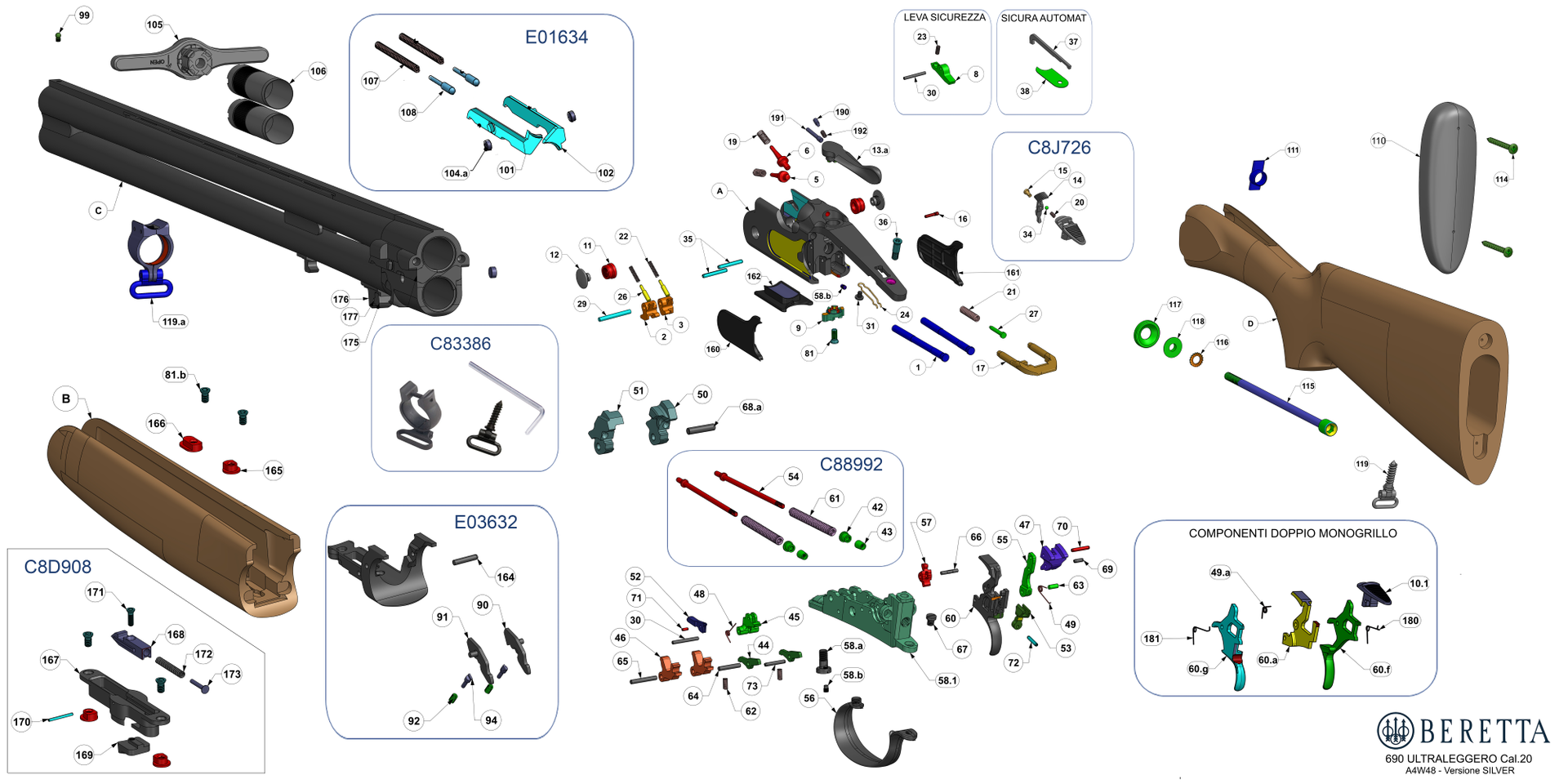

Exploded diagram
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 1 | |||
| 2 | C52987 | Not Available | COCKING LEVER 20 GA 690 695 |
| 3 | |||
| 101 | C5G867 | Not Available | LEFT EXTRACTOR 20 GA 690 695 |
| 102 | C5G866 | Not Available | RIGHT EXTRACTOR 20 GA 690 695 |
| 104.a | |||
| 105 | C71501 | Not Available | CHOKE TUBE SPANNER FLUSH GA 20 MOBILCHOKE, OPTIMA CHOKE HIGH PERFORMANCE |
| 106 | C61582C61848 | Not Available Not Available | SET CALCIOLO TR.BA VERDE SQ.+B USS OCHP20 FLUSH - F |
| 107 | |||
| 108 | |||
| 11 | C5E167C5E168C5E169C5E170C5E171 | Not Available Not Available Not Available Not Available Not Available | HINGE PIN - SV10 PERENNIA / SERIE 690 GA 20 HINGE PIN OVERSIZED (11,1) - SV10 PERENNIA / 690 GA 20 HINGE PIN OVERSIZED (11,2) - SV10 PERENNIA / SERIE 690 GA 20 HINGE PIN OVERSIZED (11,3) - SV10 PERENNIA / SERIE 690 GA 20 HINGE PIN OVERSIZED (11,4) - SV10 PERENNIA / SERIE 690 GA 20 |
| 110 | C7C097C7C098C7C099C7C100 | Not Available Not Available Not Available Not Available | EXTRALIGHT HUNTING PAD - H. 10mm EXTRALIGHT HUNTING PAD - H. 15mm EXTRALIGHT HUNTING RECOIL PAD - H. 20mm EXTRALIGHT HUNTING PAD - H. 25mm |
| 111 | C5D771C5D772C5D773 | Not Available Not Available Not Available | PLATE BEND FOR WOOD STOCK SV10 - 690 GA 20 (Sp 0 .9) PLATE BEND FOT STOCK WOOD SV10 - 690 GA 20 (Sp 1 .2) PLATE BEND FOR WOOD STOCK SV10 - 690 695 CAL 20 (Sp 1 .5) |
| 114 | |||
| 115 | C95329 | Not Available | ADJUSTABLE STOCK BOLT SCREW 12 GA S682 694 |
| 116 | |||
| 117 | |||
| 118 | |||
| 119 | |||
| 12 | |||
| 13.a | |||
| 15 | C5D706 | Not Available | LEVER PIN 20 GA SV10 690 695 |
| 16 | |||
| 164 | C9A391 | Not Available | PIN, CYLINDER DIAMETER 3x16 |
| 165 | |||
| 166 | |||
| 167 | C5J379 | Not Available | FOREND CATCH - 694 GA 12 |
| 168 | C5J382 | Not Available | BARREL HOOK BUSH 694 GA 12 |
| 169 | C5J383 | Not Available | BUTTON 694 GA 12 |
| 17 | |||
| 170 | C5J417 | Not Available | ELASTIC PIN 1.5X16 |
| 171 | |||
| 172 | C5J380 | Not Available | FOREND LOCK SPRING 694 GA 12 |
| 173 | C5J754 | Not Available | SPRING GUIDE ASSY 694 GA 12 |
| 175 | C5H580 | Not Available | BARREL HOOK 694 GA 12 |
| 176 | |||
| 177 | C9A141 | Not Available | BUSH DIA 3 |
| 180 | |||
| 181 | |||
| 19 | |||
| 190 | |||
| 191 | C5G487 | Not Available | PIOLO SBLOCCO CHIAVE 69X 20-28 Rilascio ufficiale nuovo codic |
| 192 | C90097 | Not Available | INERTIA SPRING SINGLE SELECTIVE TRIGGER - 426 625 |
| 20 | |||
| 21 | |||
| 22 | |||
| 23 | |||
| 24 | C90381 | Not Available | SAFETY SPRING 20 GA SV10 690 695 |
| 26 | |||
| 27 | |||
| 29 | C92192 | Not Available | COCKING LEVER PIN 690 695 |
| 30 | |||
| 31 | |||
| 34 | |||
| 36 | |||
| 37 | |||
| 38 | |||
| 42 | C52270 | Not Available | HAMMER SPRING GUIDE BUSH SV10 690 694 |
| 43 | C52271 | Not Available | HAMMER SPRING GUIDE NUT 12 GA SV10 690 |
| 44 | |||
| 45 | |||
| 46 | |||
| 47 | |||
| 48 | |||
| 49 | |||
| 49a | C5K184 | Not Available | MASS SPRING DOUBLE SINGLE TRIGGER |
| 5 | |||
| 50 | |||
| 51 | |||
| 52 | |||
| 53 | |||
| 55 | |||
| 56 | C5S674 | Not Available | GUARD MN NST/SML 690UL 12ga - |
| 57 | C5F549C5F550 | Not Available Not Available | SAFETY LEVER DIMENSION 6.35 - SERIE 690 SAFETY LEVER DIMENSION 6.15 - SERIE 690 |
| 58.1 | C5H181 | Not Available | SOTT22 ERG NCL/AF 690 UL 20ga - |
| 58a | |||
| 58b | |||
| 6 | |||
| 60 | C5E634 | Not Available | TRIGGER SST 20 GA PRN 1 690 695 |
| 60.g | C6D648 | Not Available | SILVER LEFT HAND LH TRIGGER (FOR DOUBLE TRIGGER) - ULTRALEGGERO SILVER GA 20 |
| 60a | C6F011 | Not Available | SILVER DOUBLE TRIGGER TRIGGER BODY - ULTRALEGGERO SILVER 20GA |
| 60f | C6D647 | Not Available | SILVER RIGHT HAND RH TRIGGER ( FOR DOUBLE TRIGGER ) - ULTRALEGGERO SILVER |
| 61 | C90182 | Not Available | HAMMER SPRING 12 GA SV10 690 695 |
| 62 | |||
| 63 | |||
| 64 | |||
| 65 | |||
| 66 | C5P255 | Not Available | PIN 1/3 2x12 |
| 67 | C90321 | Not Available | SCREW |
| 68A | |||
| 69 | |||
| 70 | |||
| 71 | |||
| 72 | |||
| 73 | |||
| 8 | C58714 | Not Available | SAFETY LEVER MG 20 GA 690 695 |
| 81 | |||
| 81b | |||
| 9 | C5G847 | Not Available | TOP LEVER PIN 20-28 GA SV10 690 |
| 90 | C5M433 | Not Available | FOREND IRON LEVER |
| 91 | C5M435 | Not Available | FOREND IRON LEVER |
| E01634 | E01634 | Not Available | EJECTORS SET GA 690 FIELD I - 695 |
| E03632 | E03632 | Not Available | ASS.CROCE+SPINA SV 690 C20 - |
| C8D908 | |||
| C88992 | |||
| C8J726 | C8J726 | Not Available | ASS SIC-17 MS BRN/OP 690 20ga NUOVO ASS CON SICURA SENZA SCA |
| C83386 | C83386 | Not Available | SWIVEL KIT FOR BARREL AND STOCK FOR OVER&UNDER SHOTGUNS GA 12 |
| 92 | |||
| 94 | |||
| 99 |
