Beretta Ultraleggero 12G Parts Guide
Use the exploded diagrams and part numbers below to find Beretta Ultraleggero 12G spares and accessories available from Blue Fieldsports.
Shop Ultraleggero 12G parts
Browse Ultraleggero 12G parts available from Blue Fieldsports.
Beretta Ultraleggero 12G exploded diagrams and parts
Trigger Group

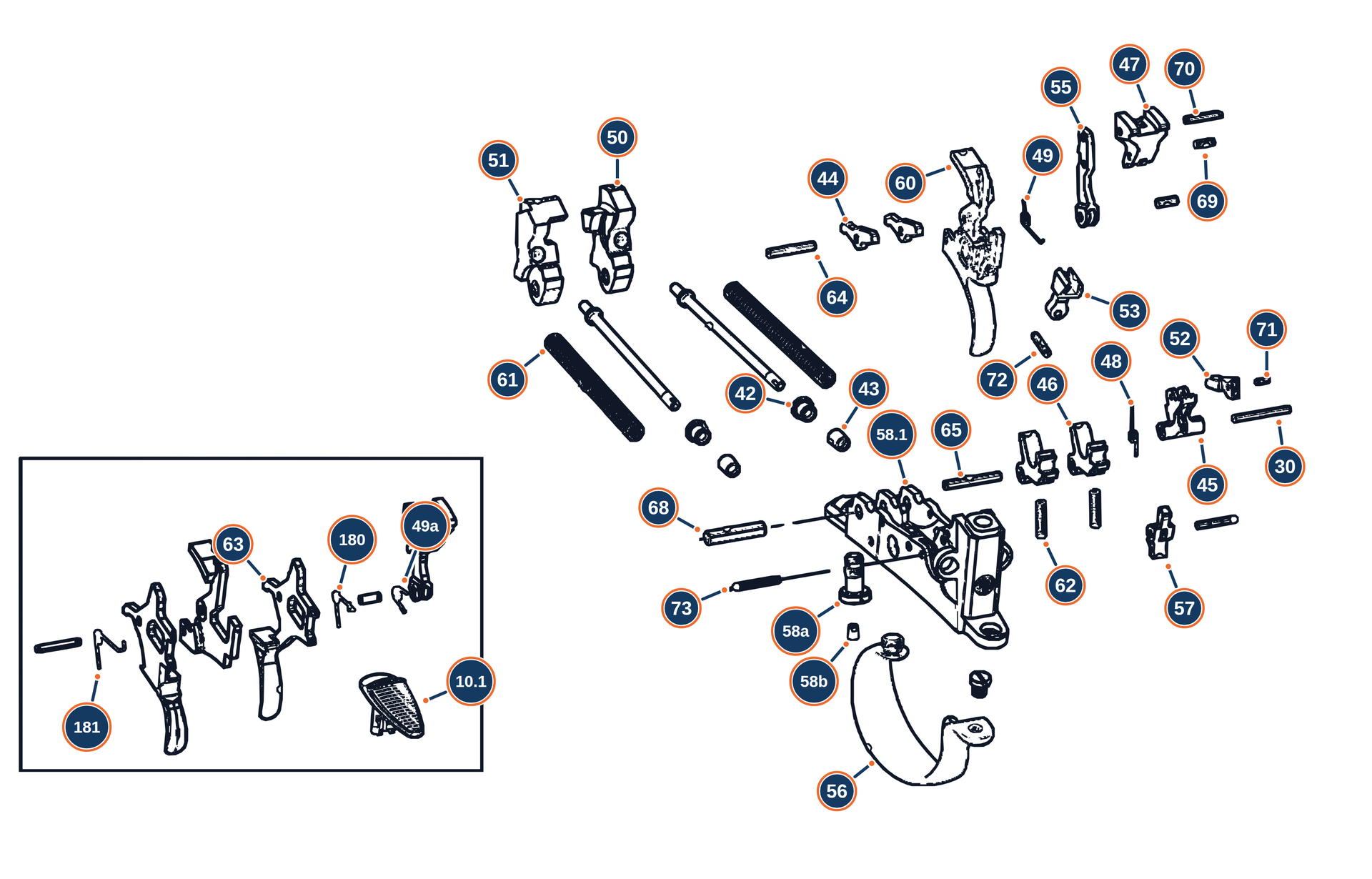

Ultraleggero 12G Trigger Group exploded diagram.
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 10.1 | BER-C5J009BER-C5J008 | Not Available Not Available | Double Trigger safety Double Trigger safety |
| 30 | |||
| 42 | BER-C52270 | Not Available | Hammer Spring Guide Bush |
| 43 | BER-C52271 | Not Available | Hammer Spring Guide Nut |
| 44 | |||
| 45 | |||
| 46 | |||
| 47 | |||
| 48 | |||
| 49 | |||
| 49a | BER-C5K184 | Not Available | Double trigger mass spring |
| 50 | |||
| 51 | |||
| 52 | |||
| 53 | |||
| 55 | |||
| 56 | BER-C5G192 | Not Available | Single Trigger forend |
| 57 | |||
| 58.1 | BER-C95182 | Not Available | Trigger guard |
| 58a | BER-C95182 | Not Available | Trigger guard fixing screw |
| 58b | |||
| 60 | BER-C5E129 | Not Available | Trigger |
| 61 | BER-C90182 | Not Available | Hammer spring |
| 62 | |||
| 63 | |||
| 64 | |||
| 65 | |||
| 68 | |||
| 69 | |||
| 70 | |||
| 71 | |||
| 72 | |||
| 73 | |||
| 180 | |||
| 181 |
Calcio

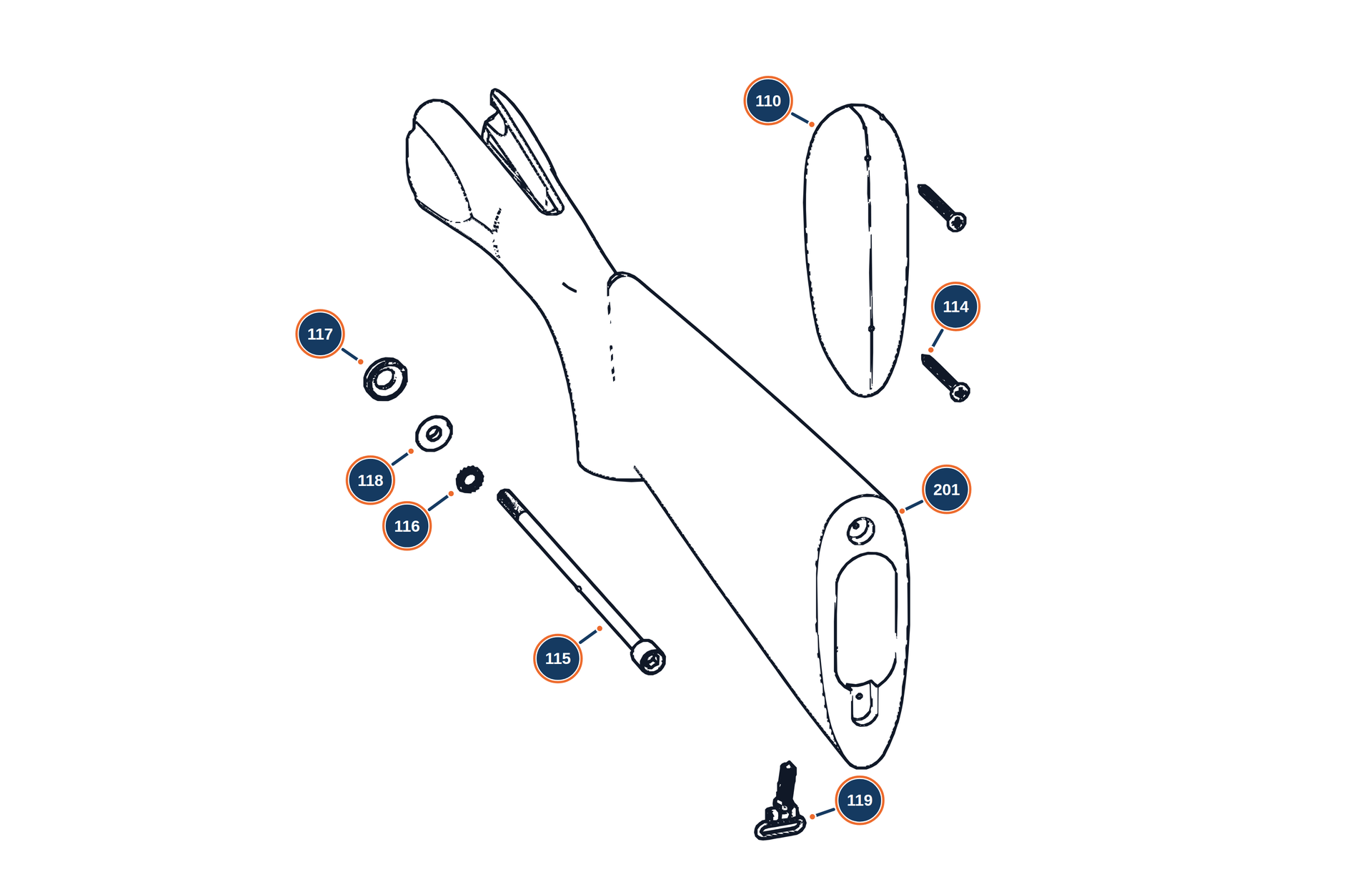

Ultraleggero 12G Calcio exploded diagram.
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 110 | |||
| 114 | |||
| 115 | BER-C95329 | Not Available | Recoil Pad tensioner |
| 116 | |||
| 117 | BER-C58038 | Not Available | Concave washer |
| 118 | |||
| 119 | |||
| 201 | BER-C5H968BER-C8G092BER-C8G091BER-C8G092BER-C8G094BER-C8G812BER-C5H609BER-C5H968BER-C5L650BER-C5L651 | Not Available Not Available Not Available Not Available Not Available Not Available Not Available Not Available Not Available Not Available | Stock Stock Stock Stock Stock Stock Stock Stock Stock Stock |
Forend

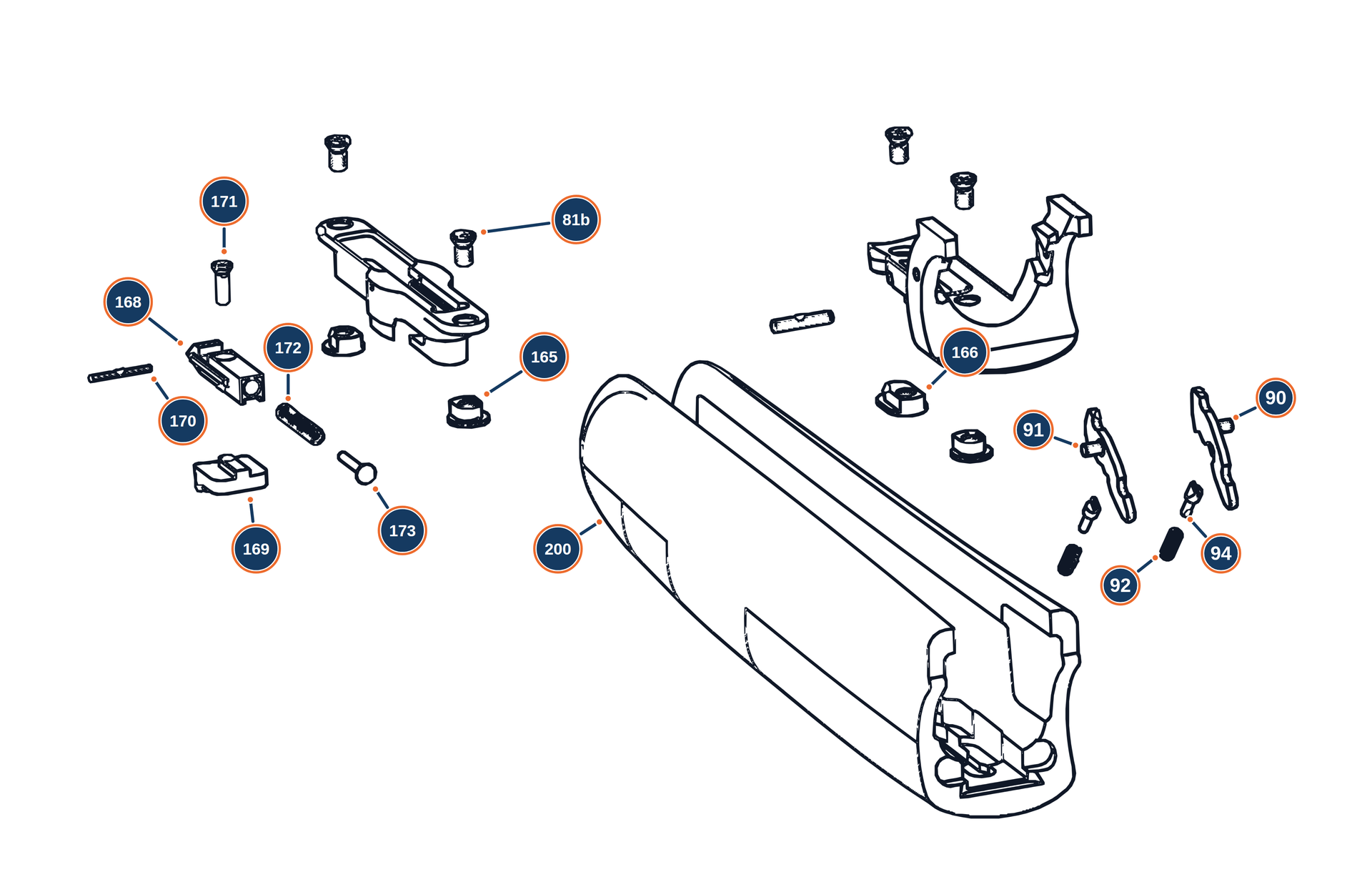

Ultraleggero 12G Forend exploded diagram.
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 81b | |||
| 90 | BER-C5J405 | Not Available | Right cross lever |
| 91 | BER-C5J404 | Not Available | Left cross lever |
| 92 | |||
| 94 | |||
| 165 | |||
| 166 | |||
| 168 | BER-C5J382 | Not Available | Lug engagement dowel |
| 169 | BER-C5K128 | Not Available | Dowel |
| 170 | BER-C5J417 | Not Available | Elastic pin 1.5x16 |
| 171 | |||
| 172 | BER-C5L653 | Not Available | Dowel spring |
| 173 | BER-C5J754 | Not Available | Sear assembly spring holder |
| 200 |
Receiver

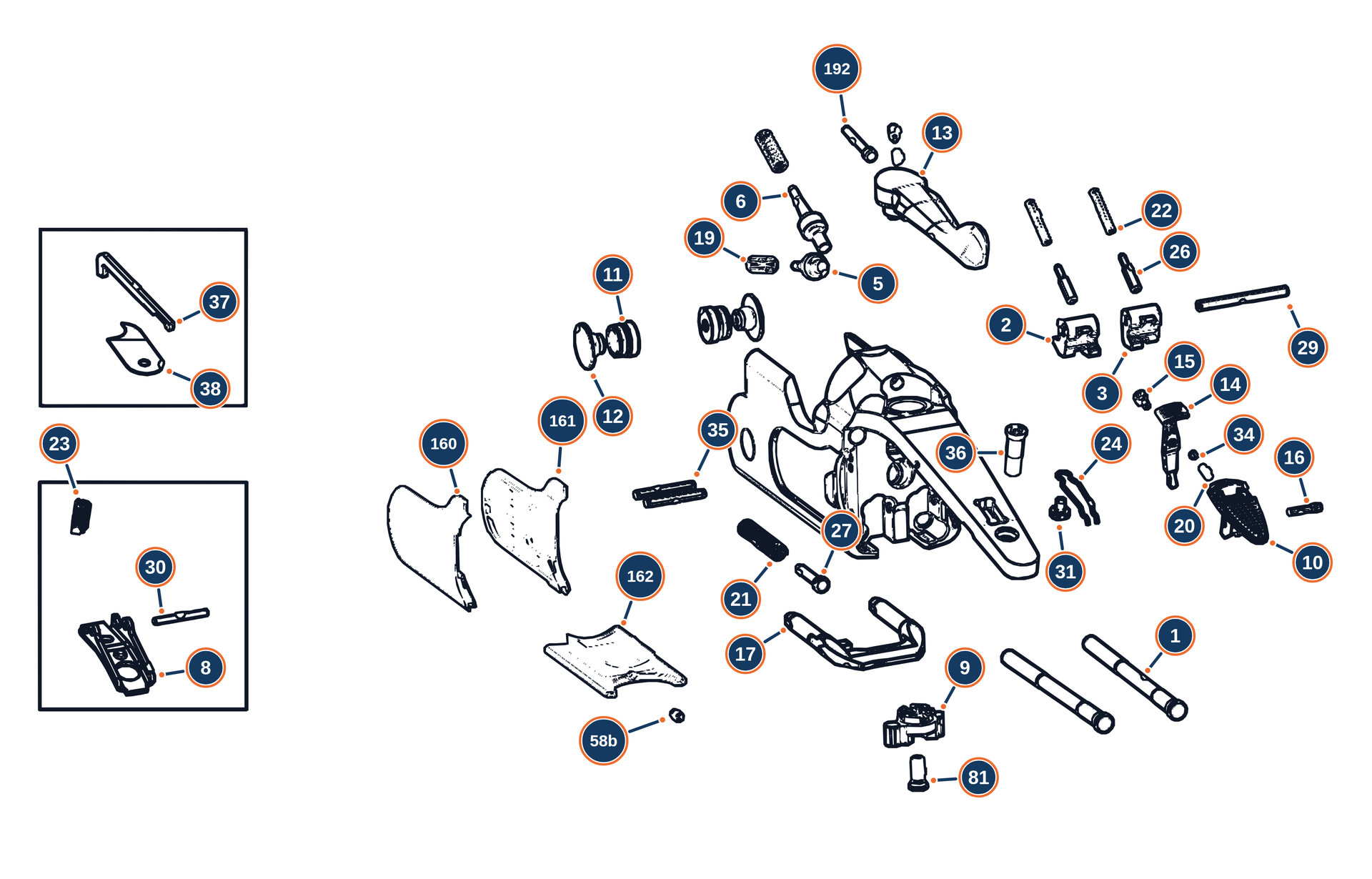

Ultraleggero 12G Receiver exploded diagram.
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 1 | BER-C50317 | Not Available | Basic cocking rod |
| 2 | |||
| 3 | |||
| 5 | |||
| 6 | |||
| 8 | |||
| 9 | |||
| 10 | BER-C5J006 | Not Available | Single selective Trigger safety |
| 11 | |||
| 12 | BER-C5K727 | Not Available | Hinge pin screw |
| 13 | BER-C5L652 | Not Available | Key |
| 14 | BER-C5G196 | Not Available | Selector lever |
| 15 | |||
| 16 | |||
| 17 | BER-C5D465 | Not Available | Latch |
| 19 | |||
| 20 | |||
| 21 | |||
| 22 | |||
| 23 | |||
| 24 | |||
| 26 | |||
| 27 | |||
| 29 | |||
| 30 | |||
| 31 | |||
| 34 | |||
| 35 | |||
| 36 | |||
| 37 | |||
| 38 | |||
| 58b | |||
| 81 | |||
| 160 | |||
| 161 | BER-C5H606 | Not Available | Right side plate |
| 162 | BER-C7C960 | Not Available | Receiver forend cap |
| 192 | BER-C90097 | Not Available | Key stop pin spring |
Barrel

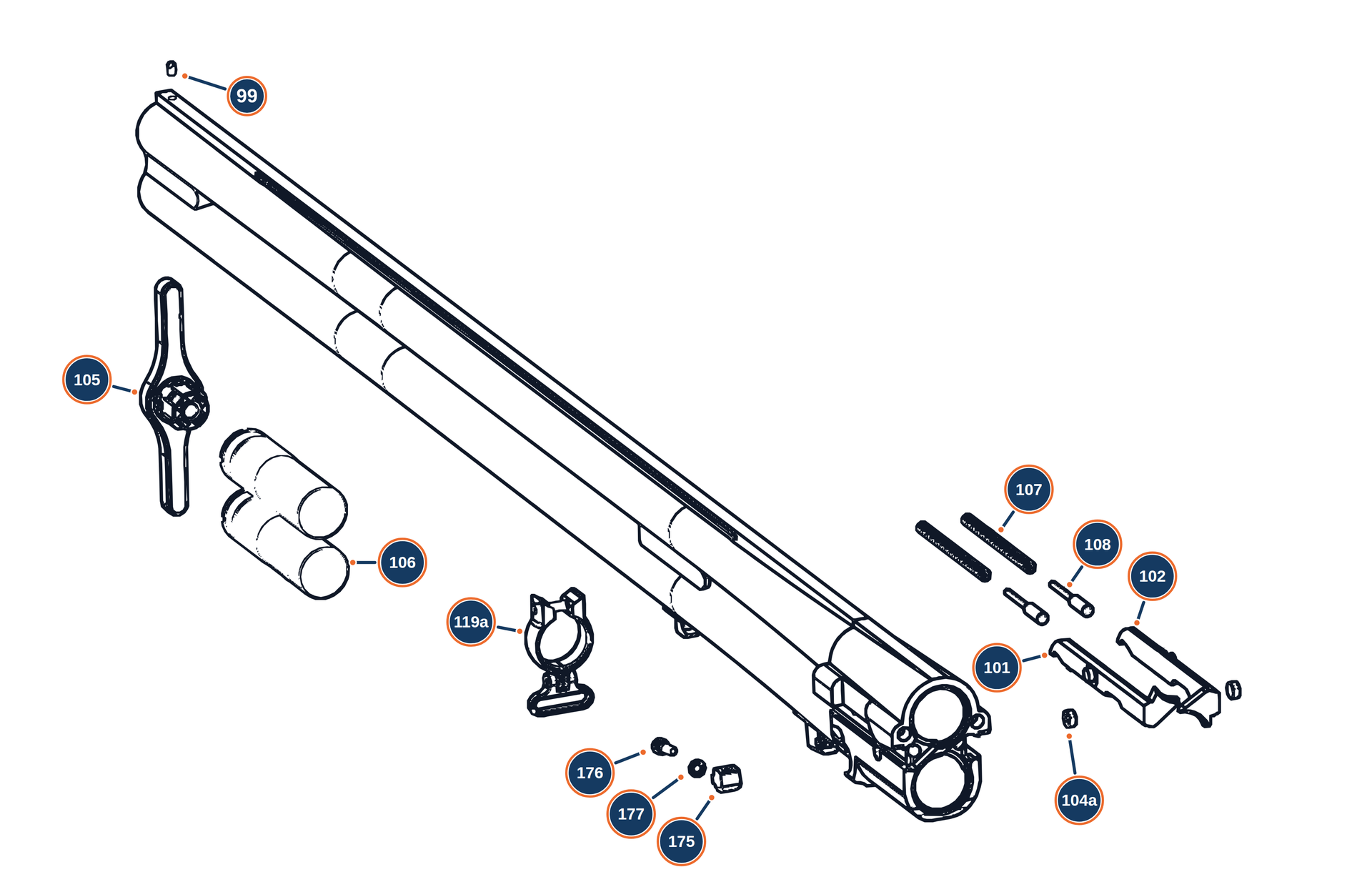

Ultraleggero 12G Barrel exploded diagram.
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 99 | |||
| 101 | |||
| 102 | |||
| 104a | |||
| 105 | |||
| 106 | BER-C6D931 | Not Available | Choke |
| 107 | |||
| 108 | |||
| 119a | BER-C83387 | Not Available | Barrel sleeve |
| 175 | BER-C5H580 | Not Available | Barrel lug |
| 176 | |||
| 177 | BER-C9A141 | Not Available | Toothed washer DIA 3 |
