Beretta UGB25 Xcel Gold Sporting 12G Parts Guide

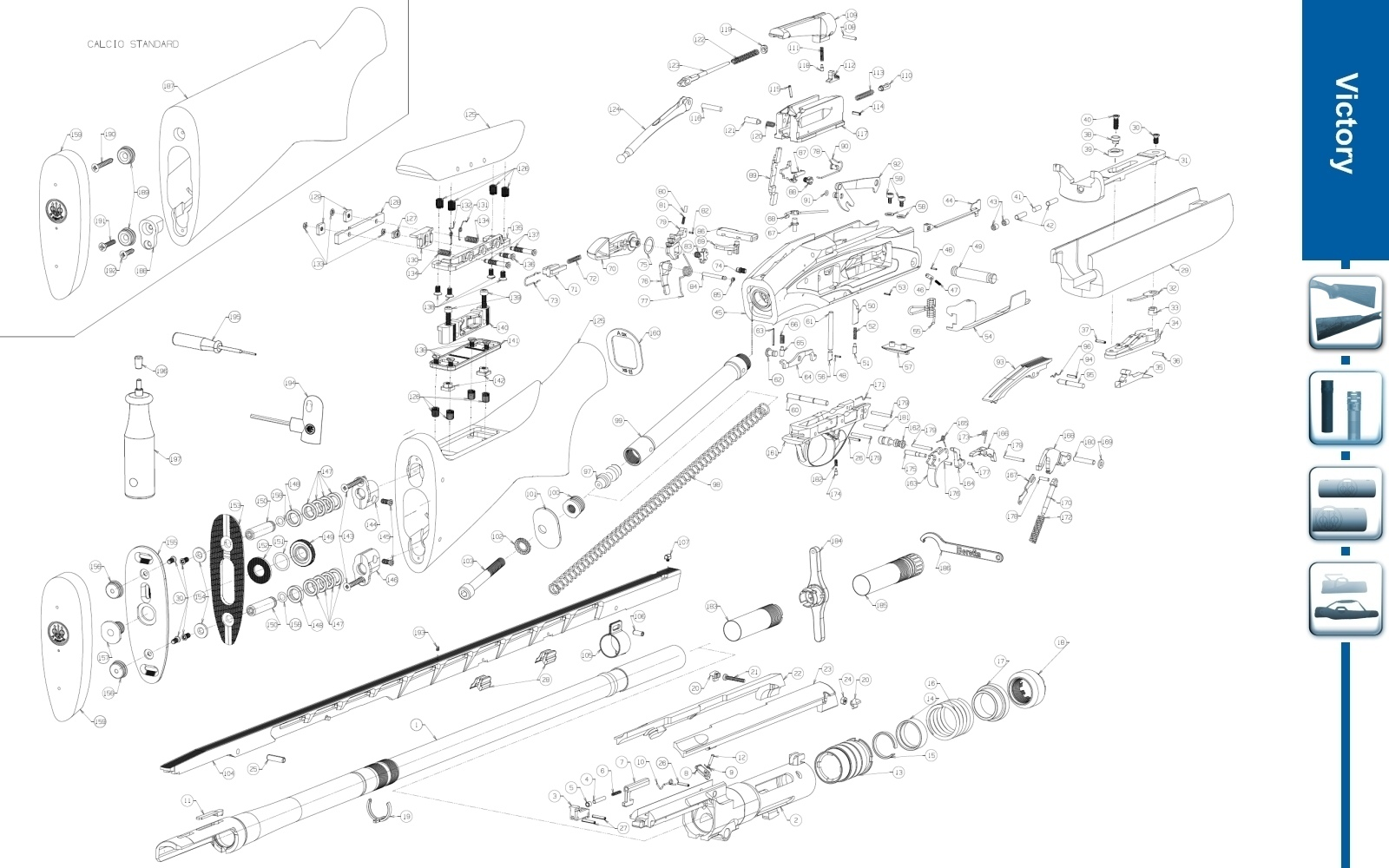

Exploded diagram, Beretta codes and linked spare parts for Beretta UGB25 Xcel Gold Sporting 12G.
Exploded diagram
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 0003 | C5C423 | Not Available | SUPPORT |
| 0004 | C92338 | Not Available | PIN |
| 0005 | C5D355 | Not Available | BUSH |
| 0006 | C90342 | Not Available | EJECTOR SPRING |
| 0007 | |||
| 0008 | C5C052 | Not Available | DISCONNECTING LEVER SLIDE ROD - UGB25XCEL GA 12 |
| 0009 | |||
| 0010 | C5C449 | Not Available | SEC. EJECTOR SPRING |
| 0011 | C5C033 | Not Available | EJECTOR |
| 0012 | C92339 | Not Available | PIN |
| 0013 | C88491 | Not Available | CYLINDER BUFFER - UGB25XCEL GA 12 |
| 0014 | C5C072 | Not Available | BUSH |
| 0015 | C5C021C5D435C5D436C5D437C5D438C5D439 | Not Available Not Available Not Available Not Available Not Available Not Available | RING ELASTIC RING ELASTIC RING ELASTIC RING ELASTIC RING ELASTIC RING |
| 0016 | C95387 | Not Available | VALVE SPRING A391 XTREMA GA 12 |
| 0017 | C5C031 | Not Available | SPACER |
| 0018 | C5C088 | Not Available | BARREL NUT - ARX100 CAL 223 |
| 0019 | C5D832 | Not Available | RING |
| 0020 | C5C465 | Not Available | INSERT |
| 0021 | C95373 | Not Available | SCREW |
| 0022 | C5C029 | Not Available | SPACER |
| 0023 | C5C066 | Not Available | SPACER |
| 0024 | C97205 | Not Available | NUT |
| 0025 | C88584C97197 | Not Available Not Available | RIB FLAT ASSY RIB SUPPORT |
| 0026 | AKF26112111111C83662 | Not Available Not Available | BOLT SEMIAUTO BREAK-OPEN UGB25XCEL GA 12 CROMED TRIGGER GROUP ASSY UGB25XCEL GA 12 SPORTING TRAP XTRAP |
| 0027 | C97179 | Not Available | EJECTOR PIN |
| 0028 | C5C466 | Not Available | SHOCK ABSORBER |
| 0030 | |||
| 0031 | C5C028 | Not Available | FOREND IRON BLUED - UGB25XCEL GA 12 |
| 0032 | C5C075 | Not Available | SPRING |
| 0033 | C5C073 | Not Available | SUPPORT |
| 0034 | C5C046 | Not Available | SUPPORT FOREND IRON CATCH - UGB25XCEL GA 12 |
| 0036 | C92238 | Not Available | PIN |
| 0037 | C97214 | Not Available | ELASTIC PIN |
| 0038 | C5C433 | Not Available | FORE-END IRON INSERT SPACER |
| 0039 | C5C097 | Not Available | FOREND IRON INSERT |
| 0040 | C95374 | Not Available | FOREND INSERT SCREW |
| 0041 | C5C429 | Not Available | FORE-END IRON CYLINDER |
| 0042 | C5C430 | Not Available | FORE-END IRON INSERT CYLINDER |
| 0043 | C95375 | Not Available | FOREND INSERT ADJUSTMENT SCREW |
| 0044 | C5C045 | Not Available | OPENING CATCH - UGB25XCEL GA 12 |
| 0046 | C5C077 | Not Available | PIN |
| 0047 | C90409 | Not Available | SPRING |
| 0048 | |||
| 0049 | C92132 | Not Available | HINGE PIN |
| 0050 | C5D836 | Not Available | ELEVATOR STOP |
| 0051 | C5D835 | Not Available | SPRING GUIDE |
| 0052 | C5D837 | Not Available | ELEVATOR SPRING STOP |
| 0053 | C97084 | Not Available | ELASTIC PIN 1,50X10 UNI 6876 |
| 0054 | C5C030C5D830C5D831 | Not Available Not Available Not Available | FOLLOWER - UGB25XCEL GA 12 CUCCHIAIA GOLD °° CUCCHIAIA GOLD °°° |
| 0055 | C5C041 | Not Available | SPRING |
| 0056 | |||
| 0057 | C5D543 | Not Available | STOP |
| 0060 | C5C078 | Not Available | PIN |
| 0061 | C92323 | Not Available | ELEVATOR PIN UGB 25 XCEL GA 12 |
| 0062 | C92335 | Not Available | PIN |
| 0064 | C5C039 | Not Available | LEVER |
| 0065 | C5C091 | Not Available | SPRING GUIDE |
| 0066 | |||
| 0067 | C5C434 | Not Available | SPRING GUIDE |
| 0070 | C72813C88496 | Not Available Not Available | TOP LEVER TOP LEVER ASSY UGB25 XCEL |
| 0071 | C5D505 | Not Available | STOP |
| 0072 | C5D506 | Not Available | SPRING |
| 0073 | C5D420 | Not Available | SPRING |
| 0074 | C5C436 | Not Available | TOP LEVER BLOCK PIN |
| 0075 | C5C047 | Not Available | WASHER |
| 0076 | C5C054 | Not Available | OPENING SELECTOR - UGB25XCEL GA 12 |
| 0077 | C5C061 | Not Available | SPRING |
| 0078 | C92329 | Not Available | SPRING PIN |
| 0079 | C5C486 | Not Available | TOP LEVER PIN - UGB25 XCEL GA 12 |
| 0080 | C92337 | Not Available | PIN |
| 0081 | C90344 | Not Available | SPRING |
| 0082 | C97102 | Not Available | PIN ELASTIC 1,50 X 4 UNI |
| 0083 | |||
| 0084 | C92326 | Not Available | SELECTOR PIN |
| 0085 | C97242 | Not Available | RING |
| 0086 | C5C095C5C510C5C511C5C512C5C513C5C514C5D017C5D018 | Not Available Not Available Not Available Not Available Not Available Not Available Not Available Not Available | LOCKING BLOCK (4.77) - UGB25XCEL GA 12 LOCKING BLOCK (4.71) LOCKING BLOCK LOCKING BLOCK LOCKING BLOCK LOCKING BLOCK LOCKING BLOCK LOCKING BLOCK (5,01) - UGB25XCEL GA 12 |
| 0088 | C5D419 | Not Available | SCREW |
| 0089 | C5C034 | Not Available | SLIDE CATCH - UGB25XCEL GA 12 |
| 0090 | C5C057 | Not Available | SPRING |
| 0091 | C97212 | Not Available | WASHER PIN LEVER UGB 25 XCEL GA 12 |
| 0092 | C5C065 | Not Available | SPRING. LOCKING BLOCK UGB |
| 0093 | C5C044 | Not Available | COVER |
| 0094 | C97217 | Not Available | ELASTIC PIN |
| 0095 | C5C079 | Not Available | PIN |
| 0096 | C5C064 | Not Available | SPRING - UGB25XCEL GA 12 |
| 0097 | C5C093 | Not Available | RECOIL SPRING GUIDE |
| 0098 | |||
| 0099 | C5C083 | Not Available | TUBE |
| 0100 | C5C080 | Not Available | CAP |
| 0101 | C5D381C5D382C5D408 | Not Available Not Available Not Available | PLATE REAR DROP A/B UGB25XCEL PLATE REAR DROP C/D UGB25XCEL PLATE REAR DROP E UGB25XCEL |
| 0102 | |||
| 0103 | C5C070 | Not Available | SCREW |
| 0104 | C5D710 | Not Available | RIB SPORTING UGB 76 MC |
| 0105 | C5D128 | Not Available | RIB RING |
| 0106 | C97234 | Not Available | PIN |
| 0107 | |||
| 0108 | |||
| 0110 | C92330 | Not Available | PIN |
| 0111 | C5C056 | Not Available | EJECTOR SPRING |
| 0112 | C5C048 | Not Available | EJECTOR - UGB25XCEL GA 12 |
| 0113 | C90406 | Not Available | SPRING |
| 0114 | C97203 | Not Available | SLIDE SPRING PIN |
| 0116 | C92322 | Not Available | PIN |
| 0118 | |||
| 0119 | C5D127 | Not Available | FIRING PIN BUSH |
| 0120 | C90275 | Not Available | SPRING, SLIDE PIN - 89 GOLD STANDARD CAL 22 LR |
| 0121 | |||
| 0122 | C90343 | Not Available | FIRING PIN SPRING |
| 0123 | C5C089 | Not Available | FIRING PIN - UGB25XCEL GA 12 |
| 0124 | C5C023 | Not Available | CONNECTING ROD - UGB25 XCEL GA 12 |
| 0126 | C97208 | Not Available | BUSH M4 - UGB25XCEL GA 12 |
| 0129 | C5D500 | Not Available | WASHER |
| 0130 | C5C129 | Not Available | ADJUSTABLE STOCK MEMORY - UGB25XCEL GA 12 |
| 0131 | C59700 | Not Available | RECOIL SPRING MEMORY SYSTEM RIGHT RH DX - DT10 GA 12 |
| 0132 | C59703 | Not Available | RECOIL SPRING LEFT LF SX MEMORY SYSTEM - DT10 GA 12 |
| 0134 | C5C132 | Not Available | SPRING |
| 0135 | C5D526 | Not Available | BASE |
| 0136 | C95427 | Not Available | ADJUSTAMENT SCREW MEMORY SYSTEM - UGB25XCEL GA 12 |
| 0137 | C95426 | Not Available | BRACKET SCREW MEMORY SYSTEM - UGB25XCEL GA 12 |
| 0138 | C95361 | Not Available | SCREW |
| 0139 | C88498C95358 | Not Available Not Available | MOBILE ADJUSTABLE ADJ STOCK MECHANISM - UGB25XCEL GA 12 SCREW FOR ADJUSTABLE STOCK |
| 0140 | C5D525 | Not Available | SUPPORT ADJ STOCK |
| 0141 | C5C137 | Not Available | BASE |
| 0142 | C5C131 | Not Available | BASE |
| 0160 | C5D407C5D416C5D417 | Not Available Not Available Not Available | PLATE FRONT DROP A/B UGB25XCEL PLATE FRONT DROP C/D UGB25XCEL PLATE FRONT DROP E UGB25XCEL |
| 0161 | C5C067 | Not Available | TRIGGER GROUP |
| 0162 | C5C076 | Not Available | SAFETY |
| 0163 | C5C035 | Not Available | TRIGGER - UGB25XCEL GA 12 |
| 0164 | C5C042 | Not Available | WASHER |
| 0165 | C5C058 | Not Available | TRIGGER SPRING |
| 0166 | C5C038 | Not Available | SEAR |
| 0167 | C5C074 | Not Available | LEVER |
| 0168 | C5C024 | Not Available | HAMMER UGB25 XCEL GA 12 |
| 0169 | C5C432 | Not Available | HAMMER SPACER |
| 0170 | C5C090 | Not Available | HAMMER SPRING GUIDE - UGB25XCEL GA 12 |
| 0171 | C5C063 | Not Available | PIN |
| 0172 | C90348 | Not Available | HAMMER SPRING - UGB 25 XCEL CAL 12 |
| 0173 | C90363 | Not Available | SPRING |
| 0174 | C92044 | Not Available | SAFETY SPRING PIN A301 |
| 0175 | C5C096C5C425C5C426C5C427C5C428C5C895 | Not Available Not Available Not Available Not Available Not Available Not Available | TRIGGER PIN TRIGGER BLOCK PIN TRIGGER BLOCK PIN PIN TRIGGER BLOCK PIN PIN |
| 0176 | C92299 | Not Available | NUT PIN |
| 0177 | C92321 | Not Available | PIN |
| 0178 | C92336 | Not Available | HAMMER SPRING PIN |
| 0179 | C92121C92159 | Not Available Not Available | HAMMER PIN SEAR AND TRIGGER LEVER PIN - UGB25XCEL GA 12 |
| 0181 | C92320 | Not Available | SEAR LEVER STOP PIN - UGB25XCEL GA 12 |
| 0182 | |||
| 0184 | C71500 | Not Available | CHOKE TUBE SPANNER 12 GA |
| 0186 | C5A874 | Not Available | CHOKE WRENCH |
| 0189 | C5A260 | Not Available | BUSH FOR GEL TEK RECOIL PAD UNIVERSAL APPLICABILITY |
| 0190 | C95303 | Not Available | SCREW |
| 0193 | |||
| 0194 | C62300 | Not Available | TOOL |
| 0195 | C61803 | Not Available | TOOL KEY |
| 0196 | C61968 | Not Available | RUBBER TOOL |
| 0197 | C61967 | Not Available | TOOL KEY |
| 01971 | C5D712C89991C8A025C8A026 | Not Available Not Available Not Available Not Available | STOCK PISTOL GRIP 35/55 GLOSSY OIL FINISH CLASS 2,5 - UGB25 XCEL SPORTING GA 12 SET STOCK PISTOL GRIP OIL FINISH CLASS 2.5 AND FOREND - UGB 25 XCEL GA 12 SET STOCK PISTOL GRIP ADJUSTABLE OIL FINISH CLASS 2,5 AND FOREND - UGB25XCEL SPORTING GA 12 STOCK PISTOL GRIP ADJUSTABLE MEMORY SYSTEM - UGB25XCEL SPORTING GA 12 |
| 29 | C5D953 | Not Available | FORE-END SPORTING OIL |
| 291 | C5D501 | Not Available | MEMORY NUT FOR ADJUSTABLE STOCK - UGB XCEL GOLD |
