Beretta S686 Special 12G Parts Guide

Exploded diagram, Beretta codes and linked spare parts for Beretta S686 Special 12G.

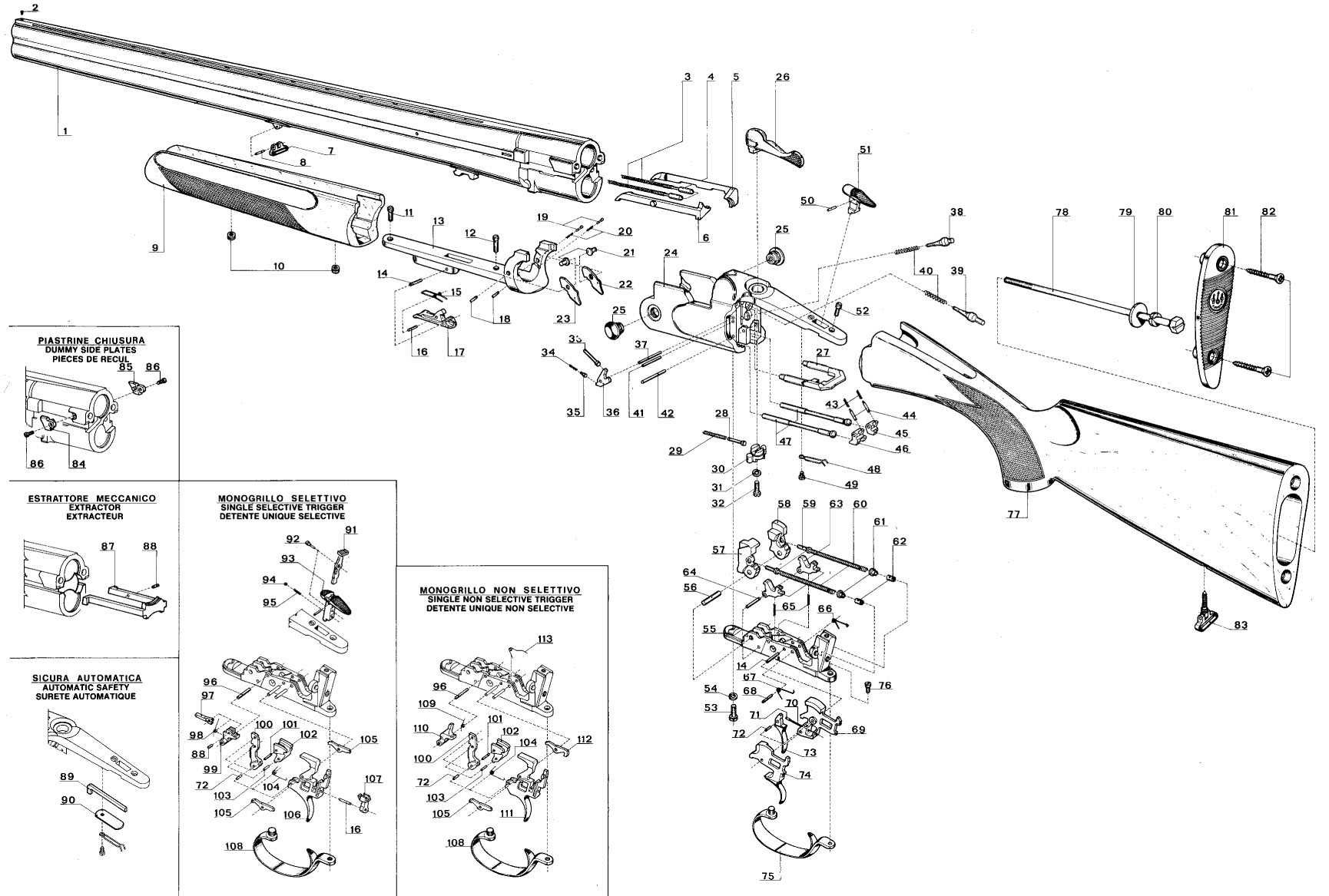

Exploded diagram

Beretta S686 Special 12G exploded parts diagram
PositionBeretta CodeStockDescription & Product Link
2
C53675
Out Of Stock
Brass Front Sight, 2.6mm Thread, 3mm Diameter
3
C90421
In Stock
Ejector Spring 12G
4
C92208
In Stock
Ejector Plunger 12G
5
E52329
Warehouse Stock
Bottom Right Hand Ejector 12G
6
E52332
Warehouse Stock
Top Left Hand Ejector 12G
7
C50025
Not Available
SWIVEL S55
8
C97049
Not Available
ELASTIC PIN 2,5X10 UNI
10
C56160
Warehouse Stock
Fore-end Washer Black
11
C95230
Warehouse Stock
Fore-end Iron Front Screw Black
12
C95231
Warehouse Stock
Fore-end Iron Rear Screw Black
14
C92180
Warehouse Stock
Trigger / Forend Iron Catch Pin
15
C54044
Warehouse Stock
Forend Iron Catch Spring
16
C97060
Warehouse Stock
Forend Iron Catch Pin Selector Pawl Pin
17
C52624
Not Available
FOREND IRON CATCH - 686 SILVER PIGEON GA 12 AND 20
18
C95106
Warehouse Stock
Ejector Trip Retaining Screw
19
C92185
Warehouse Stock
Ejector Trip Plunger
20
C90184
Warehouse Stock
Ejector Trip Spring
21
C55213
Not Available
FOREND IRON LEVER PIN 12 GA686/687
22
C53036
Warehouse Stock
Bottom Left Hand Ejector Trip
23
C53035
Warehouse Stock
Top Right Hand Ejector Trip
25
C55003
C60129
C60130
C60131
Not Available
Out Of Stock
Out Of Stock
Out Of Stock
HINGE PIN
Series 12G Wide Hinge Disc, First Oversize (+0.15)
Series 12G Wide Hinge Disc, Second Oversize (+0.30)
Series 12G Wide Hinge Disc, Third Oversize (+0.45)
27
C51615
C60125
C60126
Not Available
Warehouse Stock
Warehouse Stock
LOCKING BOLT GA 12 686
680 12G Locking Bolt 1st Oversize
680 12G Locking Bolt 2nd Oversize
28
C92178
Warehouse Stock
Top Lever Spring Plunger 12G
29
C90180
Warehouse Stock
Top Lever Spring 12G
30
C5B214
Warehouse Stock
Top Lever Cam 12G
31
C95370
In Stock
Top Lever Cam Locking Nut
32
C95369
Warehouse Stock
Top Lever Cam Spindle 12G
33
C54878
Warehouse Stock
Locking Bolt Trip Pin 12G
34
C90094
Warehouse Stock
Locking Bolt Trip Spring
35
C92098
In Stock
Locking Bolt Trip Spring Plunger
36
C5F471
Warehouse Stock
Locking Lever - B 12G
37
C92179
Warehouse Stock
Striker Retaining Pin 12G
38
C54832
Warehouse Stock
Bottom Striker 12G
39
C54833
Warehouse Stock
Top Striker 12G
40
C90113
Warehouse Stock
Striker Return Spring
41
C97093
Warehouse Stock
Elastic Pin
42
C92181
Warehouse Stock
Cocking Dog Retaining Pin 12G
43
C90225
Warehouse Stock
Cocking Dog Spring
44
C92177
Warehouse Stock
Cocking Dog Plunger
45
C52983
Warehouse Stock
Cocking Dog Right Hand 12G
46
C52982
Warehouse Stock
Cocking Dog Left Hand 12G
47
C50088
Not Available
OPERATING ROD - 686 GA 12
48
C90014
Warehouse Stock
Safety Spring
49
C95012
Warehouse Stock
Safety Spring Screw
50
C92020
Warehouse Stock
Safety Pin
51
C56321
Warehouse Stock
12G Non Selective Safety Catch Black
52
C95014
Not Available
STOCK BOLT PLATE SCREW 12/20 GA S682
54
C97096
Out Of Stock
S686 Special 12/20G 5.3mm Spring Washer
56
C92184
Warehouse Stock
Hammer Pin
57
C5G988
Warehouse Stock
Top Hammer Left Hand 12G
58
C5G987
Warehouse Stock
Bottom Hammer Right Hand 12G
59
C88992
In Stock
Mainspring Complete
61
C52270
Not Available
HAMMER SPRING GUIDE BUSH SV10 690 694
62
C52271
Not Available
HAMMER SPRING GUIDE NUT 12 GA SV10 690
63
C53195
Warehouse Stock
Sear
64
C92183
Warehouse Stock
Sear Pin
65
C90183
Warehouse Stock
Sear Spring
66
C53933
Warehouse Stock
Front Trigger Spring
67
C54071
Warehouse Stock
Rear Trigger Spring
68
C97087
Warehouse Stock
Elastic Roll Pin 2x14
69
C51829
Not Available
TRIGGER
70
C90188
Warehouse Stock
Front Trigger Blade Spring
71
C92210
Warehouse Stock
Front Trigger Blade Spring Plunger
72
C92039
Warehouse Stock
Front Trigger Blade Pin
73
C52639
Warehouse Stock
Front Trigger Blade
74
C57859
Warehouse Stock
Rear Trigger (20G)
75
C77172
Not Available
TRIGGER PLATE BLUED GLOSSY SERIE 686 682
76
C95107
Not Available
TRIGGER GUARD SCREW 690
80
C97001
Not Available
ELASTIC WASHER 682
81
C51222
C51229
In Stock
Not Available
Curved Plastic Recoil Pad
RECOIL PAD RUBBER RED 20MM GA 12 AND GA 20 VENTILATED
82
C95002
Warehouse Stock
Standard Short Stock Pad Screw 30mm
83
C62020
Warehouse Stock
Rear Stock Swivel Plate
88
C97054
Warehouse Stock
Inertia Reset Arm/Body Roll Pin
89
C50074
C5D715
Not Available
Warehouse Stock
AUTOMATIC SAFETY ROD SV10 690
Auto Safe Rod
90
C56138
Warehouse Stock
Auto Safe Plate
91
C53217
Warehouse Stock
12G Safety Catch Selector Black
92
C55217
Warehouse Stock
Safety Selector Pivot Pin
93
C56320
Not Available
SAFETY SINGLE SELECTIVE TRIGGER BLUED S685 GA 12
94
C97053
Warehouse Stock
Safety Selector Ball
95
C90143
Warehouse Stock
Safety Selector Spring
96
C92182
Warehouse Stock
Inertia Reset Arm Pin
97
C54618
Warehouse Stock
Inertia Reset Arm
98
C53760
Warehouse Stock
Inertia Block Reset Spring
99
C53123
Warehouse Stock
Inertia Reset Arm Body
100
C56723
Warehouse Stock
Inertia Block Rest
101
C97037
Warehouse Stock
Inertia Block Roll Pin (Large)
102
C53629
Warehouse Stock
Inertia Block
103
C97004
In Stock
Inertia Block Roll Pin (Small)
104
C54221
Warehouse Stock
Inertia Block Spring
105
C53023
Warehouse Stock
Sear Arm
106
C52712
Warehouse Stock
12G Trigger 680 Series
107
C54627
Warehouse Stock
Selector Pawl
