Beretta ES100 12G Parts Guide
3 exploded diagrams, exact Beretta codes and linked spare parts for Beretta ES100 12G.

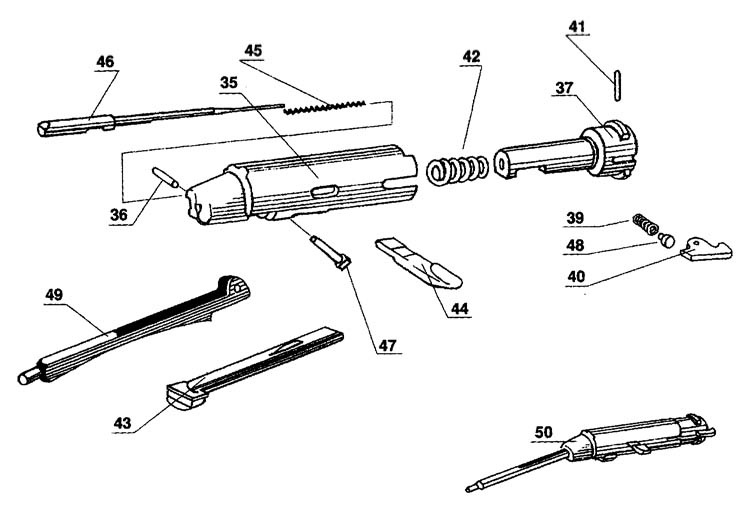

Bolt
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 0036 | EB4100050202 | Not Available | CONNECTING ROD RETAINING PIN |
| 0037 | EB4110050203 | Not Available | LOCKING HEAD |
| 0039 | EB4100000143 | Not Available | EXTRACTOR SPRING |
| 0040 | EB4100050205 | Not Available | EXTRACTOR - BELLMONTE GA 12 - ES100 GA 12 |
| 0041 | EB4100000206 | Not Available | EXTRACTOR SPRING PIN |
| 0042 | EB4100050207 | Not Available | BREECH BOLT RECOLIL SPRING |
| 0043 | EB4100050208 | Not Available | LOCKING BLOCK |
| 0044 | EB4110050209EB4110051209 | Not Available Not Available | COCKING HANDLE, CHROMIUM PLATE D COCKING HANDLE, BLUED |
| 0045 | EB4100000210 | Not Available | FIRING PIN SPRING ES100 |
| 0046 | EB4100050211 | Not Available | FIRING PIN - BELLMONTE CAL 12 - ES100 CAL 12 |
| 0047 | EB4100050212 | Not Available | FIRING PIN RETAINING PIN |
| 0048 | EB4100050213 | Not Available | EXTRACTOR SPRING RETAINING PIN |
| 0049 | EB4100050217 | Not Available | CONNECTING ROD ES100 12 GA |
| 0050 | EB2110000200 | Not Available | BREECH BOLT ASSY,CHROMIUM PLAT ED |

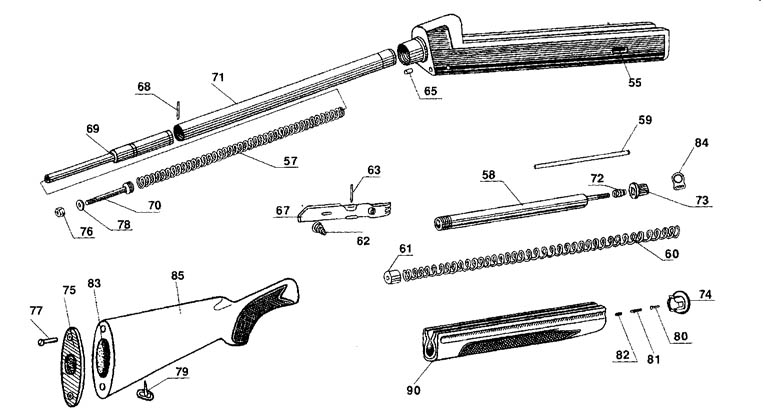

Main assembly
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 0057 | EB4100000302 | Not Available | RECOIL SPRING ES100 |
| 0058 | EB3100050305EB3110050305 | Not Available Not Available | MAGAZINE TUBE ES100 GA 12 MAGAZINE TUBE, WITH REDUCER ES100 GA 12 |
| 0059 | EB4100050345 | Not Available | TWO ROUNDS (1+1) MAGAZINE REDUCER FOR BELLMONTE GA 12 |
| 0060 | EB4100000307 | Not Available | MAGAZINE SPRING BELLMONTE GA 12 |
| 0061 | EB4100050309 | Not Available | MAGAZINE FOLLOWER |
| 0062 | EB4100000311 | Not Available | MAGAZINE SPRING - BELLMONTE GA 12 |
| 0063 | EB4100000313 | Not Available | CARTRIDGE LATCH RETAINING PIN |
| 0065 | EB4100050330 | Not Available | STOCK ALIGNEMENT PIN - BELLMONTE, ES100 GA 12 |
| 0067 | EB3100050338 | Not Available | CARTRIDGE LATCH LEVER ES100 GA 12 |
| 0068 | EB4100000339 | Not Available | CONNECTING ROD SPRING RETAININ G |
| 0069 | EB4100050362 | Not Available | RECOIL SPRING GUIDE ES100 GA 12 |
| 0070 | EB4100000363 | Not Available | STOCK RETAINING NUT SCREW |
| 0071 | EB4100050366 | Not Available | CONNECTING ROD SPRING TUBE |
| 0072 | EB4100050320 | Not Available | FORE END CAP SPRING |
| 0073 | EB4110050809 | Not Available | FORE END CAP |
| 0074 | EB3100050354 | Not Available | RETAINING CAP PIN BUSHING |
| 0075 | EB4110050721 | Not Available | RECOIL PAD, RUBBER FIELD PER ES100 GA 12 |
| 0076 | EB4100000324 | Not Available | STOCK RETAINING NUT |
| 0077 | |||
| 0078 | EB4100000329 | Not Available | STOCK RETAINING SCREW WASHER |
| 0079 | EB3100050948 | Not Available | STOCK SWIWEL |
| 0080 | EB4100000315 | Not Available | MAGAZINE FOLLOWER PIN |
| 0081 | EB4100000316 | Not Available | MAGAZINE FOLLOWER PIN SPRING |
| 0082 | EB4100000356 | Not Available | RETAINING CAP PIN SCREW |
| 0083 | EB4110000903 | Not Available | INSERT (SYNTHETIC STOCK) |
| 0084 | EB4110050306 | Not Available | FRONT SLING SWIVEL GA 12 |
| 0085 | EB3110450900EB3120200155EB4110400155 | Not Available Not Available Not Available | SYNTHETIC STOCK STOCK SEMIGLOSSY FINISH WITHOUT SWIVELS (LIGHT VERSION) STOCK WOOD PINTAIL WITHOUT SWIVEL WITH RECOIL PAD |
| 0090 | EB3110450901EB3110450902EB4110400321EB4120100321EB4120200321 | Not Available Not Available Not Available Not Available Not Available | FORE-END, SYNTHETIC FORE-END, SYNTHETIC, SLUG FOREND WOOD PINTAIL WITHOUT CAP FOREND SEMIGLOSSY FINISH WITHOUT CAP (HEAVY VERSION) FORE-END SEMIGLOSSY FINISH WITHOUT CAP (LIGHT VERSION) |

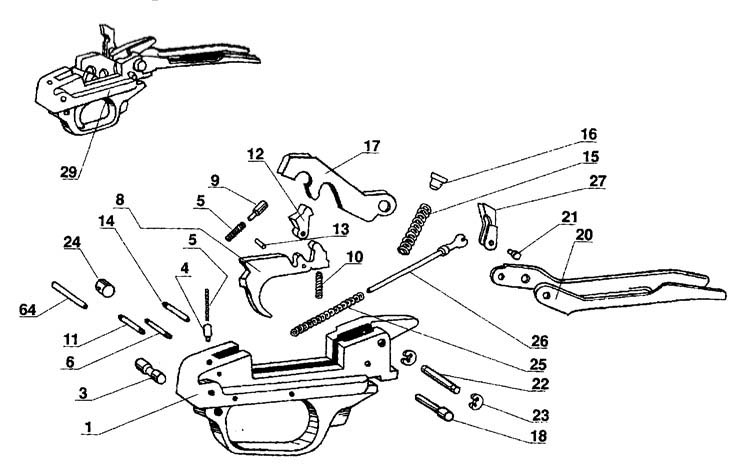

Trigger group
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 0003 | EB4100050101 | Not Available | MANUAL SAFETY BUTTON |
| 0004 | EB4100050102 | Not Available | SAFETY SPRING GUIDE PIN |
| 0005 | EB4100000103 | Not Available | SAFETY SPRING |
| 0006 | EB4100050104 | Not Available | SAFETY SPRING RETAINING PIN |
| 0008 | EB4110050105EB4110051105EB4110061105 | Not Available Not Available Not Available | TRIGGER, CHROMIUM PLATED TRIGGER, BLUED TRIGGER LEFT |
| 0009 | EB4100050107 | Not Available | SEAR SPRING GUIDE |
| 0010 | EB4100000108 | Not Available | TRIGGER RETURNING SPRING |
| 0011 | EB4100050109 | Not Available | TRIGGER TRAVEL CONTROL PIN |
| 0012 | EB4100050110 | Not Available | SEAR |
| 0013 | EB4100050111 | Not Available | SEAR PIN |
| 0014 | EB4100050112 | Not Available | TRIGGER PIN |
| 0015 | EB4100000113 | Not Available | HAMMER SPRING |
| 0016 | EB4100050114 | Not Available | HAMMER SPRING GUIDE PIN |
| 0017 | EB4100050116 | Not Available | HAMMER - ES100 GA 12 |
| 0018 | EB4100050117 | Not Available | HAMMER PIN |
| 0020 | EB4110050118EB4110051118 | Not Available Not Available | elevator ELEVATOR BLUED PINTAIL |
| 0021 | EB4100050121 | Not Available | CARRIER LEVER PIN |
| 0022 | EB4100050122 | Not Available | CARRIER PIN |
| 0023 | EB4100000123 | Not Available | CARRIER PIN SAFETY RING |
| 0024 | EB4100050124 | Not Available | CARRIER SELECTING SPRING RETAI NING BUT |
| 0025 | EB4100000125 | Not Available | CARRIER SELECTING SPRING |
| 0026 | EB4100050126 | Not Available | CARRIER LEVER GUIDE PIN |
| 0027 | EB3100050127 | Not Available | CARRIER LEVER - BELLMONTE, ES100 GA 12 |
| 0029 | EB2110000100EB2110051100EB2110061100 | Not Available Not Available Not Available | TRIGGER GROUP ES100 GA 12 CHROMED TRIGGER GROUP ES100 GA 12 BLUED TRIGGER GROUP ES100 GA 12 LEFT LH SX |
| 0064 | EB4100000314 | Not Available | TRIGGER PLATE RETAINING PIN |
