Beretta DT11 Sporting 12G spare parts
Beretta DT11 Sporting 12G Parts Guide
Use the exploded diagrams and part numbers below to find Beretta DT11 Sporting 12G spares and accessories available from Blue Fieldsports.
Shop DT11 Sporting 12G parts
Browse DT11 Sporting 12G parts available from Blue Fieldsports.
Beretta DT11 Sporting 12G exploded diagrams and parts
Calcio

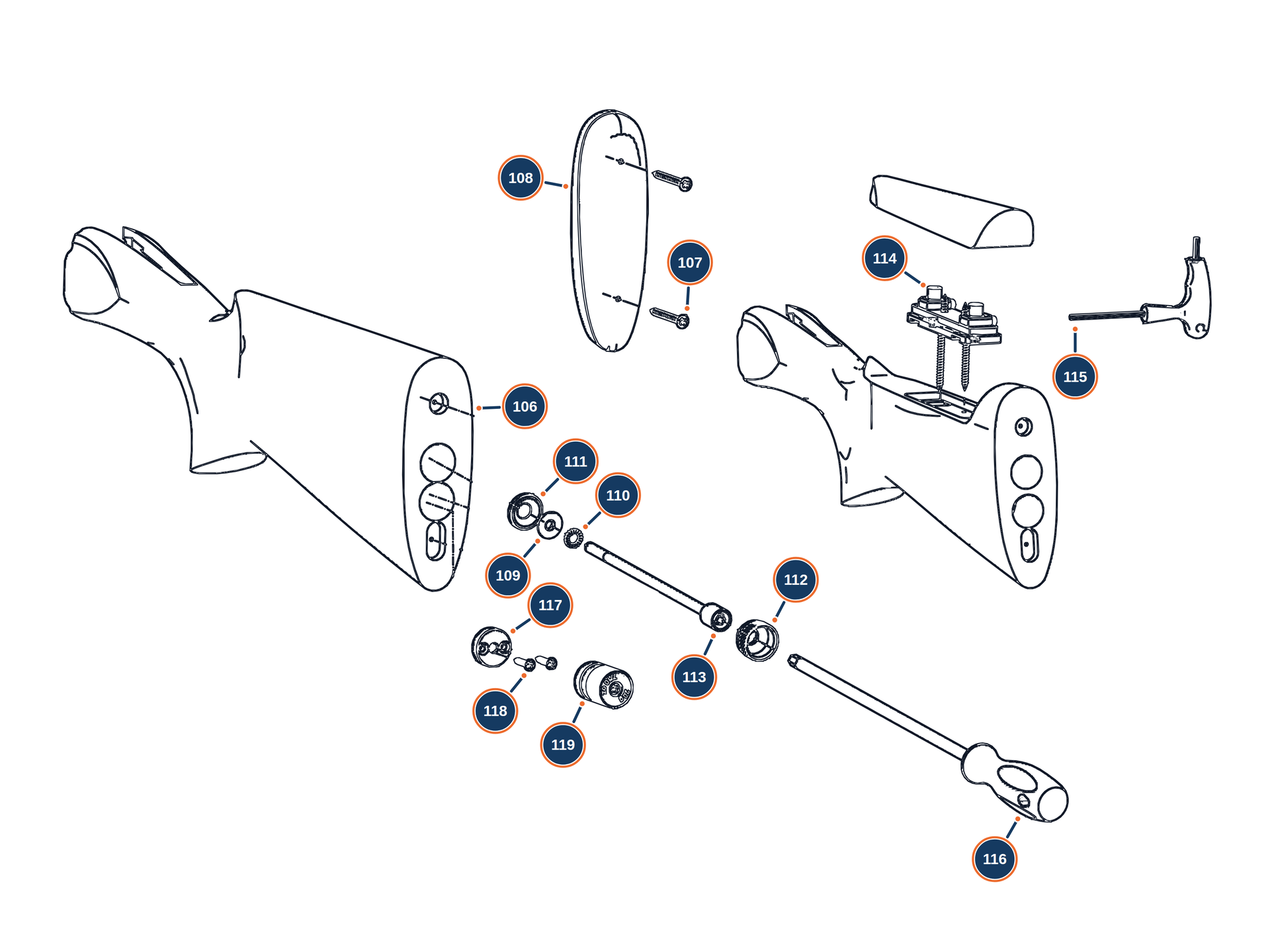

DT11 Sporting 12G Calcio exploded diagram.
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 106 | BER-C46515BER-C8A613BER-C8A614BER-C8A646BER-C8A648BER-C8A649BER-C8A650BER-C8A651BER-C8A770BER-C8A771BER-C8A772BER-C8A805BER-C8A806BER-C8A807BER-C8A826BER-C8A834BER-C8A835 | Not Available Not Available Not Available Not Available Not Available Not Available Not Available Not Available Not Available Not Available Not Available Not Available Not Available Not Available Not Available Not Available Not Available | Stocks Stocks Stocks Stocks Stocks Stocks Stocks Stocks Stocks Stocks Stocks Stocks Stocks Stocks Stocks Stocks Stocks |
| 107 | |||
| 108 | BER-PR0086 | Not Available | Recoil Pads |
| 109 | |||
| 110 | |||
| 111 | |||
| 112 | BER-C53949 | Not Available | Bush Stock Key Guide |
| 113 | |||
| 114 | |||
| 115 | |||
| 116 | |||
| 117 | |||
| 118 | |||
| 119 |
Gruppo_Scatto

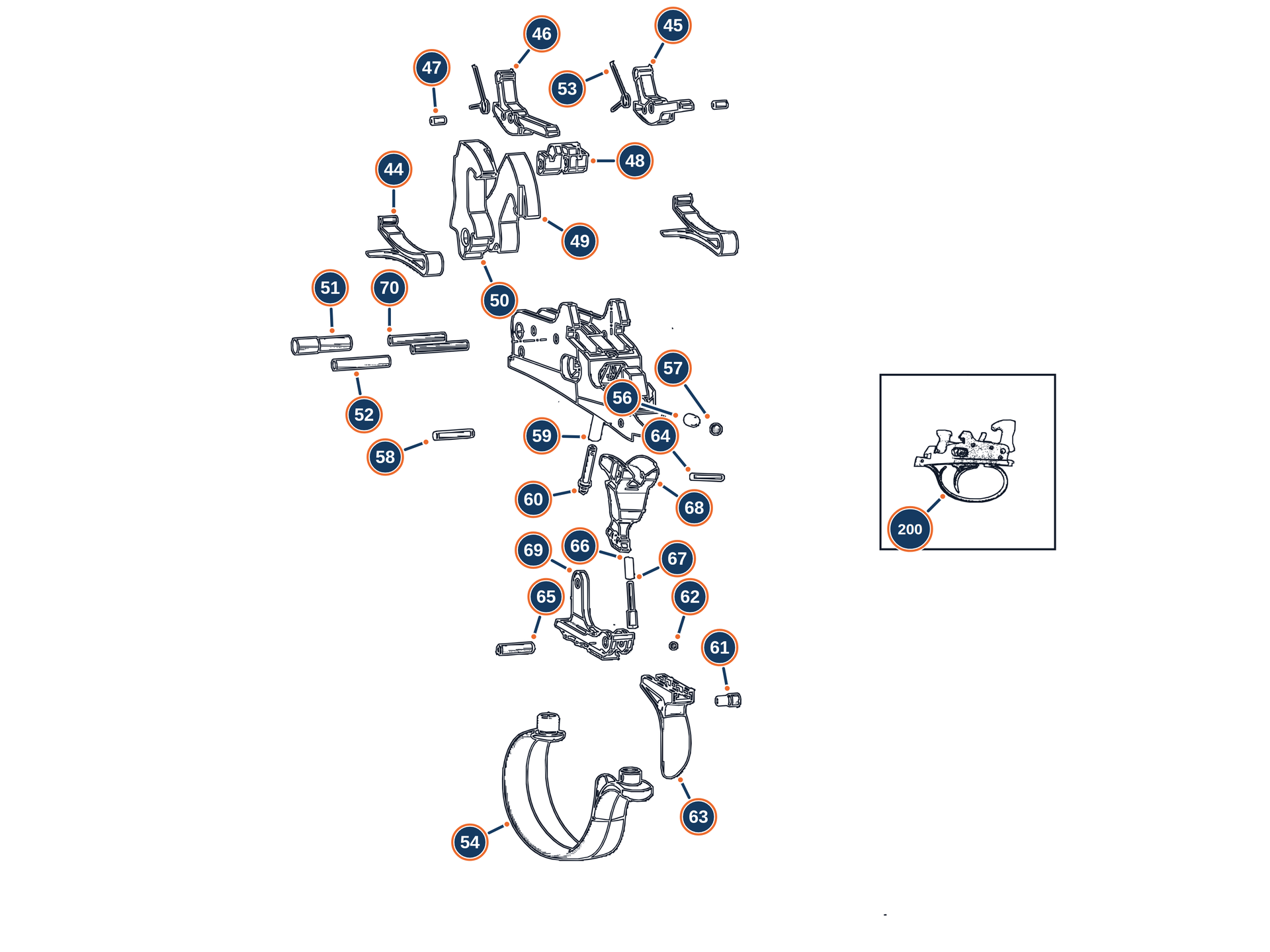

DT11 Sporting 12G Gruppo_Scatto exploded diagram.
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 44 | |||
| 45 | |||
| 46 | |||
| 47 | |||
| 48 | BER-C58207 | Not Available | Molding |
| 49 | BER-C55179 | Not Available | Right Hammer |
| 50 | BER-C55178 | Not Available | Left Hammer |
| 51 | |||
| 52 | |||
| 53 | |||
| 54 | BER-C5E479 | Not Available | Trigger Guard |
| 56 | BER-C90326 | Not Available | Trigger Lock Screw |
| 57 | |||
| 58 | |||
| 59 | BER-C90521 | Not Available | Trigger Spring Trident |
| 60 | |||
| 61 | |||
| 62 | |||
| 63 | BER-C5E494BER-C8A618 | Not Available Not Available | Adjustable Trigger Central Adjustable Trigger Central |
| 64 | BER-C97191 | Not Available | Elastic Pin 1.50x10 |
| 65 | BER-C92241 | Not Available | Pin ASE |
| 66 | |||
| 67 | |||
| 68 | |||
| 69 | BER-C5E29 | Not Available | Trigger Support |
| 70 | BER-C92237 | Not Available | Trigger Pin |
| 200 | BER-E00723 | Not Available | Single Trigger Lock Assembly |
Gruppo_Bascula

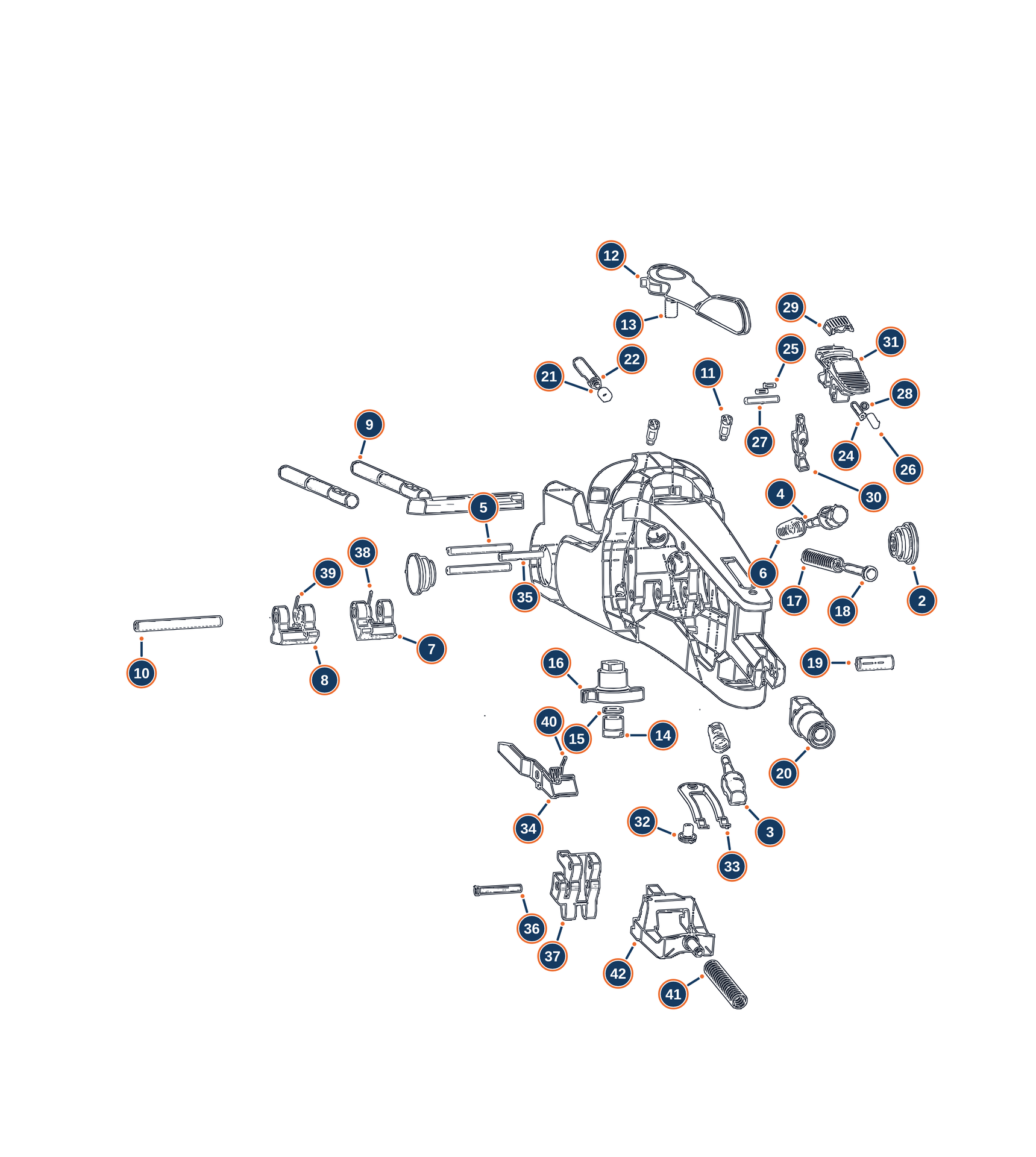

DT11 Sporting 12G Gruppo_Bascula exploded diagram.
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 2 | BER-C59671 | Not Available | Hinge Pin |
| 3 | |||
| 4 | |||
| 5 | |||
| 6 | |||
| 7 | |||
| 8 | |||
| 9 | |||
| 10 | |||
| 11 | |||
| 12 | BER-C8A617 | Not Available | Top Lever |
| 13 | BER-C95258 | Not Available | Top Lever Pin |
| 14 | |||
| 15 | |||
| 16 | |||
| 17 | |||
| 18 | BER-C92149 | Not Available | Top Lever Spring Pin |
| 19 | BER-C92253 | Not Available | Pin |
| 20 | |||
| 21 | |||
| 22 | |||
| 24 | BER-C92252 | Not Available | Release lever pin 2x10 |
| 25 | BER-C97102 | Not Available | Elastic pin 1.50x4 |
| 26 | |||
| 27 | |||
| 28 | |||
| 29 | BER-C5E589 | Not Available | Single-trigger selector lever |
| 30 | |||
| 31 | BER-C5E590 | Not Available | Safety Single Trigger |
| 32 | |||
| 33 | |||
| 34 | |||
| 35 | BER-C92250 | Not Available | Pin |
| 36 | BER-C92251 | Not Available | Pin |
| 37 | BER-C59237 | Not Available | Firing Pin Catch Lever |
| 38 | |||
| 39 | |||
| 40 | BER-C59233 | Not Available | Spring |
| 41 | |||
| 42 | BER-C55083 | Not Available | Trigger Plate Bolt |
Canna

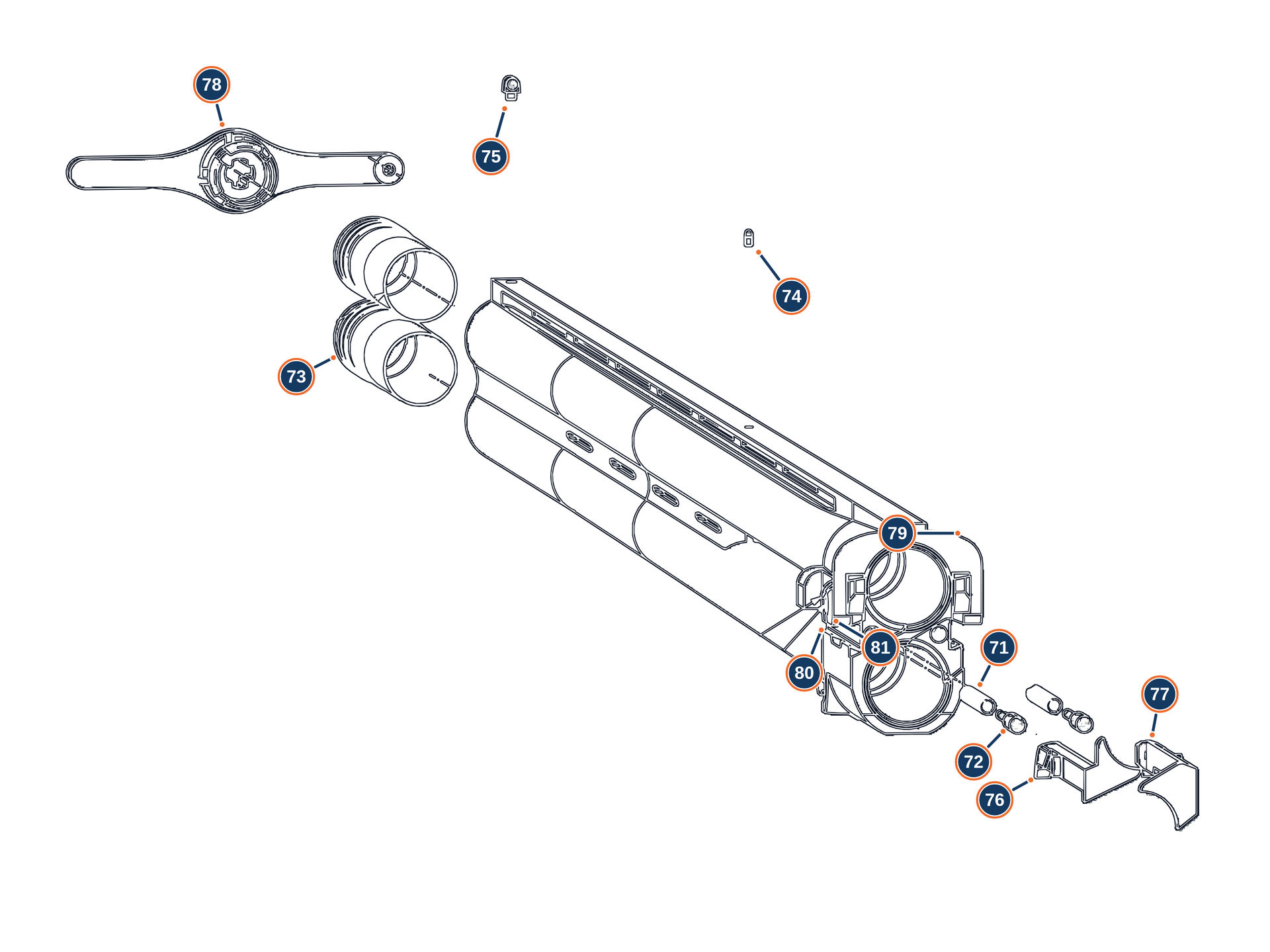

DT11 Sporting 12G Canna exploded diagram.
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 71 | |||
| 72 | |||
| 73 | BER-PR0050BER-PR0047BER-PR0045BER-PR0053BER-PR0044BER-PR0046BER-C6D933BER-C6D931BER-PR0131BER-PR0048BER-PR0051BER-PR0049 | Not Available Not Available Not Available Not Available Not Available Not Available Not Available Not Available Not Available Not Available Not Available Not Available | Chokes Chokes Chokes Chokes Chokes Chokes Chokes Chokes Chokes Chokes Chokes Chokes |
| 74 | |||
| 75 | |||
| 76 | |||
| 77 | |||
| 78 | |||
| 79 | |||
| 80 | |||
| 81 |
Gruppo_Asta-Croce

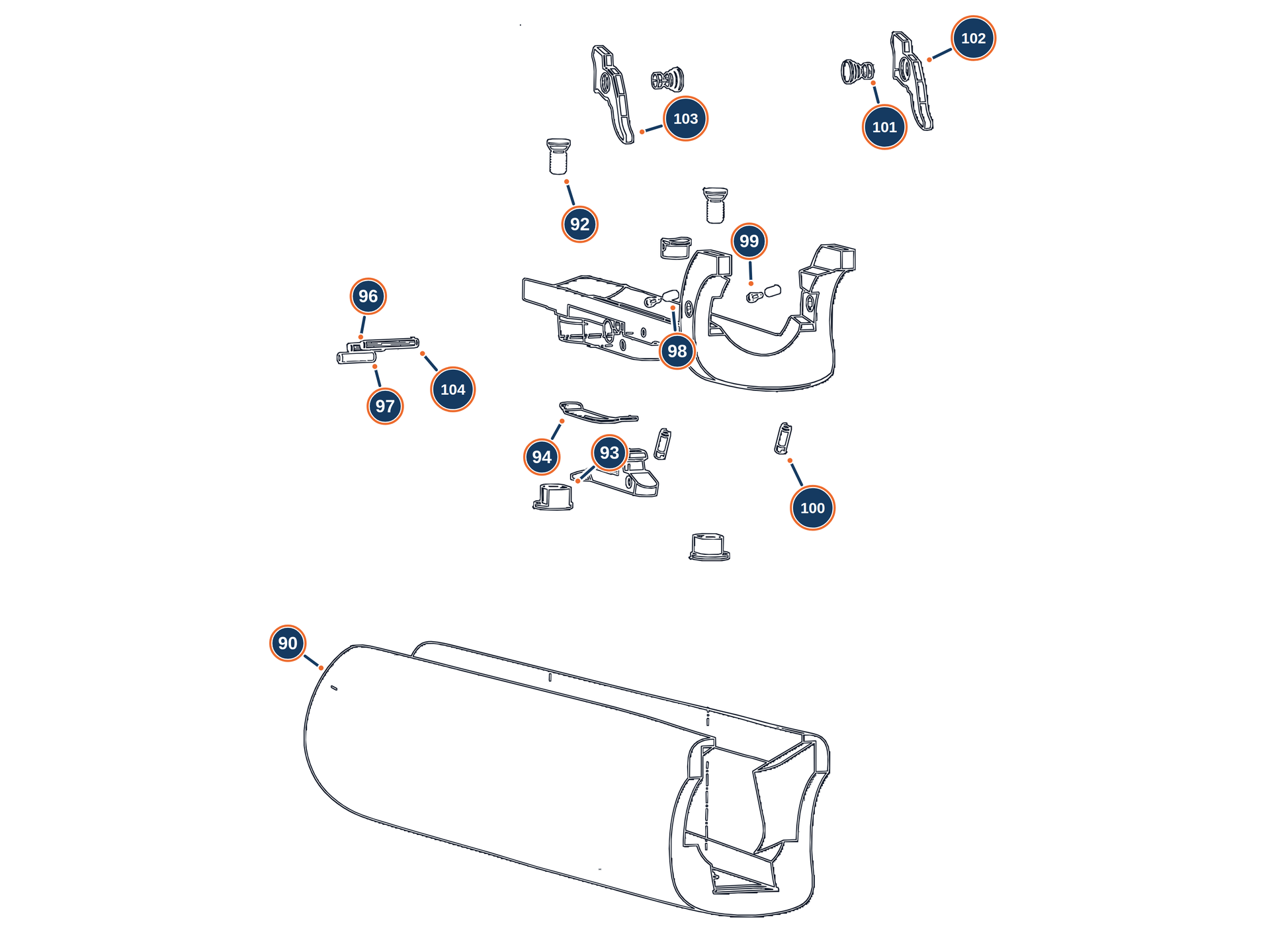

DT11 Sporting 12G Gruppo_Asta-Croce exploded diagram.
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 90 | BER-C5E086BER-C8A613BER-C8A614BER-C8A646BER-C8A648BER-C8A649BER-C8A650BER-C8A651BER-C8A770BER-C8A771BER-C8A772BER-C8A834BER-C8A835 | Not Available Not Available Not Available Not Available Not Available Not Available Not Available Not Available Not Available Not Available Not Available Not Available Not Available | Forends Forends Forends Forends Forends Forends Forends Forends Forends Forends Forends Forends Forends |
| 92 | |||
| 93 | |||
| 94 | |||
| 96 | |||
| 97 | |||
| 98 | |||
| 99 | |||
| 100 | BER-C95180 | Not Available | Forend Iron Lever Pin |
| 101 | BER-C59199 | Not Available | Forend Lever Pin |
| 102 | BER-C5H839 | Not Available | Right Forend Iron Lever |
| 103 | BER-C5H840 | Not Available | Left Forend Iron Lever |
| 104 | BER-C97067 | Not Available | Spring Pin |
