Beretta DT11 Black DLC Sporting 12G Parts Guide
Exploded diagram, Beretta codes and linked spare parts for Beretta DT11 Black DLC Sporting 12G.

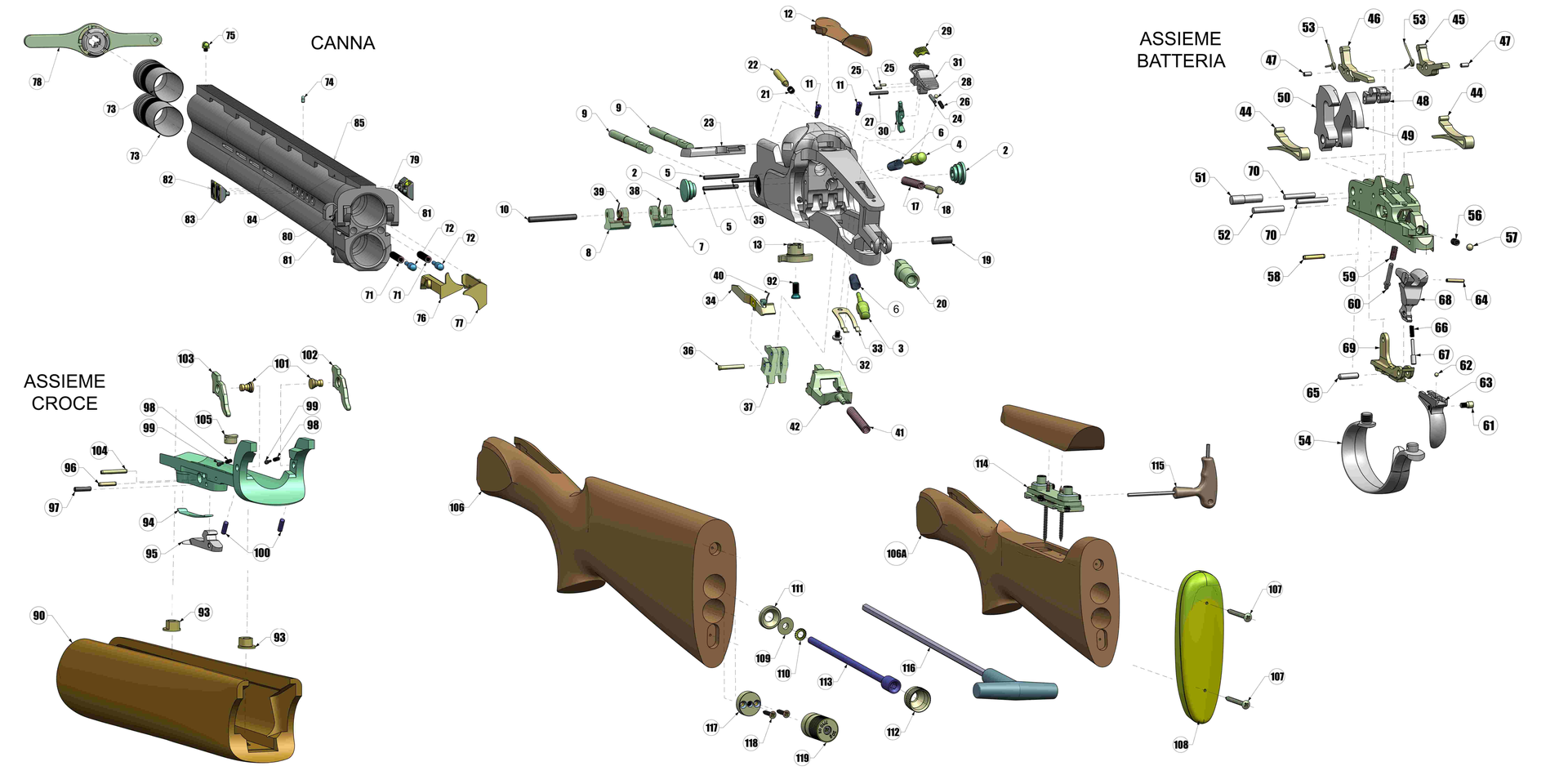

Exploded diagram
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 10 | |||
| 100 | C95180 | Not Available | FOREND IRON LEVER PIN DT11 DT10 ASE90 ASE GOLD |
| 101 | C59199 | Not Available | FOREND LEVER PIN DT11 BLACK |
| 102 | C5H839 | Not Available | LEVER FOREND IRON RIGHT DX DT11 |
| 103 | C5H840 | Not Available | FOREND IRON LEVER LEFT SX DT11 |
| 104 | C97067 | Not Available | ELASTIC PIN 2X16 DT11 DT10 |
| 105 | |||
| 106 | C8A807 | Not Available | STOCK PISTOL GRIP 38/60 LEFT HAND LH SX OIL FINISH CLASS 3 - DT11 SPORTING GA 12 |
| 106a | C8A826 | Not Available | STOCK PISTOL GRIP ADJUSTABLE BFAST 38/60 RIGHT HAND RH DX OIL FINISH CLASS 3 - DT11 SPORTING GA 12 |
| 107 | |||
| 108 | E73021E73029 | Not Available Not Available | RECOIL PAD MICROCORE(r) COMPETITION SKEET SPORTING GA 12 - THICKNESS 13mm RECOIL PAD MICROCORE(r) COMPETITION SKEET SPORTING GA 12 - THICKNESS 28mm |
| 109 | |||
| 11 | |||
| 110 | |||
| 111 | |||
| 112 | C53949 | Not Available | BUSH STOCK KEY GUIDE 12 GA S682 |
| 114 | |||
| 115 | |||
| 116 | |||
| 117 | |||
| 118 | |||
| 12 | C5N495 | Not Available | CHIAVE DT11 DLC BLACK - |
| 13 | C5G225 | Not Available | TOP LEVER PIN DT11 |
| 17 | |||
| 18 | C92149 | Not Available | TOP LEVER SPRING PIN S02 ASE 90 ASE GOLD DT10 TRIDENT DT11 |
| 19 | C92253 | Not Available | BLOCK SCREW PIN - DT11 GA 12 |
| 2 | C5N494 | Not Available | HINGE PIN DLC FINISH - DT11 BLACK GA 12 |
| 21 | |||
| 22 | |||
| 23 | C5Q857 | Not Available | LOCKING BOLT (A) 8 DEGREES X=4.2 - DT11 - DT10 GA 12 |
| 24 | C92252 | Not Available | PIN |
| 25 | C97102 | Not Available | PIN ELASTIC 1,50 X 4 UNI |
| 26 | |||
| 27 | |||
| 28 | |||
| 29 | C5N496 | Not Available | SAFETY SELECTOR PALM - DT11 DLC BLACK GA 12 |
| 3 | |||
| 30 | |||
| 31 | C5N497 | Not Available | SAFETY SINGLE SELECTIVE TRIGGER DLC FINISH - DT11 BLACK GA 12 |
| 32 | |||
| 34 | |||
| 35 | C92250 | Not Available | PIN |
| 36 | C92251 | Not Available | PIN |
| 37 | C59237 | Not Available | FIRING PIN CATCH LEVER DT11 |
| 38 | |||
| 39 | |||
| 4 | |||
| 40 | C59233 | Not Available | SPRING |
| 41 | |||
| 42 | C55083 | Not Available | TRIGGER PLATE BOLT DT11 |
| 44 | |||
| 45 | |||
| 46 | |||
| 47 | |||
| 48 | C58207 | Not Available | MOLDING 486 |
| 49 | |||
| 50 | |||
| 51 | |||
| 52 | |||
| 53 | |||
| 54 | C5G712 | Not Available | TRIGGER GUARD DLC FINISH - DT11 BLACK GA 12 |
| 56 | C90326 | Not Available | SPRING |
| 57 | |||
| 59 | C90521 | Not Available | TRIGGER SPRING DT10 TRIDENT - DT11 GA 12 |
| 6 | |||
| 60 | |||
| 61 | |||
| 62 | |||
| 63 | C5N498 | Not Available | GRILLETTO DT11 DLC BLACK - |
| 64 | C97191 | Not Available | ELASTIC PIN - DT11 GA 12 |
| 65 | C92241 | Not Available | PIN |
| 66 | |||
| 67 | |||
| 68 | |||
| 69 | C5G382 | Not Available | TRIGGER SUPPORT DT11 BLACK GA 12 |
| 7 | |||
| 70 | C92237 | Not Available | TRIGGER PIN - ASE 90 - ASE GOLD - DT10 TRIDENT GA 12 |
| 71 | |||
| 72 | |||
| 73 | |||
| 74 | |||
| 75 | |||
| 76 | C59179 | Not Available | EXTRACTOR |
| 77 | C59180 | Not Available | EXTRACTOR |
| 79 | |||
| 8 | |||
| 80 | |||
| 81 | |||
| 82 | |||
| 84 | |||
| 85 | C5G352 | Not Available | CARBON RIB UPPER SPORTING L 76 cm 10X10 DT11 BLACK SPORTING |
| 9 | |||
| 90 | C5E086 | Not Available | FOREND SCHNABEL OIL FINISH CLASS 3 DT11 GA 12 |
| 91 | |||
| 93 | |||
| 94 | |||
| 95 | C5N499 | Not Available | FOREND IRON CATCH DLC FINISH - DT11 BLACK GA 12 |
| 96 | |||
| 97 | |||
| 98 | |||
| 99 |
