Beretta AX800 Suprema 12G Parts Guide

Exploded diagram, Beretta codes and linked spare parts for Beretta AX800 Suprema 12G.

Exploded diagram

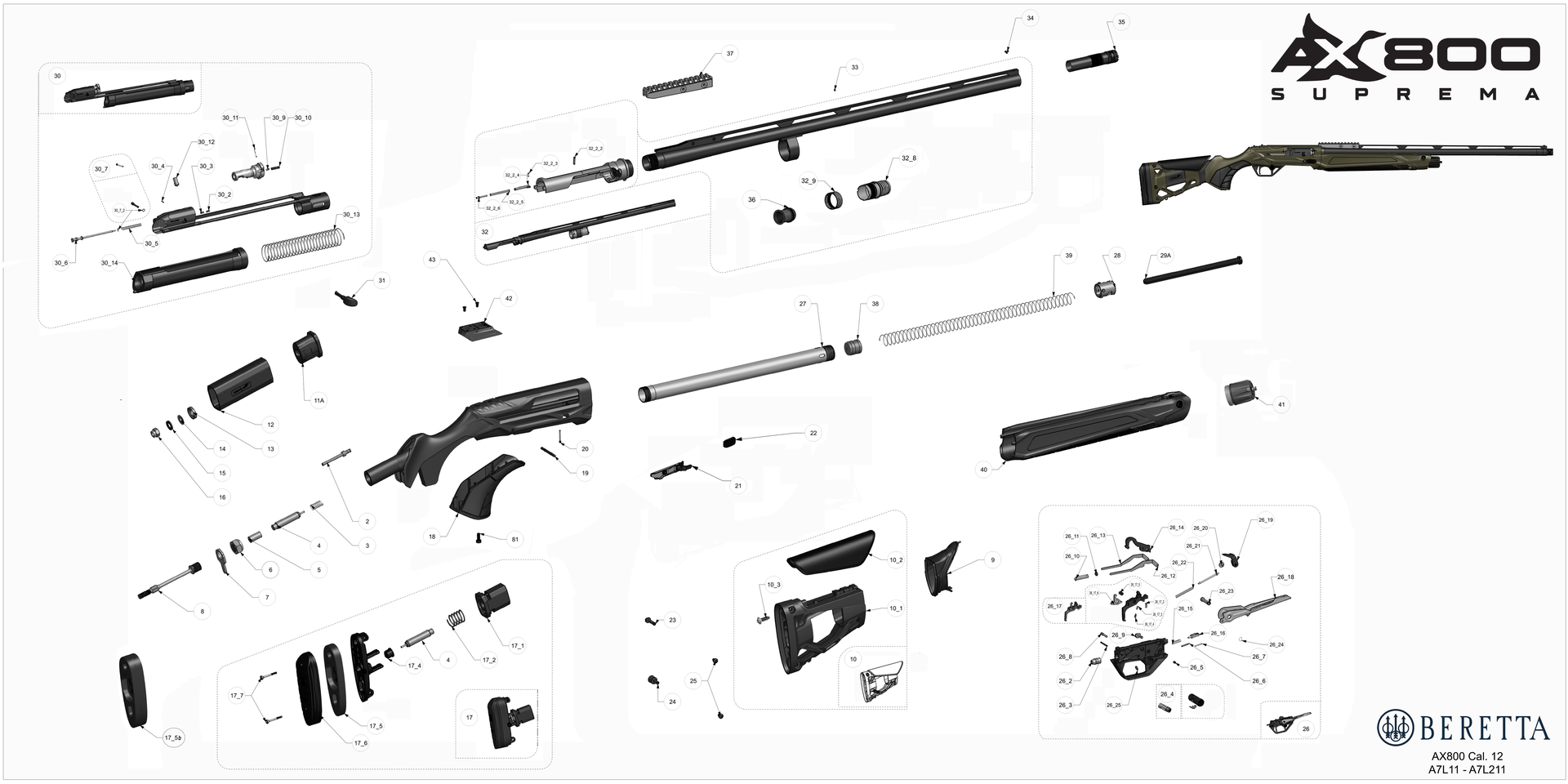

Beretta AX800 Suprema 12G exploded parts diagram
PositionBeretta CodeStockDescription & Product Link
002
C7G421
Not Available
RAM ASSEMBLY AND RECOIL BUFFER PAD - AX800
003
C90459
Not Available
SPRING
004
C5C691
Not Available
SHOCK ABSORBER FOR KICK-OFF
005
C5M679
Not Available
SPACER SHOCK ABSORBER - AX800 GA 12
006
C9A891
Not Available
HEX NUT M14 - UNI 7473-7474
007
C5M680
Not Available
STOCK SCREW PLATE - AX800 GA 12
008
C5K981
Not Available
STOCK SCREW - AX800 GA 12
009
C7E740
Not Available
RECOIL BELLOWS - AX800 GA 12
010
C8N457
C8Q355
C8Q356
C8Q357
C8Q358
C8Q359
C8Q360
C8Q361
C8Q362
C8Q363
C8Q364
Not Available
Not Available
Not Available
Not Available
Not Available
Not Available
Not Available
Not Available
Not Available
Not Available
Not Available
STOCK ASSY (BLACK) WITH STANDARD CHEEK PAD - AX800
STOCK ASSY (PEAT) WITH STANDARD CHEEK PAD - AX800
STOCK ASSY (OTTER) WITH STANDARD CHEEK PAD - AX800
STOCK ASSY (OD GREEN) WITH STANDARD CHEEK PAD - AX800
STOCK ASSY (MAX7) WITH STANDARD CHEEK PAD - AX800
STOCK ASSY (MOSSY OAK BOTTOMLAND) WITH STANDARD CHEEK PAD - AX800
STOCK ASSY (MOSSY OAK ORIGINAL BOTTOMLAND) WITH STANDARD CHEEK PAD - AX800
STOCK ASSY (MOSSY OAK ORIGINAL SHADOWGRASS) WITH STANDARD CHEEK PAD - AX800
STOCK ASSY (OPTIFADE TIMBER) WITH STANDARD CHEEK PAD - AX800
STOCK ASSY (OPTIFADE MARSH) WITH STANDARD CHEEK PAD - AX800
STOCK ASSY (OPTIFADE TRUE TIMBER DRT) WITH STANDARD CHEEK PAD - AX800
010_2
C7D363
Out Of Stock
Beretta AX800 Standard Cheek Piece
010_3
C9C611
Not Available
FLANGED SCREW D5x25 T25 - AX800 STOCK
011A
C5M674
C5M675
C5M676
Not Available
Not Available
Not Available
BEND PLUG FOR STOCK 2RH - 2LH - AX800 GA 12
BEND PLUG FOR STOCK 1LH - 3RH - AX800 GA 12
BEND PLUG FOR STOCK 1RH - 3LH - AX800 GA 12
012
C5M672
Not Available
KICK-OFF PRO TUBE - AX800 GA 12
013
C9C612
Not Available
CONICAL SEAT - AX800 STOCK
014
C9C613
Not Available
SPHERICAL WASHER - STOCK AX800
015
C97200
Warehouse Stock
Stock Retaining Nut Washer
016
C97174
Warehouse Stock
Stock Retaining Nut
017
C8L715
Not Available
KICK-OFF PRO ASSY WITH STANDARD RECOIL PAD - AX800 GA 12
017_1
C5M673
Not Available
SHOCK ABSORBER CASE - AX800 GA 12
017_12
C95404
Not Available
SPRING FOR KICK-OFF FOR POLYMER STOCK - A391 XTREMA 2 GA 12
017_2
C5G921
C5J955
C5L080
Not Available
Not Available
Not Available
RECOIL PAD SCREW M3x30 / TORX T25 - AX800 GA 12
RECOIL PAD SCREW M3x42 / TORX T25 - AX800 GA 12
RECOIL PAD SCREW M3x15 TORX T25 - AX800 GA 12
017_4
C5M682
Not Available
KICK-OFF PLATE - AX800 GA 12
017_5
C5Q755
Not Available
STOCK SPACER 12.5 MM
017_6
C7F260
Out Of Stock
AX800 Recoil Pad 20MM
018
C5L135
C5M696
Not Available
Not Available
OVERSIZED GRIP +10 BLACK - AX800
STANDARD GRIP SINTHETIC BLACK - AX800 GA 12
019
C9C000
Not Available
TRIGGER GUARD RETAINING PIN
020
C5R514
Not Available
CARTRIDGE LATCH LEVER PIN - AX800 12GA
0201
C8G956
Out Of Stock
AX800 Cartridge Latch Assembly
022
C5M692
Out Of Stock
AX800 Cartridge Latch Button
023
C5P714
Not Available
STOCK ASSY PIN
024
C5S873
Not Available
STOCK QD PIN
025
C5P713
Not Available
TORX SCREW M4 T25 - AX800 STOCK
026
C8G952
Out Of Stock
AX800 Trigger Group Assembly
026_10
C90380
Not Available
HAMMER SPRING A400
026_11
C5D426
Not Available
HAMMER SPRING BUSH - SERIE A400 GA 12 - 20 / SERIE A300 GA 12 / 20
026_12
C5D329
Warehouse Stock
Right Hammer Brace
026_13
C5D328
Warehouse Stock
Left Hammer Brace
026_14
C7E421
Not Available
HAMMER ASSY - AX800 GA 12 / A400L GA 12
026_15
C95323
Not Available
ELEVATOR STOP PIN SPRING A400
026_16
C59929
Warehouse Stock
Carrier Stop Pin
026_17
C8L695
Not Available
FLAT TRIGGER ASSY - AX800
026_17_2
C90093
In Stock
Trigger Spring
026_17_3
C90094
Warehouse Stock
Locking Bolt Trip Spring
026_17_4
C92098
In Stock
Locking Bolt Trip Spring Plunger
026_17_5
C50757
Not Available
TRIGGER BUSH SEMIAUTO SERIE A300 AL391 A400 VARIOUS VERSIONS
026_17_6
C5D838
Not Available
STOP PIN - A400 GA 12 AND GA 20
026_18
C7F841
Not Available
ELEVATORE COMP TRANCIATO ELEVATORE COMP TRANCIA
026_19
C5D892
Warehouse Stock
Carrier Lever
026_2
C5B992
Not Available
HAMMER SPRING GUIDE 12 GA A400
026_20
C92286
Warehouse Stock
Carrier Lever Pin
026_21
C5D533
Not Available
ELEVATOR LEVER SPRING GUIDE A400
026_22
C95315
In Stock
Carrier Lever Spring
026_23
C5D775
Warehouse Stock
Elevator Bush
026_24
C5A326
In Stock
Trigger Bush D-Clip
026_25
C5D774
Warehouse Stock
Carrier Lever Spring Guide Plate
026_3
C97093
Warehouse Stock
Elastic Pin
026_4
C8L696
Not Available
ASS. PULSANTE SICURA ASS. PULSANTE SICURA
026_5
C59072
Not Available
FORE END COVER DOWEL SEMIAUTO GA 12
026_6
C5L193
Not Available
OVERSIZE SAFETY SPRING PIN - AX800 GA. 12
026_7
C90382
Warehouse Stock
Safety Spring
026_8
C97240
In Stock
Trigger Pin
026_9
C92213
Not Available
HAMMER PIN
027
C5D877
C5E596
Out Of Stock
Warehouse Stock
Xtreme Magazine Tube Crimped
Magazine Tube Uncrimped
0271
C8A487
Not Available
MAGAZINE PLUG ASSEMBLY 12 GA A400 XTREME UNICO
029A
C5E598
Not Available
REDUCER 2 ROUNDS QUICK DETATCH FOR A400 XTREME GA 12
030_10
C5G282
Warehouse Stock
Extractor
030_11
C97087
Warehouse Stock
Elastic Roll Pin 2x14
030_12
C92278
Warehouse Stock
Breech Bolt Pin
030_13
C95466
Warehouse Stock
Recoil Spring
030_14
C5M694
Out Of Stock
AX800 Recoil Spring Plastic Shroud
030_2
C95324
Warehouse Stock
Cocking Handle Plunger Spring
030_3
C59930
Warehouse Stock
Cocking Handle Plunger
030_4
C97122
Warehouse Stock
Cocking Handle Roll Pin
030_5
C95322
Warehouse Stock
Firing Pin Spring
030_6
C5D326
Warehouse Stock
Firing Pin
030_7
C72332
Warehouse Stock
Firing Pin Retaining Pin Assembly
030_7_2
C5A354
In Stock
Striker Retaining O-Ring
030_9
C95316
Warehouse Stock
Extractor Spring
031
C7D366
Out Of Stock
AX800 Bolt Handle
032_2_2
C92287
In Stock
Ejector Roll Pin
032_2_3
C5Q753
Out Of Stock
AX800 Extractor Retaining Part
032_2_4
C5G576
In Stock
Ejector 3.5"
032_2_5
C90379
In Stock
Ejector Spring 3.5"
032_2_6
C5Q754
Out Of Stock
AX800 Extractor Plunger
032_8
C8M975
Not Available
CYLINDER ASSY - AX800 GA 12
032_9
C5J355
Not Available
RING
033
C5E690
Out Of Stock
Mid Bead Sight
034
C5H149
Out Of Stock
Red Sight 20G
035
C6A233
C6A234
C6A235
C6A236
C6A237
C6A238
Out Of Stock
Out Of Stock
Out Of Stock
Out Of Stock
Out Of Stock
Out Of Stock
Optima HP Choke Black Edition - 50mm Extended
Optima HP Choke Black Edition - 50mm Extended
Optima HP Choke Black Edition - 50mm Extended
Optima HP Choke Black Edition - 50mm Extended
Optima HP Choke Black Edition - 50mm Extended
Optima-Choke HP Extended 20mm 12G Black Skeet Choke
036
C8A324
Out Of Stock
Piston Assembly
038
C5L185
Out Of Stock
Xtreme Mag Follower Green
039
C95399
In Stock
Magazine Spring
040
C7H120
C7H380
C7H381
C7H382
C7H383
C7H384
C7H385
C7H386
C7H387
C7H388
C7H389
Not Available
Not Available
Not Available
Not Available
Not Available
Not Available
Not Available
Not Available
Not Available
Not Available
Not Available
FOREND SYNTHETIC BLACK - AX800 GA 12
ASTINA B.PEAT ASTINA BERETTA PEAT
ASTINA B.OTTER ASTINA BERETTA OTTER
ASTINA O.D.GREEN ASTINA BERETTA O.D.GREEN
ASTINA MAX7 ASTINA MAX7
ASTINA M.O.BOTTOMLAND ASTINA Mossy Oak BOTTOMLAND
ASTINA B.LAND ORIGINAL ASTINA Mossy Oak BOTTOMLAND OR
ASTINA ORIGINAL SHADOW GRASS ASTINA Mossy Oak ORIGINAL SHAD
ASTINA O.TIMBER ASTINA Optifade TIMBER
ASTINA O.MARSH ASTINA Optifade MARSH
ASTINA True Timber DRT ASTINA True Timber DRT
041
C8G955
Out Of Stock
AX800 Forend Nut
042
C6G911
C6G912
C6G913
C6G915
Not Available
Not Available
Not Available
Not Available
RED DOT ADAPTER KIT FOR BURRIS - AX800 GA 12
RED DOT ADAPTER KIT FOR LEUPOLD - AX800 GA 12
RED DOT ADAPTER KIT FOR TRIJICON - AX800
KIT RED DOT ADAPTER FOR DOCTER - AX800
043
C5F544
Not Available
SCREW M4 TORX T15 FOR PICATINNY RAIL SEMIAUTO
081
C9A280
Out Of Stock
BRX1 Grip Screw : Part #81
0811
A6D41000000001
A6D41000000002
A6D41000000003
A6D41000000004
A6D41000000005
A6D41000000006
A6D41000000007
A6D41000000008
A6D41000000009
A6D41000000010
A6D41000000011
A6D41000000012
A6D41000000013
A6D41000000014
A6D41000000015
A6D41000000016
A6D41000000017
A6D41000000018
A6D41000000019
A6D41000000020
A6D41000000021
A6D41000000022
A6D41000000023
A6D41000000024
Not Available
Not Available
Not Available
Not Available
Not Available
Not Available
Not Available
Not Available
Not Available
Not Available
Not Available
Not Available
Not Available
Not Available
Not Available
Not Available
Not Available
Not Available
Not Available
Not Available
Not Available
Not Available
Not Available
Not Available
SPARE BARREL AX800 - FINISH CAMO MOSSY OAK BOTTOMLAND - CAL 12 3" 1/2 - LENGTH 66 CM
SPARE BARREL AX800 - FINISH CAMO OPTIFADE MARSH - CAL 12 3" 1/2 - LENGTH 66 CM
SPARE BARREL AX800 - FINISH CAMO OPTIFADE TIMBER - CAL 12 3" 1/2 - LENGTH 66 CM
SPARE BARREL AX800 - FINISH CAMO MOSSY OAK BOTTOMLAND - CAL 12 3" 1/2 - LENGTH 76 CM
SPARE BARREL AX800 - FINISH CAMO OPTIFADE TIMBER - CAL 12 3" 1/2 - LENGTH 76 CM
SPARE BARREL AX800 - FINISH CAMO OPTIFADE MARSH - CAL 12 3" 1/2 - LENGTH 76 CM
SPARE BARREL AX800 - FINISH CAMO ORIGINAL SHADOW GRASS - CAL 12 3" 1/2 - LENGTH 76 CM
SPARE BARREL AX800 - FINISH CAMO TRUE TIMBER DRT - CAL 12 3" 1/2 - LENGTH 76 CM
SPARE BARREL AX800 - FINISH CAMO ORIGINAL BOTTOMLAND - CAL 12 3" 1/2 - LENGTH 76 CM
SPARE BARREL AX800 - FINISH BLACK SYNTHETIC - CAL 12 3" 1/2 - LENGTH 76 CM
SPARE BARREL AX800 - FINISH CAMO MAX7 - CAL 12 3" 1/2 - LENGTH 76 CM
SPARE BARREL AX800 - FINISH CAMO MOSSY OAK BOTTOMLAND - CAL 12 3" 1/2 - LENGTH 71 CM
SPARE BARREL AX800 - FINISH CAMO OPTIFADE MARSH - CAL 12 3" 1/2 - LENGTH 71 CM
SPARE BARREL AX800 - FINISH CAMO ORIGINAL BOTTOMLAND - CAL 12 3" 1/2 - LENGTH 71 CM
SPARE BARREL AX800 - FINISH CAMO OPTIFADE TIMBER - CAL 12 3" 1/2 - LENGTH 71 CM
SPARE BARREL AX800 - FINISH CAMO TRUE TIMBER DRT - CAL 12 3" 1/2 - LENGTH 71 CM
SPARE BARREL AX800 - FINISH CAMO MAX7 - CAL 12 3" 1/2 - LENGTH 71 CM
SPARE BARREL AX800 - FINISH BLACK SYNTHETIC - CAL 12 3" 1/2 - LENGTH 71 CM
SPARE BARREL AX800 - FINISH BLACK SYNTHETIC - CAL 12 3" 1/2 - LENGTH 66 CM
SPARE BARREL AX800 - FINISH CAMO MAX7 - CAL 12 3" 1/2 - LENGTH 66 CM
SPARE BARREL AX800 - FINISH CAMO TRUE TIMBER DRT - CAL 12 3" 1/2 - LENGTH 66 CM
SPARE BARREL AX800 - FINISH CAMO ORIGINAL SHADOW GRASS - CAL 12 3" 1/2 - LENGTH 71 CM
SPARE BARREL AX800 - FINISH CAMO ORIGINAL SHADOW GRASS - CAL 12 3" 1/2 - LENGTH 66 CM
SPARE BARREL AX800 - FINISH CAMO ORIGINAL BOTTOMLAND - CAL 12 3" 1/2 - LENGTH 66 CM
08111
C6H971
Not Available
PICATINNY RAIL ASSY - AX800 GA 12
