Beretta ASE Gold Sporting 12G Parts Guide
Exploded diagram, Beretta codes and linked spare parts for Beretta ASE Gold Sporting 12G.

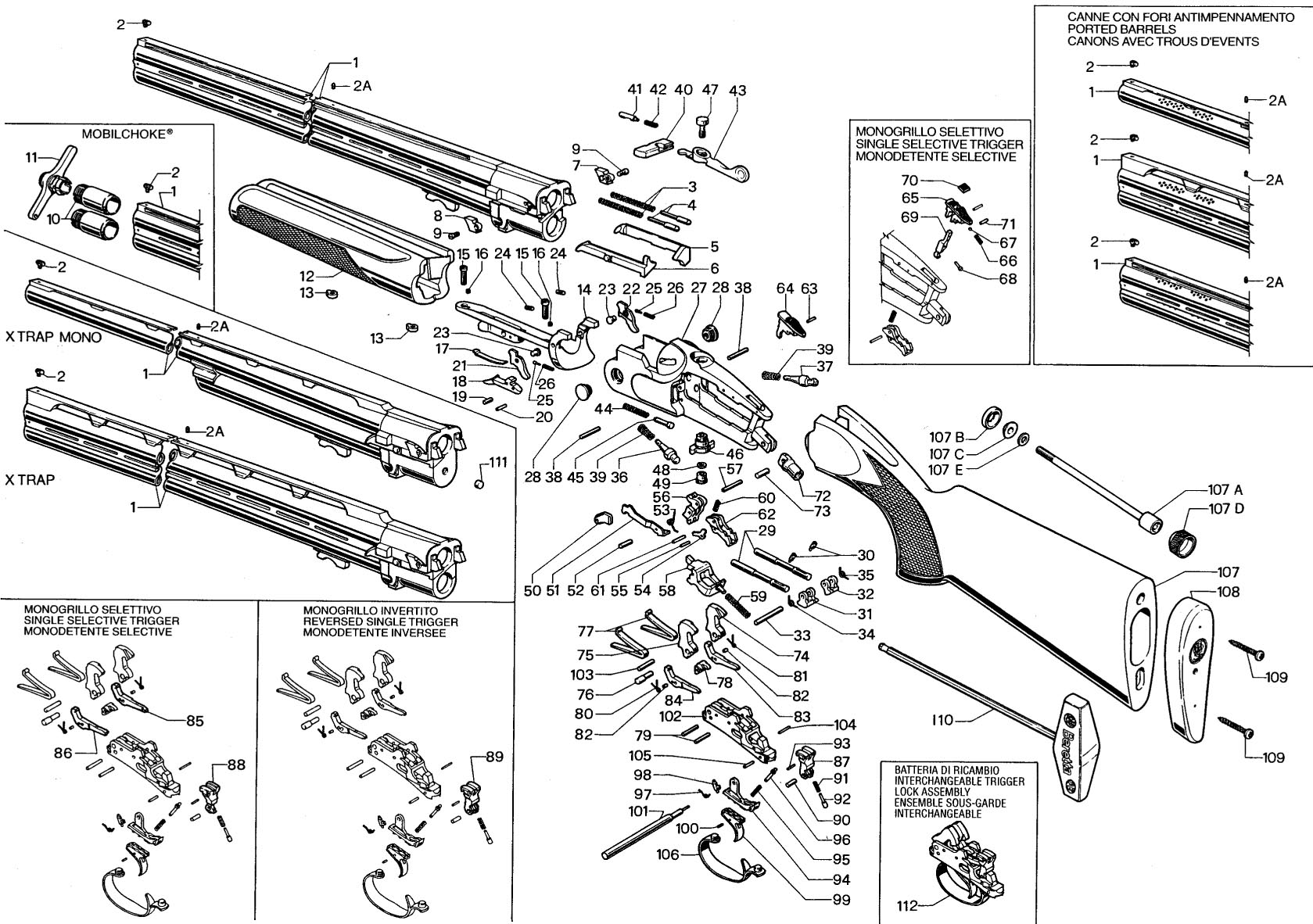

Exploded diagram
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 002 | |||
| 002A | |||
| 003 | |||
| 004 | |||
| 005 | E57694 | Not Available | EJECTOR RIGHT RH DX SEMIFINISHED - MILLED - - ASE 90 - ASE GOLD - SERIE SO GA 12 |
| 006 | E57720 | Not Available | EJECTOR LEFT LH SX SEMIFINISHED - MILLED - ASE 90 - ASE GOLD - SERIE SO GA 12 |
| 007 | |||
| 008 | |||
| 009 | |||
| 015 | |||
| 016 | |||
| 017 | |||
| 018 | C53313 | Not Available | FORE-END IRON CATCH |
| 019 | |||
| 020 | C97150 | Not Available | ELASTIC PIN 2X12 UNI – 1200 |
| 021 | C53108 | Not Available | FORE-END IRON LEVER LEFT |
| 022 | C53107 | Not Available | FORE-END IRON RIGHT |
| 023 | C57003 | Not Available | PIN |
| 024 | C95180 | Not Available | FOREND IRON LEVER PIN DT11 DT10 ASE90 ASE GOLD |
| 025 | |||
| 026 | |||
| 028 | |||
| 029 | |||
| 030 | |||
| 031 | |||
| 032 | |||
| 033 | |||
| 034 | |||
| 035 | |||
| 036 | |||
| 037 | |||
| 038 | |||
| 039 | |||
| 040 | C56914 | Not Available | LOCKING BLOCK |
| 041 | |||
| 042 | |||
| 043 | C41534 | Not Available | TOP LEVER |
| 044 | |||
| 045 | C92149 | Not Available | TOP LEVER SPRING PIN S02 ASE 90 ASE GOLD DT10 TRIDENT DT11 |
| 047 | C95258 | Not Available | SCREW |
| 048 | |||
| 049 | |||
| 051 | C55077 | Not Available | BOLT |
| 052 | C92250 | Not Available | PIN |
| 053 | C55099 | Not Available | SPRING |
| 054 | C55186 | Not Available | PAWL |
| 055 | C92252 | Not Available | PIN |
| 056 | C55094 | Not Available | FIRING PIN CATCH LEVER - ASE 90 AND ASE GOLD GA 12 |
| 057 | C92251 | Not Available | PIN |
| 058 | C55083 | Not Available | TRIGGER PLATE BOLT DT11 |
| 059 | |||
| 060 | C90351 | Not Available | SAFETY LEVER SPRING ASE90 ASE GOLD GA 12 |
| 061 | C92239 | Not Available | PIN |
| 062 | C55095 | Not Available | SAFETY LEVER - ASE 90 AND ASE GOLD GA 12 |
| 063 | |||
| 065 | C56505 | Not Available | SAFETY SINGLE SELECTIVE TRIGGER WHITE FINISH - ASE 90 / ASE GOLD SPORTING GA 12 |
| 066 | |||
| 067 | |||
| 068 | C55392 | Not Available | SELECTOR LEVER PIN ASE |
| 069 | |||
| 070 | C54760 | Not Available | SELECTOR LEVER |
| 071 | C97023 | Not Available | ELASTIC PIN 1,5X11 A301 |
| 072 | |||
| 073 | C92253 | Not Available | BLOCK SCREW PIN - DT11 GA 12 |
| 074 | C55179 | Not Available | HAMMER |
| 075 | C55178 | Not Available | HAMMER |
| 076 | |||
| 077 | |||
| 078 | C58207 | Not Available | MOLDING 486 |
| 079 | C92237 | Not Available | TRIGGER PIN - ASE 90 - ASE GOLD - DT10 TRIDENT GA 12 |
| 080 | |||
| 081 | C53782 | Not Available | SEAR SPRING 0.6 12 GA ASE90 / ASE GOLD / DT10 TRIDENT |
| 082 | |||
| 085 | |||
| 086 | C55183 | Not Available | SEAR |
| 088 | |||
| 090 | C92241 | Not Available | PIN |
| 091 | |||
| 092 | |||
| 093 | C97191 | Not Available | ELASTIC PIN - DT11 GA 12 |
| 094 | C56568 | Not Available | ADJUSTABLE TRIGGER SUPPORT SINGLE SELETIVE TRIGGER - ASE GOLD GA 12 |
| 095 | |||
| 096 | |||
| 097 | C55825 | Not Available | SPRING |
| 098 | C55697 | Not Available | ADJUSTABLE TRIGGER KEY |
| 099 | C55698C55763C55764 | Not Available Not Available Not Available | TRIGGER ADJUSTABLE NEUTRAL GOLD FINISH ASE GOLD GA 12 TRAP XTRAP SKEET SPORTING TRIGGER ADJUSTABLE RIGHT RH DX GOLD FINISH ASE GOLD GA 12 TRAP XTRAP SKEET SPORTING TRIGGER ADJUSTABLE LEFT LH SX GOLD FINISH ASE GOLD GA 12 TRAP XTRAP SKEET SPORTING |
| 100 | C97152 | Not Available | ELASTIC PIN 1,20X6 UNI – ASE 90 |
| 101 | C61103 | Not Available | SCREWDRIVER 682 GOLD E |
| 102 | C56540 | Not Available | TRIGGER PLATE |
| 103 | |||
| 104 | C92114 | Not Available | PIN |
| 105 | |||
| 106 | C77183 | Not Available | TRIGGER PLATE PDV FINISH - ASE GOLD GA 12 |
| 107A | |||
| 107B | |||
| 107C | |||
| 107D | C53949 | Not Available | BUSH STOCK KEY GUIDE 12 GA S682 |
| 107E | |||
| 109 | |||
| 110 | |||
| 112 | C80430 | Not Available | TRIGGER LOCK ASSY |
