Beretta AL390 Gold Sporting 12G Parts Guide

Exploded diagram, Beretta codes and linked spare parts for Beretta AL390 Gold Sporting 12G.

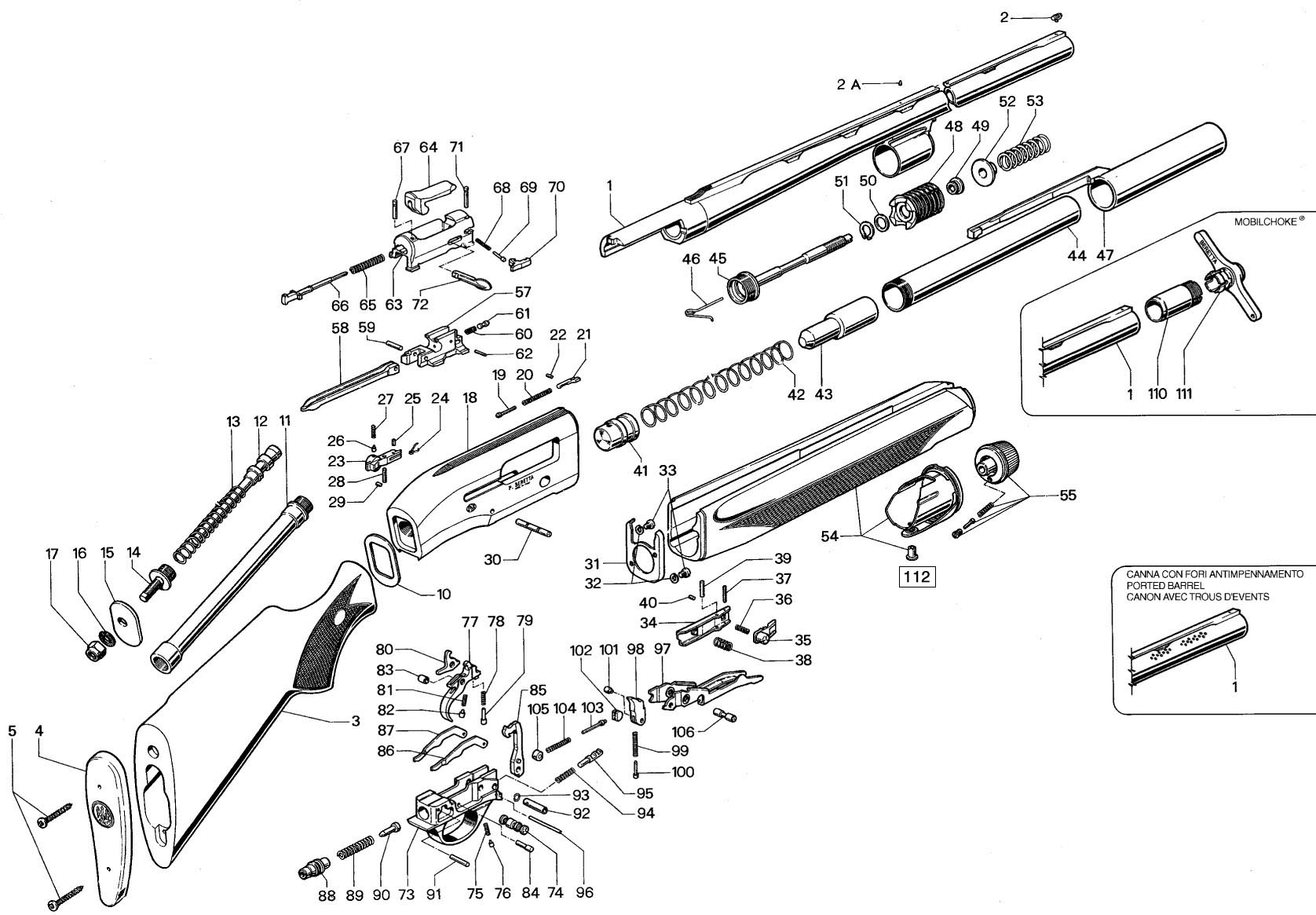

Exploded diagram

Beretta AL390 Gold Sporting 12G exploded parts diagram
PositionBeretta CodeStockDescription & Product Link
002
C53520
Out Of Stock
White Bradley Type Bead Small
002A
C54550
In Stock
Mid Bead - Small
004
C55124
C55647
C55648
C55650
Not Available
Not Available
Out Of Stock
Out Of Stock
RECOIL PAD RUBBER
RECOIL PAD SKEET RUBBER BLACK FULL THIN 12GA 18mm
Skeet Pad Black 23mm
12G Black Extra-thin 12mm Skeet Recoil Pad
005
C95192
In Stock
Pad Screw - 40mm
010
C55407
C55408
Not Available
Not Available
PLATE FRONT DROP 50/65 AL390
PLATE FRONT DROP 55/60 A304 A390 AL390 CAL 12
011
C57153
C57245
Not Available
Not Available
PIPE
STOCK BOLT TUBE AL391
012
C57884
Not Available
SPRING GUIDE
013
C53791
In Stock
Recoil Spring
014
C56826
Not Available
PLUG A390 AL390 GA 12
015
C55403
C55404
Warehouse Stock
Warehouse Stock
Stock Drop Plate 50/65
Stock Drop Plate 55/60
016
C97200
Warehouse Stock
Stock Retaining Nut Washer
017
C97174
Warehouse Stock
Stock Retaining Nut
019
C52928
Warehouse Stock
Ejector Spring Plunger
020
C90177
Warehouse Stock
Ejector Spring
021
C54499
Warehouse Stock
Ejector
022
C97004
In Stock
Inertia Block Roll Pin (Small)
023
C53672
Not Available
CUT OFF A304 A390 AL390 AL391
024
C53790
Warehouse Stock
Cut Off Spring
025
C97038
In Stock
Cut Off Spring Pin
026
C92034
Warehouse Stock
Cut Off Switch Plunger
027
C45567
Not Available
80X #40 - SAFETY PIN SPRING
028
C92168
In Stock
Carrier Latch Retaining Pin
030
C56533
Not Available
TRIGGER GUARD FIX PIN FOR SEMIAUTO
032
C95370
In Stock
Top Lever Cam Locking Nut
033
C97025
Not Available
COVER SCREW A301
034
C81768
Out Of Stock
391 Cartridge Latch Body
035
C53788
Not Available
CARTRIDGE LATCH
036
C90231
Warehouse Stock
Cartridge Latch Spring
037
C92212
Not Available
CARTRIDGE LATCH LEVER PIN - AL391 URIKA GA 12 AND GA 20
038
C90350
Warehouse Stock
Cartridge Latch Body Spring
042
C90089
C90340
Not Available
Out Of Stock
SPRING
391 Magazine Spring 12G
043
C56092
Not Available
MAGAZINE REDUCER 12 GA
044
C57104
C57136
Not Available
Not Available
LIGHTWEIGHT MAGAZINE TUBE 12 GA A300 OLD SERIE
MAGAZINE TUBE REDUCED A303 A390 GA 12
045
C56887
Out Of Stock
390 Mag Tube Cap
046
C54546
Not Available
FRONT CAP SPRING A301 GA 12
047
C70050
Not Available
OPERATING ROD
049
C53665
Not Available
BUSH PISTON BLOCK A390
050
C53564
Not Available
PISTON BUSH RING A390 AL390
051
C97019
Out Of Stock
Ring Piston Push Snap
053
C54410
Out Of Stock
390 Gas Valve Spring
057
AKF36113111111
Not Available
REPLACEMENT BOLT SEMIAUTO SHOTGUN - AL391 DE LUXE GA 12
058
C50581
In Stock
Connecting Rod 12G
059
C92095
Warehouse Stock
Connecting Rod Pin 12G
061
C56051
Warehouse Stock
Cocking Handle Retaining Plunger
062
C97037
Warehouse Stock
Inertia Block Roll Pin (Large)
065
C90148
Warehouse Stock
Firing Pin Return Spring
066
C54731
Warehouse Stock
Firing Pin
067
C56426
Warehouse Stock
Firing Pin Retaining Pin
068
C90138
Warehouse Stock
Extractor Spring
069
C92155
Out Of Stock
Extractor Spring Plunger
071
C92154
In Stock
Extractor Retaining Pin
072
C58933
In Stock
Cocking Handle
073
C58096
Not Available
TRIGGER PLATE
074
C56551
Out Of Stock
391 Safety Button
075
C90042
Warehouse Stock
Safety Spring
076
C92044
Not Available
SAFETY SPRING PIN A301
077
C55300
Not Available
TRIGGER GOLD MAT AL390
078
C90093
In Stock
Trigger Spring
079
C92099
Not Available
TRIGGER SPRING GUIDE PLUNGER 12/20 GA AL3914
080
C52026
Not Available
TRIGGER STOP PIN - A301 GA 12 AND GA 20
081
C90094
Warehouse Stock
Locking Bolt Trip Spring
082
C92098
In Stock
Locking Bolt Trip Spring Plunger
083
C50757
Not Available
TRIGGER BUSH SEMIAUTO SERIE A300 AL391 A400 VARIOUS VERSIONS
084
C92094
Out Of Stock
391 Trigger Pin
085
C71020
Out Of Stock
391 12G Hammer
086
C50737
Out Of Stock
391 RH Hammer Brace
087
C50738
Out Of Stock
391 LH Hammer Brace
088
C56006
Warehouse Stock
AL391 12/20G Mainspring Guide
089
C90030
Out Of Stock
391 Mainspring
090
C55824
Out Of Stock
391 Mainspring Plunger
091
C97007
Not Available
ELASTIC PIN 3X20MM SERIE 92 96 98
092
C80675
Out Of Stock
391 Trigger Plate Pin Bush
093
C50072
Out Of Stock
391 Trigger Plate Pin Bush D-cup
094
C90235
Not Available
CARRIER CATCH PLUNGER SPRING SERIE AL391 A390 AL390 1200 1201
095
C55631
Not Available
CARRIER CATCH PLUNGER 12/20 GA AL391
096
C92214
Not Available
CARRIER CATCH PLUNGER PIN GA 12 AND GA 20 AL391 URIKA
097
C53579
C70526
Not Available
Not Available
ELEVATOR
ELEVATOR
098
C52973
Out Of Stock
391 Carrier Lever
099
C90083
Out Of Stock
391 Carrier Lever Spring
100
C92091
Out Of Stock
391 Carrier Lever Spring Plunger
101
C55221
Out Of Stock
391 Carrier Lever Retaining Rivet
102
C56158
Not Available
CARRIER SWIVEL JOINT 12/20 GA AL391
103
C56023
Not Available
ELEVATOR SPRING GUIDE 12/20 GA AL391
104
C90092
Out Of Stock
391 Carrier Swivel Spring
105
C56159
Out Of Stock
391 Carrier Swivel Joint Bottom
106
C92093
Not Available
CARRIER PIN 12 GA AL391
112
C56101
Not Available
FOREND FLANGE RIVET
