Beretta A400 Xplor Action 12G spare parts
Beretta A400 Xplor Action 12G Parts Guide
Use the exploded diagrams and part numbers below to find Beretta A400 Xplor Action 12G spares and accessories available from Blue Fieldsports.
Shop A400 Xplor Action 12G parts
Browse A400 Xplor Action 12G parts available from Blue Fieldsports.
Beretta A400 Xplor Action 12G exploded diagrams and parts
Trigger Group

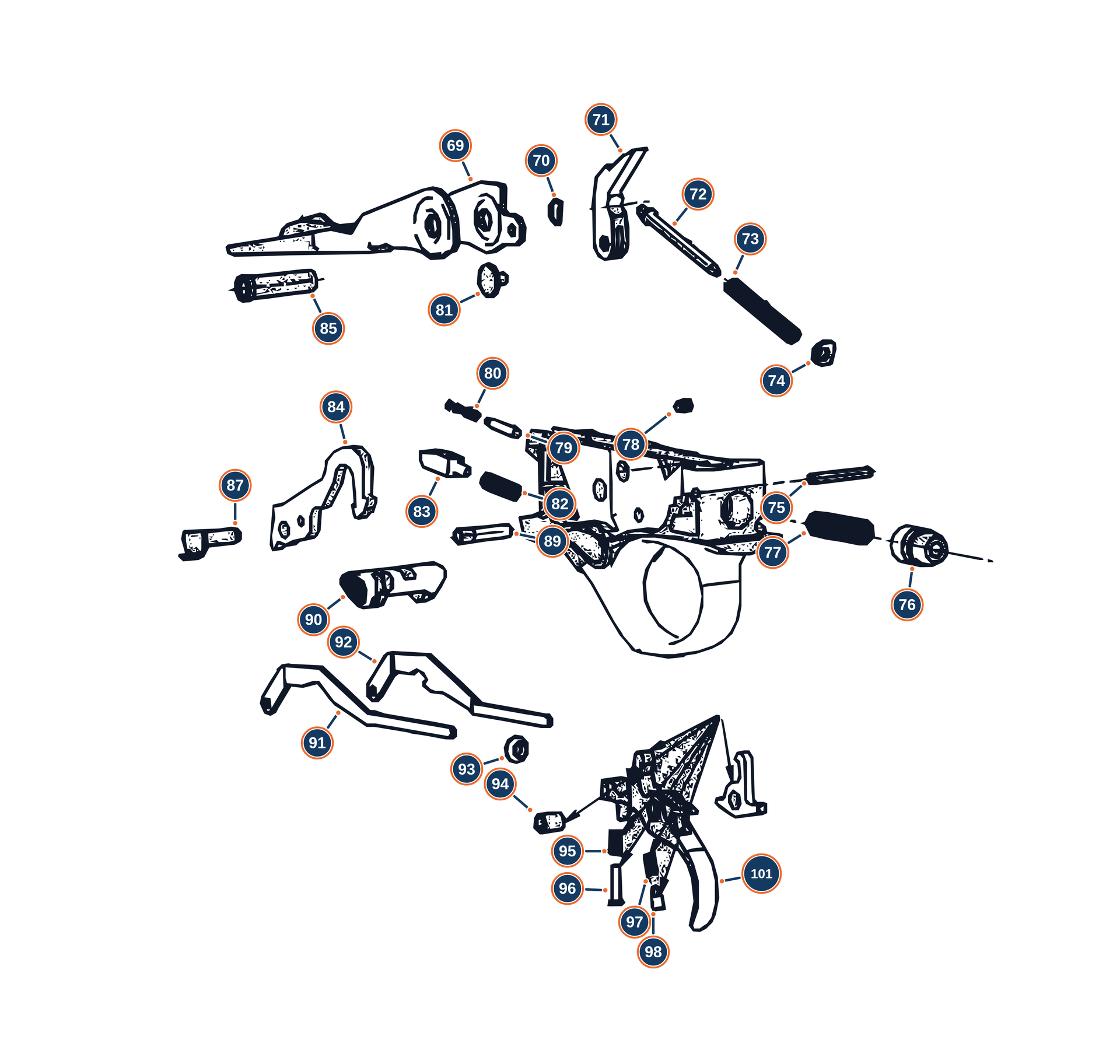

A400 Xplor Action 12G Trigger Group exploded diagram.
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 69 | |||
| 70 | |||
| 71 | |||
| 72 | BER-C5D533 | Not Available | Elevator Lever Spring Guide |
| 73 | |||
| 74 | |||
| 75 | |||
| 76 | BER-C5B992 | Not Available | Hammer Bag Holder |
| 77 | |||
| 78 | BER-C59072 | Not Available | Forend cap grain M 3x4 |
| 79 | |||
| 80 | |||
| 81 | |||
| 82 | BER-C95323 | Not Available | Elevator stop peg spring |
| 83 | |||
| 84 | |||
| 85 | |||
| 87 | BER-C92213 | Not Available | Hammer Pin Type |
| 89 | BER-C5F383 | Not Available | Trigger Pin Type |
| 90 | BER-C5D323 | Not Available | Ambidextrous safety |
| 91 | |||
| 92 | |||
| 93 | BER-C5D426 | Not Available | Hammer Spring Sleeve |
| 94 | BER-C50757 | Not Available | Trigger Compass |
| 95 | |||
| 96 | BER-C5D697 | Not Available | Trigger spring guide |
| 97 | |||
| 98 | BER-C92028 | Not Available | Spring Peg Retaining Snap |
| 101 |
Slide

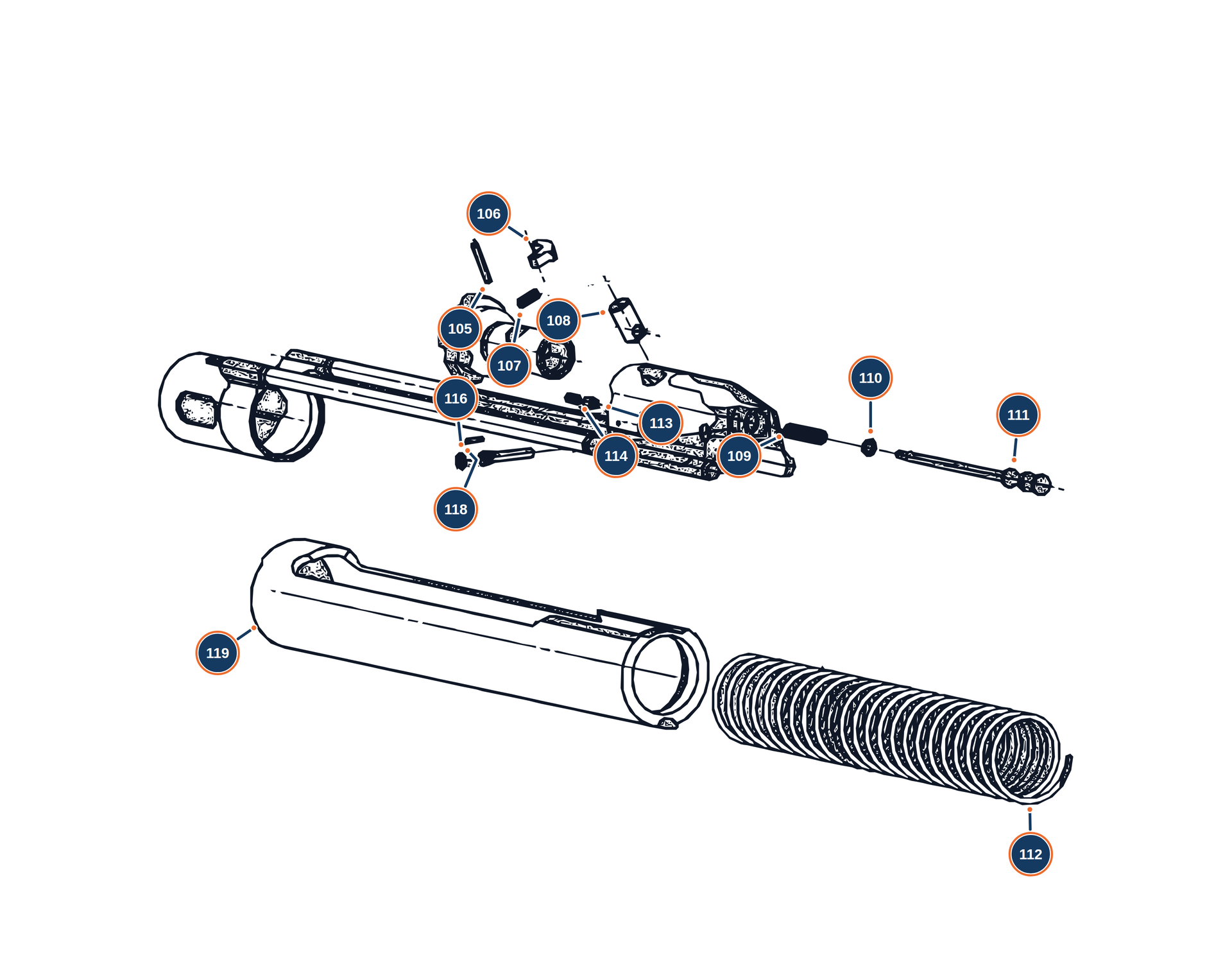

A400 Xplor Action 12G Slide exploded diagram.
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 105 | BER-C97887 | Not Available | Elastic plug 2x14 |
| 106 | BER-C59922 | Not Available | Extractor |
| 107 | |||
| 108 | |||
| 109 | |||
| 110 | |||
| 111 | |||
| 112 | |||
| 113 | |||
| 114 | |||
| 116 | |||
| 118 | |||
| 119 |
Forend

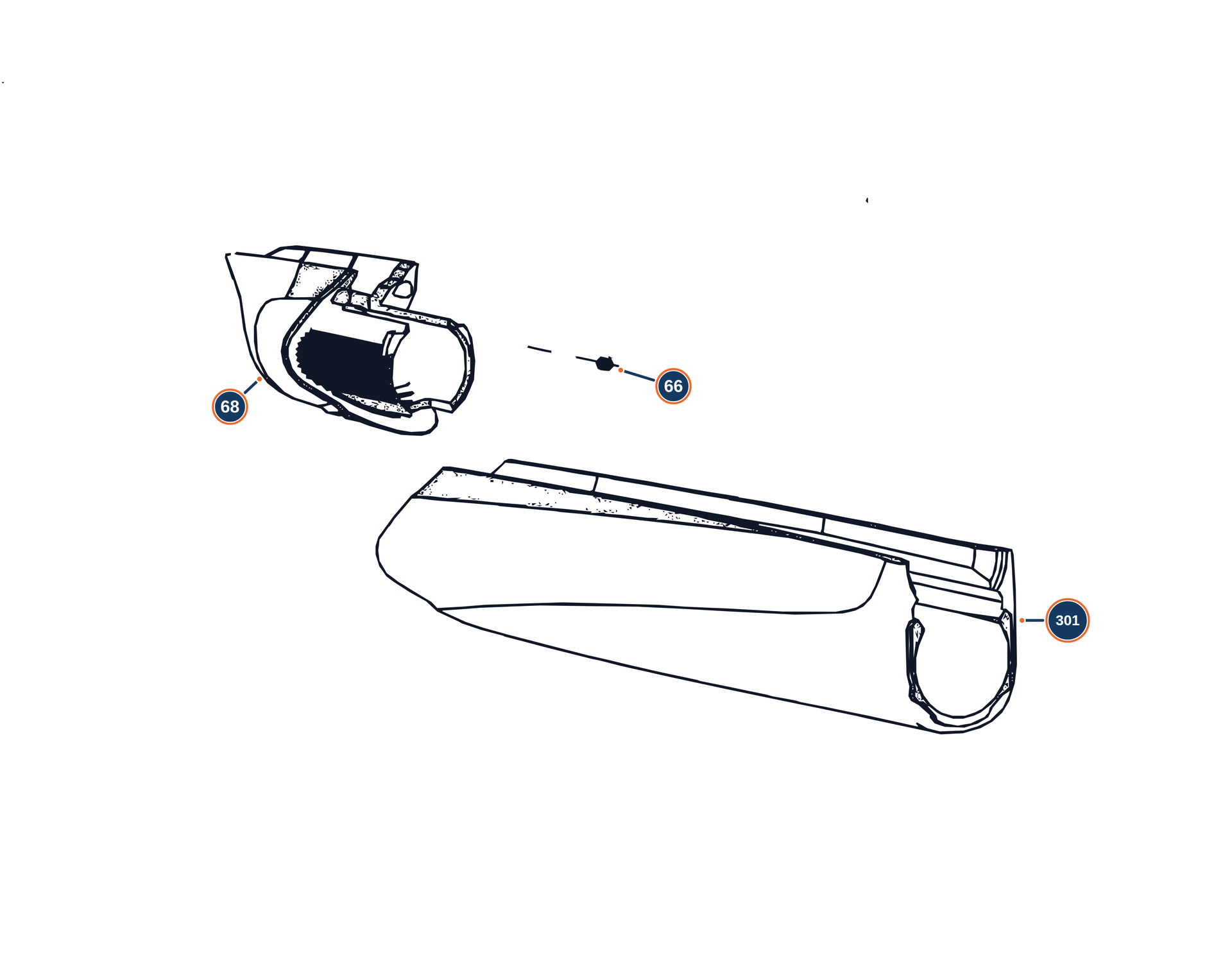

A400 Xplor Action 12G Forend exploded diagram.
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 66 | BER-C59072 | Not Available | Front Sight Hood |
| 68 | BER-C8A040 | Not Available | Front Sight Hood Assembly |
| 301 | BER-C8A420 | Not Available | Forend |
Gunpod

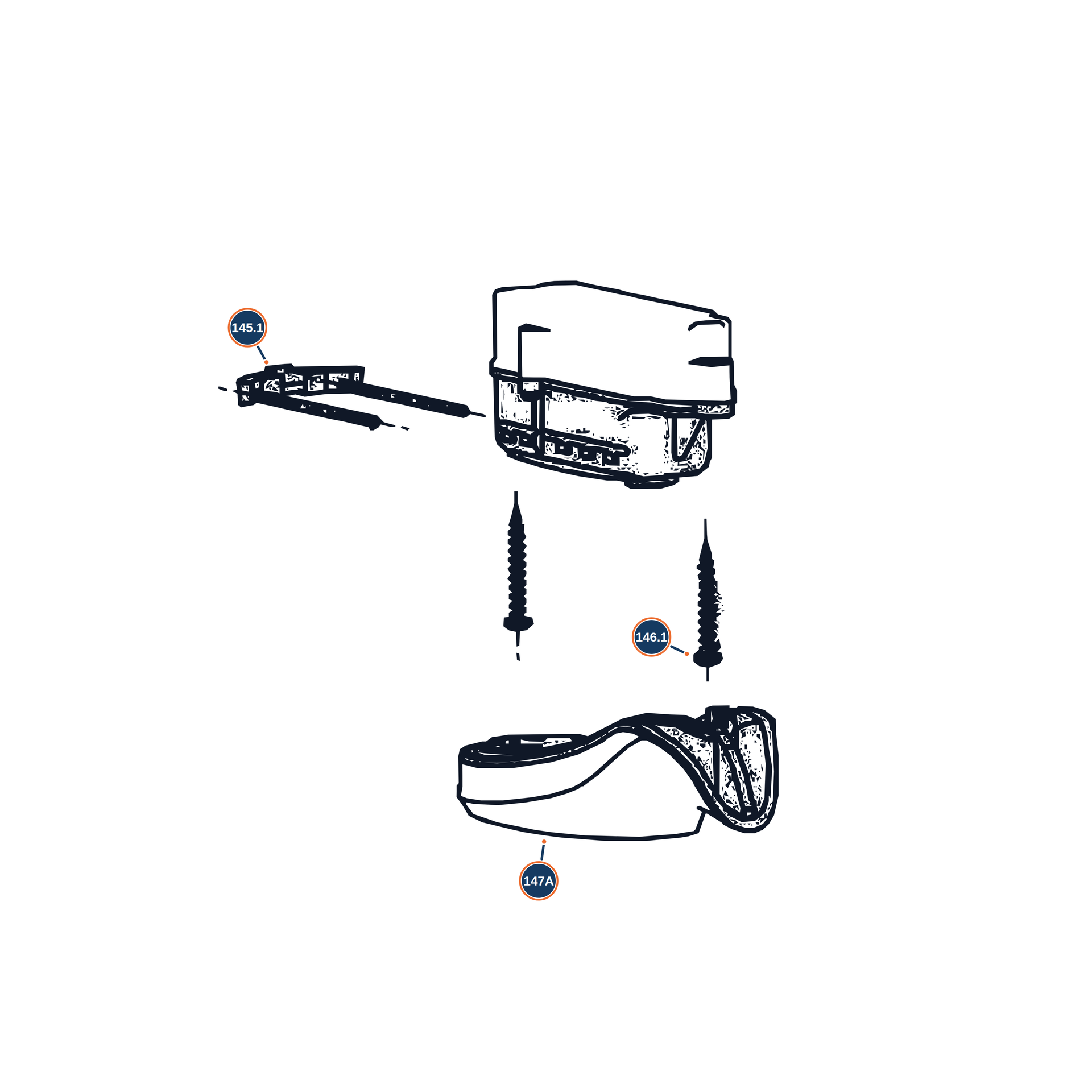

A400 Xplor Action 12G Gunpod exploded diagram.
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 145.1 | BER-C5E010 | Not Available | Gun Pod Retaining Spring |
| 146.1 | BER-C97253 | Not Available | Screw 146 |
| 147A | BER-C5D995 | Not Available | Buttstock Cap Gun Pod |
Overview

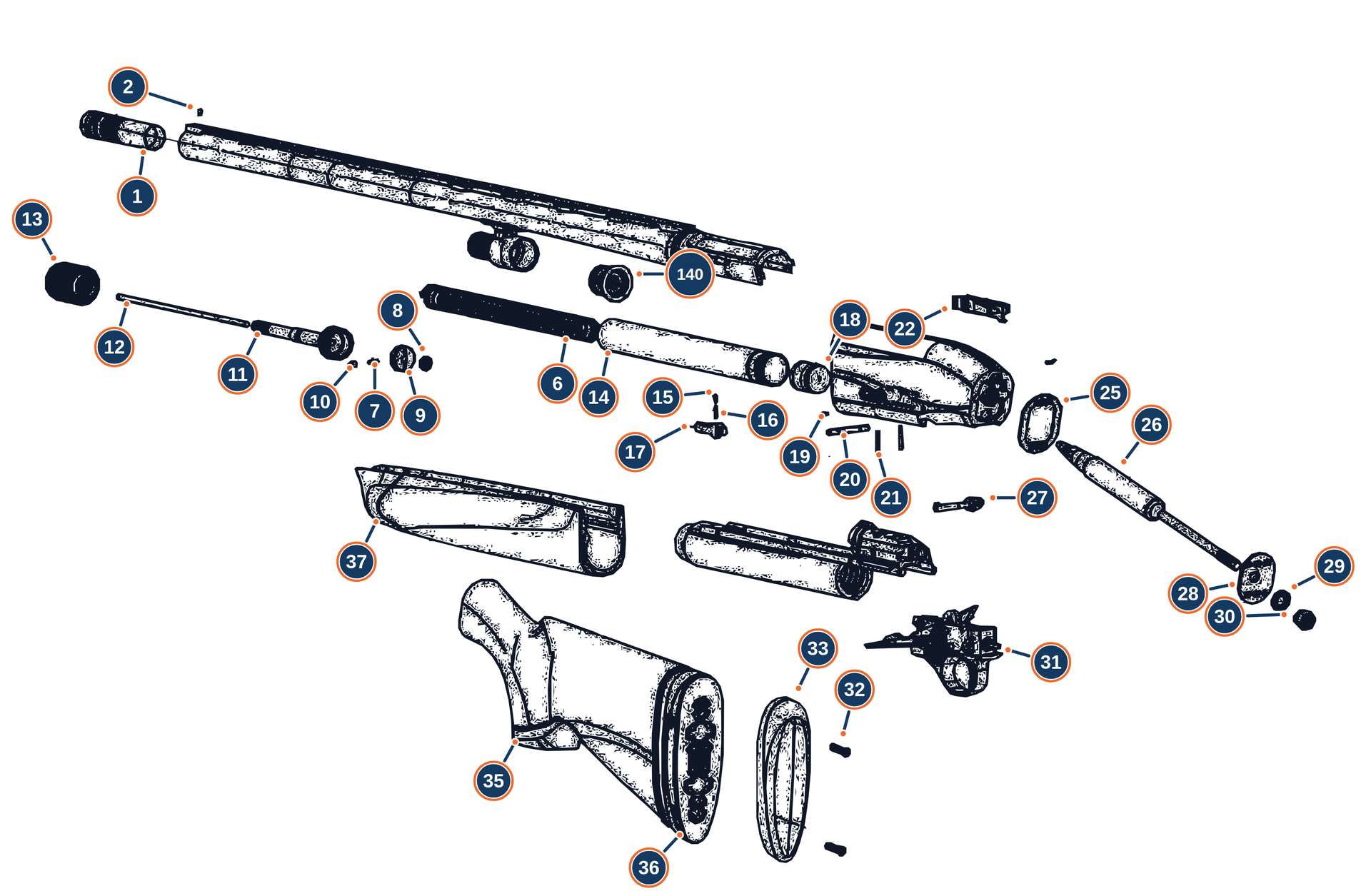

A400 Xplor Action 12G Overview exploded diagram.
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 1 | |||
| 2 | |||
| 6 | |||
| 7 | |||
| 8 | BER-C97192 | Not Available | Spring washer for fixing gearbox |
| 9 | |||
| 10 | |||
| 11 | |||
| 12 | BER-C5B984BER-C5B985 | Not Available Not Available | Tank reducer Tank reducer |
| 13 | |||
| 14 | BER-C5D196 | Not Available | Fuel Tank Hose |
| 15 | |||
| 16 | BER-C90377 | Not Available | Safety spring |
| 17 | BER-C89290 | Not Available | Cut off |
| 18 | |||
| 19 | |||
| 20 | |||
| 21 | |||
| 22 | |||
| 25 | |||
| 26 | |||
| 27 | |||
| 28 | |||
| 29 | |||
| 30 | |||
| 31 | |||
| 32 | |||
| 33 | |||
| 35 | BER-C8A865BER-E8A442BER-E8A443 | Not Available Not Available Not Available | Stock 1 Stock 1 Stock 1 |
| 36 | |||
| 37 | BER-C8A420 | Not Available | Forend |
| 140 |
Barrel

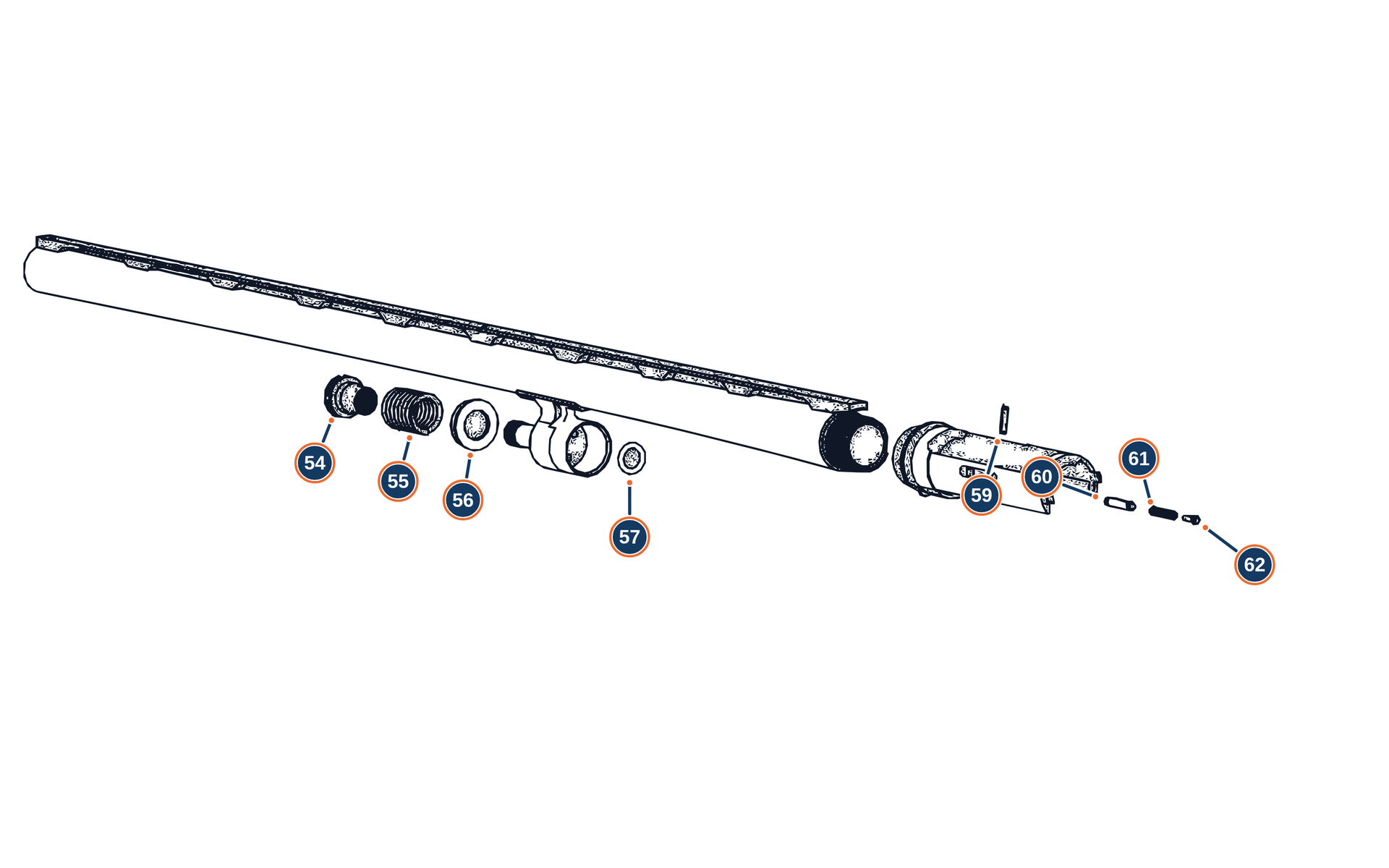

A400 Xplor Action 12G Barrel exploded diagram.
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 54 | |||
| 55 | |||
| 56 | |||
| 57 | |||
| 59 | |||
| 60 | BER-C5F324 | Not Available | Extractor |
| 61 | |||
| 62 |
Stock

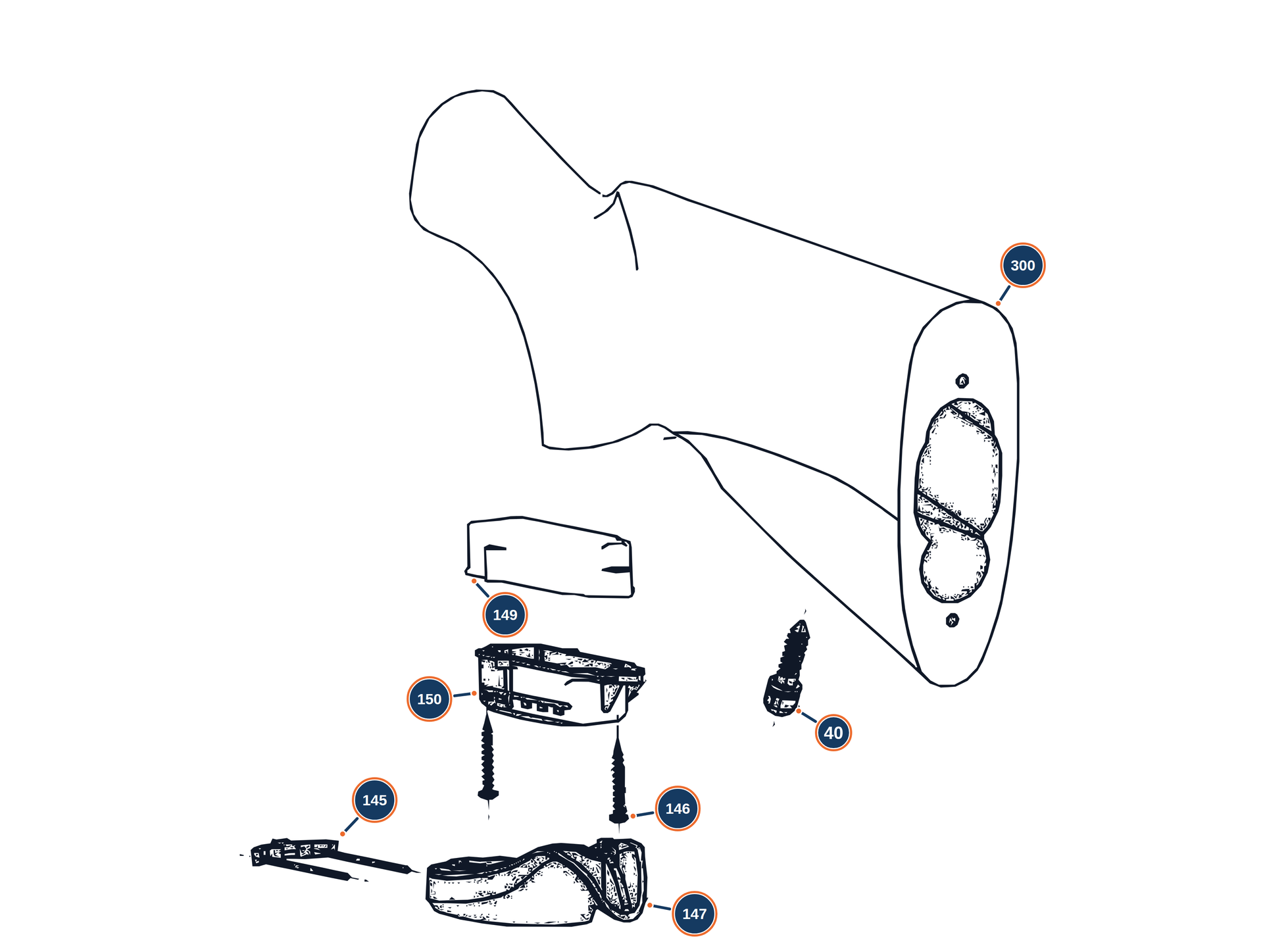

A400 Xplor Action 12G Stock exploded diagram.
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 40 | |||
| 145 | BER-C5E010 | Not Available | Spring Latch Gun Pod |
| 146 | BER-C97253 | Not Available | Screw 2.9x25 |
| 147 | BER-C5E471 | Not Available | Stock hammer nose no gun pod |
| 149 | BER-C5D986 | Not Available | Lower Counter Blow Cover |
| 150 | BER-C5D987 | Not Available | Upper Counter Blow Cover |
| 300 | BER-C8A865 | Not Available | Stock |
