Beretta A400 Xcel Sporting 12G Parts Guide
Exploded diagram, Beretta codes and linked spare parts for Beretta A400 Xcel Sporting 12G.

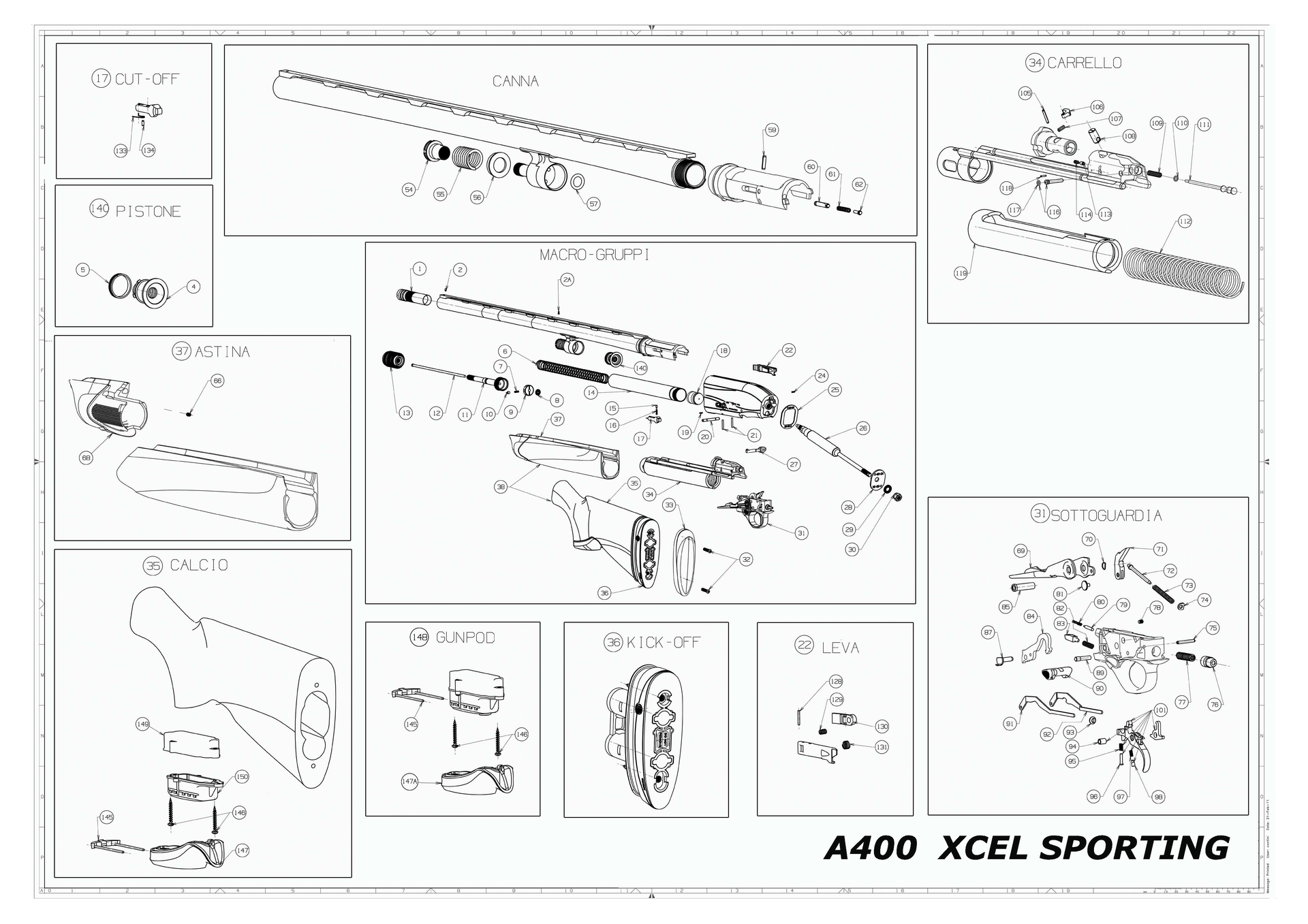

Exploded diagram
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 1 | |||
| 10 | |||
| 101 | |||
| 105 | |||
| 106 | C59922 | Not Available | EJECTOR A400 |
| 107 | |||
| 108 | |||
| 109 | |||
| 11 | |||
| 110 | |||
| 111 | |||
| 112 | |||
| 113 | |||
| 114 | |||
| 116 | |||
| 118 | |||
| 119 | |||
| 12 | C5B984C5B985 | Not Available Not Available | MAGAZINE REDUCER 1 SHOT - A400 ACTION CAL 12 - 20 - 28 MAGAZINE REDUCER 2 SHOTS - A400 ACTION GA 12 - 20 - 28 |
| 128 | C92212 | Not Available | CARTRIDGE LATCH LEVER PIN - AL391 URIKA GA 12 AND GA 20 |
| 129 | |||
| 13 | |||
| 130 | |||
| 131 | |||
| 133 | |||
| 134 | |||
| 14 | |||
| 140 | |||
| 145 | C5E010 | Not Available | GUN POD LOCKING SPRING |
| 146 | C97253 | Not Available | SCREW 2,9X25 |
| 147 | C5E471 | Not Available | PISTOL GRIP CAP FOR STOCK WITH NO GUN POD |
| 147A | C5D995 | Not Available | PISTOL GRIP CAP FOR GUNPOD A400 XPLOR ACTION GA 20 |
| 149 | C5D986 | Not Available | SHOT COUNTER BOTTOM COVER - A400 |
| 15 | |||
| 150 | C5D987 | Not Available | SHOT COUNTER UPPER COVER - A400 |
| 16 | C90377 | Not Available | CARTRIDGE LATCH SPRING - SAFETY SPRING SERIE A400 GA 12 AND GA 20 |
| 17 | C89290 | Not Available | CUT OFF ASSY FOR SERIE A400 GA 12 20 28 |
| 2 | C53673 | Not Available | SIGHT FRONT |
| 20 | |||
| 21 | |||
| 22 | |||
| 25 | |||
| 26 | |||
| 27 | |||
| 28 | |||
| 29 | |||
| 2A | |||
| 30 | |||
| 31 | |||
| 32 | |||
| 34 | AKF76118111111BOLT | Not Available | SEMIAUTO A400 GA 12 BLUED STANDARD |
| 35 | C8A439 | Not Available | STOCK PISTOL GRIP XTRA GRAIN FINISH WITH KICK-OFF FOR A400XCEL SPORTING BLACK EDITION GA 12 |
| 36 | |||
| 37 | |||
| 38 | C8A202C8A203 | Not Available Not Available | SET STOCK PISTOL GRIP XTRAGRAIN FINISH WITH KICK-OFF AND FOREND - A400 XCEL SPORTING GA 12 SET CALCIO PISTOL GRIP WITH KICK-OFF AND ROUND COUNTER OIL FINISH CLASS 2 AND FOREND - A400 XCEL SPORTING GA 12 |
| 4 | C5D198 | Not Available | PISTON |
| 5 | |||
| 54 | |||
| 55 | |||
| 56 | |||
| 57 | |||
| 59 | C92287 | Not Available | EJECTOR SPRING A400 |
| 6 | |||
| 60 | C5F324 | Not Available | EJECTOR A400 XPLOR ACTION GA 20 - GA 28 |
| 61 | |||
| 62 | |||
| 66 | C59072 | Not Available | FORE END COVER DOWEL SEMIAUTO GA 12 |
| 68 | C8A040 | Not Available | FOREND COVER ASSY A400 XPLOR GA 12 |
| 69 | |||
| 7 | |||
| 70 | |||
| 71 | |||
| 72 | C5D533 | Not Available | ELEVATOR LEVER SPRING GUIDE A400 |
| 73 | |||
| 74 | |||
| 75 | |||
| 76 | C5B992 | Not Available | HAMMER SPRING GUIDE 12 GA A400 |
| 77 | |||
| 79 | |||
| 8 | C97192 | Not Available | MAGAZINE REDUCE PLUG RETAINING WASHER 12/20 GA AL391 - A400 |
| 80 | |||
| 81 | |||
| 82 | C95323 | Not Available | ELEVATOR STOP PIN SPRING A400 |
| 83 | |||
| 84 | C7E421 | Not Available | HAMMER ASSY - AX800 GA 12 / A400L GA 12 |
| 85 | |||
| 87 | C92213 | Not Available | HAMMER PIN |
| 89 | C5F383 | Not Available | TRIGGER PIN A400 ACTION |
| 9 | |||
| 90 | C5D323 | Not Available | SAFETY AMBIDEXTROUS A400 ACTION, NOVATOR, A400 LITE, A400 XTREME, A400 ACTION LEFT HAND LH SINISTRO SX |
| 91 | |||
| 92 | |||
| 93 | C5D426 | Not Available | HAMMER SPRING BUSH - SERIE A400 GA 12 - 20 / SERIE A300 GA 12 / 20 |
| 94 | C50757 | Not Available | TRIGGER BUSH SEMIAUTO SERIE A300 AL391 A400 VARIOUS VERSIONS |
| 95 | |||
| 96 | C5D697 | Not Available | TRIGGER SPRING GUIDE A400 |
| 98 |
