Beretta A400 Lite 12G spare parts

Beretta A400 Lite 12G Parts Guide

Use the exploded diagrams and part numbers below to find Beretta A400 Lite 12G spares and accessories available from Blue Fieldsports.

Beretta A400 Lite 12G exploded diagrams and parts

Trigger Group

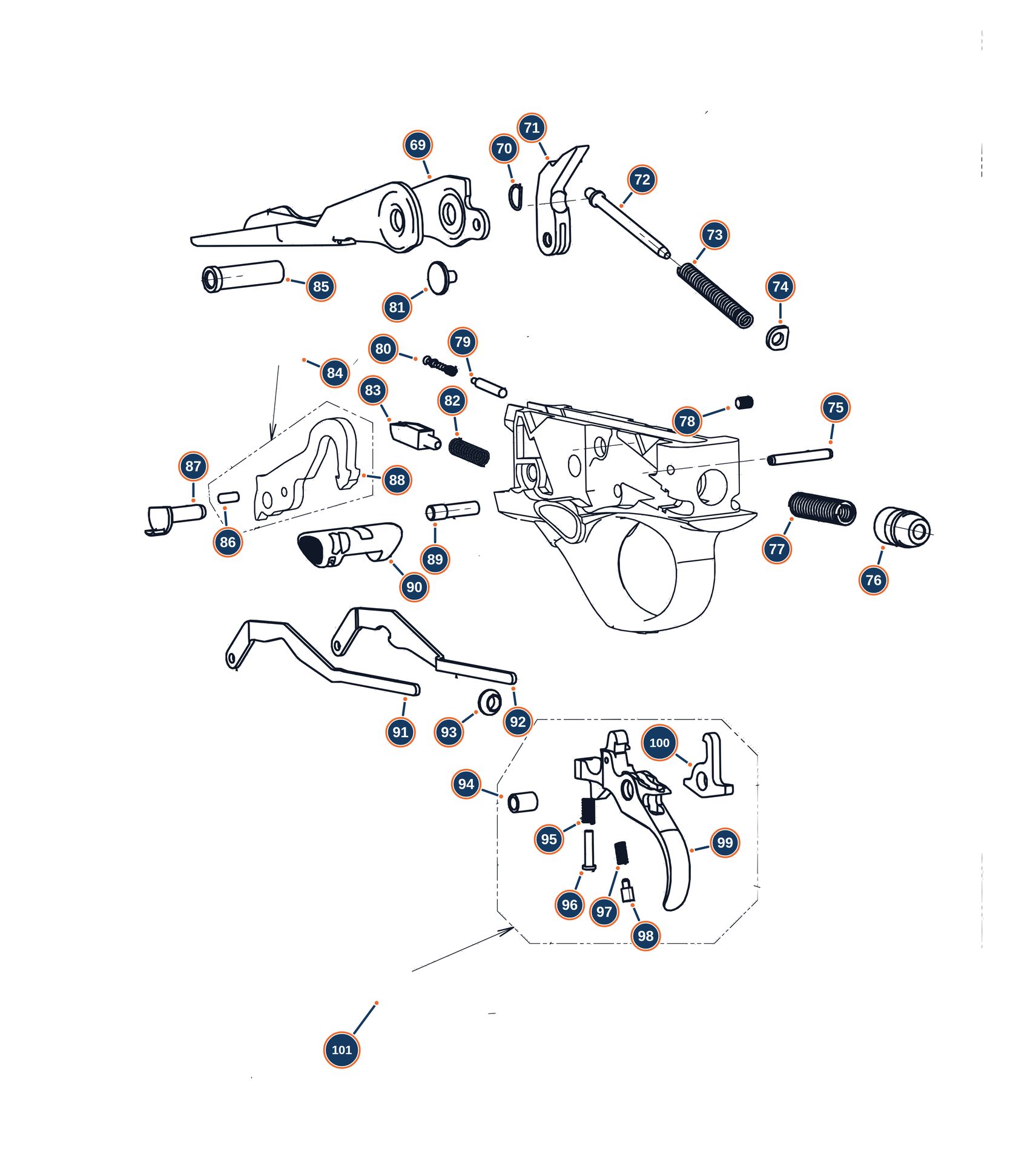

A400 Lite 12G Trigger Group exploded diagram.

Position	Beretta Code	Stock	Description & Product Link
69	`BER-C5D552`	Warehouse Stock	Carrier 3 Inch
70	`BER-C5A326`	In Stock	Trigger Bush D-Clip
71	`BER-C5D343`	Warehouse Stock	Carrier Lever
72	`BER-C5D533`	Not Available	Lever Spring Guide
73	`BER-C95315`	Warehouse Stock	Carrier Lever Spring
74	`BER-C5D774`	Warehouse Stock	Carrier Lever Spring Guide Plate
75	`BER-C97093`	Warehouse Stock	Elastic Pin
76	`BER-C5B992`	Not Available	Hammer Spring Guide
77	`BER-C97258`	Warehouse Stock	Hammer Spring
78	`BER-C59072`	Not Available	Fore-End Cover Dowel
79	`BER-C58985`	Warehouse Stock	Safety Spring Plunger
80	`BER-C90382`	Warehouse Stock	Safety Spring
81	`BER-C92286`	Warehouse Stock	Carrier Lever Pin
82	`BER-C95323`	Not Available	Elevator Stop Pin Spring
83	`BER-C59929`	Warehouse Stock	Carrier Stop Pin
84	`BER-C76616`	Warehouse Stock	Hammer
85	`BER-C5D775`	Warehouse Stock	Elevator Bush
86	`BER-C92398`	Not Available	Sling swivel pin
87	`BER-C92213`	Not Available	Hammer Pin
88	`BER-C76616`	Warehouse Stock	Hammer
89	`BER-C5F383`	Not Available	Trigger Pin
90	`BER-C5D323`	Not Available	Ambidextrous Safety
91	`BER-C5D328`	Warehouse Stock	Left Hammer Brace
92	`BER-C5D329`	Warehouse Stock	Right Hammer Brace
93	`BER-C5D426`	Not Available	Firing spring bush
94	`BER-C50757`	Not Available	Trigger Bush
95	`BER-C90093`	Warehouse Stock	Trigger Spring
96	`BER-C5D697`	Not Available	Trigger Spring Guide
97	`BER-C90094`	Warehouse Stock	Locking Bolt Trip Spring
98	`BER-C92098`	Warehouse Stock	Locking Bolt Trip Spring Plunger
99	`BER-C88449`	Warehouse Stock	Chrome Trigger Assembly
100	`BER-C5D838`	Not Available	Sear spring detent
101	`BER-C88449`	Warehouse Stock	Chrome Trigger Assembly

Slide

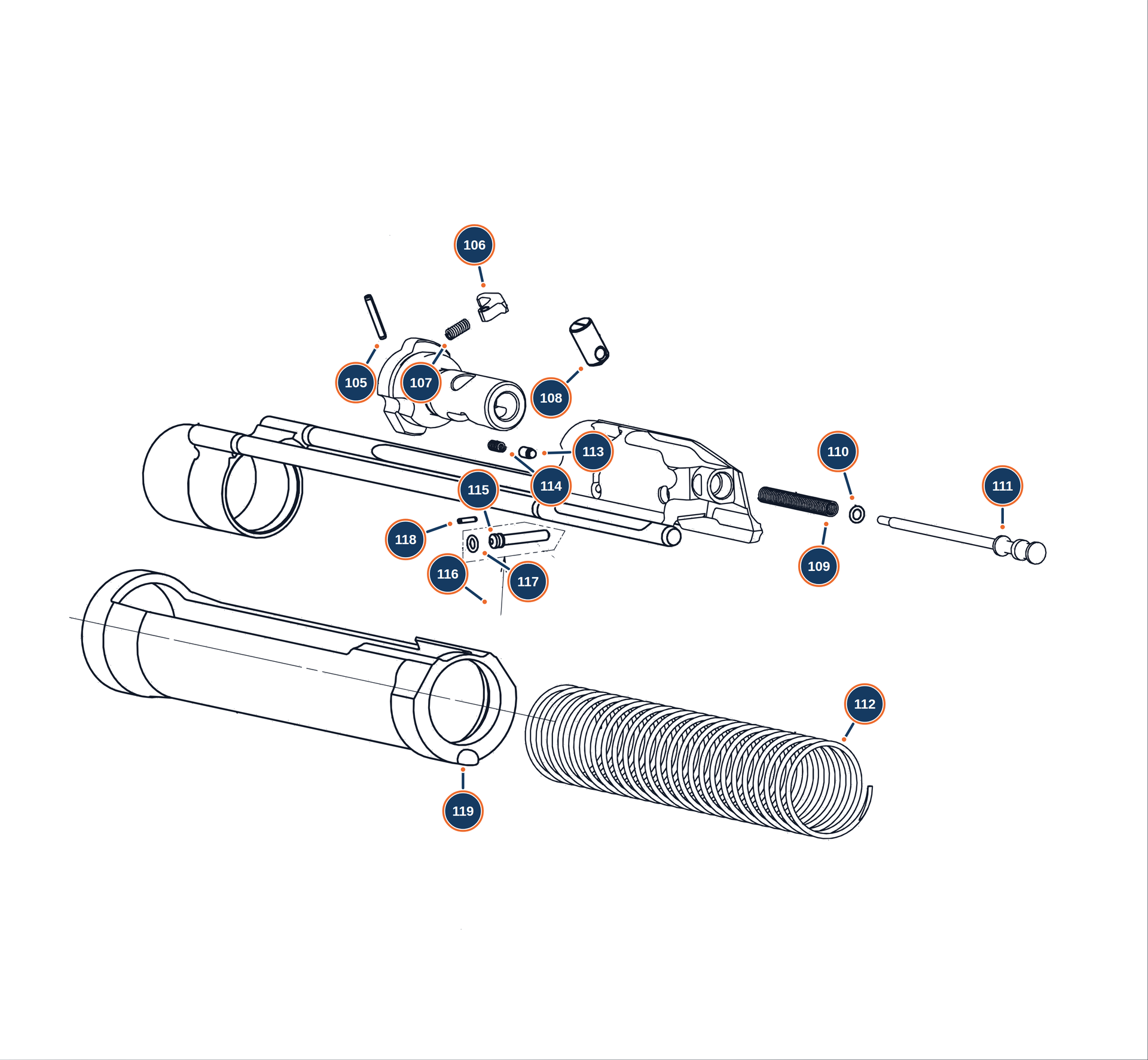

A400 Lite 12G Slide exploded diagram.

Position	Beretta Code	Stock	Description & Product Link
105	`BER-C97087`	Warehouse Stock	Elastic Roll Pin 2x14
106	`BER-C5G282`	Warehouse Stock	Extractor
107	`BER-C95316`	Warehouse Stock	Extractor Spring
108	`BER-C92278`	Warehouse Stock	Breech Bolt Pin
109	`BER-C95322`	Warehouse Stock	Firing Pin Spring
110	`BER-C5A354`	In Stock	Striker Retaining O-Ring
111	`BER-C5D326`	Warehouse Stock	Firing Pin
112	`BER-C95466`	Warehouse Stock	Recoil Spring
113	`BER-C59930`	Warehouse Stock	Cocking Handle Plunger
114	`BER-C95324`	Warehouse Stock	Cocking Handle Plunger Spring
115	`BER-C72332`	Warehouse Stock	Firing Pin Retaining Pin Assembly
116	`BER-C72332`	Warehouse Stock	Firing Pin Retaining Pin Assembly
117	`BER-C5A354`	In Stock	Striker Retaining O-Ring
118	`BER-C97122`	Warehouse Stock	Cocking Handle Roll Pin
119	`BER-C5F183`	Not Available	Piston stop

Forend

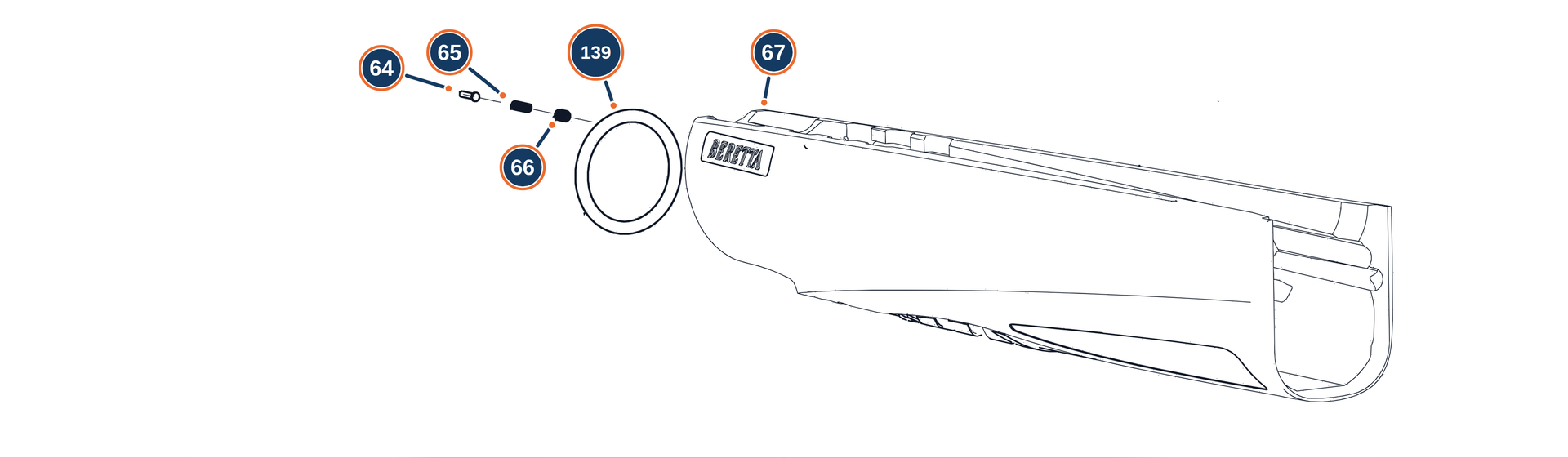

A400 Lite 12G Forend exploded diagram.

Position	Beretta Code	Stock	Description & Product Link
64	`BER-C59070`	Not Available	Forend cap pin
65	`BER-C59071`	Not Available	Forend cap spring
66	`BER-C59072`	Not Available	Fore-End Cover Dowel
67	`BER-C8C215`	Not Available	Forend
139	`BER-C5A033`	Warehouse Stock	Forend Cap Washer

Stock Bolt Absorber

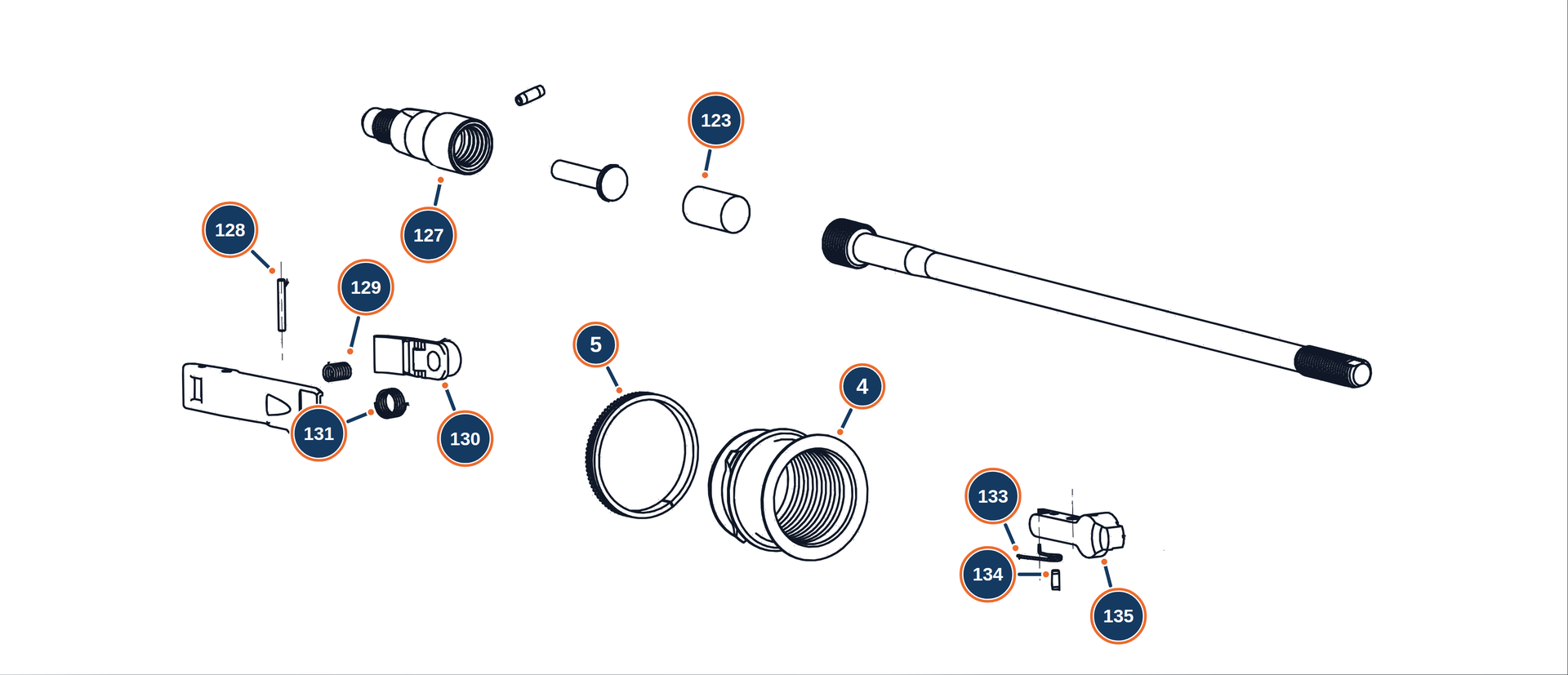

A400 Lite 12G Stock Bolt Absorber exploded diagram.

Position	Beretta Code	Stock	Description & Product Link
4	`BER-C8A961`	Warehouse Stock	Gas Piston Assembly
5	`BER-C5A040`	Warehouse Stock	Piston Ring
123	`BER-C5E281`	Not Available	Shock absorber
127	`BER-C5E268`	Not Available	Shock absorber rod cap
128	`BER-C92212`	Not Available	Cartridge Latch Pin
129	`BER-C90231`	Warehouse Stock	Cartridge Latch Spring
130	`BER-C58594`	Warehouse Stock	Cartridge Latch
131	`BER-C90350`	Warehouse Stock	Cartridge Latch Body Spring
133	`BER-C53790`	Warehouse Stock	Cut Off Spring
134	`BER-C97038`	In Stock	Cut Off Spring Pin
135	`BER-C89290`	Not Available	Cut-Off

Overview

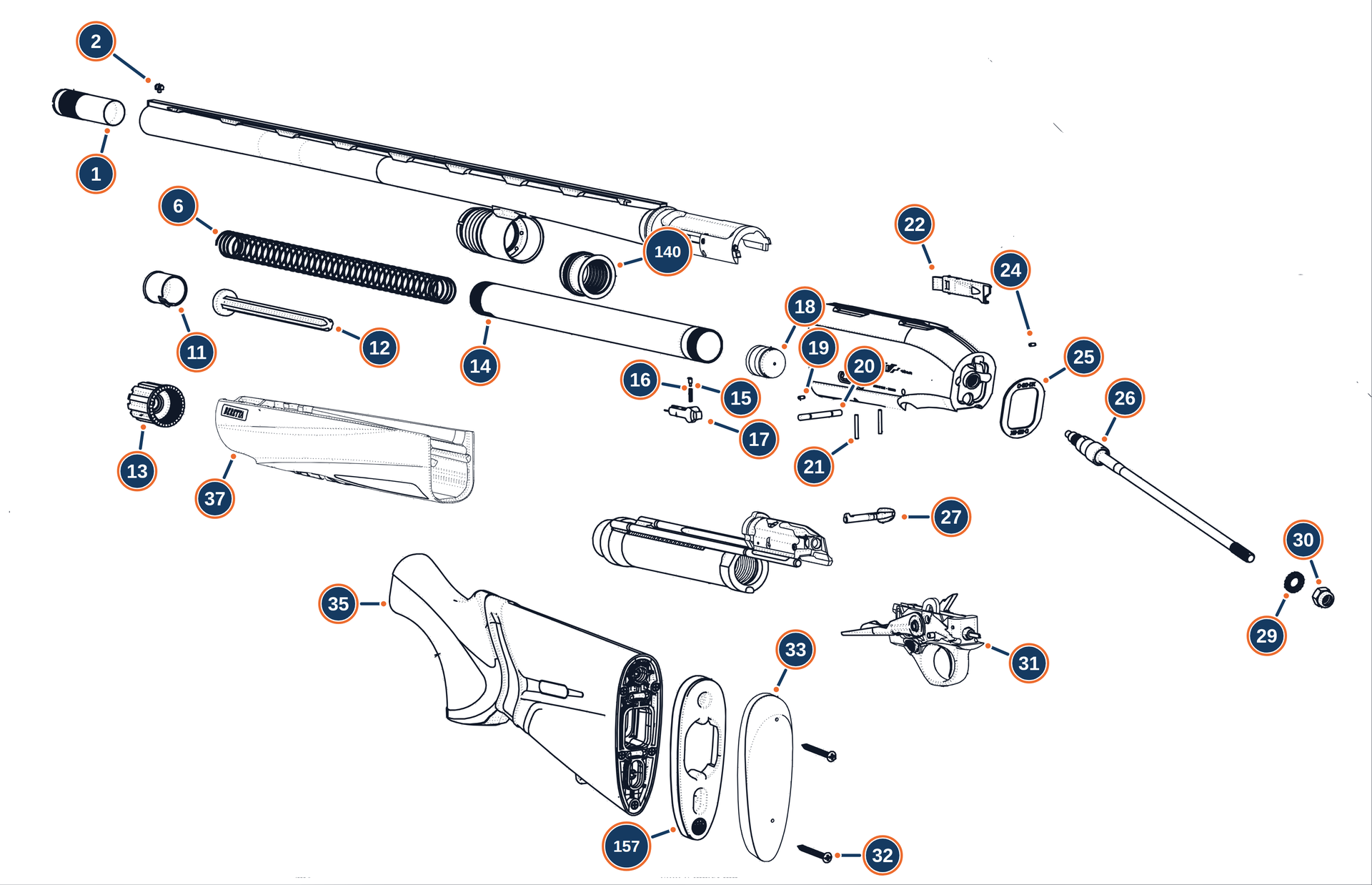

A400 Lite 12G Overview exploded diagram.

Position	Beretta Code	Stock	Description & Product Link
1	`BER-C62070` `BER-C62071` `BER-C62072` `BER-C62073` `BER-C62074`	Warehouse Stock Warehouse Stock Warehouse Stock Warehouse Stock Warehouse Stock	Choke - OptimaChoke HP Flush 12G Full Choke - OptimaChoke HP Flush 12G 3/4 Choke - OptimaChoke HP Flush 12G 1/2 OptimaChoke HP Flush 1/4 Choke 12G Choke - OptimaChoke HP Flush 12G Cylinder
2	`BER-C55674`	Out Of Stock	Small Red Front Bead Sight
6	`BER-C9A017`	Warehouse Stock	Magazine Spring 12G
11	`BER-C59944`	Warehouse Stock	Magazine Tube Cap 12G
12	`BER-C5F636` `BER-C5F637`	Not Available Not Available	Reducer Reducer
13	`BER-C8A157`	Warehouse Stock	Forend Nut
14	`BER-C5F638` `BER-C5F639`	Not Available Warehouse Stock	Short Cross Magazine Tube A400 12 ga Crimped Magazine Tube 12G
15	`BER-C92034`	Warehouse Stock	Cut Off Switch Plunger
16	`BER-C90377`	Not Available	Cut-off spring for A400 series
17	`BER-C89290`	Not Available	Cut-Off for A400 series all gauges
18	`BER-C5B602`	Warehouse Stock	Magazine Follower 12G
19	`BER-C97038`	In Stock	Cut Off Spring Pin
20	`BER-C92407`	In Stock	Trigger Group Pin
21	`BER-C92168`	In Stock	Carrier Latch Retaining Pin
22	`BER-C8B012`	Warehouse Stock	Cartridge Latch Assembly 12G
24	`BER-C97038`	In Stock	Cut Off Spring Pin
25	`BER-C58978` `BER-C58979`	Warehouse Stock Warehouse Stock	Front Stock Shim 55/60 Front Stock Shim 50/65
26	`BER-C8A321`	Warehouse Stock	Recoil Tube Assembly
27	`BER-C5J292`	Warehouse Stock	Cocking Handle Blued 12G 20G
29	`BER-C97200`	Warehouse Stock	Stock Retaining Nut Washer
30	`BER-C97174`	Warehouse Stock	Stock Retaining Nut
31	`BER-C89785`	Warehouse Stock	Trigger Group Assembly Black Light/Xcel/Action
32	`BER-C95192` `BER-C95386`	In Stock In Stock	Pad Screw - 40mm Extra Long Pad Screw - 70mm
33	`BER-E73004` `BER-E73005` `BER-E73006` `BER-E73028`	In Stock In Stock Out Of Stock In Stock	MicroCore Field Recoil Pad 20mm MicroCore Field Recoil Pad 15mm MicroCore Field Recoil Pad 10mm MicroCore Field Recoil Pad 25mm
35	`BER-C8C218` `BER-C8C223` `BER-C8C405`	Not Available Not Available Not Available	Stock Stock Stock
37	`BER-C8C215`	Not Available	Forend
140	`BER-C8A961`	Warehouse Stock	Gas Piston Assembly
157	`BER-C5E610` `BER-C5E615`	Warehouse Stock Out Of Stock	12G / 20G Polymer Spacer Field 25mm 12G / 20G Polymer Spacer Field 12.5mm

Barrel

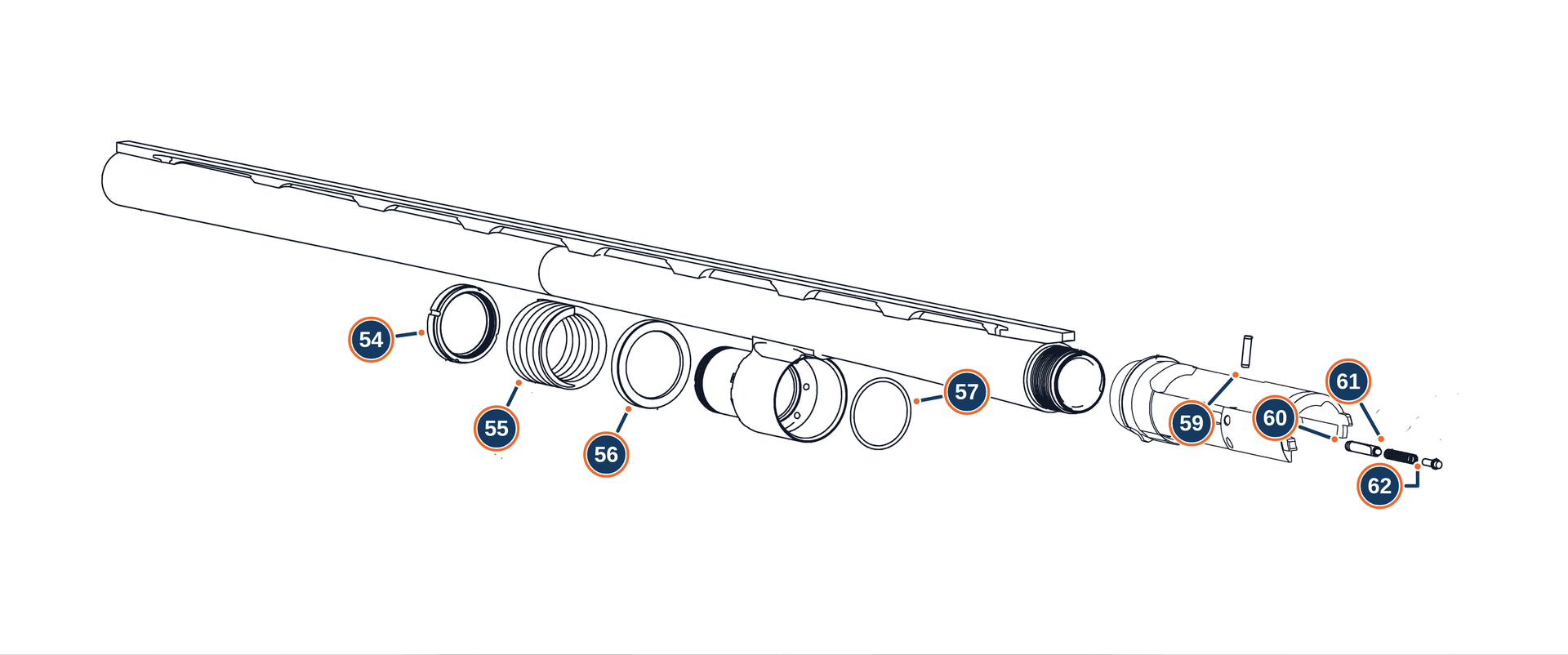

A400 Lite 12G Barrel exploded diagram.

Position	Beretta Code	Stock	Description & Product Link
54	`BER-C5E324`	Out Of Stock	Gas Valve Locking Ring
55	`BER-C9A004`	Not Available	Valve spring
56	`BER-C5A041`	Not Available	Valve
57	`BER-C5A038`	In Stock	Gas Valve O-Ring
59	`BER-C92287`	In Stock	Ejector Roll Pin
60	`BER-C5G575`	Warehouse Stock	Ejector
61	`BER-C90378`	Warehouse Stock	Ejector Spring 3 Inch
62	`BER-C92393`	Warehouse Stock	Ejector Spring Guide 3 Inch

Stock

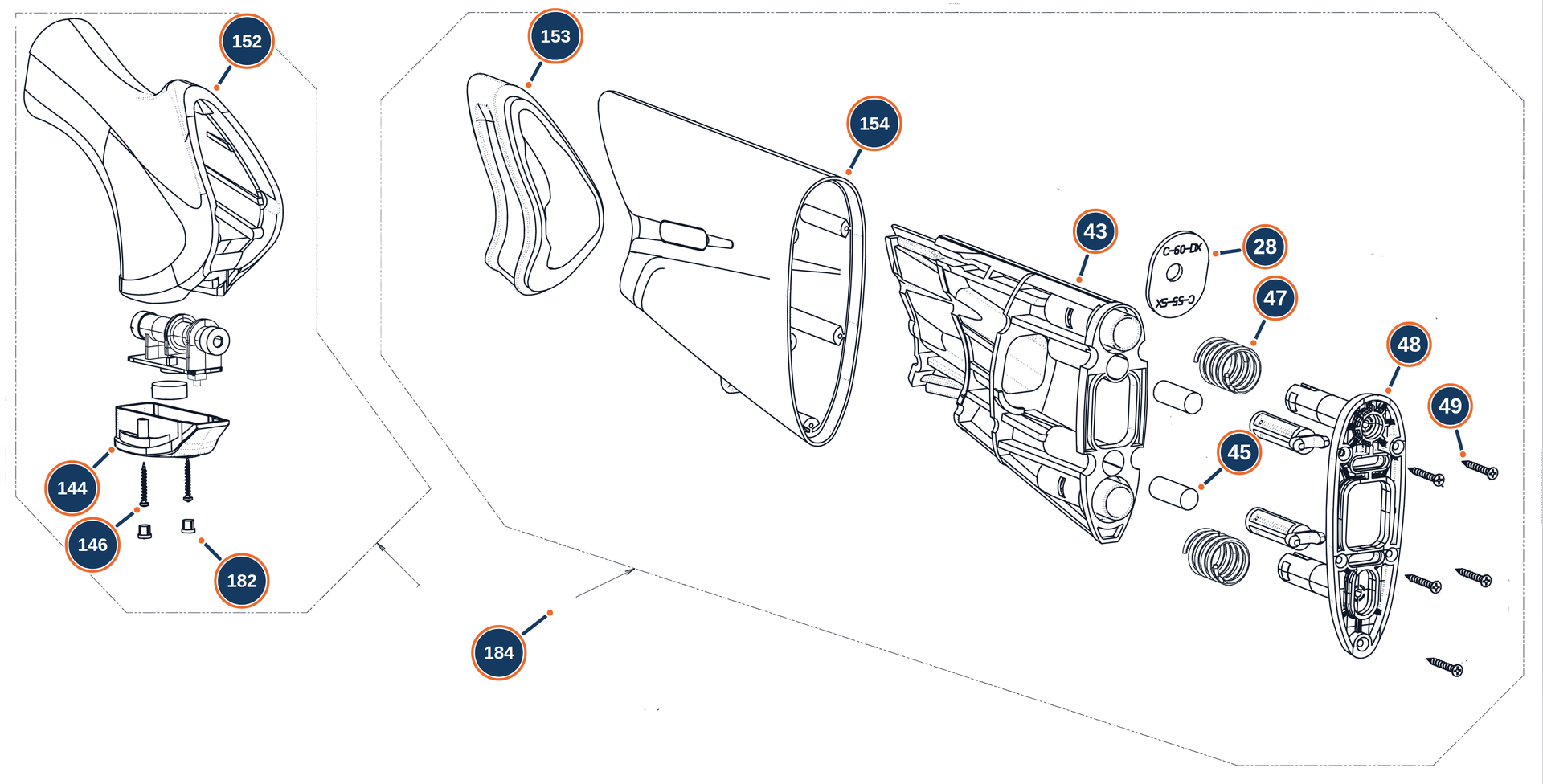

A400 Lite 12G Stock exploded diagram.

Position	Beretta Code	Stock	Description & Product Link
28	`BER-C55403` `BER-C55404`	Warehouse Stock Warehouse Stock	Stock Drop Plate 50/65 Stock Drop Plate 55/60
43	`BER-C5E557`	Not Available	Kick-Off Insert Stock
45	`BER-C5E281`	Not Available	Shock absorber
47	`BER-C95404`	Not Available	Kick-Off Spring
48	`BER-C5E558`	Not Available	Kick-Off Plate
49	`BER-C97262`	Not Available	Screw for plastic 3x25
144	`BER-C5E604`	Not Available	Stock Gun Pod Cover
146	`BER-C97253`	Not Available	Screw 2,9x25
152	`BER-C5F786`	Not Available	Kick-off stock grip
153	`BER-C5E556`	Warehouse Stock	Stock Middle Rubber Insert
154	`BER-C5F797`	Not Available	Stock blade
182	`BER-C5F009`	Not Available	Screw cover for gun pod
184	`BER-C8C227`	Not Available	Kick-off stock blade

Exploded diagram

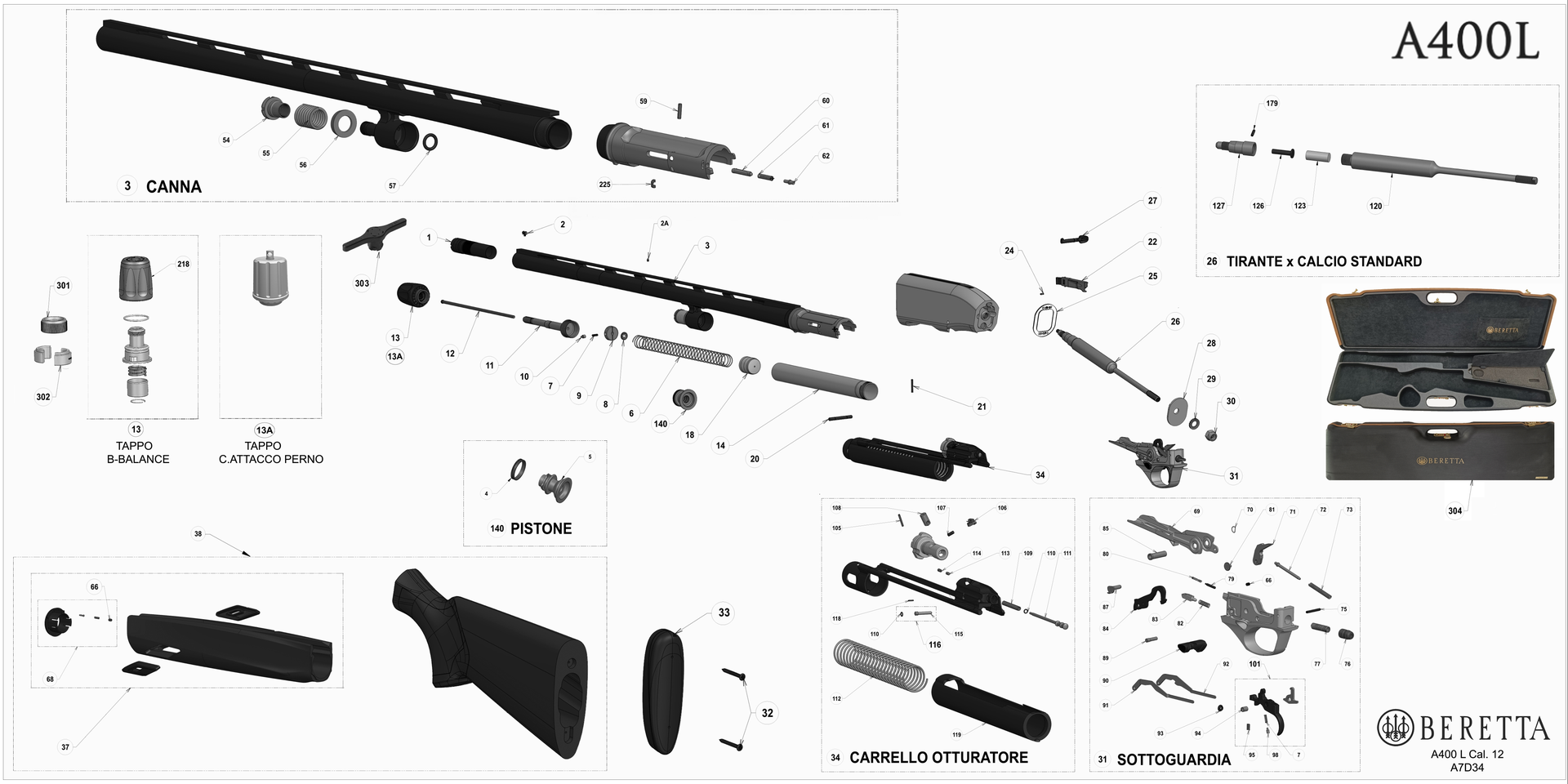

Beretta A400 L 12G exploded parts diagram

Position	Beretta Code	Stock	Description & Product Link
001	`C62070` `C62071` `C62072` `C62073` `C62074` `C6A233` `C6A234` `C6A235` `C6A236` `C6A237` `C6A238` `C6A311` `C6A312` `C6A313` `C6A461` `C6D931` `C6D933`	Not Available Not Available Not Available Not Available Not Available Out Of Stock Out Of Stock Out Of Stock Out Of Stock Out Of Stock Out Of Stock Warehouse Stock Warehouse Stock Warehouse Stock Warehouse Stock Not Available Not Available	OCHP12 FLUSH - F OCHP12 FLUSH - IM OCHP12 FLUSH - M OCHP12 FLUSH - IC OCHP12 FLUSH - C Optima HP Choke Black Edition - 50mm Extended Optima HP Choke Black Edition - 50mm Extended Optima HP Choke Black Edition - 50mm Extended Optima HP Choke Black Edition - 50mm Extended Optima HP Choke Black Edition - 50mm Extended Optima-Choke HP Extended 20mm 12G Black Skeet Choke Optima-Choke HP Extended 20mm 12G Black Light Full Choke Optima-Choke HP Extended 20mm 12G Black Light Modified Choke Optima-Choke HP Extended 20mm 12G Black USA Skeet Choke Optima-Choke HP Extended 20mm 12G Black Extra Full Choke OCHP12 FLUSH - RIFLED OCHP12 + 2cm BLACK EDITION - RIFLED
002	`C5G102`	Warehouse Stock	Black Multi-Target Front Bead
002A	`C5E690`	Out Of Stock	Mid Bead Sight
005	`C5B969`	Out Of Stock	Piston Ring
006	`C9A008`	Warehouse Stock	Magazine Spring
007	`C90094`	Warehouse Stock	Locking Bolt Trip Spring
008	`C97192`	Not Available	MAGAZINE REDUCE PLUG RETAINING WASHER 12/20 GA AL391 - A400
009	`C59094`	Warehouse Stock	Magazine Tube Cap Packing 12G
010	`C59095`	Warehouse Stock	Magazine Tube Cap Stop Pin 12G
011	`C5E417`	Out Of Stock	Magazine Tube Cap
012	`C5B985`	Not Available	MAGAZINE REDUCER 2 SHOTS - A400 ACTION GA 12 - 20 - 28
013	`C8P435`	Out Of Stock	A400L Forend Nut Balance 12G
013A	`C8D616`	Not Available	FRONT PLUG ASSY A400 UPLAND
014	`C5E418` `C5E616`	Out Of Stock Out Of Stock	Magazine Tube Uncrimped Magazine Tube Crimped
018	`C5H864`	Not Available	MAGAZINE TUBE PLUG COLOR GREEN A400 XTREME PLUS
020	`C92407`	In Stock	Trigger Group Pin
021	`C92168`	In Stock	Carrier Latch Retaining Pin
022	`C8N615`	Out Of Stock	A400L Cartridge Latch Assembly
024	`C97038`	In Stock	Cut Off Spring Pin
025	`C58978`	Warehouse Stock	Front Stock Shim 55/60
026	`C8A326`	Warehouse Stock	Stock Bolt Tube Assembly Xcel Action Parallel
027	`C5J292`	Warehouse Stock	Cocking Handle Blued 12G 20G
028	`C55404`	Warehouse Stock	Stock Drop Plate 55/60
029	`C97200`	Warehouse Stock	Stock Retaining Nut Washer
030	`C97174`	Warehouse Stock	Stock Retaining Nut
031	`C8H574`	Out Of Stock	A400L Trigger Group Assembly 12G
032	`C95192`	In Stock	Pad Screw - 40mm
033	`E73004` `E73005` `E73006` `E73021` `E73022` `E73023` `E73028` `E73029`	In Stock In Stock Out Of Stock Not Available Out Of Stock Out Of Stock In Stock Not Available	MicroCore Field Recoil Pad MicroCore Field Recoil Pad MicroCore Field Recoil Pad RECOIL PAD MICROCORE(r) COMPETITION SKEET SPORTING GA 12 - THICKNESS 13mm MicroCore Competition Sporting Recoil Pad 23mm MicroCore Competition Sporting Recoil Pad 18mm MicroCore Field Recoil Pad RECOIL PAD MICROCORE(r) COMPETITION SKEET SPORTING GA 12 - THICKNESS 28mm
037	`C8N417`	Out Of Stock	L Forend Wood 12G
054	`C5D199`	Warehouse Stock	Gas Valve Nut
055	`C58929`	Warehouse Stock	Gas Valve Spring
056	`C58930`	Warehouse Stock	Gas Valve Washer
057	`C5D334`	Warehouse Stock	Magazine Tube Cap Insert Plunger O-Ring
059	`C92287`	Not Available	EJECTOR SPRING A400
060	`C5G575`	Warehouse Stock	Ejector
061	`C90378`	Warehouse Stock	Ejector Spring 3 Inch
062	`C5J801`	Not Available	PERNO ESPULSONE 3 -
066	`C59072` `C8N699` `C8R656`	Not Available Not Available Not Available	FORE END COVER DOWEL SEMIAUTO GA 12 SET STOCK PISTOL GRIP CLASS 3 OIL FINISH AND FOREND - A400L GA 12 SPORTING SET STOCK PISTOL GRIP OIL FINISH CLASS 3 AND FOREND - A400L CAL 12 FIELD
068	`C81130`	Warehouse Stock	Forend Plastic Shroud Insert 12G
069	`C7G662`	Not Available	FOLLOWER ASSY - A400L GA 12
070	`C5A326`	In Stock	Trigger Bush D-Clip
071	`C5D343`	Warehouse Stock	Carrier Lever
072	`C5D533`	Not Available	ELEVATOR LEVER SPRING GUIDE A400
073	`C95315`	In Stock	Carrier Lever Spring
075	`C97093`	Warehouse Stock	Elastic Pin
076	`C5B992`	Not Available	HAMMER SPRING GUIDE 12 GA A400
077	`C97258`	Warehouse Stock	Hammer Spring
079	`C58985`	Warehouse Stock	Safety Spring Plunger
080	`C90382`	Warehouse Stock	Safety Spring
081	`C92286`	Warehouse Stock	Carrier Lever Pin
082	`C95323`	Not Available	ELEVATOR STOP PIN SPRING A400
083	`C59929`	Warehouse Stock	Carrier Stop Pin
084	`C7E421`	Not Available	HAMMER ASSY - AX800 GA 12 / A400L GA 12
085	`C5D775`	Warehouse Stock	Elevator Bush
087	`C92213`	Not Available	HAMMER PIN
089	`C5F383`	Not Available	TRIGGER PIN A400 ACTION
090	`C5F152`	Not Available	SAFETY OVERSIZED RIGHT HAND FOR 1301 TACTICAL AND 1301 COMPETITION GA12
091	`C5D328`	Warehouse Stock	Left Hammer Brace
092	`C5D329`	Warehouse Stock	Right Hammer Brace
093	`C5D426`	Not Available	HAMMER SPRING BUSH - SERIE A400 GA 12 - 20 / SERIE A300 GA 12 / 20
094	`C50757`	Not Available	TRIGGER BUSH SEMIAUTO SERIE A300 AL391 A400 VARIOUS VERSIONS
095	`C90093`	In Stock	Trigger Spring
098	`C92098`	In Stock	Locking Bolt Trip Spring Plunger
101	`C8N015`	Out Of Stock	A400L Trigger Assembly Gold
105	`C97087`	Warehouse Stock	Elastic Roll Pin 2x14
106	`C5G282`	Warehouse Stock	Extractor
107	`C95316`	Warehouse Stock	Extractor Spring
108	`C92278`	Warehouse Stock	Breech Bolt Pin
109	`C95322`	Warehouse Stock	Firing Pin Spring
110	`C5A354`	In Stock	Striker Retaining O-Ring
111	`C5D326`	Warehouse Stock	Firing Pin
112	`C95313`	Warehouse Stock	Recoil Spring
113	`C59930`	Warehouse Stock	Cocking Handle Plunger
114	`C95324`	Warehouse Stock	Cocking Handle Plunger Spring
116	`C72332`	Warehouse Stock	Firing Pin Retaining Pin Assembly
118	`C97122`	Warehouse Stock	Cocking Handle Roll Pin
119	`C5B965`	Warehouse Stock	Recoil Spring Guide Tube
123	`C5E281`	Not Available	SHOCK ABSORBER - A400 XCEL MY20 GA 12
126	`C5E267`	Not Available	SPINTORE X AMMORTIZZATORE CLAS SIC
127	`C5E268`	Not Available	STOCK SCREW PLUG
140	`C8A323`	Out Of Stock	Piston Assembly
218	`C7H062`	Not Available	COVER ASSY FOR B-BALANCE CAP BLACK - A400L GA 12
225	`C5Q753`	Out Of Stock	AX800 Extractor Retaining Part
301	`C8Q156`	Not Available	NUT FOR WEIGHT FIXATION B-BALANCE CAP - A400L GA 12
302	`C5K940`	Not Available	STEEL WEIGHT, B-BALANCE HALF MOON SHAPED - A400L GA 12
303	`C71500`	Not Available	CHOKE TUBE SPANNER 12 GA
304	`C6G631`	Not Available	CASE POLIPROPILENE - A400L

Need help finding a part?

Send us the diagram section and position number.

Contact Blue Fieldsports

Brands

Shooting

Services

Other

Beretta A400 Lite 12G Parts Guide

Beretta A400 Lite 12G exploded diagrams and parts

Trigger Group

Slide

Forend

Stock Bolt Absorber

Overview

Barrel

Stock

Exploded diagram

Need help finding a part?

Follow Us

Services

Parts Guides

Blue RPC

More from Blue

Brands

Shooting

Services

Other

Beretta A400 Lite 12G Parts Guide

Beretta A400 Lite 12G exploded diagrams and parts

Trigger Group

Slide

Forend

Stock Bolt Absorber

Overview

Barrel

Stock

Exploded diagram

Need help finding a part?

Parts Guides
