Beretta A302 12G Parts Guide
2 exploded diagrams, exact Beretta codes and linked spare parts for Beretta A302 12G.

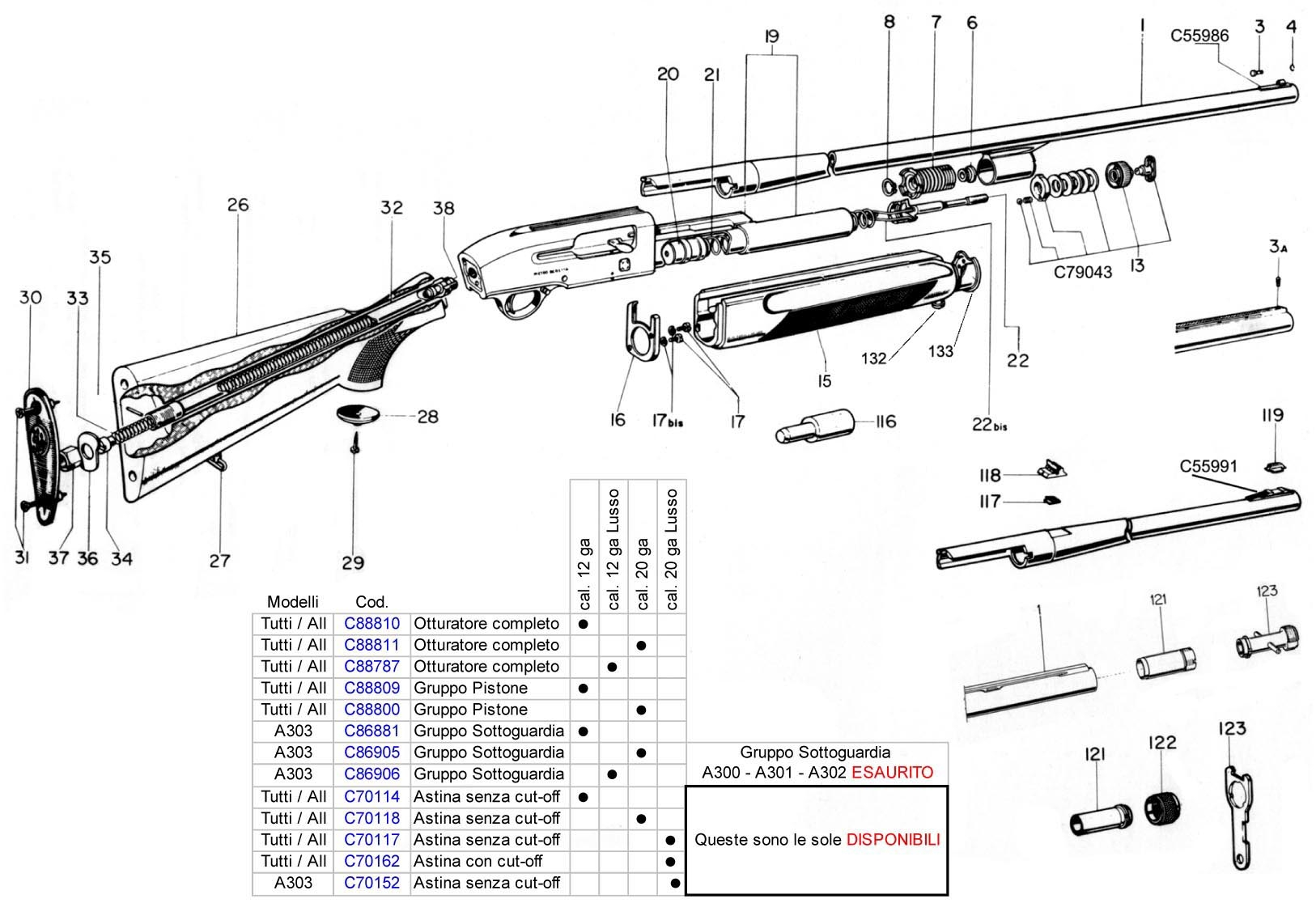

Full exploded diagram
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 003 | C53649 | Not Available | SIGHT FRONT SET IN ENVELOPE A301 A302 A303 A304 |
| 003A | |||
| 004 | C90095 | Not Available | SPRING |
| 006 | C50751 | Not Available | PISTON BUSH FOR A300 (OLD SERIE) |
| 007 | C55889 | Not Available | PISTON FOR SEMIAUTO A300 12 GA (OLD SERIE) |
| 008 | |||
| 013 | C78998 | Not Available | PLUG |
| 015 | C70173 | Not Available | FORE-END MAT CUT-OFF 12 GA A300-A301-A302-A303 |
| 017 | C97025 | Not Available | COVER SCREW A301 |
| 017bis | |||
| 019 | C70037 | Not Available | OPERATING ROD A302 A303 GA 12 |
| 021 | C90089 | Not Available | SPRING |
| 022 | |||
| 022bis | C54546 | Not Available | FRONT CAP SPRING A301 GA 12 |
| 026 | |||
| 027 | |||
| 029 | C95060 | Not Available | SCREW STOCK CAP A301 |
| 030 | C51229 | Not Available | RECOIL PAD RUBBER RED 20MM GA 12 AND GA 20 |
| 031 | |||
| 032 | C57110 | Not Available | STOCK BOLT TUBE A300 12/20 GA OLD SERIE |
| 033 | |||
| 034 | C56796 | Not Available | PLUG RECOIL SPRING A301 |
| 035 | C92096 | Not Available | PIN STOCK BLOCK A301 |
| 036 | C55586 | Not Available | DROP PLATE - A301 GA 12 |
| 037 | C52021 | Not Available | NUT FOR STOCK SCREW A301 |
| 038 | |||
| 116 | C56092 | Not Available | MAGAZINE REDUCER 12 GA |
| 117 | C90080 | Not Available | REAR SIGHT SPRING A303 - A304 WITH SLUG BARREL GA 12 AND GA 20 |
| 118 | C89207 | Not Available | REAR ADJUSTABLE SIGHT A302 - 1201 |
| 119 | C55511C55512 | Not Available Not Available | SIGHT FRONT SLUG SHOTGUNS DOVE TAIL HEIGHT 8mm SIGHT FRONT SLUG DOVE TAIL HEIGHT 10mm |
| 132 | C56101 | Not Available | FOREND FLANGE RIVET |
| 133 |

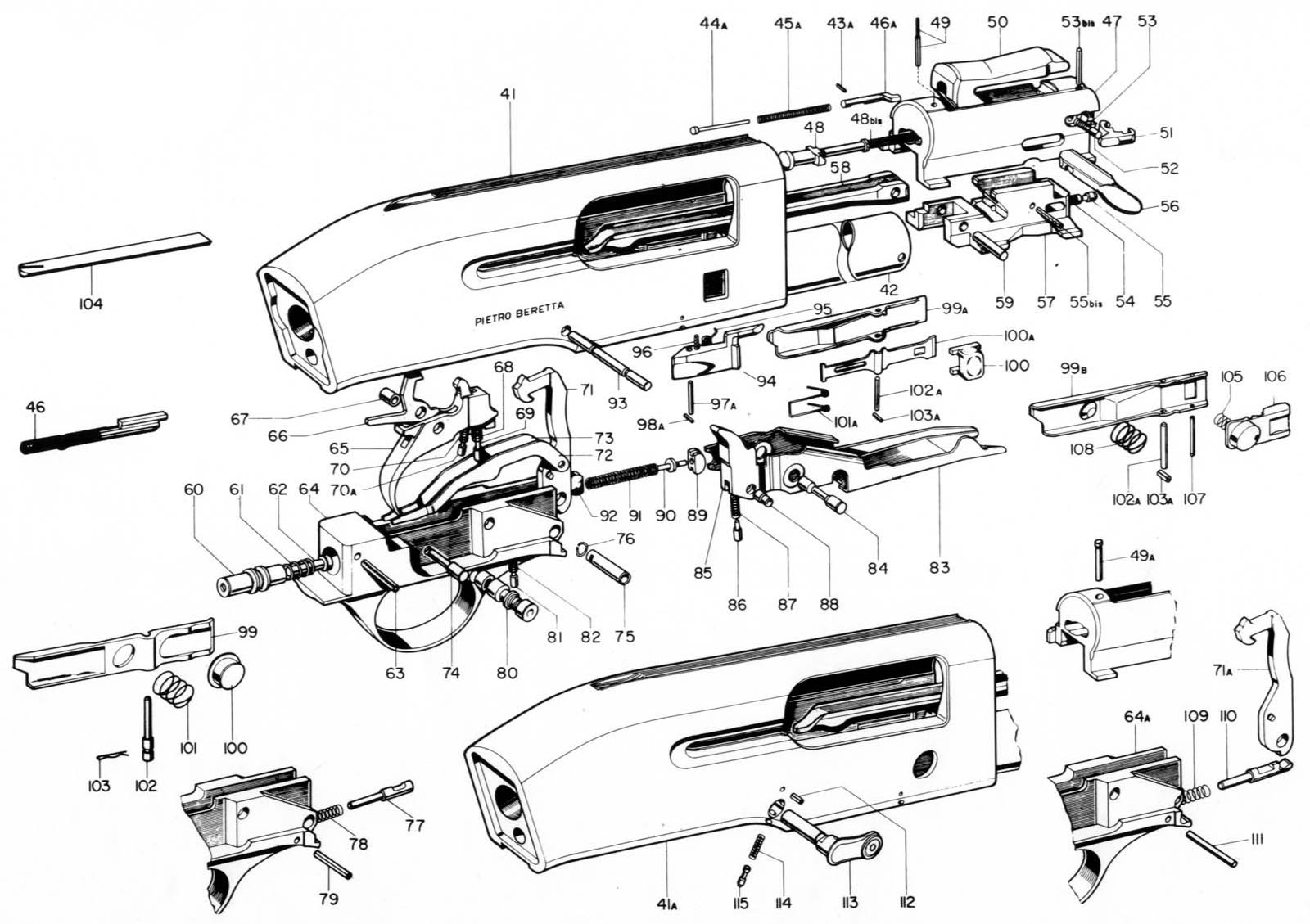

Detailed exploded diagram
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 042 | C57104 | Not Available | LIGHTWEIGHT MAGAZINE TUBE 12 GA A300 OLD SERIE |
| 043A | |||
| 044A | |||
| 045A | |||
| 046A | |||
| 047 | AKF36112111111 | Not Available | BOLT SEMIAUTO AL391 GA 12 CHROMED STANDARD |
| 048 | |||
| 048bis | |||
| 049A | |||
| 051 | |||
| 052 | |||
| 053 | |||
| 053bis | |||
| 055 | |||
| 055bis | |||
| 056 | |||
| 058 | |||
| 059 | |||
| 060 | |||
| 061 | |||
| 062 | |||
| 063 | C97007 | Not Available | ELASTIC PIN 3X20MM SERIE 92 96 98 |
| 064 | C52892C52914 | Not Available Not Available | TRIGGER PLATE TRIGGER PLATE |
| 064A | C52894 | Not Available | TRIGGER PLATE |
| 065 | |||
| 066 | C52026 | Not Available | TRIGGER STOP PIN - A301 GA 12 AND GA 20 |
| 067 | C50757 | Not Available | TRIGGER BUSH SEMIAUTO SERIE A300 AL391 A400 VARIOUS VERSIONS |
| 068 | |||
| 069 | C92099 | Not Available | TRIGGER SPRING GUIDE PLUNGER 12/20 GA AL3914 |
| 070 | |||
| 070A | |||
| 071A | |||
| 072 | |||
| 073 | |||
| 074 | |||
| 075 | C50749 | Not Available | BUSH HAMMER |
| 080 | C56305 | Not Available | SAFETY |
| 081 | C92044 | Not Available | SAFETY SPRING PIN A301 |
| 082 | |||
| 084 | C92093 | Not Available | CARRIER PIN 12 GA AL391 |
| 085 | |||
| 086 | |||
| 087 | |||
| 088 | |||
| 089 | C56158 | Not Available | CARRIER SWIVEL JOINT 12/20 GA AL391 |
| 090 | C56023 | Not Available | ELEVATOR SPRING GUIDE 12/20 GA AL391 |
| 091 | |||
| 092 | |||
| 097A | |||
| 099B | |||
| 100 | C50716 | Not Available | BUTTON |
| 105 | |||
| 107 | C92212 | Not Available | CARTRIDGE LATCH LEVER PIN - AL391 URIKA GA 12 AND GA 20 |
| 108 | C90232 | Not Available | SPRING |
| 110 | C55631 | Not Available | CARRIER CATCH PLUNGER 12/20 GA AL391 |
| 111 | C92214 | Not Available | CARRIER CATCH PLUNGER PIN GA 12 AND GA 20 AL391 URIKA |
| 113 | C78536C99603 | Not Available Not Available | LEVER LEVER |
| 114 | C90234 | Not Available | TRIGGER GROUP BLOCK PIN SPRING A302 GA 12 -20 |
| 115 | C55745 | Not Available | TRIGGER GROUP BLOCK PIN A302 |
