Beretta 695 Field 20G Parts Guide
Five exploded diagrams, exact Beretta codes and linked spare parts for Beretta 695 Field 20G.

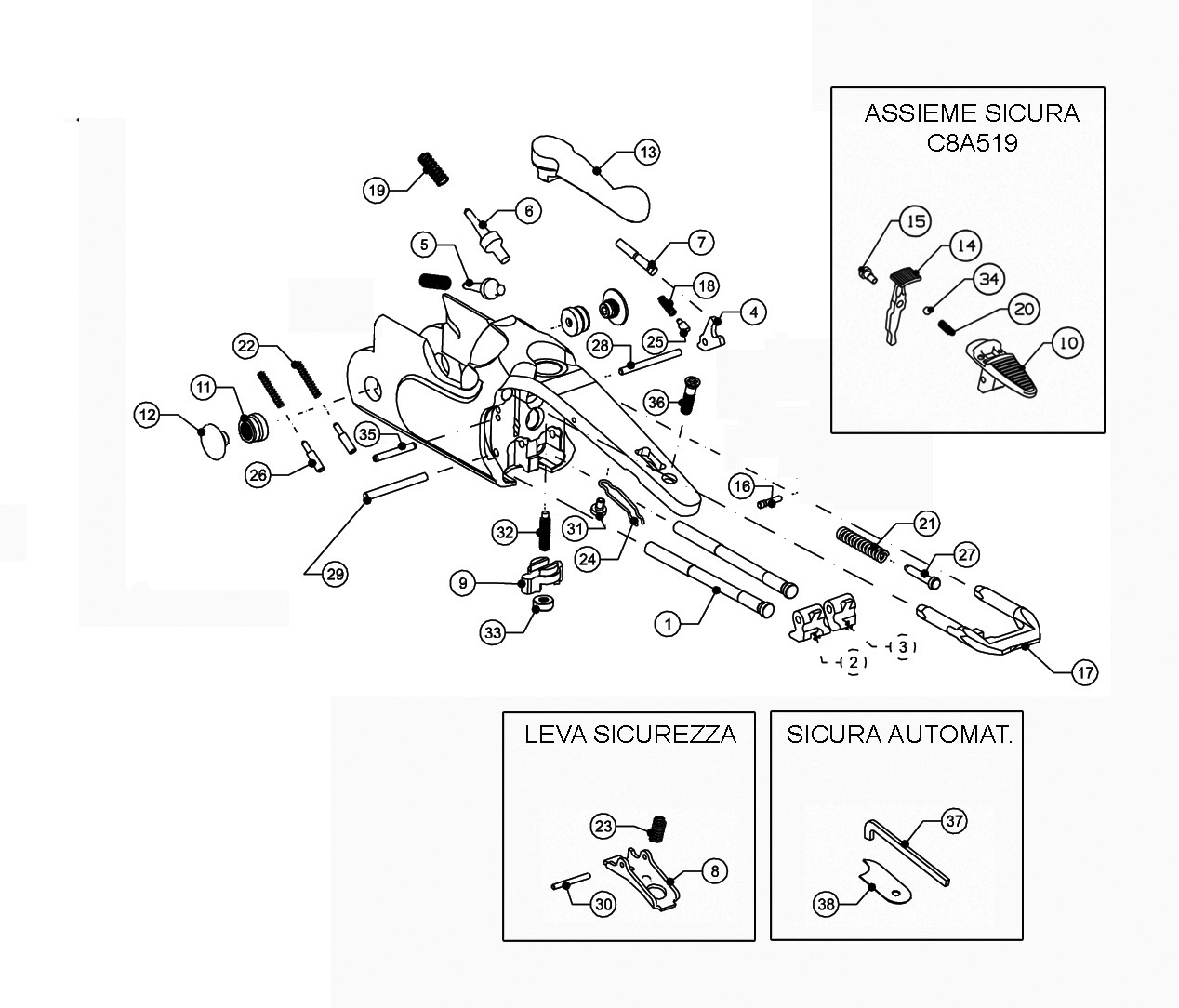

Action / frame
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 1 | |||
| 10 | C5E635 | Not Available | SAFETY SELECTIVE SINGLE TRIGGER 20 GA PRN 1 690 695 |
| 11 | C5E171 | Not Available | HINGE PIN OVERSIZED (11,4) - SV10 PERENNIA / SERIE 690 GA 20 |
| 12 | |||
| 13 | C5G546 | Not Available | TOP LEVER 695 GA 20 690 GA 20 693 GA 20 |
| 14 | C5E636 | Not Available | SELECTOR LEVER PRN 1 CAL 20 MOD. 695 |
| 15 | C5D706 | Not Available | LEVER PIN 20 GA SV10 690 695 |
| 16 | |||
| 17 | |||
| 18 | |||
| 19 | |||
| 2 | C52987 | Not Available | COCKING LEVER 20 GA 690 695 |
| 20 | |||
| 22 | |||
| 23 | |||
| 24 | C90381 | Not Available | SAFETY SPRING 20 GA SV10 690 695 |
| 25 | |||
| 26 | |||
| 27 | |||
| 28 | |||
| 29 | C92192 | Not Available | COCKING LEVER PIN 690 695 |
| 3 | |||
| 30 | |||
| 31 | |||
| 32 | |||
| 33 | |||
| 34 | |||
| 35 | |||
| 36 | C5E518 | Not Available | SCREW SV10 690 |
| 37 | |||
| 38 | |||
| 4 | |||
| 5 | |||
| 6 | |||
| 7 | |||
| 8 | C58714 | Not Available | SAFETY LEVER MG 20 GA 690 695 |
| 9 | |||
| C8A519 | C8A519 | Not Available | SAFETY ASSY SINGLE SELECTIVE TRIGGER NISTAN FINISH - SV10 PERENNIA I GA 20 - 690 GA 20 AND GA 28 |

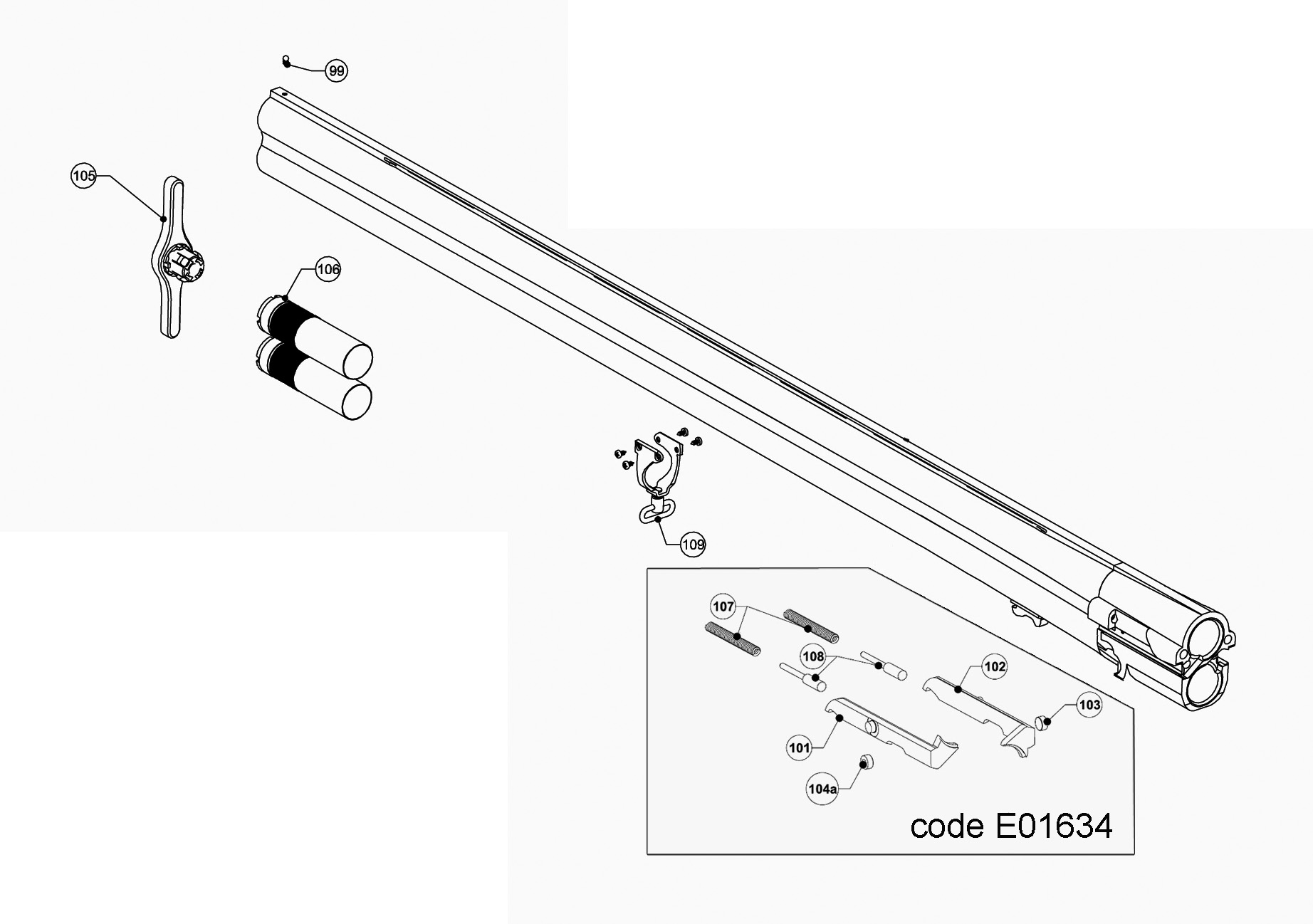

Barrel
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 101 | C5G867 | Not Available | LEFT EXTRACTOR 20 GA 690 695 |
| 102 | C5G866 | Not Available | RIGHT EXTRACTOR 20 GA 690 695 |
| 104a | |||
| 105 | |||
| 106 | |||
| 107 | |||
| 108 | |||
| 109 | C62039 | Not Available | SWIVEL SET FOR OVER AND UNDER BARREL GA 20 WITH FIXING SCREW |
| 99 | |||
| E01634 | E01634 | Not Available | EJECTORS SET GA 690 FIELD I - 695 |

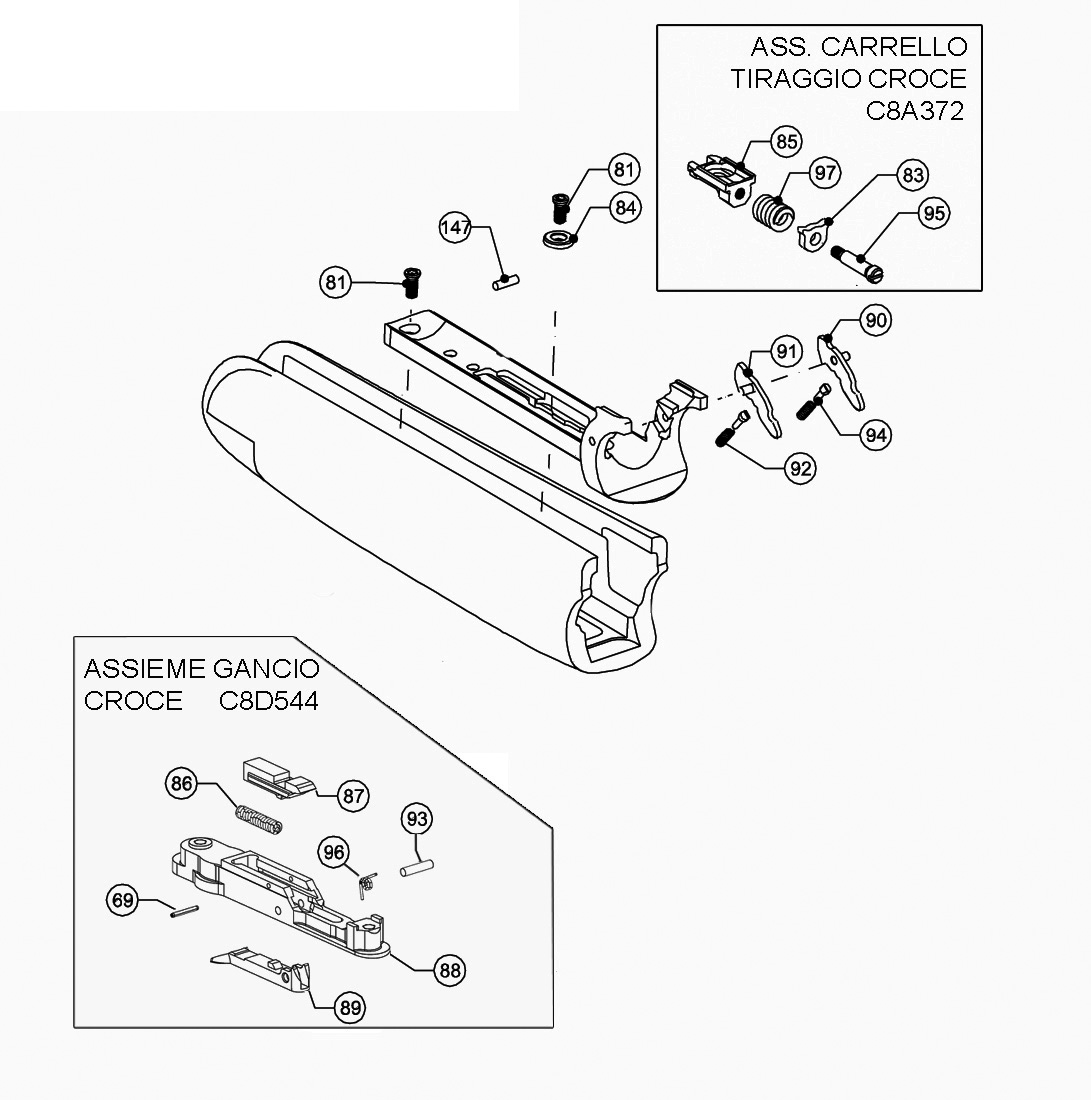

Forend
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 147 | C97260 | Not Available | ROLL 690 695 |
| 69 | |||
| 81 | |||
| 83 | C5C871 | Not Available | STOP SLIDE CROSS - 690 695 GA 12 |
| 84 | |||
| 86 | |||
| 88 | C5F859 | Not Available | FOREND IRON CATCH BOX FIELD ENGRAVING FOR 690 695 GA 12 |
| 89 | |||
| 90 | C5H168 | Not Available | LEVER FOREND IRON RIGHT DX GA 20 695 |
| 91 | C5H167 | Not Available | FOREND IRON LEVER LEFT LH SX GA 20 FOR 695 |
| 92 | |||
| 93 | C92218 | Not Available | TRIGGER PIN SERIE SV10 PERENNIA PREVAIL 690 691 693 692 695 |
| 94 | |||
| 95 | C5E137 | Not Available | FOREND IRON CART PIN - SV10 690 695 GA 12 AND GA 20 |
| 96 | |||
| 961 | C90384 | Not Available | SPRING FORE-END ASSY IRON SERIE SV10 690 692 695 |
| 97 | C5E429 | Not Available | CARRIAGE FORE-END IRON 690 695 |
| C8A372 | C8A372 | Not Available | FOREND IRON SLIDE ASSY SERIE SV10 690 692 691 683 |
| C8D544 | C8D544 | Not Available | ASSY IRON CATCH SPRING 12 GA 695 |

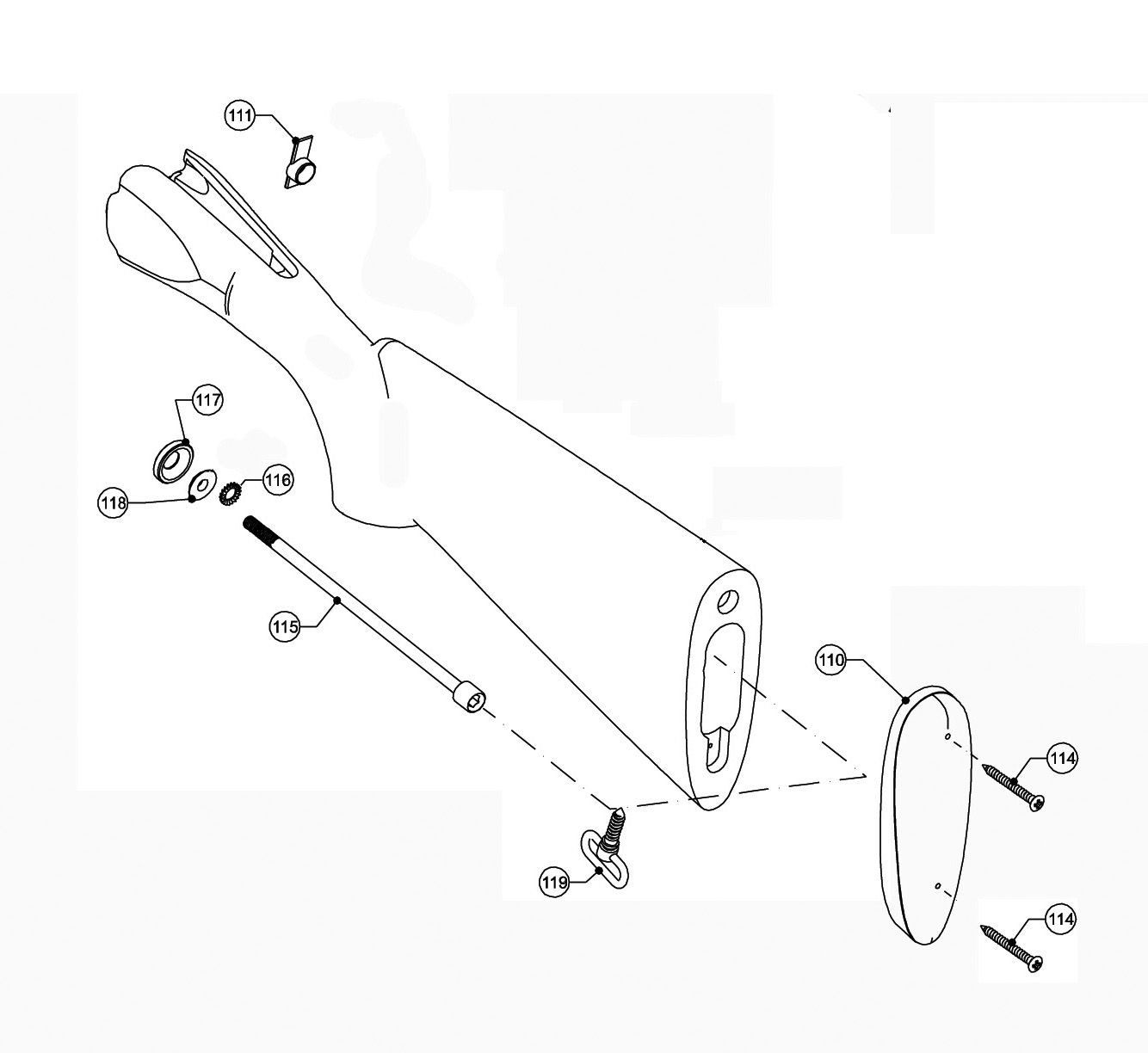

Stock
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 110 | |||
| 111 | C5D771C5D772C5D773 | Not Available Not Available Not Available | PLATE BEND FOR WOOD STOCK SV10 - 690 GA 20 (Sp 0 .9) PLATE BEND FOT STOCK WOOD SV10 - 690 GA 20 (Sp 1 .2) PLATE BEND FOR WOOD STOCK SV10 - 690 695 CAL 20 (Sp 1 .5) |
| 114 | |||
| 115 | |||
| 116 | |||
| 117 | |||
| 118 | |||
| 119 |

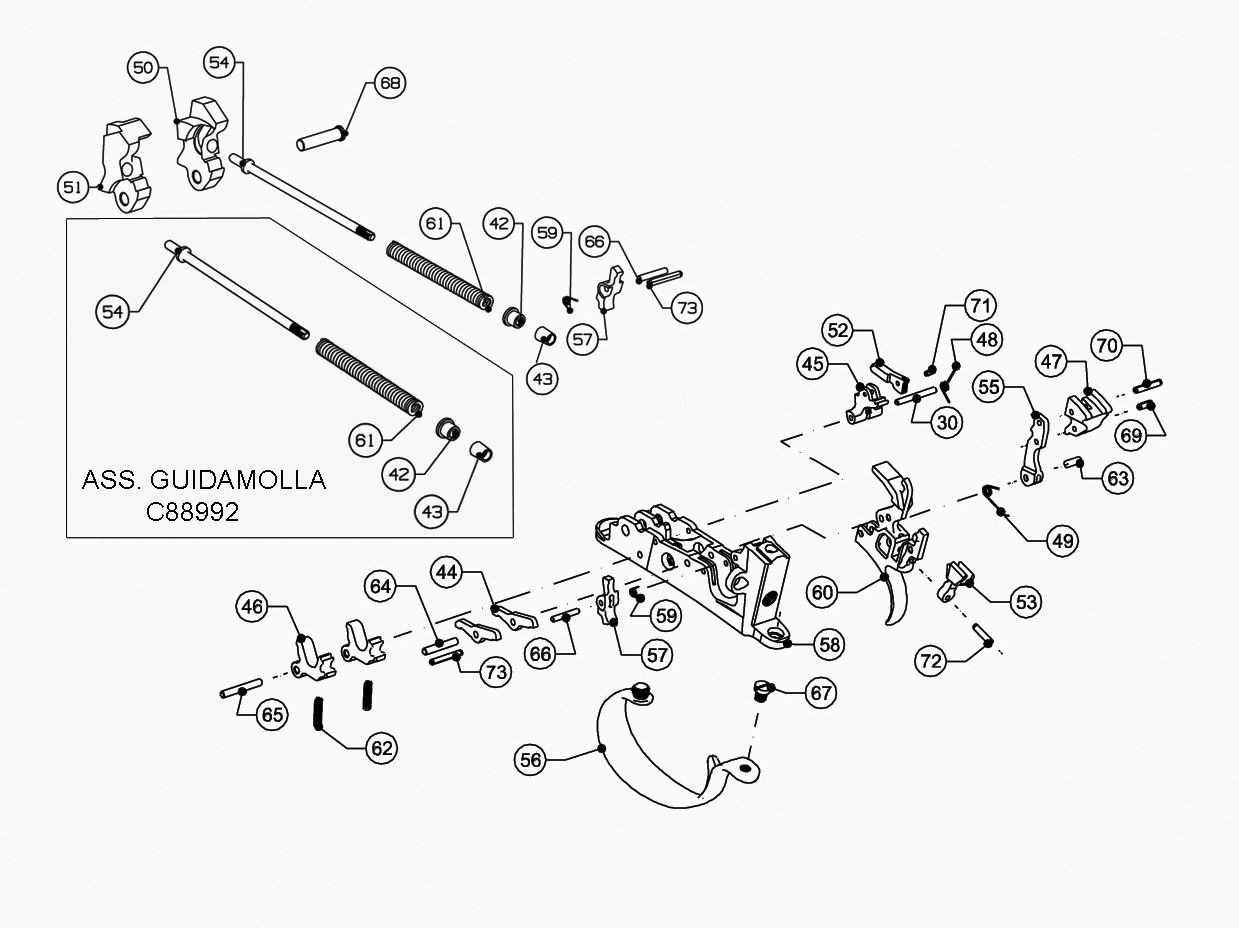

Trigger group
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 30 | |||
| 42 | C52270 | Not Available | HAMMER SPRING GUIDE BUSH SV10 690 694 |
| 43 | C52271 | Not Available | HAMMER SPRING GUIDE NUT 12 GA SV10 690 |
| 44 | |||
| 45 | |||
| 46 | |||
| 47 | |||
| 48 | |||
| 49 | |||
| 51 | |||
| 52 | |||
| 53 | |||
| 54 | C55955 | Not Available | HAMMER SPRING GUIDE 20 GA 690 695 |
| 55 | |||
| 56 | C5F431 | Not Available | TRIGGER GUARD NISTAN 690 695 |
| 57 | C5F549C5F550 | Not Available Not Available | SAFETY LEVER DIMENSION 6.35 - SERIE 690 SAFETY LEVER DIMENSION 6.15 - SERIE 690 |
| 58 | C5G050 | Not Available | TRIGGER PLATE GA 20 690 FIELD - 695 |
| 59 | |||
| 60 | C5E634 | Not Available | TRIGGER SST 20 GA PRN 1 690 695 |
| 61 | C90182 | Not Available | HAMMER SPRING 12 GA SV10 690 695 |
| 62 | |||
| 63 | |||
| 64 | |||
| 65 | |||
| 66 | |||
| 67 | |||
| 68 | |||
| 69 | |||
| 70 | |||
| 71 | |||
| 72 | |||
| 73 | |||
| C88992 |
