Beretta 694 Trap 12G Parts Guide
Five exploded diagrams, exact Beretta codes and linked spare parts for Beretta 694 Trap 12G.

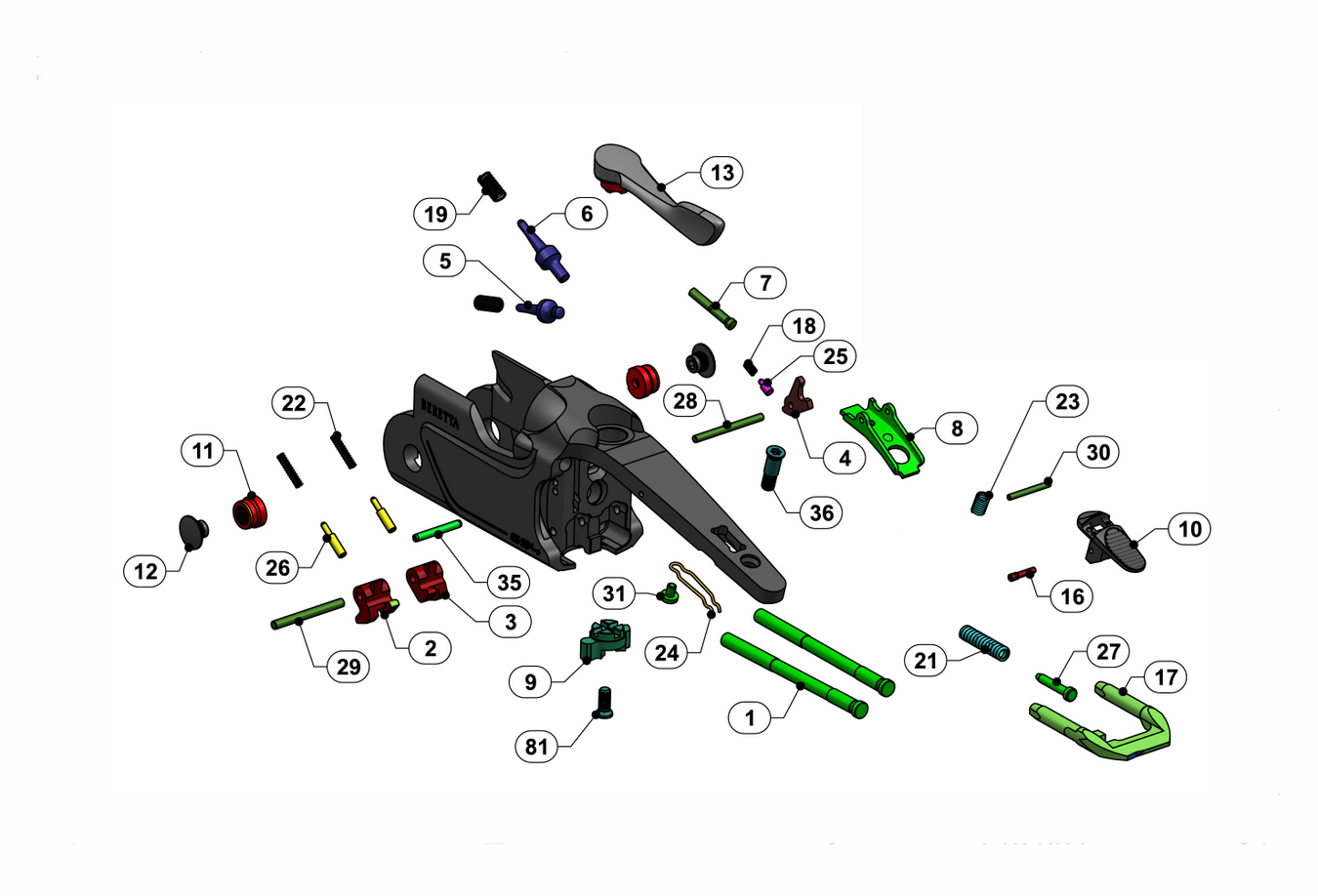

Action / frame
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 001 | C50317 | Not Available | OPERATING ROD STANDARD GA 12 - 690 |
| 002 | |||
| 003 | |||
| 004 | |||
| 005 | |||
| 006 | |||
| 007 | |||
| 008 | |||
| 009 | |||
| 010 | C5K022 | Not Available | SAFETY SINGLE TRIGGER AND SINGLE SELECTIVE TRIGGER 694 GA 12 |
| 011 | |||
| 012 | |||
| 013 | C5H162C5J965 | Not Available Not Available | TOP LEVER NISTAN FINISH - 694 GA 12 TOP LEVER NISTAN 694 GA 12 |
| 016 | |||
| 018 | |||
| 019 | |||
| 021 | |||
| 022 | |||
| 023 | |||
| 024 | |||
| 025 | |||
| 026 | |||
| 027 | |||
| 028 | |||
| 029 | |||
| 030 | |||
| 031 | |||
| 035 | |||
| 036 | |||
| 081 |

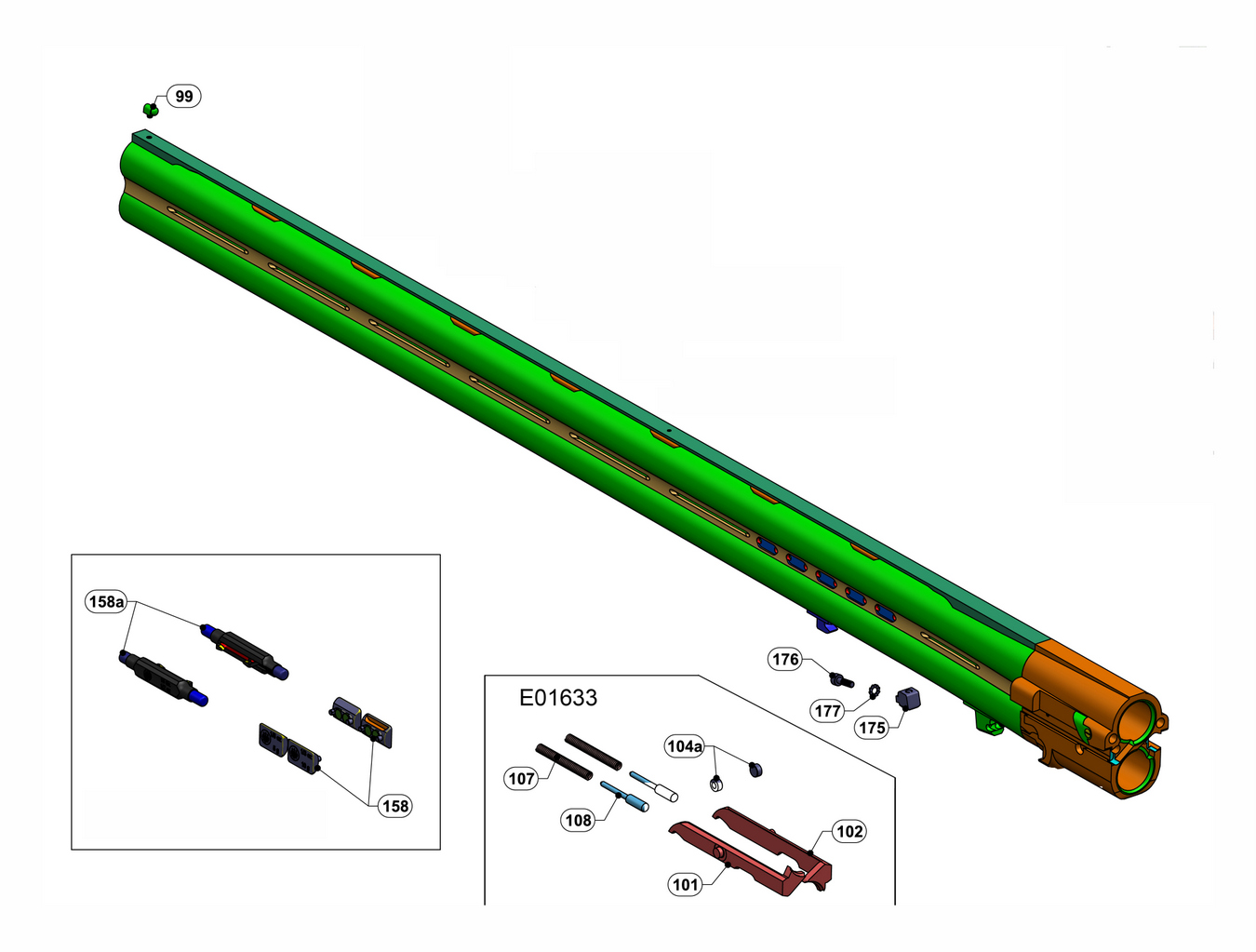

Barrel
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 099 | |||
| 101 | |||
| 102 | |||
| 104a | |||
| 107 | |||
| 108 | |||
| 158 | |||
| 158a | |||
| 175 | C5H580E03462E03463 | Not Available Not Available Not Available | BARREL HOOK 694 GA 12 BARREL HOOK 694 GA 12 REMOVABLE OVERSIZED A 6.80 BARREL HOOK 694 GA 12 REMOVABLE OVERSIZED A 6.85 |
| 176 | |||
| 177 | C9A141 | Not Available | BUSH DIA 3 |

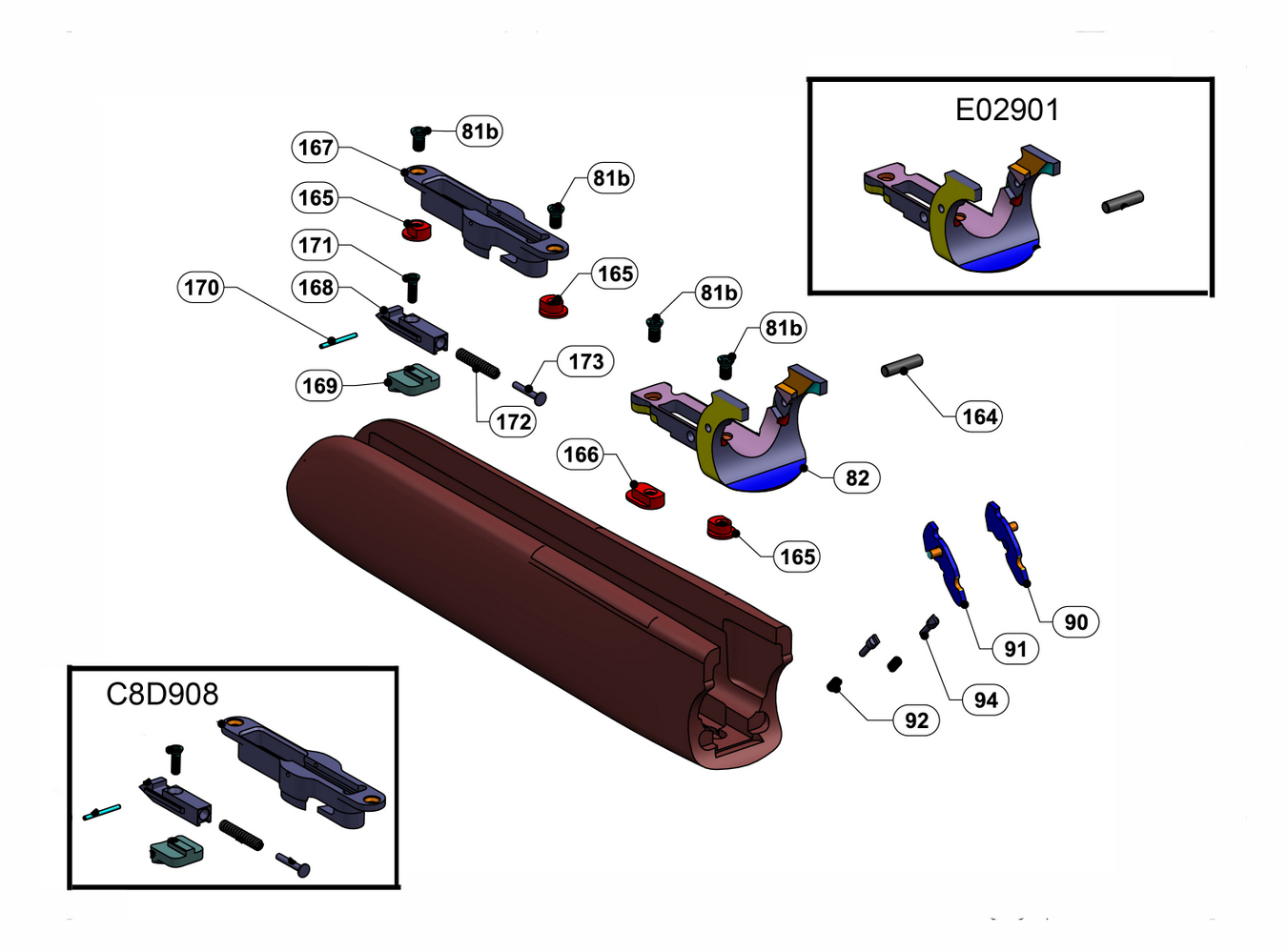

Forend
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 081b | |||
| 090 | C5J405 | Not Available | FOREND IRON LEVER RIGHT HAND RH DX 694 GA 12 14.88 |
| 091 | C5J404 | Not Available | FOREND IRON LEVER LEFT HAND LH SX 694 GA 12 14.88 |
| 092 | |||
| 094 | |||
| 164 | C9A142 | Not Available | CYLINDER PIN 4X16 694 GA 12 5.50 |
| 165 | |||
| 166 | |||
| 167 | C5J379 | Not Available | FOREND CATCH - 694 GA 12 38.00 |
| 168 | C5J382 | Not Available | BARREL HOOK BUSH 694 GA 12 77.00 |
| 169 | C5J383 | Not Available | BUTTON 694 GA 12 15.00 |
| 170 | C5J417 | Not Available | ELASTIC PIN 1.5X16 5.50 |
| 171 | |||
| 172 | C5J380 | Not Available | FOREND LOCK SPRING 694 GA 12 6.77 |
| 173 | C5J754 | Not Available | SPRING GUIDE ASSY 694 GA 12 22.20 |
| C8D908 |

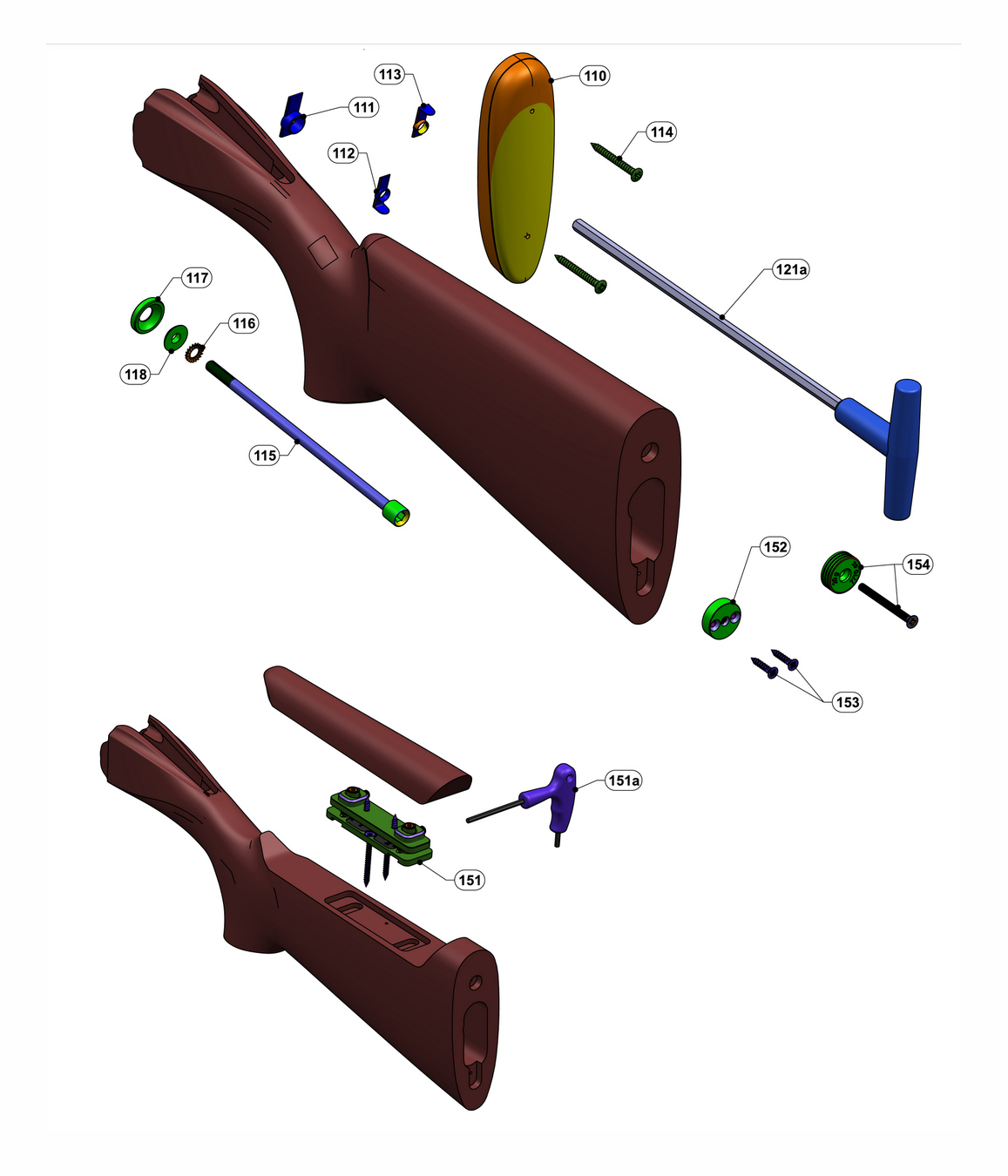

Stock
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 110 | E73025E73026 | Not Available Not Available | RECOIL PAD MICROCORE(r) COMPETITION TRAP GA 12 - 40.70 THICKNESS 18mm RECOIL PAD MICROCORE(r) COMPETITION TRAP GA 12 - 40.70 THICKNESS 23mm |
| 111 | |||
| 114 | |||
| 115 | C95329 | Not Available | ADJUSTABLE STOCK BOLT SCREW 12 GA S682 694 15.50 |
| 118 | |||
| 121a | |||
| 151 | |||
| 151a | |||
| 152 | |||
| 153 | |||
| 154 |

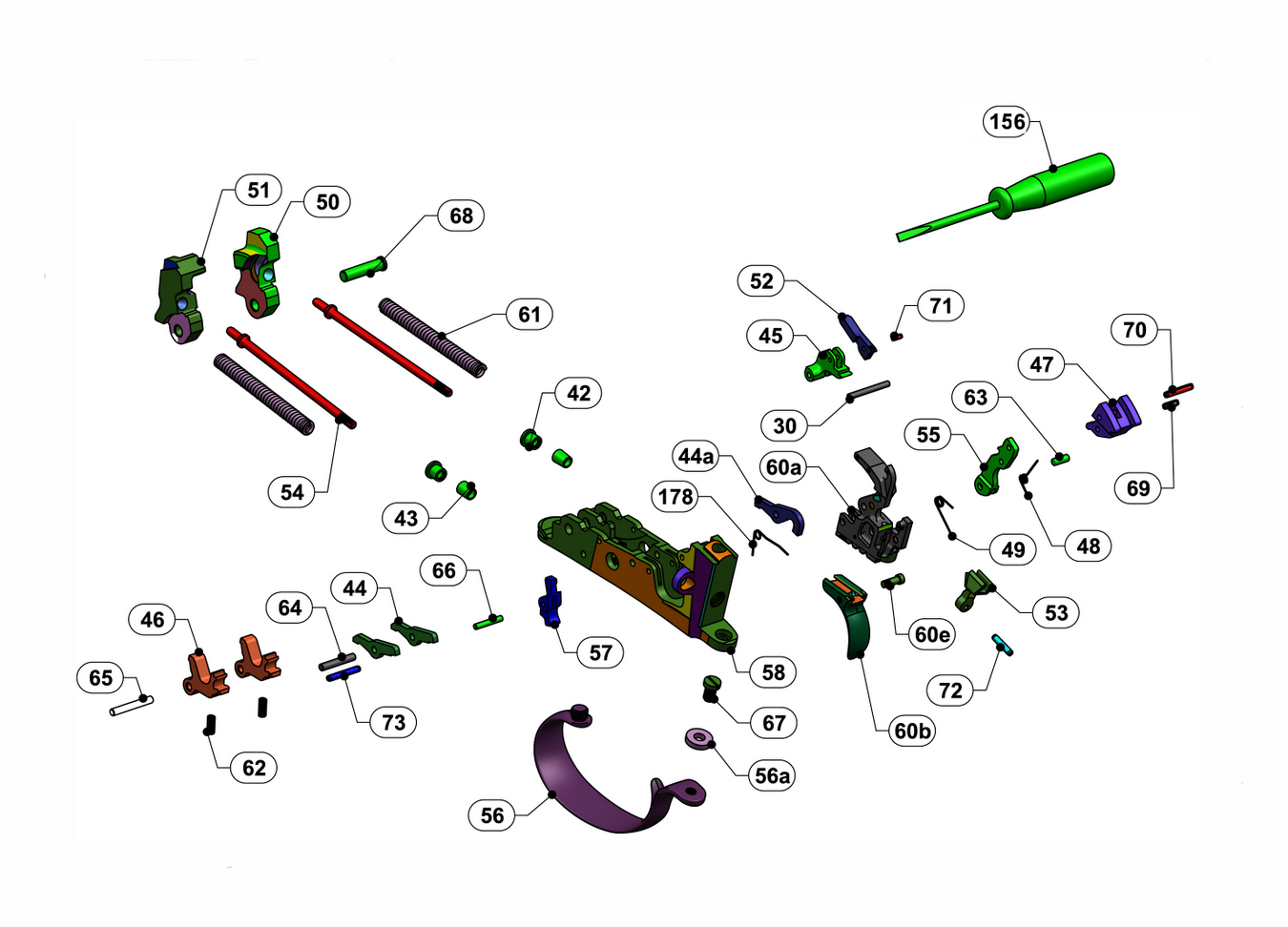

Trigger group
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 030 | |||
| 042 | C52270 | Not Available | HAMMER SPRING GUIDE BUSH SV10 690 694 |
| 043 | C52271 | Not Available | HAMMER SPRING GUIDE NUT 12 GA SV10 690 |
| 044 | |||
| 044a | C53042 | Not Available | CONNECTING LEVER 12 GA S682 694 |
| 045 | |||
| 046 | |||
| 047 | |||
| 048 | |||
| 049 | |||
| 050 | C5H183 | Not Available | HAMMER RIGHT RH DX GA 12 694 |
| 051 | C5H182 | Not Available | HAMMER LEFT LF SX GA 12 694 |
| 052 | |||
| 054 | C55955 | Not Available | HAMMER SPRING GUIDE 20 GA 690 695 |
| 055 | |||
| 056 | C5E995 | Not Available | TRIGGER GUARD NISTAN FINISH GA 12 694 |
| 056a | C56114 | Not Available | TRIGGER GUARD SCREW WASHER 12 GA S682 |
| 057 | |||
| 058 | |||
| 060b | |||
| 060e | |||
| 061 | C90182 | Not Available | HAMMER SPRING 12 GA SV10 690 695 |
| 062 | |||
| 063 | |||
| 064 | |||
| 065 | |||
| 066 | |||
| 067 | C95252 | Not Available | LONG TRIGGER GUARD SCREW NICKEL FINISH |
| 068 | |||
| 069 | |||
| 070 | |||
| 071 | |||
| 072 | |||
| 073 | |||
| 156 | |||
| 178 |
