Beretta 694 Sporting / Sporting Pro 12G (MY22) Parts Guide
Exploded diagram, Beretta codes and linked spare parts for Beretta 694 Sporting / Sporting Pro 12G (MY22).

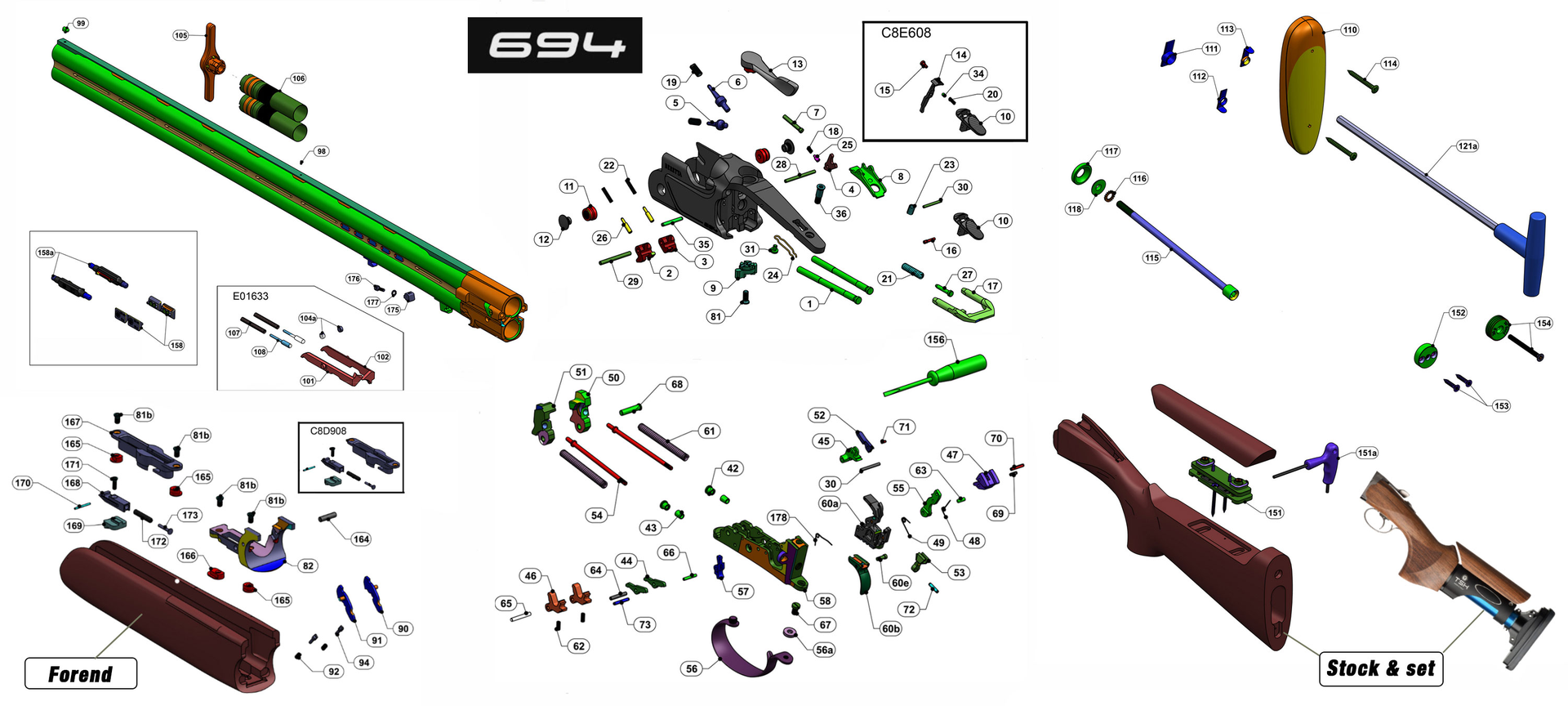

Exploded diagram
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 7 | |||
| 10 | C5J966 | Not Available | SAFETY SINGLE SELECTIVE TRIGGER NISTAN 694 GA 12 |
| 11 | |||
| 12 | |||
| 13 | C5H162C5J965 | Not Available Not Available | TOP LEVER NISTAN FINISH - 694 GA 12 TOP LEVER NISTAN 694 GA 12 |
| 01 | C50317 | Not Available | OPERATING ROD STANDARD GA 12 - 690 |
| 02 | |||
| 03 | |||
| 04 | |||
| 05 | |||
| 06 | |||
| 08 | |||
| 09 | |||
| 101 | |||
| 102 | |||
| 104a | |||
| 105 | C71500 | Not Available | CHOKE TUBE SPANNER 12 GA |
| 106 | |||
| 107 | |||
| 108 | |||
| 110 | E73021E73029 | Not Available Not Available | RECOIL PAD MICROCORE(r) COMPETITION SKEET SPORTING GA 12 - THICKNESS 13mm RECOIL PAD MICROCORE(r) COMPETITION SKEET SPORTING GA 12 - THICKNESS 28mm |
| 111 | |||
| 112 | C5E038 | Not Available | DROP REDUCER SPACER FOR SV10 690 |
| 113 | |||
| 114 | |||
| 115 | C95329 | Not Available | ADJUSTABLE STOCK BOLT SCREW 12 GA S682 694 |
| 116 | |||
| 117 | C58038 | Not Available | WASHER ADJUSTABLE STOCK 12 GA S682 |
| 118 | |||
| 121a | |||
| 14 | C5J967 | Not Available | BARREL SELECTOR NISTAN 694 GA 12 |
| 15 | |||
| 151 | C6A194C8C398 | Not Available Not Available | SET SPACERS FOR B-FAST - ADJUSTABLE BFAST MECHANISM ASSY (NO SCREWS) - DT11 GA 12 |
| 151a | |||
| 152 | |||
| 153 | |||
| 154 | |||
| 156 | |||
| 158 | |||
| 158a | |||
| 16 | |||
| 164 | C9A142 | Not Available | CYLINDER PIN 4X16 694 GA 12 |
| 165 | |||
| 166 | |||
| 167 | C5J379 | Not Available | FOREND CATCH - 694 GA 12 |
| 168 | C5J382 | Not Available | BARREL HOOK BUSH 694 GA 12 |
| 169 | C5J383 | Not Available | BUTTON 694 GA 12 |
| 170 | C5J417 | Not Available | ELASTIC PIN 1.5X16 |
| 171 | |||
| 172 | C5J380 | Not Available | FOREND LOCK SPRING 694 GA 12 |
| 173 | C5J754 | Not Available | SPRING GUIDE ASSY 694 GA 12 |
| 175 | C5H580 | Not Available | BARREL HOOK 694 GA 12 |
| 176 | |||
| 177 | C9A141 | Not Available | BUSH DIA 3 |
| 178 | |||
| 18 | |||
| 19 | |||
| 20 | |||
| 21 | |||
| 22 | |||
| 23 | |||
| 24 | |||
| 25 | |||
| 26 | |||
| 27 | |||
| 28 | |||
| 29 | |||
| 30 | |||
| 31 | |||
| 34 | |||
| 35 | |||
| 36 | |||
| 42 | C52270 | Not Available | HAMMER SPRING GUIDE BUSH SV10 690 694 |
| 43 | C52271 | Not Available | HAMMER SPRING GUIDE NUT 12 GA SV10 690 |
| 44 | |||
| 45 | |||
| 46 | |||
| 47 | |||
| 48 | |||
| 49 | |||
| 50 | C5H183 | Not Available | HAMMER RIGHT RH DX GA 12 694 |
| 51 | C5H182 | Not Available | HAMMER LEFT LF SX GA 12 694 |
| 52 | |||
| 53 | |||
| 54 | C55955 | Not Available | HAMMER SPRING GUIDE 20 GA 690 695 |
| 55 | |||
| 56 | C5E995 | Not Available | TRIGGER GUARD NISTAN FINISH GA 12 694 |
| 56a | C56114 | Not Available | TRIGGER GUARD SCREW WASHER 12 GA S682 |
| 57 | |||
| 58 | |||
| 60a | |||
| 60b | |||
| 60e | |||
| 61 | C90182 | Not Available | HAMMER SPRING 12 GA SV10 690 695 |
| 62 | |||
| 63 | |||
| 64 | |||
| 65 | |||
| 66 | |||
| 67 | C95252 | Not Available | LONG TRIGGER GUARD SCREW NICKEL FINISH |
| 68 | |||
| 69 | |||
| 70 | |||
| 71 | |||
| 72 | |||
| 73 | |||
| 81 | |||
| 81b | |||
| 82 | E02901 | Not Available | FOREND IRON ASSY MODEL 694 GA 12 |
| 90 | C5J405 | Not Available | FOREND IRON LEVER RIGHT HAND RH DX 694 GA 12 |
| 91 | C5J404 | Not Available | FOREND IRON LEVER LEFT HAND LH SX 694 GA 12 |
| 92 | |||
| 94 | |||
| 98 | |||
| 99 |
