Beretta 694 Sporting 12G spare parts
Beretta 694 Sporting 12G Parts Guide
Use the exploded diagrams and part numbers below to find Beretta 694 Sporting 12G spares and accessories available from Blue Fieldsports.
Shop 694 Sporting 12G parts
Browse 694 Sporting 12G parts available from Blue Fieldsports.
Beretta 694 Sporting 12G exploded diagrams and parts
Trigger Group

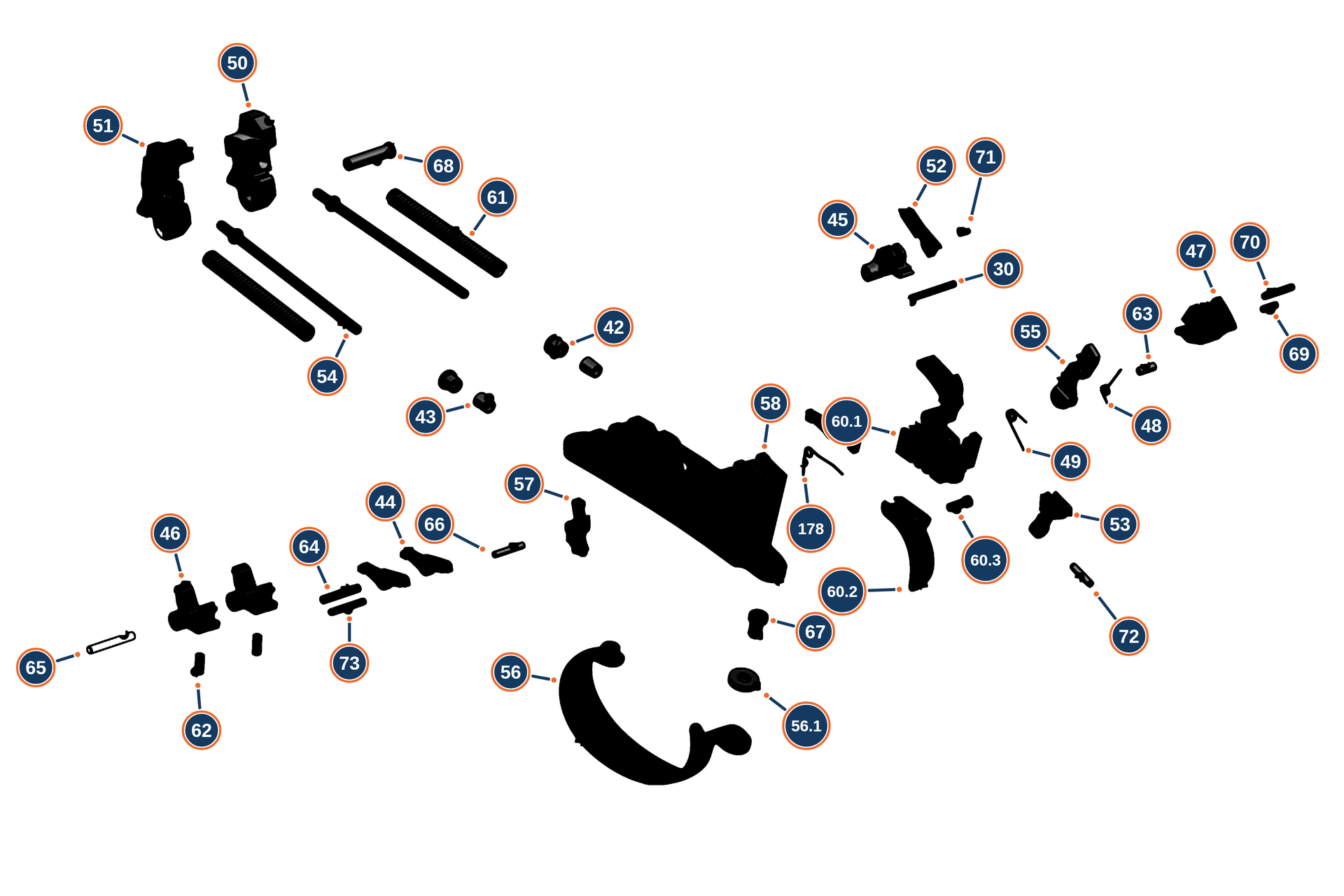

694 Sporting 12G Trigger Group exploded diagram.
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 30 | |||
| 42 | BER-C52270 | Not Available | Cocking Handle Spring Bushing |
| 43 | BER-C52271 | Not Available | Cocking Handle Nut |
| 44 | |||
| 45 | |||
| 46 | |||
| 47 | |||
| 48 | |||
| 49 | |||
| 50 | BER-C5H183 | Not Available | Right Hammer |
| 51 | BER-C5H182 | Not Available | Left Hammer |
| 52 | |||
| 53 | |||
| 54 | BER-C55955BER-C8892 | Not Available Not Available | Cocking Handle Holder Cocking Handle Holder |
| 55 | |||
| 56 | BER-C5E995 | Not Available | Monogrillo Grip Nistan |
| 56.1 | BER-C56114 | Not Available | Monogrillo Grip Thickness Washer |
| 57 | |||
| 58 | |||
| 60.1 | |||
| 60.2 | |||
| 60.3 | |||
| 61 | BER-C90182 | Not Available | Cocking Handle Spring |
| 62 | |||
| 63 | |||
| 64 | |||
| 65 | |||
| 66 | |||
| 67 | BER-C95252 | Not Available | Grip Screw |
| 68 | |||
| 69 | |||
| 70 | |||
| 71 | |||
| 72 | |||
| 73 | |||
| 178 |
Forend

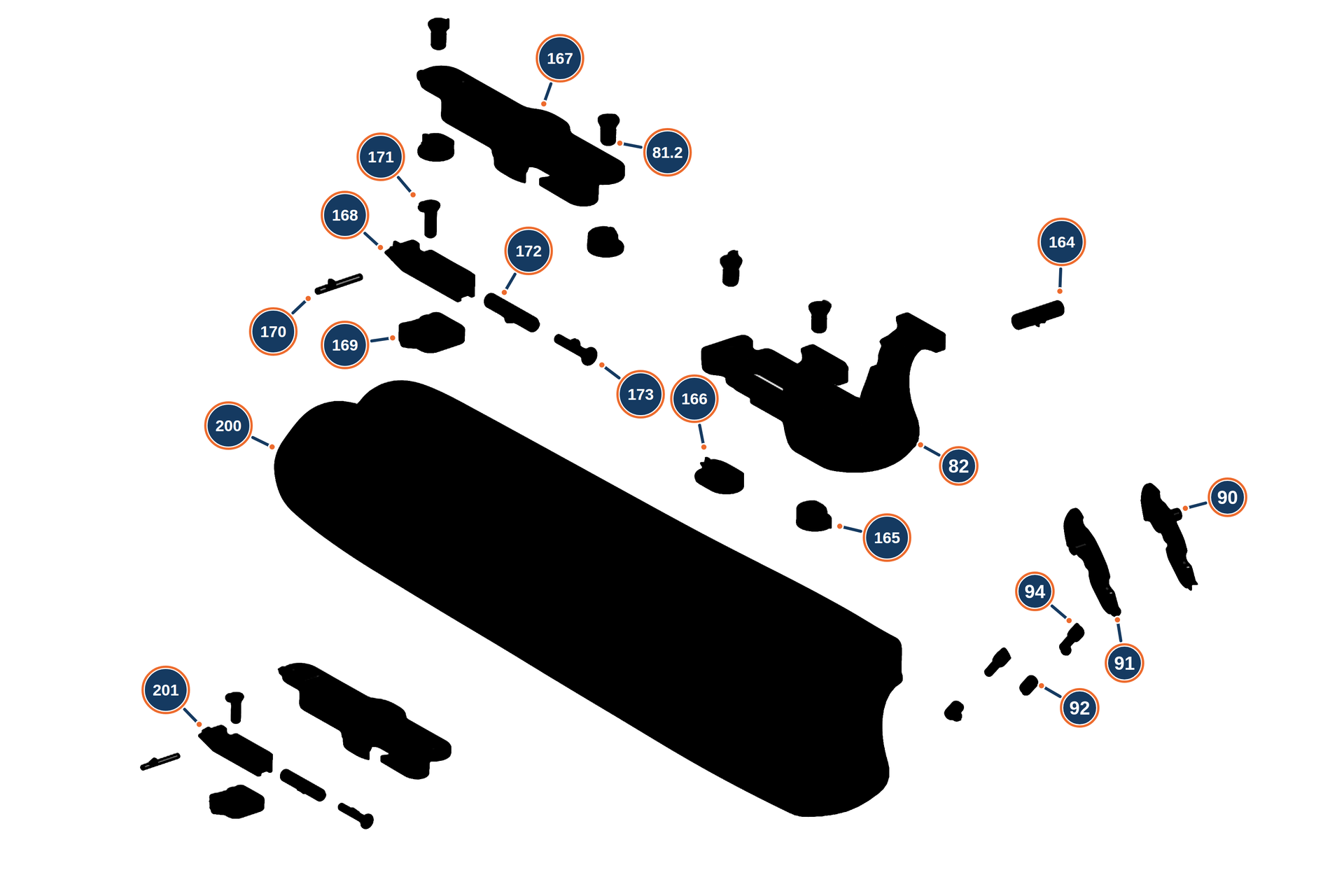

694 Sporting 12G Forend exploded diagram.
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 81.2 | |||
| 82 | BER-E02901 | Not Available | Forend Iron Assy |
| 90 | BER-C5J405 | Not Available | Cross Lever DX |
| 91 | BER-C5J404 | Not Available | Cross Lever SX |
| 92 | |||
| 94 | |||
| 164 | BER-C9A142 | Not Available | Cylindrical Pin |
| 165 | |||
| 166 | |||
| 167 | BER-C5J379 | Not Available | Cross Hook |
| 168 | BER-C5J382 | Not Available | Fore-end Hooking Block |
| 169 | BER-C5J383 | Not Available | Block Button |
| 170 | BER-C5J417 | Not Available | Elastic Pin 1.5x16 |
| 171 | |||
| 172 | BER-C5J380 | Not Available | Cross Hook Spring |
| 173 | BER-C5J754 | Not Available | Trigger Assembly Spring Holder |
| 200 | |||
| 201 |
Receiver

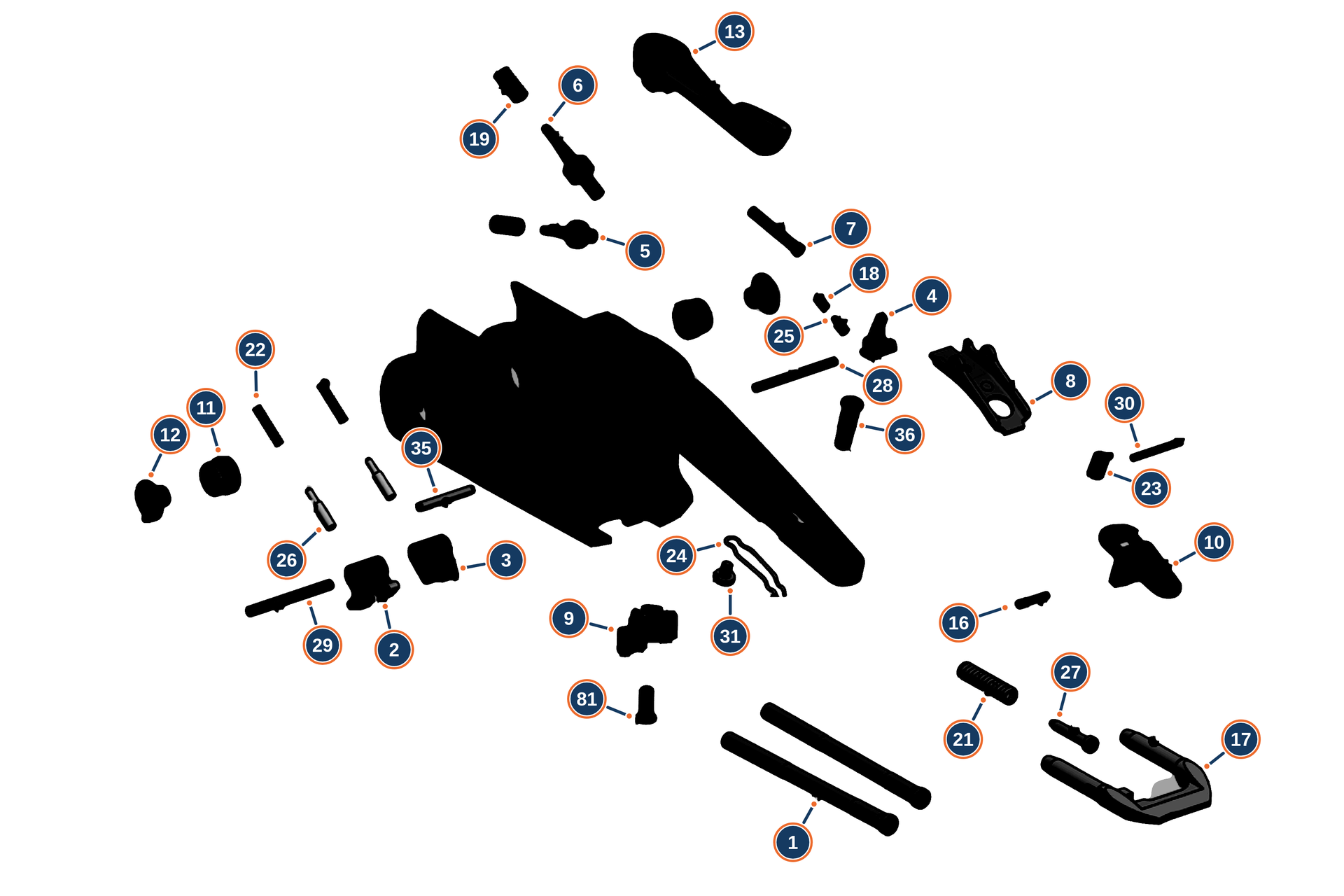

694 Sporting 12G Receiver exploded diagram.
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 1 | BER-C50317 | Not Available | Cocking Rod |
| 2 | |||
| 3 | |||
| 4 | |||
| 5 | |||
| 6 | |||
| 7 | |||
| 8 | |||
| 9 | |||
| 10 | BER-C5J966 | Not Available | Selective Single Trigger Safety |
| 11 | |||
| 12 | |||
| 13 | BER-C5J965 | Not Available | Nistan Wrench |
| 16 | |||
| 17 | BER-C5D465 | Not Available | Firing Pin Latch |
| 18 | |||
| 19 | |||
| 21 | |||
| 22 | |||
| 23 | |||
| 24 | |||
| 25 | |||
| 26 | |||
| 27 | |||
| 28 | |||
| 29 | |||
| 30 | |||
| 31 | |||
| 35 | |||
| 36 | |||
| 81 |
Barrel

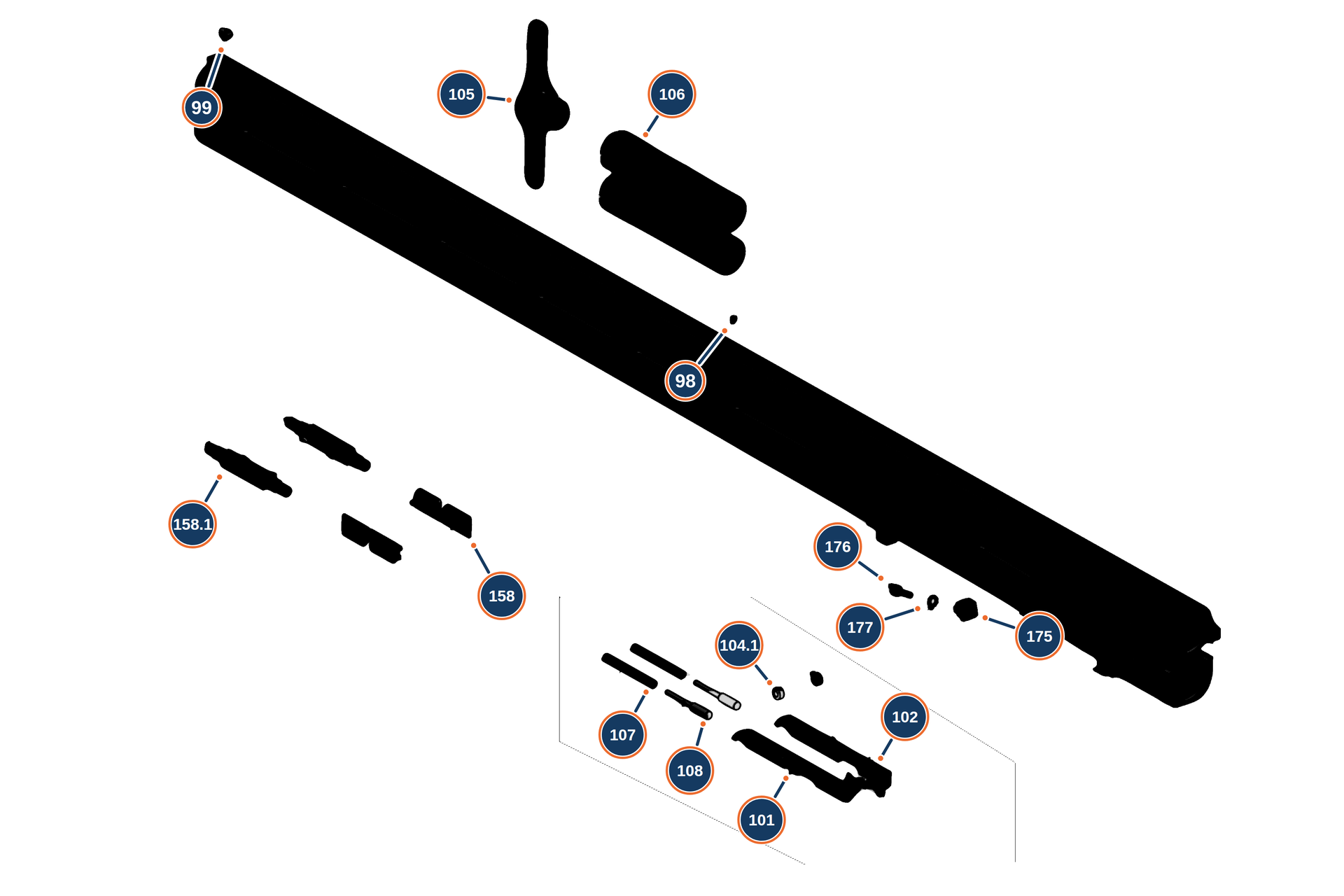

694 Sporting 12G Barrel exploded diagram.
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 98 | |||
| 99 | |||
| 101 | |||
| 102 | |||
| 104.1 | |||
| 105 | |||
| 106 | BER-PR0050BER-PR0047BER-PR0048BER-PR0052BER-C6D931BER-PR0046BER-PR0049BER-PR0051BER-PR0053BER-PR0131BER-PR0045BER-PR0044BER-C6D933 | Not Available Not Available Not Available Not Available Not Available Not Available Not Available Not Available Not Available Not Available Not Available Not Available Not Available | Optimachoke HP Optimachoke HP Optimachoke HP Optimachoke HP Optimachoke HP Optimachoke HP Optimachoke HP Optimachoke HP Optimachoke HP Optimachoke HP Optimachoke HP Optimachoke HP Optimachoke HP |
| 107 | |||
| 108 | |||
| 158 | |||
| 158.1 | |||
| 175 | BER-C5H580 | Not Available | Barrel Tenon |
| 176 | |||
| 177 | BER-C9A141 | Not Available | Toothed Washer |
Stock

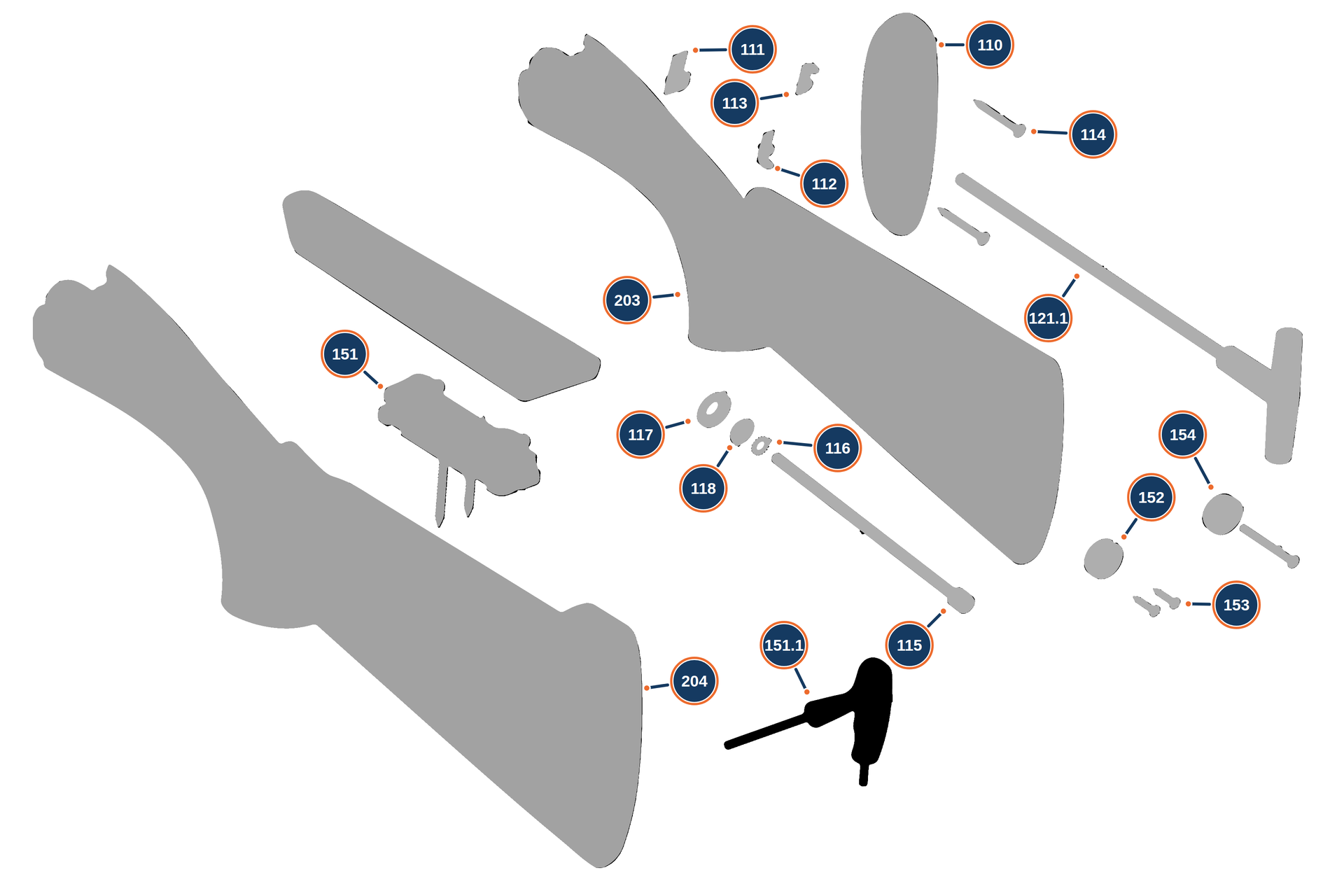

694 Sporting 12G Stock exploded diagram.
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 110 | |||
| 111 | |||
| 112 | BER-C5E038BER-E00422 | Not Available Not Available | Stock Fold Plates Stock Fold Plates |
| 113 | |||
| 114 | |||
| 115 | BER-C95329 | Not Available | Adjustable Buttstock Tension Screw |
| 116 | |||
| 117 | BER-C58038 | Not Available | Concave Tension Washer |
| 118 | |||
| 121.1 | |||
| 151 | BER-C8C398BER-C6A194 | Not Available Not Available | B-Fast Adjuster B-Fast Adjuster |
| 151.1 | |||
| 152 | |||
| 153 | |||
| 154 | |||
| 203 | |||
| 204 | BER-C8F166BER-C8F165E03060BER-E03061 | Not Available Not Available Not Available | Adjustable Stock Adjustable Stock Adjustable Stock |
