Beretta 694 Black DLC 12G Parts Guide
Exploded diagram, Beretta codes and linked spare parts for Beretta 694 Black DLC 12G.

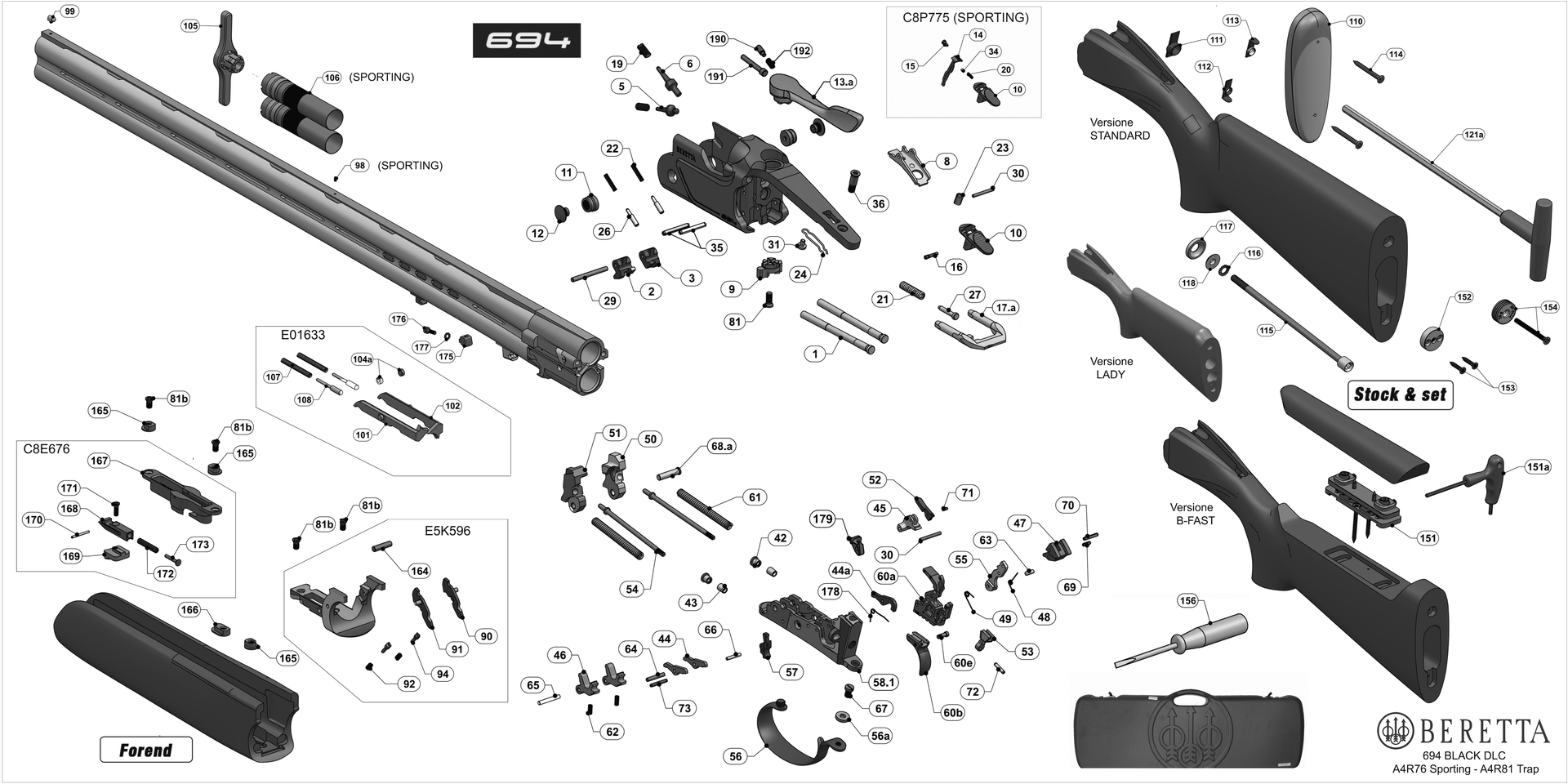

Exploded diagram
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 001 | C50317 | Not Available | OPERATING ROD STANDARD GA 12 - 690 27.54 € |
| 002 | |||
| 003 | |||
| 005 | |||
| 006 | |||
| 008 | |||
| 009 | |||
| 011 | |||
| 012 | C5K582 | Not Available | HINGE PIN SCREW - 694 BLACK DLC GA 12 22.00 € |
| 014 | C5K595 | Not Available | SAFETY SELECTOR - 694 BLACK DLC GA 12 19.01 € |
| 015 | |||
| 017 | C5Q074 | Not Available | LOCKING LATCH / LUG - SERIES 680 AND SERIES 690 59.50 € GA 12 - STANDARD |
| 019 | |||
| 020 | |||
| 021 | |||
| 022 | |||
| 023 | |||
| 024 | |||
| 026 | |||
| 027 | |||
| 029 | |||
| 030 | |||
| 031 | |||
| 034 | |||
| 035 | |||
| 036 | |||
| 042 | C52270 | Not Available | HAMMER SPRING GUIDE BUSH SV10 690 694 5.00 € |
| 043 | C52271 | Not Available | HAMMER SPRING GUIDE NUT 12 GA SV10 690 4.50 € |
| 044 | |||
| 044A | C53042 | Not Available | CONNECTING LEVER 12 GA S682 694 6.87 € |
| 045 | |||
| 046 | |||
| 047 | |||
| 048 | |||
| 049 | |||
| 050 | C5H183 | Not Available | HAMMER RIGHT RH DX GA 12 694 28.32 € |
| 051 | C5H182 | Not Available | HAMMER LEFT LF SX GA 12 694 28.32 € |
| 052 | |||
| 053 | |||
| 055 | |||
| 056A | C56114 | Not Available | TRIGGER GUARD SCREW WASHER 12 GA S682 4.40 € |
| 057 | |||
| 058.1 | C5K584 | Not Available | UNDER GUARD - 694 BLACK DLC 170.00 € |
| 060A | C5G298 | Not Available | TRIGGER BODY SINGLE SELECTIVE TRIGGER BLUED 62.99 € FOR 692 GA 12 |
| 060B | C5K589 | Not Available | TRIGGER - 694 BLACK DLC GA 12 62.99 € |
| 060E | |||
| 061 | C90182 | Not Available | HAMMER SPRING 12 GA SV10 690 695 4.50 € |
| 062 | |||
| 063 | |||
| 064 | |||
| 065 | |||
| 066 | C5P255 | Not Available | PIN 1/3 2x12 5.50 € |
| 067 | |||
| 068A | |||
| 069 | |||
| 070 | |||
| 071 | |||
| 072 | |||
| 073 | |||
| 081 | |||
| 081B | |||
| 090 | C5J405 | Not Available | FOREND IRON LEVER RIGHT HAND RH DX 694 GA 14.88 € 12 |
| 091 | C5J404 | Not Available | FOREND IRON LEVER LEFT HAND LH SX 694 GA 12 14.88 € |
| 092 | |||
| 094 | |||
| 098 | |||
| 099 | |||
| 10 | C5K594C5L206 | Not Available Not Available | SAFETY SINGLE SELECTIVE TRIGGER - 694 BLACK 40.00 € DLC 12 GA SAFETY NON SELECTIVE TRIGGER - 694 BLACK DLC 40.00 € TRAP 12 GA |
| 101 | |||
| 102 | |||
| 104A | |||
| 105 | C71500 | Not Available | CHOKE TUBE SPANNER 12 GA 11.00 € |
| 106 | C6D933 | Not Available | OCHP12 + 2cm BLACK EDITION - RIFLED 69.00 € |
| 107 | |||
| 108 | |||
| 110 | |||
| 111 | |||
| 112 | C5E038 | Not Available | DROP REDUCER SPACER FOR SV10 690 6.50 € |
| 113 | |||
| 114 | |||
| 115 | C95329 | Not Available | ADJUSTABLE STOCK BOLT SCREW 12 GA S682 694 15.50 € |
| 116 | |||
| 117 | C58038 | Not Available | WASHER ADJUSTABLE STOCK 12 GA S682 5.90 € |
| 118 | |||
| 121A | |||
| 13A | C5K592 | Not Available | OPENING LEVER DLC - 694 BLACK DLC 12 GA 120.50 € |
| 151 | C6A194C8C398 | Not Available Not Available | SET SPACERS FOR B-FAST - ADJUSTABLE 7.90 € BFAST MECHANISM ASSY (NO SCREWS) - DT11 GA 196.56 € 12 |
| 151A | |||
| 152 | |||
| 153 | |||
| 154 | |||
| 156 | |||
| 164 | C9A142 | Not Available | CYLINDER PIN 4X16 694 GA 12 5.50 € |
| 165 | |||
| 166 | |||
| 167 | C5K125 | Not Available | FOREND IRON CATCH BOX - ULTRALEGGERO GA 12 38.00 € |
| 168 | C5J382 | Not Available | BARREL HOOK BUSH 694 GA 12 77.00 € |
| 169 | C5K128 | Not Available | HOOK - ULTRALEGGERO GA 12 15.00 € |
| 170 | C5J417 | Not Available | ELASTIC PIN 1.5X16 5.50 € |
| 171 | |||
| 172 | C5L653 | Not Available | HOOK SPRING - ULTRALEGGERO GA 12 6.75 € |
| 173 | C5J754 | Not Available | SPRING GUIDE ASSY 694 GA 12 22.20 € |
| 175 | C5H580 | Not Available | BARREL HOOK 694 GA 12 49.00 € |
| 176 | |||
| 177 | C9A141 | Not Available | BUSH DIA 3 5.90 € |
| 178 | |||
| 179 | |||
| 190 | |||
| 191 | |||
| 192 | C90097 | Not Available | INERTIA SPRING SINGLE SELECTIVE TRIGGER - 426 4.50 € 625 |
| 56 | C5K588 | Not Available | TRIGGER GUARD - 694 BLACK DLC GA 12 55.00 € |
| E01633 | E01633 | Not Available | SET EXTRACTOR 12 GA 690 695 0.00 € |
