Beretta 690 Sporting 12G Game Scene Parts Guide
Five exploded diagrams, exact Beretta codes and linked spare parts for Beretta 690 Sporting 12G Game Scene.

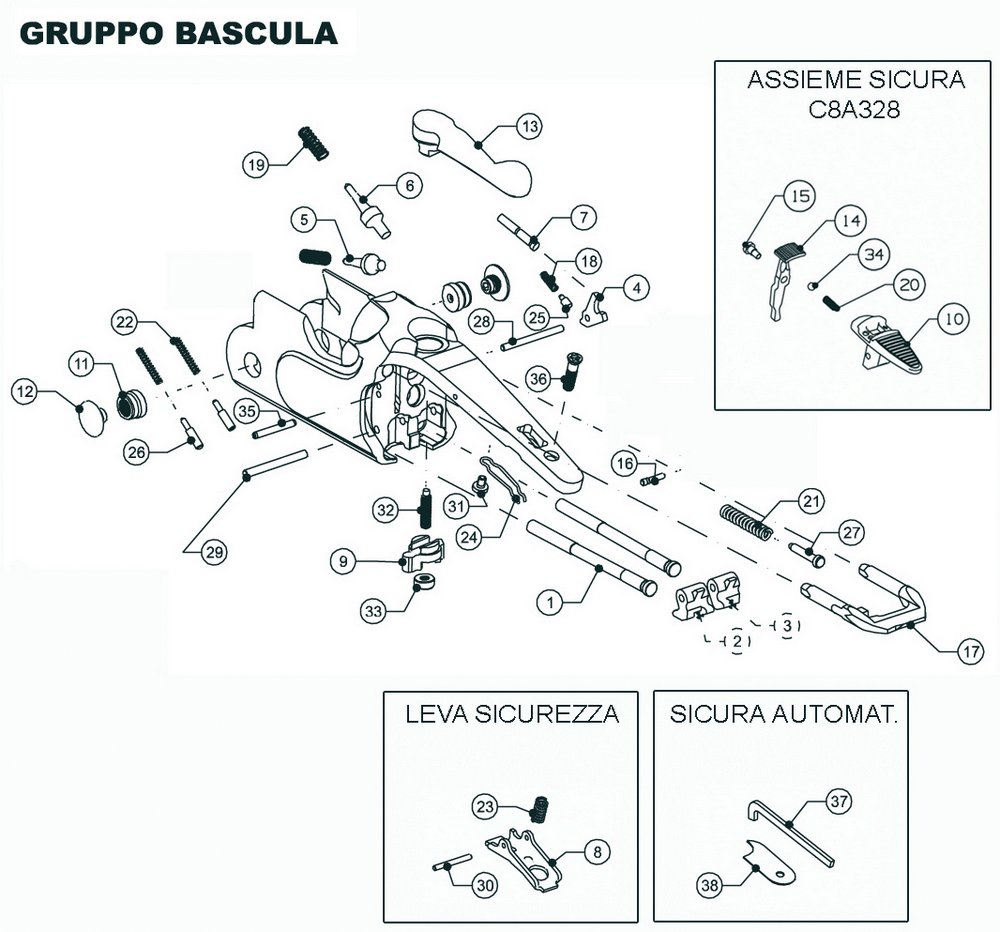

Action / frame
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 1 | C50317 | Not Available | OPERATING ROD STANDARD GA 12 - 690 |
| 10 | C5E253C5F359 | Not Available Not Available | SAFETY SINGLE SELECTIVE TRIGGER SST NISTAN FINISH - SV10 / SERIE 690 GA 12 SAFETY SINGLE SELECTIVE TRIGGER NISTAN FINISH SEMIGLOSSY FOR 692 GA 12 |
| 11 | C5D536C5D537 | Not Available Not Available | HINGE PIN DIAMETER 11.3 +0.45 SV10 PERENNIA - SV10 PREVAIL - 690 - 695 HINGE PIN DIAMETER 11.4 SV10 PREVAIL - SV10 PERENNIA - 690 - 692 -691 - 693 - 695 |
| 12 | |||
| 13 | C5F413 | Not Available | TOP LEVER GLOSSY 690 695 |
| 14 | C5E254 | Not Available | SELECTOR LEVER NISTAN FINISH - SV10 / 690 GA 12 |
| 15 | |||
| 16 | |||
| 18 | |||
| 19 | |||
| 2 | |||
| 20 | |||
| 21 | |||
| 22 | |||
| 24 | |||
| 25 | |||
| 26 | |||
| 27 | |||
| 28 | |||
| 29 | |||
| 3 | |||
| 31 | |||
| 32 | |||
| 33 | |||
| 34 | |||
| 35 | |||
| 36 | C5E518 | Not Available | SCREW SV10 690 |
| 4 | |||
| 5 | |||
| 6 | |||
| 7 | |||
| 9 |

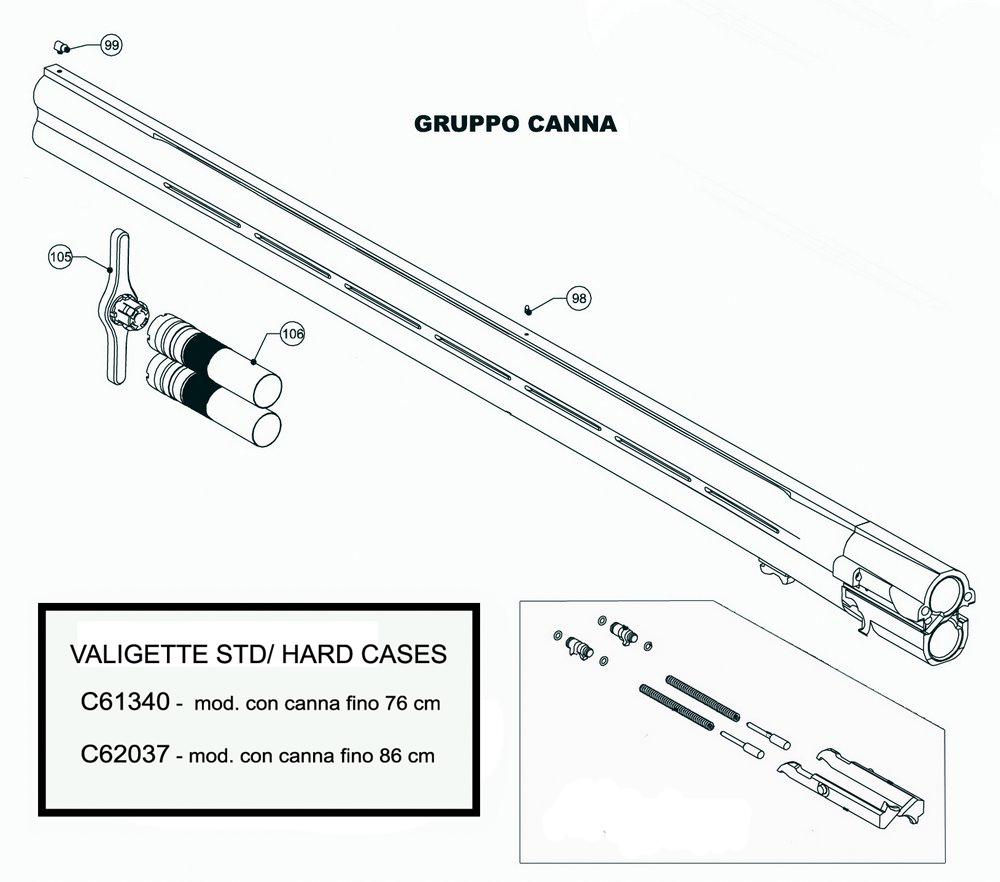

Barrel
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 105 | C71500 | Not Available | CHOKE TUBE SPANNER 12 GA |
| 106 | |||
| 98 | |||
| 99 |

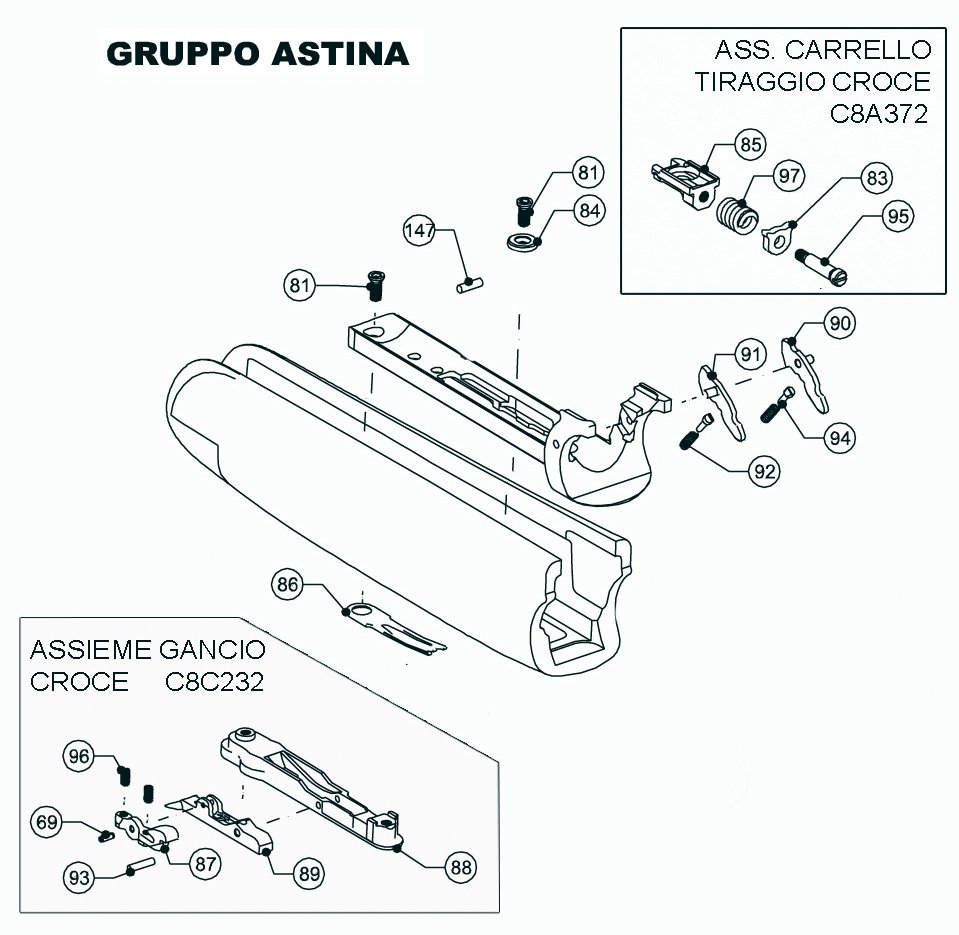

Forend
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 147 | C97260 | Not Available | ROLL 690 695 |
| 69 | |||
| 81 | |||
| 83 | C5C871 | Not Available | STOP SLIDE CROSS - 690 695 GA 12 |
| 84 | |||
| 85 | C5E429 | Not Available | CARRIAGE FORE-END IRON 690 695 |
| 86 | |||
| 89 | C5E515 | Not Available | FOREND IRON ASSY LATCH SUPPORT NISTAN FINISH FOR 692 GA 12 |
| 90 | C72367 | Not Available | FOREND LEVER ASSY RIGHT RH DX - 12 GA SV10 690 695 |
| 92 | |||
| 93 | C92218 | Not Available | TRIGGER PIN SERIE SV10 PERENNIA PREVAIL 690 691 693 692 695 |
| 94 | |||
| 95 | C5E137 | Not Available | FOREND IRON CART PIN - SV10 690 695 GA 12 AND GA 20 |
| 97 | C90384 | Not Available | SPRING FORE-END ASSY IRON SERIE SV10 690 692 695 |
| C8A372 | C8A372 | Not Available | FOREND IRON SLIDE ASSY SERIE SV10 690 692 691 683 |

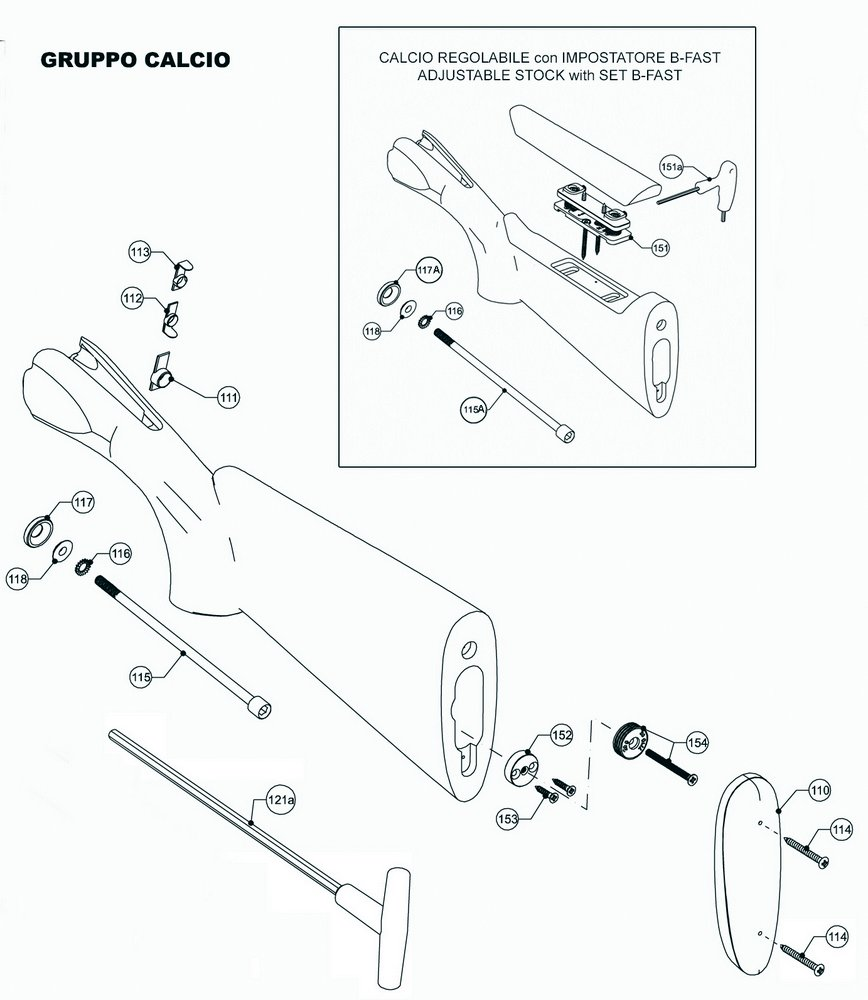

Stock
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 110 | E73021E73029 | Not Available Not Available | RECOIL PAD MICROCORE(r) COMPETITION SKEET SPORTING GA 12 - THICKNESS 13mm RECOIL PAD MICROCORE(r) COMPETITION SKEET SPORTING GA 12 - THICKNESS 28mm |
| 111 | |||
| 112 | C5E038 | Not Available | DROP REDUCER SPACER FOR SV10 690 |
| 113 | |||
| 114 | |||
| 115 | |||
| 115A | C95329 | Not Available | ADJUSTABLE STOCK BOLT SCREW 12 GA S682 694 |
| 116 | |||
| 117 | |||
| 117A | C58038 | Not Available | WASHER ADJUSTABLE STOCK 12 GA S682 |
| 118 | |||
| 121A | |||
| 151 |

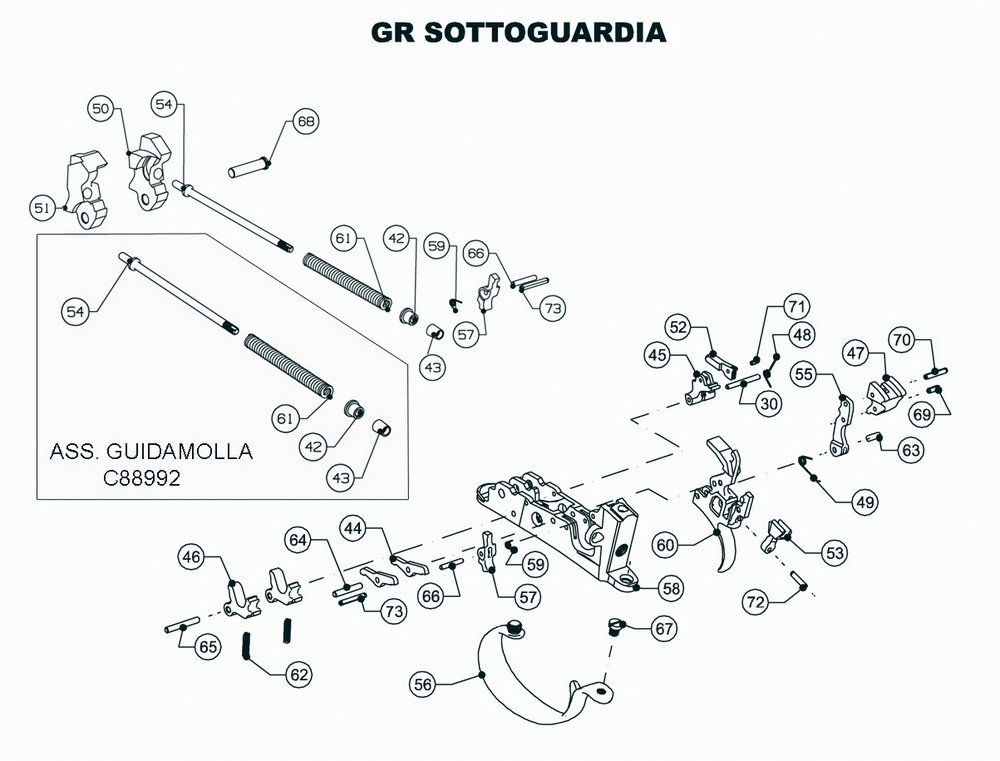

Trigger group
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 052 | |||
| 30 | |||
| 42 | C52270 | Not Available | HAMMER SPRING GUIDE BUSH SV10 690 694 |
| 43 | C52271 | Not Available | HAMMER SPRING GUIDE NUT 12 GA SV10 690 |
| 44 | |||
| 45 | |||
| 46 | |||
| 47 | |||
| 48 | |||
| 49 | |||
| 50 | C5H183 | Not Available | HAMMER RIGHT RH DX GA 12 694 |
| 51 | C5H182 | Not Available | HAMMER LEFT LF SX GA 12 694 |
| 53 | |||
| 54 | C55955 | Not Available | HAMMER SPRING GUIDE 20 GA 690 695 |
| 55 | |||
| 56 | C5F431 | Not Available | TRIGGER GUARD NISTAN 690 695 |
| 57 | |||
| 58 | C5F771 | Not Available | obs-SOTT OREC NST SPORT-690 - |
| 59 | |||
| 60 | C5E129 | Not Available | TRIGGER SINGLE SELECTIVE TRIGGER SST 690 |
| 61 | C90182 | Not Available | HAMMER SPRING 12 GA SV10 690 695 |
| 62 | |||
| 63 | |||
| 64 | |||
| 65 | |||
| 66 | |||
| 67 | |||
| 68 | |||
| 69 | |||
| 70 | |||
| 71 | |||
| 72 | |||
| 73 | |||
| C88992 |
