Beretta 688 Performance Sporting Parts Guide
Exploded diagram, Beretta codes and linked spare parts for Beretta 688 Performance Sporting.

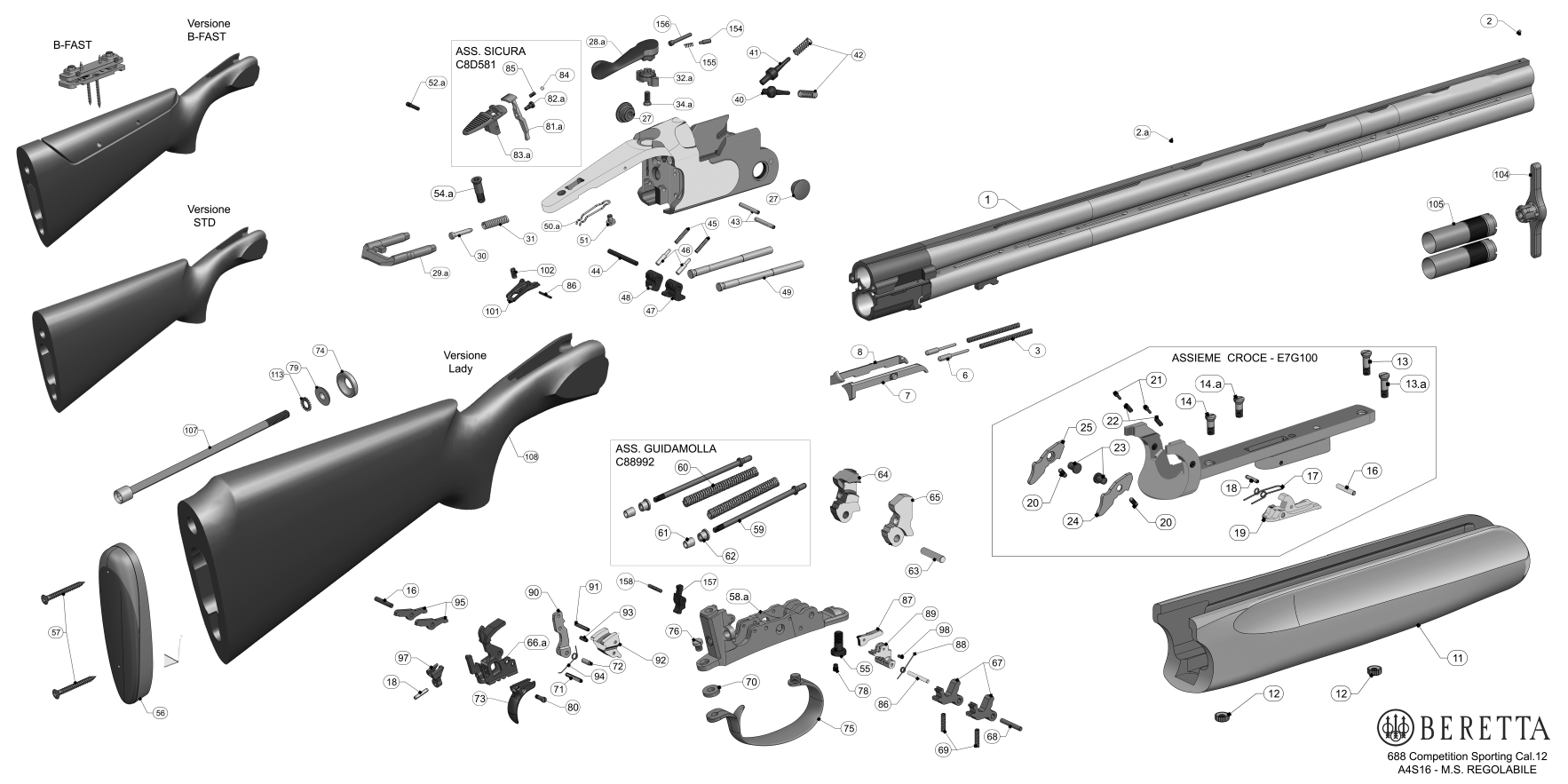

Exploded diagram
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 1 | A7N16141FBBE11A7N16141GBBE11 | Not Available Not Available | 680 12Ga. SPORTING BARREL 10X8 OCHP - 76cm 680 12Ga. SPORTING BARREL 10X8 OCHP - 81cm |
| 101 | |||
| 102 | |||
| 104 | C71500 | Not Available | CHOKE TUBE SPANNER 12 GA |
| 105 | |||
| 107 | |||
| 108 | C8M883C8M884 | Not Available Not Available | SET STOCK PISTOL GRIP ADJUSTABLE BFAST RIGHT HAND RH DX LAMINATED AND FOREND ROUND - 688 SPORTING GA 12 SET STOCK PISTOL GRIP ADJUSTABLE BFAST LEFT HAND LH SX LAMINATED AND FOREND ROUND - 688 SPORTING GA 12 |
| 11 | |||
| 113 | |||
| 12 | |||
| 13 | |||
| 13.a | C95234 | Not Available | FRONT SCREW FOREND IRON FIX - 688 GA 12 |
| 14 | |||
| 14.a | C95235 | Not Available | SCREW |
| 154 | |||
| 155 | C90097 | Not Available | INERTIA SPRING SINGLE SELECTIVE TRIGGER - 426 625 |
| 156 | |||
| 157 | |||
| 158 | C5P255 | Not Available | PIN 1/3 2x12 |
| 16 | |||
| 17 | |||
| 18 | |||
| 19 | C57867 | Not Available | FOREND IRON CATCH MAT SMOOTH FINISH |
| 2 | |||
| 20 | |||
| 21 | |||
| 22 | |||
| 23 | C55205 | Not Available | FOREND IRON LEVER PIN BLUED ULTRALIGHT GA 12 |
| 24 | |||
| 25 | |||
| 27 | C5J771 | Not Available | HINGE PIN STANDARD SIZE - FINISH GLOSSY BLUED - 688 GA 12 |
| 28.a | |||
| 29.a | C5Q074 | Not Available | LOCKING LATCH / LUG - SERIES 680 AND SERIES 690 GA 12 - STANDARD |
| 2.a | |||
| 3 | |||
| 30 | |||
| 31 | |||
| 32.a | |||
| 34.a | |||
| 40 | |||
| 41 | |||
| 42 | |||
| 43 | |||
| 44 | |||
| 45 | |||
| 46 | |||
| 47 | |||
| 48 | |||
| 49 | C50317 | Not Available | OPERATING ROD STANDARD GA 12 - 690 |
| 50.a | |||
| 51 | |||
| 52.a | |||
| 54.a | |||
| 55 | C95182 | Not Available | TRIGGER GUARD STOP SCREW MAT BLUE FINISH - 682 GA 12 |
| 56 | E73021E73029 | Not Available Not Available | RECOIL PAD MICROCORE(r) COMPETITION SKEET SPORTING GA 12 - THICKNESS 13mm RECOIL PAD MICROCORE(r) COMPETITION SKEET SPORTING GA 12 - THICKNESS 28mm |
| 57 | C95303 | Not Available | SCREW |
| 58.a | C5J775 | Not Available | TRIGGER PLATE BLUED MAT - 688 GA 12 |
| 6 | |||
| 60 | C90182 | Not Available | HAMMER SPRING 12 GA SV10 690 695 |
| 61 | C52271 | Not Available | HAMMER SPRING GUIDE NUT 12 GA SV10 690 |
| 62 | C52270 | Not Available | HAMMER SPRING GUIDE BUSH SV10 690 694 |
| 63 | |||
| 64 | C5H182 | Not Available | HAMMER LEFT LF SX GA 12 694 |
| 65 | C5H183 | Not Available | HAMMER RIGHT RH DX GA 12 694 |
| 66.a | C5G298 | Not Available | TRIGGER BODY SINGLE SELECTIVE TRIGGER BLUED FOR 692 GA 12 |
| 67 | |||
| 68 | |||
| 69 | |||
| 7 | |||
| 70 | C56114 | Not Available | TRIGGER GUARD SCREW WASHER 12 GA S682 |
| 71 | |||
| 72 | |||
| 73 | C5G299 | Not Available | TRIGGER ADJUSTABLE CENTRAL 692 BLACK EDITION GA 12 |
| 74 | |||
| 75 | C5N123 | Not Available | TRIGGER GUARD BLUED GLOSSY - 688 GA 12 - ULTRALEGGERO GA 12 |
| 76 | C95107 | Not Available | TRIGGER GUARD SCREW 690 |
| 78 | |||
| 79 | |||
| 8 | |||
| 80 | |||
| 81.a | C5G196 | Not Available | SELECTOR LEVER BLUED 690 GA 12 |
| 82.a | |||
| 83.a | C5J006 | Not Available | SAFETY BLUED SINGLE SELECTIVE TRIGGER - ULTRALEGGERO GA 12 |
| 84 | |||
| 85 | |||
| 86 | |||
| 87 | |||
| 88 | |||
| 89 | |||
| 90 | |||
| 91 | |||
| 92 | |||
| 95 | |||
| 97 | |||
| 98 |
