Beretta 687 Silver Pigeon Classic 12G Parts Guide
Exploded diagram, Beretta codes and linked spare parts for Beretta 687 Silver Pigeon Classic 12G.

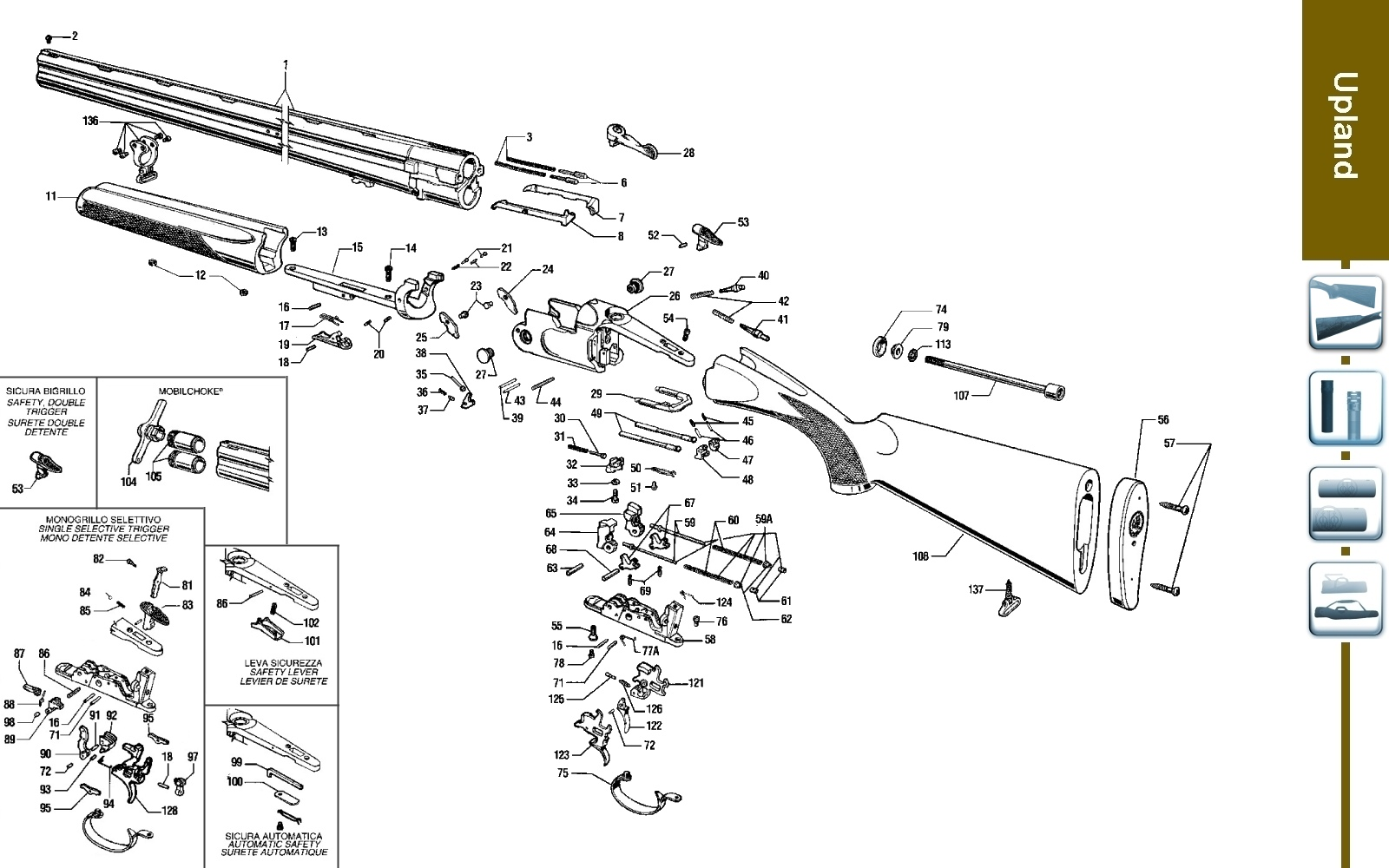

Exploded diagram
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 2 | C81896 | Not Available | FRONT SIGHT ASSY FIELD 6X6 |
| 3 | |||
| 6 | |||
| 7 | C52329 | Not Available | EXTRACTOR |
| 8 | C52332 | Not Available | EXTRACTOR |
| 11 | C5C291C87684C87686 | Not Available Not Available Not Available | FOREND SCHNABEL GLOSSY OIL FINISH CLASS 3 - 687 GA 12 ROYAL PIGEON SET STOCK SEMI PISTOL GRIP 35/55 RIGHT HAND RH DX MAT OIL FINISH CLASS 3 AND FOREND SEMI BEAVERTAIL - 687 CLASSIC GA 12 SET STOCK ENGLISH GRIP 35/55 RIGHT HAND RH DX MAT OIL FINISH CLASS 3 AND FOREND SEMI BEAVERTAIL - 687 CLASSIC GA 12 |
| 12 | |||
| 13 | |||
| 14 | |||
| 16 | |||
| 17 | |||
| 18 | |||
| 19 | C58916 | Not Available | FOREND IRON CATCH - SERIE 687 GA 12 / 20 / 28 |
| 20 | |||
| 21 | |||
| 22 | |||
| 23 | |||
| 24 | |||
| 25 | |||
| 27 | C59570 | Not Available | HINGE PIN - SERIE 686 687 GA 12 |
| 28 | C58947 | Not Available | TOP LEVER |
| 29 | C51615 | Not Available | LOCKING BOLT GA 12 686 |
| 30 | |||
| 31 | |||
| 32 | |||
| 33 | |||
| 34 | |||
| 35 | |||
| 36 | |||
| 37 | |||
| 38 | |||
| 39 | |||
| 40 | |||
| 41 | |||
| 42 | |||
| 43 | |||
| 44 | |||
| 45 | |||
| 46 | |||
| 47 | |||
| 48 | |||
| 49 | C50317 | Not Available | OPERATING ROD STANDARD GA 12 - 690 |
| 50 | |||
| 51 | |||
| 52 | |||
| 53 | C58953 | Not Available | SAFETY NISTAN 12 GA S682 |
| 54 | C95014 | Not Available | STOCK BOLT PLATE SCREW 12/20 GA S682 |
| 55 | |||
| 56 | C53721 | Not Available | RECOIL PAD FIELD RUBBER BLACK FULL MEDIUM 18MM 12GA AND 20GA |
| 57 | |||
| 58 | C58945 | Not Available | TRIGGER PLATE NISTAN FINISH - SERIE 686 687 GA 12 |
| 59 | |||
| 61 | C52270 | Not Available | HAMMER SPRING GUIDE BUSH SV10 690 694 |
| 62 | C52271 | Not Available | HAMMER SPRING GUIDE NUT 12 GA SV10 690 |
| 63 | |||
| 64 | |||
| 65 | |||
| 67 | |||
| 68 | |||
| 69 | |||
| 71 | |||
| 72 | |||
| 74 | |||
| 75 | C77008C77011 | Not Available Not Available | TRIGGER GUARD FOR STOCK WITH PISTOL GRIP RAW FINISH - 687 CLASSIC GA 12 - 20 - 28 TRIGGER GUARD LONG FOR ENGLISH STOCK RAW FINISH - 687 CLASSIC GA 12 - 20 - 28/20 |
| 76 | |||
| 78 | |||
| 79 | |||
| 81 | C58918 | Not Available | SELECTOR LEVER NISTAN FINISH - SERIE 680 GA 12 |
| 82 | |||
| 83 | C58871 | Not Available | SAFETY SINGLE SELECTIVE TRIGGER - GIUBILEO GA 12 |
| 84 | |||
| 85 | |||
| 86 | |||
| 87 | |||
| 88 | |||
| 89 | |||
| 90 | |||
| 91 | |||
| 92 | |||
| 93 | |||
| 94 | |||
| 95 | |||
| 97 | |||
| 98 | |||
| 99 | C50074 | Not Available | AUTOMATIC SAFETY ROD SV10 690 |
| 100 | |||
| 101 | |||
| 102 | |||
| 104 | C71500 | Not Available | CHOKE TUBE SPANNER 12 GA |
| 107 | |||
| 108 | C83466 | Not Available | STOCK ENGLISH GRIP 35/55 LEFT HAND LH SX MAT OIL FINISH CLASS 3 - 687 CLASSIC GA 12 |
| 113 | |||
| 122 | C52721 | Not Available | TRIGGER RIGHT RH DX DOUBLE TRIGGER CHROMED GA 12 S685 |
| 124 | |||
| 125 | |||
| 126 | |||
| 128 | C54489 | Not Available | TRIGGER SINGLE SELECTIVE MAT CHROME FINISH - SERIE 680 GA 12 |
| 136 | C62040 | Not Available | SWIVEL SET FOR BARREL OVER AND UNDER GA 12 690 |
| 137 | |||
| 77A |
