Beretta 687 EELL Diamond Pigeon .410 Parts Guide

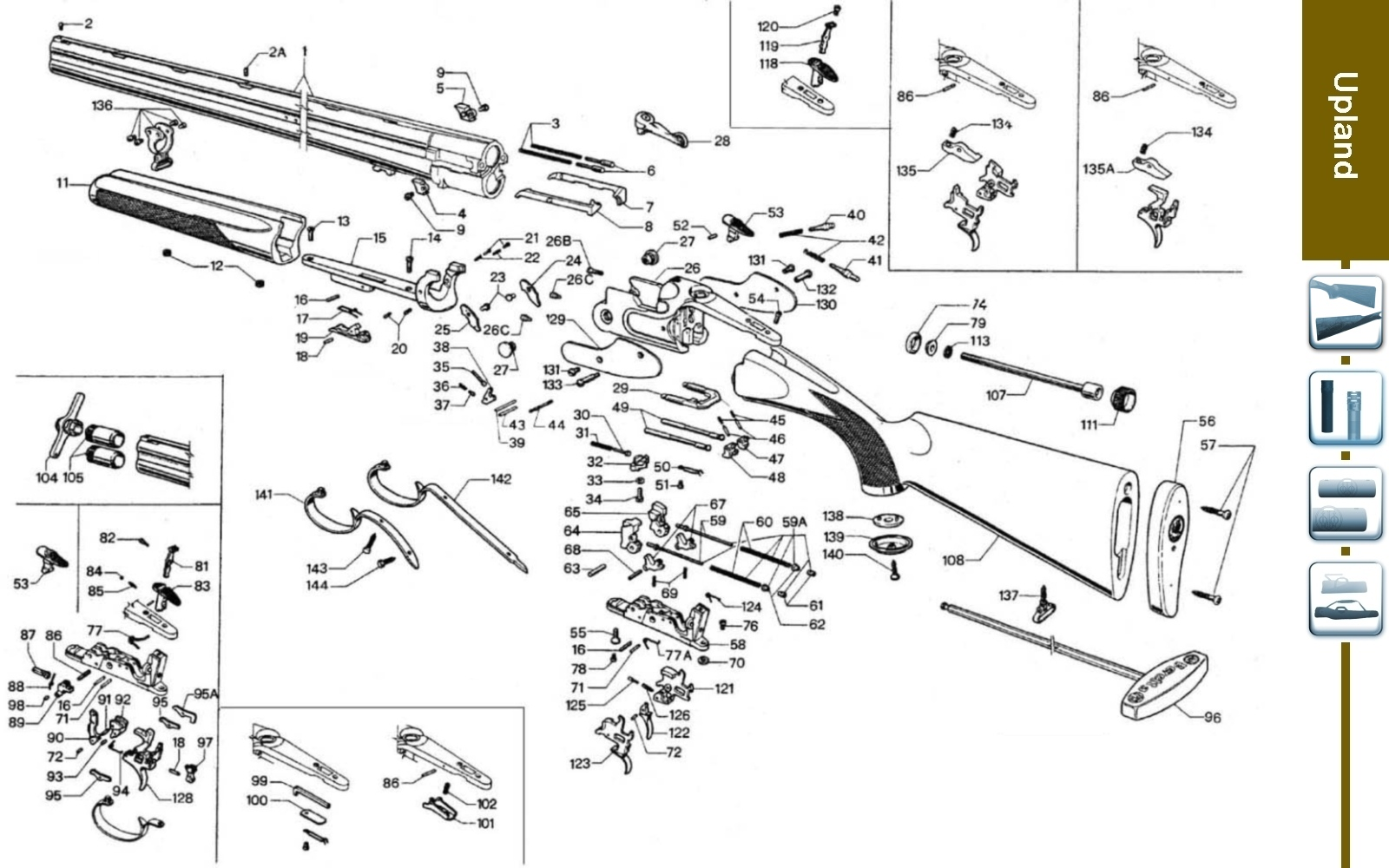

Exploded diagram, Beretta codes and linked spare parts for Beretta 687 EELL Diamond Pigeon .410.
Exploded diagram
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 2 | |||
| 3 | C45191 | Not Available | EJECTOR SPRING SILVER PIGEON I MY19 - GA 28 - 410 |
| 6 | |||
| 8 | C45542 | Not Available | EJECTOR LEFT LH SX GA 36 |
| 11 | C58176C58177C58891C5A007C5A009C5A010C84205C84206C84209C86746 | Not Available Not Available Not Available Not Available Not Available Not Available Not Available Not Available Not Available Not Available | FOREND SCHNABEL OIL FINISH CLASS 4 GA 28 - GA 410 687EELL FOREND SCHNABEL GLOSSY OIL FINISH CLASS 4 GA 28 - GA 410 687EELL FORE-END FOREND SCHNABEL OIL FINISH CLASS 3 GA 410 687EELL FOREND SCHNABEL MAT FINISH CLASS 3 GA 410 687EELL DIAMOND PIGEON FOREND SCHNABEL GLOSSY FINISH CLASS 3 GA 410 687EELL DIAMOND PIGEON SET STOCK PISTOL GRIP WITH SILVER EMBLEM LEFT HAND LH SX 35/55 OIL FINISH CLASS 3 GA 410 AND FOREND SCHNABEL - 687EELL DIAMOND PIGEON SET STOCK PISTOL GRIP WITH SILVER EMBLEM LEFT HAND LH SX 35/55 OIL FINISH CLASS 3 AND FOREND BEAVERTAIL - 687EELL DIAMOND PIGEON GA 410 RH SET STOCK W/ SILVER PLATE 60D AND SCHNABEL FOREND CLASS £ FOR 687 EELL 12 Ga. SET STOCK PISTOL GRIP WITH SILVER EMBLEM RIGHT HAND RH DX 38/60 OIL FINISH CLASS 4 GA 410 AND FOREND SCHNABEL 687EELL DIAMOND PIGEON |
| 12 | C58690 | Not Available | FOREND WASHER - 687 EELL - GIUBILEO |
| 13 | C95277 | Not Available | FOREND FRONT SCREW - GIUBILEO |
| 14 | C95291 | Not Available | FOREND SCREW |
| 16 | |||
| 17 | |||
| 18 | |||
| 19 | C59628 | Not Available | FOREND IRON CATCH STEEL - 687 EELL |
| 20 | C45199 | Not Available | SCREW IRON LEVER PIN SILVER PIGEON I MY19 |
| 21 | |||
| 22 | |||
| 23 | C45239 | Not Available | FOREND LEVER PIN - 687EL 687EELL GA 28 - 410 |
| 24 | |||
| 25 | |||
| 27 | C45250 | Not Available | HINGE PIN |
| 28 | C59626 | Not Available | TOP LEVER RAW 687 EELL GA 28/28 WITH ENGRAVING - NO TREATMENT |
| 29 | C45417 | Not Available | LOCKING LATCH 28/410 GA 690 |
| 30 | |||
| 31 | |||
| 32 | |||
| 33 | |||
| 34 | C45195 | Not Available | SCREW TOP LEVER SILVER PIGEON I MY19 |
| 35 | C45251 | Not Available | LOCKING LATCH RELEASE PIN 28 GA 690 |
| 36 | |||
| 37 | |||
| 38 | |||
| 39 | |||
| 40 | C45234 | Not Available | FIRING PIN 28 - 410 690 686 SILVER PIGEON I MY19 |
| 41 | C45235 | Not Available | FIRING PIN GA 28 - 410 690 686 SILVER PIGEON I MY19 |
| 42 | |||
| 43 | |||
| 44 | C92192 | Not Available | COCKING LEVER PIN 690 695 |
| 45 | |||
| 46 | |||
| 47 | |||
| 48 | C52987 | Not Available | COCKING LEVER 20 GA 690 695 |
| 49 | |||
| 50 | |||
| 51 | |||
| 52 | |||
| 54 | C95014 | Not Available | STOCK BOLT PLATE SCREW 12/20 GA S682 |
| 55 | C45252 | Not Available | SCREW FOR TRIGGER GUARD ENGRAVED GIUBILEO |
| 56 | C53661C55259 | Not Available Not Available | RECOIL PAD FIELD RUBBER BLACK FULL THIN 12MM GA 12 AND GA 20 RECOIL PAD FIELD WOOD THIN 15MM OIL |
| 57 | |||
| 58 | C45241 | Not Available | TRIGGER PLATE WHITE - 687 EELL CAL 28 AND 410 |
| 59A | |||
| 61 | C52270 | Not Available | HAMMER SPRING GUIDE BUSH SV10 690 694 |
| 62 | C52271 | Not Available | HAMMER SPRING GUIDE NUT 12 GA SV10 690 |
| 63 | |||
| 64 | |||
| 67 | |||
| 68 | |||
| 69 | |||
| 71 | |||
| 72 | |||
| 74 | |||
| 76 | |||
| 78 | C45268 | Not Available | SCREW |
| 79 | |||
| 81 | C59562 | Not Available | SELECTOR LEVER SINGLE SELECTIVE TRIGGER - 687 EELL GA 20 / 28 / 410 |
| 82 | |||
| 83 | C59621 | Not Available | SAFETY SINGLE SELECTIVE TRIGGER SST - 687 EELL GA 20 |
| 84 | |||
| 85 | |||
| 86 | |||
| 87 | |||
| 88 | C54223 | Not Available | SPRING |
| 89 | |||
| 90 | |||
| 91 | |||
| 92 | |||
| 93 | |||
| 94 | C54222 | Not Available | INERTIA BLOCK SPRING SELECTIVE SINGLE TRIGGER 28-410 GA 690 |
| 95 | |||
| 97 | |||
| 98 | |||
| 99 | C50074 | Not Available | AUTOMATIC SAFETY ROD SV10 690 |
| 100 | |||
| 104 | |||
| 107 | |||
| 108 | C81839C81865C83219 | Not Available Not Available Not Available | STOCK PISTOL GRIP WITH SILVER EMBLEM RIGHT HAND RH DX 38/60 OIL FINISH CLASS 4 GA 28 / GA 410 687EELL DIAMOND PIGEON STOCK ENGLISH GRIP WITH SILVER EMBLEM RIGHT HAND RH DX 35/55 OIL FINISH CLASS 4 GA 28 / GA 410 687EELL DIAMOND PIGEON STOCK PISTOL GRIP WITH SILVER EMBLEM RIGHT HAND RH DX 38/60 OIL FINISH CLASS 3 GA 28 / GA 410 687EELL DIAMOND PIGEON |
| 113 | |||
| 128 | |||
| 131 | |||
| 132 | |||
| 133 | |||
| 134 | |||
| 135A | C58714 | Not Available | SAFETY LEVER MG 20 GA 690 695 |
| 136 | C62039 | Not Available | SWIVEL SET FOR OVER AND UNDER BARREL GA 20 WITH FIXING SCREW |
| 137 | |||
| 141 | C40178 | Not Available | TRIGGER GUARD LONG FOR STOCK PISTOL GRIP 680 GA 12 |
| 143 | |||
| 144 | C95259 | Not Available | SCREW |
