Beretta 686 Ultralight Deluxe 12G spare parts
Beretta 686 Ultralight Deluxe 12G Parts Guide
Use the exploded diagram and position table to find Beretta spare-part codes and current product availability.

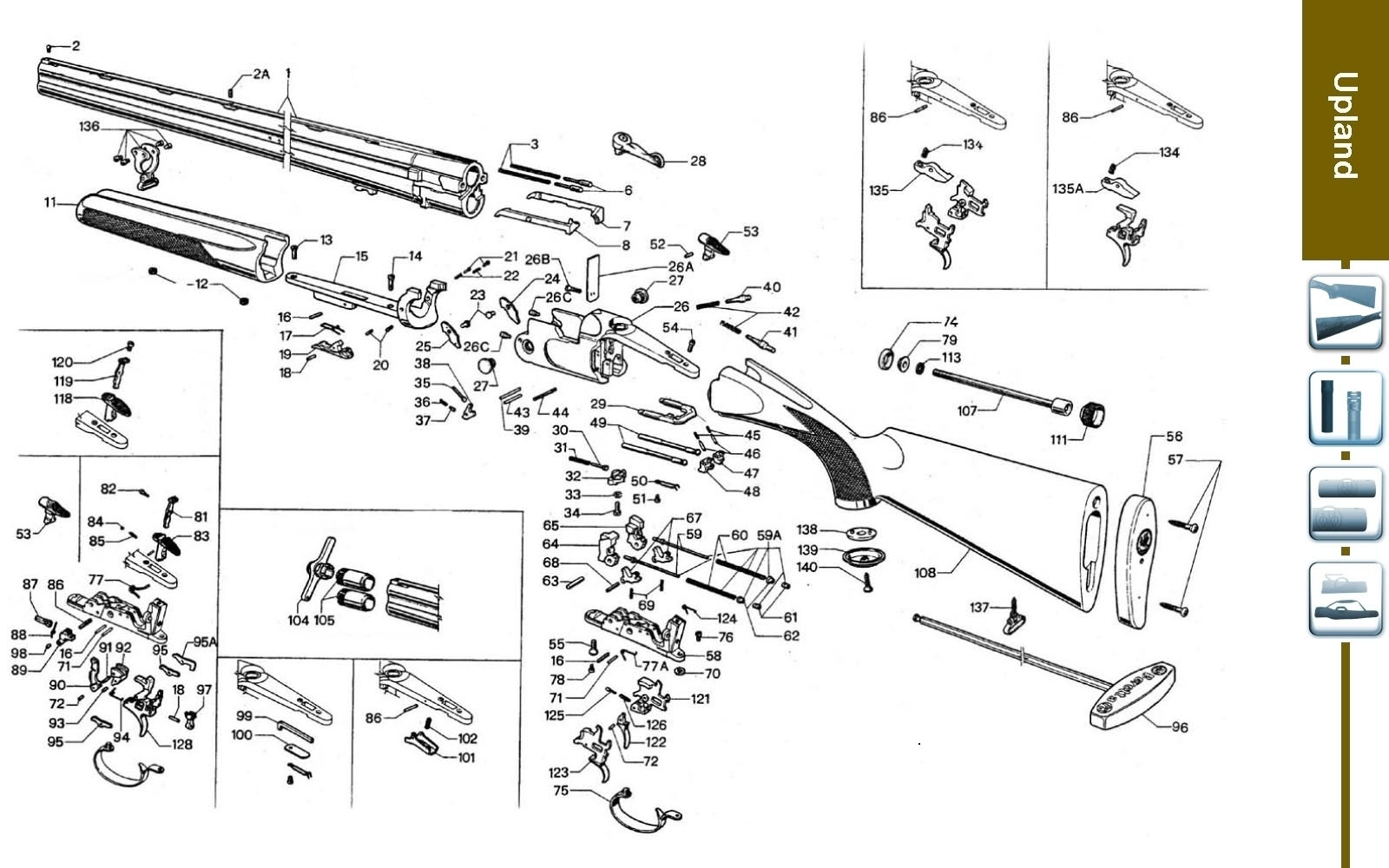

Beretta 686 Ultralight Deluxe 12G exploded diagram
The exploded view is followed by its matching position and part-code table.
Beretta 686 Ultralight Deluxe 12G parts
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 0- 01509- 00540 | BER-C61340 | Not Available | CASE FOR OVER AND UNDER WITH PROTECTED INTERIOR - 76cm |
| 0002 | |||
| 0003 | |||
| 0006 | |||
| 0007 | |||
| 0008 | |||
| 0012 | |||
| 0013 | |||
| 0014 | |||
| 0016 | |||
| 0017 | |||
| 0018 | |||
| 0019 | BER-C58916 | Not Available | FOREND IRON CATCH - SERIE 687 GA 12 / 20 / 28 |
| 0020 | |||
| 0021 | |||
| 0022 | |||
| 0023 | BER-C55205 | Not Available | FOREND IRON LEVER PIN BLUED ULTRALIGHT GA 12 |
| 0024 | |||
| 0025 | |||
| 0027 | BER-C59573 | Not Available | NICKEL HINGE PIN ULTRALIGHT DELUXE 12 GA |
| 0028 | BER-C58947 | Not Available | TOP LEVER |
| 0029 | BER-C51615 | Not Available | LOCKING BOLT GA 12 686 |
| 0030 | |||
| 0031 | |||
| 0032 | |||
| 0033 | |||
| 0034 | |||
| 0035 | |||
| 0036 | |||
| 0037 | |||
| 0038 | |||
| 0039 | |||
| 0040 | |||
| 0041 | |||
| 0042 | |||
| 0043 | |||
| 0044 | |||
| 0045 | |||
| 0046 | |||
| 0047 | BER-C53344 | Not Available | COCKING LEVER RIGHT |
| 0048 | |||
| 0049 | BER-C50317 | Not Available | OPERATING ROD STANDARD GA 12 - 690 |
| 0050 | |||
| 0051 | |||
| 0052 | |||
| 0053 | BER-C58953 | Not Available | SAFETY NISTAN 12 GA S682 |
| 0054 | |||
| 0057 | |||
| 0058 | BER-C58945 | Not Available | TRIGGER PLATE NISTAN FINISH - SERIE 686 687 GA 12 |
| 0061 | BER-C52270 | Not Available | HAMMER SPRING GUIDE BUSH SV10 690 694 |
| 0062 | BER-C52271 | Not Available | HAMMER SPRING GUIDE NUT 12 GA SV10 690 |
| 0063 | |||
| 0064 | |||
| 0065 | |||
| 0067 | |||
| 0068 | |||
| 0069 | |||
| 0071 | |||
| 0072 | |||
| 0074 | |||
| 0075 | BER-C70546 | Not Available | TRIGGER GUARD 687 SILVER PIGEON II - GA 12 - 20 - 28 - 410 |
| 0076 | |||
| 0078 | |||
| 0079 | |||
| 0081 | BER-C58918 | Not Available | SELECTOR LEVER NISTAN FINISH - SERIE 680 GA 12 |
| 0082 | |||
| 0083 | |||
| 0084 | |||
| 0085 | |||
| 0086 | |||
| 0087 | |||
| 0088 | |||
| 0089 | |||
| 0090 | |||
| 0091 | |||
| 0092 | |||
| 0093 | |||
| 0094 | |||
| 0095 | |||
| 0097 | |||
| 0099 | BER-C50074 | Not Available | AUTOMATIC SAFETY ROD SV10 690 |
| 0100 | |||
| 0101 | |||
| 0102 | |||
| 0104 | |||
| 0107 | |||
| 0108 | BER-C59905BER-C59907BER-C59908BER-C85481BER-C85550 | Not Available Not Available Not Available Not Available Not Available | STOCK ENGLISH GRIP 35/55 RIGHT HANDED DX OIL FINISH - ULTRALIGHT GOLD GA 12 CL 2.5 STOCK PISTOL GRIP 38/60 RIGHT HANDED DX OIL FINISH - ULTRALIGHT GOLD GA 12 STOCK PISTOL GRIP 35/55 LEFT HANDED SX OIL FINISH - ULTRALIGHT GOLD GA 12 SET STOCK PISTOL GRIP 38/60 RIGHT HANDED RH DX OIL FINISH CLASS 2.5 AND SCHNABEL FOREND - ULTRALIGHT GOLD GA 12 LH 12 Ga. HUNTING STOCK 55 and SCHNABEL FOREND CLASS 2,5 - ULTRALIGHT SERIES |
| 011 | |||
| 0113 | |||
| 0121 | BER-C57255 | Not Available | GOLD TRIGGER BODY 12 GA SILVER PIGEON |
| 0122 | |||
| 0123 | |||
| 0124 | |||
| 0125 | |||
| 0126 | |||
| 0128 | |||
| 0136 | BER-C62040 | Not Available | SWIVEL SET FOR BARREL OVER AND UNDER GA 12 690 |
| 0137 | |||
| 26B | BER-C57547 | Not Available | SCREW |
| 26C | BER-C58911 | Not Available | PIN, FOR ULTRALIGHT |
| 59A | |||
| 77A |
