Beretta 686 Onyx 12G Parts Guide
Use the exploded diagram and position table to find Beretta spare-part codes and current product availability.

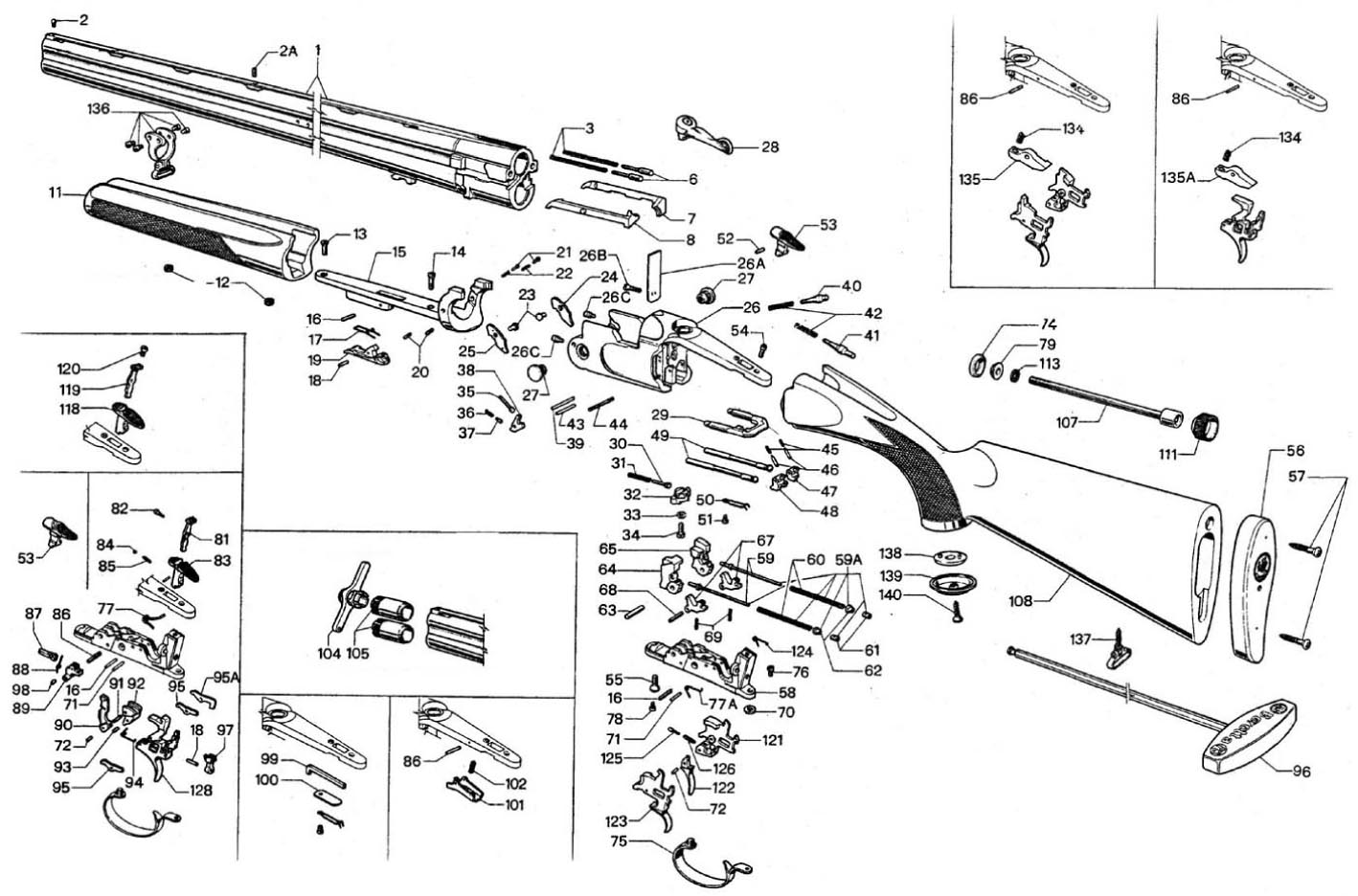

Beretta 686 Onyx 12G exploded diagram
The exploded view is followed by its matching position and part-code table.
Beretta 686 Onyx 12G parts
| Position | Beretta Code | Stock | Description & Product Link |
|---|---|---|---|
| 002 | |||
| 003 | |||
| 006 | |||
| 007 | |||
| 008 | |||
| 011 | BER-C54436BER-C55334BER-C55362BER-C58246BER-C58905BER-C59792BER-C59794BER-C59888BER-C84022BER-C84078BER-C84081BER-C85821BER-C85822BER-C85823BER-C85824 | Not Available Not Available Not Available Not Available Not Available Not Available Not Available Not Available Not Available Not Available Not Available Not Available Not Available Not Available Not Available | FOREND HALF-BEAVERTAIL MAT FINISH CLASS 1 GA 12 686 ONYX FOREND BEAVERTAIL OIL FINISH CLASS 2 GA 12 687EL FOREND SCHNABEL MAT FINISH CLASS 1 - 686 SILVER PIGEON I CACCIA/FIELD GA 12 FOREND SCHNABEL GLOSSY FINISH CLASS 1 GA 12 SILVER PIGEON S / ONYX FORE-ENDFOREND HALF BEAVERTAIL XTRA WOOD FINISH 686 FOREND SCHNABEL XTRA WOOD FINISH CLASS 0 GA 28 SILVER PIGEON S FOREND SCHNABEL XTRA WOOD FINISH CLASS 0 GA 20 SILVER PIGEON 1 FOREND SCHNABEL XTRA WOOD FINISH CLASS 0 GA 12 686 ONYX SET STOCK PISTOL GRIP 35/55 RH RIGHT HAND DX OIL FINISH CLASS 1 AND FOREND HALF BEAVERTAIL - 686 ONYX 12 GA STOCK & FORE-END STOCK & FORE-END STOCK & FORE-END STOCK & FORE-END STOCK & FORE-END STOCK & FORE-END |
| 012 | |||
| 013 | |||
| 014 | |||
| 016 | |||
| 017 | |||
| 018 | |||
| 019 | BER-C52624 | Not Available | FOREND IRON CATCH - 686 SILVER PIGEON GA 12 AND 20 |
| 020 | |||
| 021 | |||
| 022 | |||
| 023 | |||
| 024 | |||
| 025 | |||
| 027 | BER-C57736 | Not Available | HINGE PIN BLUED FINISH - SILVER PIGEON GA 12 |
| 029 | BER-C51615 | Not Available | LOCKING BOLT GA 12 686 |
| 030 | |||
| 031 | |||
| 032 | |||
| 033 | |||
| 034 | |||
| 035 | |||
| 036 | |||
| 037 | |||
| 038 | |||
| 039 | |||
| 040 | |||
| 041 | |||
| 042 | |||
| 043 | |||
| 044 | |||
| 045 | |||
| 046 | |||
| 047 | |||
| 048 | |||
| 049 | BER-C50317 | Not Available | OPERATING ROD STANDARD GA 12 - 690 |
| 050 | |||
| 051 | |||
| 052 | |||
| 053 | |||
| 054 | BER-C95014BER-C95182 | Not Available Not Available | STOCK BOLT PLATE SCREW 12/20 GA S682 TRIGGER GUARD STOP SCREW MAT BLUE FINISH - 682 GA 12 |
| 056 | |||
| 057 | |||
| 058 | BER-C56404BER-C56411 | Not Available Not Available | TRIGGER PLATE BLUED FINISH - 12 GA S682 TRIGGER PLATE MAT BLUED - 686 ONYX GA 12 |
| 059 | |||
| 061 | BER-C52270 | Not Available | HAMMER SPRING GUIDE BUSH SV10 690 694 |
| 062 | BER-C52271 | Not Available | HAMMER SPRING GUIDE NUT 12 GA SV10 690 |
| 063 | |||
| 064 | |||
| 065 | |||
| 067 | |||
| 068 | |||
| 069 | |||
| 071 | |||
| 072 | |||
| 074 | |||
| 075 | BER-C77172BER-C77174 | Not Available Not Available | TRIGGER PLATE BLUED GLOSSY SERIE 686 682 TRIGGER PLATE BLUED MAT SERIE 686 682 GA 12 |
| 076 | BER-C95107 | Not Available | TRIGGER GUARD SCREW 690 |
| 077A | |||
| 078 | |||
| 079 | |||
| 081 | |||
| 082 | |||
| 083 | BER-C56320 | Not Available | SAFETY SINGLE SELECTIVE TRIGGER BLUED S685 GA 12 |
| 084 | |||
| 085 | |||
| 086 | |||
| 087 | |||
| 088 | |||
| 089 | |||
| 090 | |||
| 091 | |||
| 092 | |||
| 093 | |||
| 094 | |||
| 095 | |||
| 097 | |||
| 098 | |||
| 099 | BER-C50074 | Not Available | AUTOMATIC SAFETY ROD SV10 690 |
| 100 | |||
| 101 | |||
| 102 | |||
| 104 | |||
| 107 | |||
| 108 | BER-C59876BER-C59883BER-C59884BER-C59885BER-C84666BER-C84668BER-C84670BER-C84671 | Not Available Not Available Not Available Not Available Not Available Not Available Not Available Not Available | STOCK PISTOL GRIP RIGHT HAND RH DX 38/60 XTRA WOOD FINISH CLASS 0 GA 20 SILVER PIGEON S – ONYX PISTOL GRIP STOCK 12 GA. 38/6 DX EXTRA WOOD STOCK PISTOL GRIP 35/55 RIGHT HAND DX WOOD FINISH FOR 686 ONYX CAL 12 STOCK STOCK STOCK STOCK STOCK PISTOL GRIP LEFT HAND LH SX 35/55 GLOSSY FINISH CLASS 1 GA 12 SILVER PIGEON S / ONYX |
| 113 | |||
| 121 | BER-C57255 | Not Available | GOLD TRIGGER BODY 12 GA SILVER PIGEON |
| 122 | BER-C52721 | Not Available | TRIGGER RIGHT RH DX DOUBLE TRIGGER CHROMED GA 12 S685 |
| 123 | |||
| 124 | |||
| 125 | |||
| 126 | |||
| 128 | BER-C54489 | Not Available | TRIGGER SINGLE SELECTIVE MAT CHROME FINISH - SERIE 680 GA 12 |
| 136 | BER-C62040 | Not Available | SWIVEL SET FOR BARREL OVER AND UNDER GA 12 690 |
| 137 | |||
| 138 | BER-C53669 | Not Available | CAP |
| 139 | BER-C51649 | Not Available | STOCK GRIP CAP MAT 687 |
| 140 | BER-C95062 | Not Available | SCREW |
| 1401 |
